Ref. NJA-01Outdoor Ninja Course
Inclined
planes – Outdoor Ninja Course
NJA-01 Inclined planes: modular outdoor Ninja obstacle, balance and coordination, galvanized steel, EN16630 compliant.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 2.2 m
- P 0.9 m
- H 0.4 m
Overview
Inclined planes - Outdoor Ninja Course
NJA-01 Inclined Platforms is a must-have module in the Ninja range.
This outdoor obstacle is based on a series of inclined platforms that invite users to jump from one level to the next. Made of powder-coated galvanized steel and designed to withstand intensive use, this equipment promotes safety thanks to its EN16630 compliance and installation on a compliant shock-absorbing floor. More than just an obstacle, it develops balance, coordination and concentration, while exercising legs and abdominal muscles. Ideal for local authorities, schools, companies or sports halls, this Ninja apparatus attracts young people, teenagers and adults looking for a fun and stimulating sports activity. Its modular structure can be integrated into a complete Ninja sports course or installed as an isolated obstacle. With NJA-01 Inclined planes, every challenge becomes an opportunity to reinforce agility, stability and self-confidence.
Ref. NJA-01 · Outdoor Ninja Course
The figures
Technical specifications
Inclined planesTechnical sheet · dimensions in mm
- Length
- 2,200
- Width
- 906
- Height
- 400

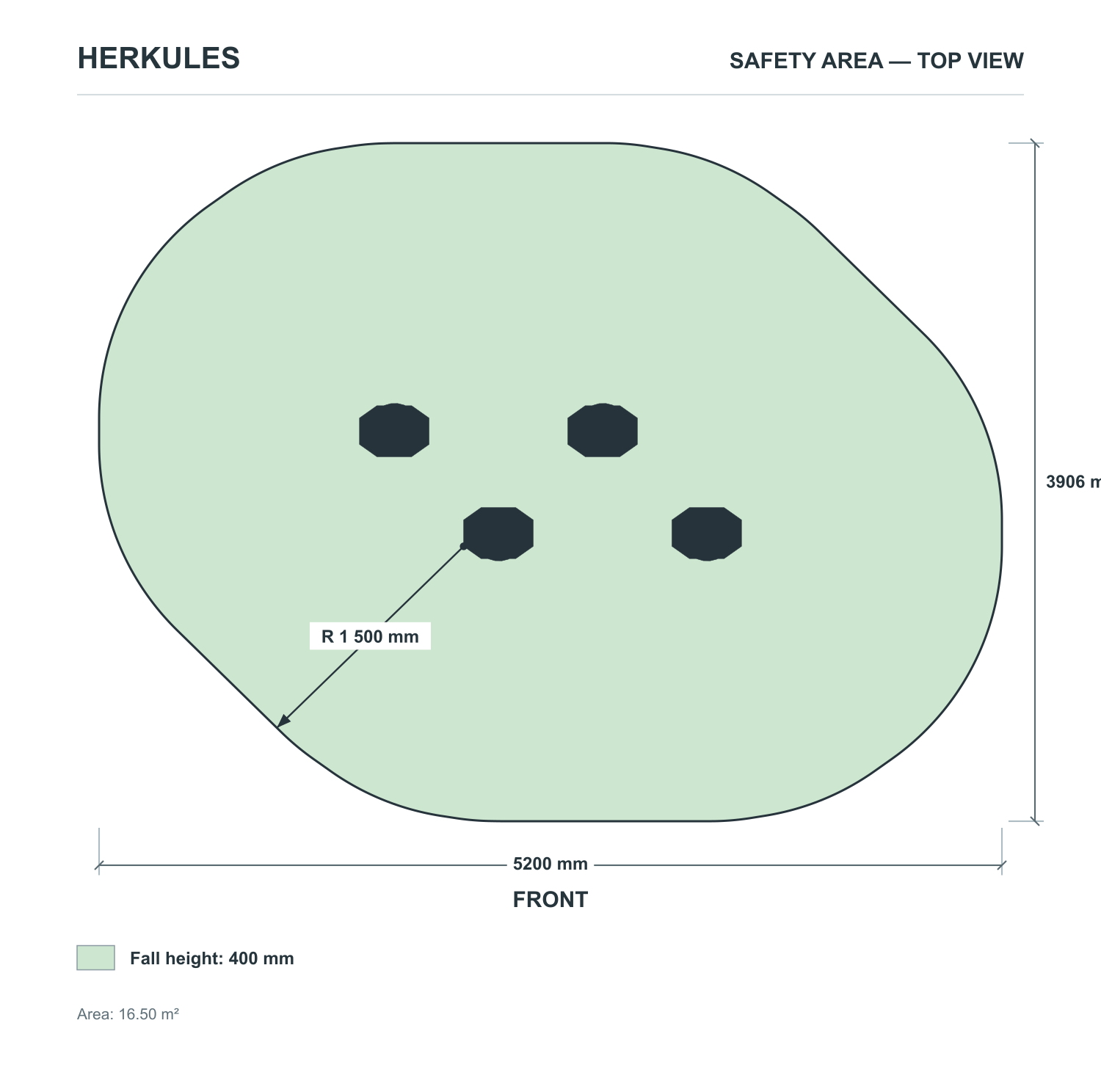

- Safety area
- 3,906 × 5,200 mm · 16.5 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
The Inclined Planes are designed for teenagers and adults, from beginner to advanced levels.
In particular, they enable :
- Perform dynamic climbs on inclined surfaces
- Work on impulse and leg power
- Improve uphill coordination and balance
It's advisable to keep your center of gravity slightly forward and to control your footing to optimize progress. Precise foot placement facilitates crossing.
What it trains
Function
- Developinglower limb strength
- Improved balanceon the move
- Working onsupport coordination
- Strengtheningdynamic sheathing
A dynamic obstacle for outdoor ninja courses
What the standard requires
Safety & use
Safety & use
- Free fall height
- 400 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.3 m³
- Anchoring depth
- 300 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structuredesigned for intensive outdoor use
- Robust sloping surfacefor repeated crossings
- Weatherproof and UV-resistant anti-corrosion treatment
- Stable design with secure anchoring
- Durable equipment for demanding collective environments
For whom, where
Recommended Public & Environment
- Galvanized steel structuredesigned for intensive outdoor use
- Robust sloping surfacefor repeated crossings
- Weatherproof and UV-resistant anti-corrosion treatment
- Stable design with secure anchoring
- Durable equipment for demanding collective environments
What sets it apart
Built to last outdoors
In brief
Why choose Plans Inclinés?
The Inclined Planes - Outdoor Ninja Course provides a physical challenge based on the power and coordination of the supports. The incline forces the user to generate an efficient impulse and stabilize the body during the ascent. Designed by Herkules Fitness, this obstacle guarantees sturdiness, safety and durability for communities wishing to create an attractive ninja course.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Inclined planes
Are inclined planes suitable for beginners?
Yes, the Inclined Planes - Outdoor Ninja Course can be used by beginners, as the climb can be performed at different speeds. Practitioners can start with a controlled progression before increasing the intensity.
Which muscles are mainly used on this obstacle?
This obstacle mainly involves the quadriceps, glutes and calves, while mobilizing the trunk muscles to stabilize the body during ascent.
What's the point of a sloping surface on a ninja course?
An inclined surface forces the user to manage impulse and support, developing power, coordination and motor control.
Can it be integrated into a multi-obstacle course?
Yes, this obstacle fits perfectly between balance, suspension and jumping modules to create a varied and progressive outdoor ninja course.
Can the structure withstand heavy use?
Yes, its galvanized steel structure and reinforced surface ensure excellent resistance to repeated use and outdoor weather conditions.
What kind of maintenance is recommended for a community?
Regular inspection of the fastenings and inclined surface is recommended. Annual preventive maintenance guarantees the safety and longevity of the installation.
Do inclined planes comply with European standards?
Yes, Herkules Fitness Outdoor Ninja Courses comply with European standards for outdoor sports equipment, ensuring safe and reliable use.
