Ref. THJ-B04Classic fitness equipment
Outdoor
Elliptical – Fitness equipment
Outdoor elliptical for outdoor fitness. Gentle cardio, overall strengthening and fluid movements. Sturdy, safe equipment.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.5 m
- P 0.6 m
- H 1.7 m
Overview
Outdoor Elliptical
The outdoor elliptical trainer is designed to provide a complete cardio workoutIt's fluid and gentle on the joints. It allows you to train your whole body, while limiting impact, making it ideal for regular outdoor use.
Accessible to all fitness levels, it fits perfectly into any outdoor fitness areasfitness fitness trails and open-access sports areas.
Ref. THJ-B04 · Classic fitness equipment
The figures
Technical specifications
Outdoor EllipticalTechnical sheet · dimensions in mm
- Length
- 1,528
- Width
- 633
- Height
- 1,652

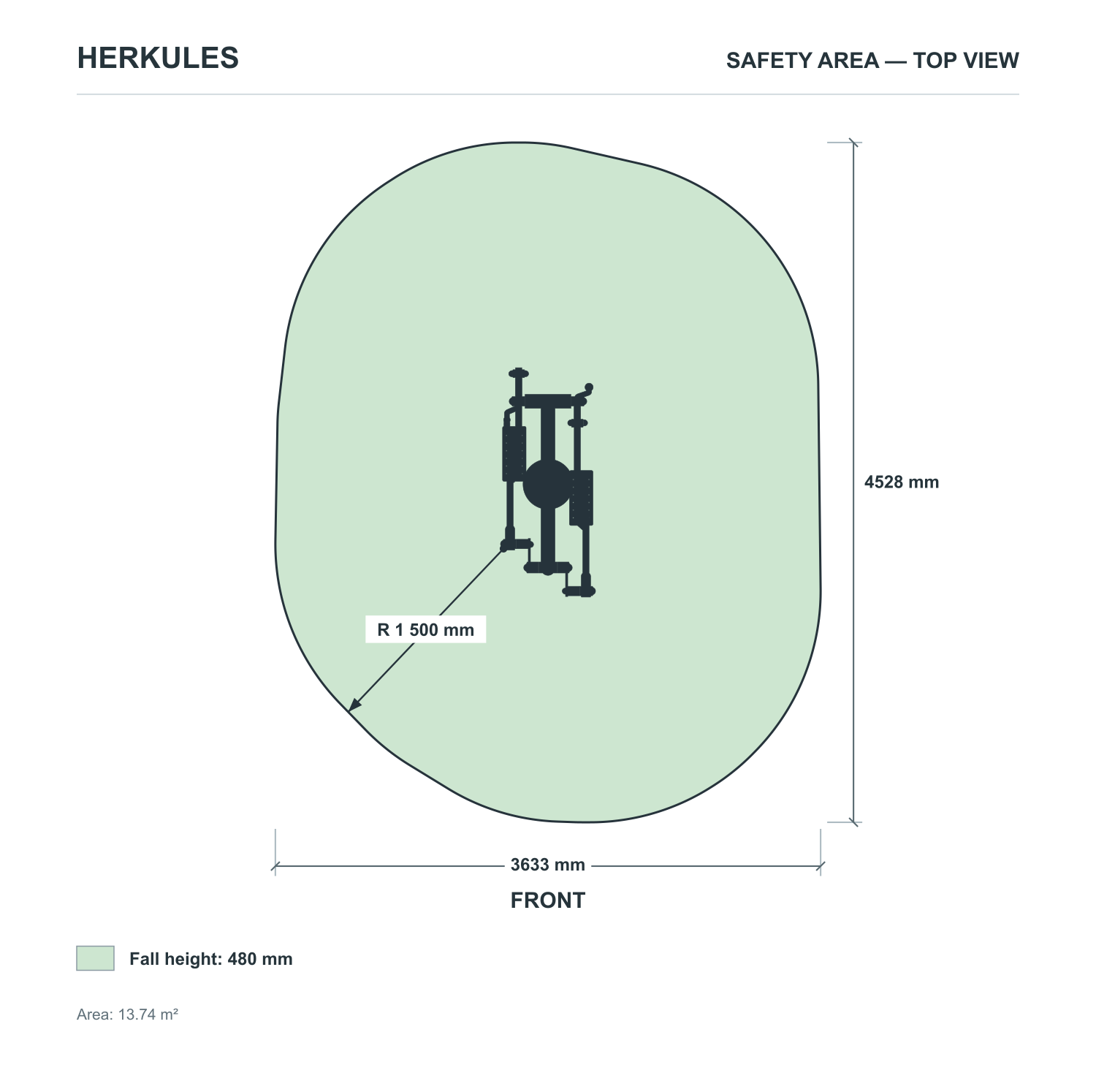

- Safety area
- 3,633 × 4,528 mm · 13.74 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
- Perform a fluid elliptical motion, synchronizing arms and
legs.
- Keep your back straight and your breathing regular.
- Adapt the intensity by modulating the speed and amplitude of the
movement.
Coach's tip: for an effective, long-lasting cardio workout, choose a regular cadence rather than
speed.
What it trains
Function
- Simultaneous stimulation of upper and lower body
- Strengthening of legs, arms, shoulders and core
- Improvedendurance, coordination and mobility
- Fluid, non-impact movement, suitable for joints
The elliptical movement reproduces a guided, shock-free run,
promoting comfortable, safe exercise.
What the standard requires
Safety & use
Safety & use
- Free fall height
- 480 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.15 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- Pre-assembled
Built to last outdoors
Design & materials
- Anti-corrosion treatment against moisture and weather
- Ergonomic handles for a comfortable, secure grip
- Non-slip platforms for optimum stability
The elliptical is designed to withstand repeated use, in
any season.
For whom, where
Audience & Recommended Environments
- Communities and municipalities
- Seniors' residences and health trails
- Corporate wellness areas
- Open-access sports areas
Suitable for beginners as well as those looking for a gentle cardio workout
.
What sets it apart
Built to last outdoors
In brief
Why choose an outdoor elliptical?
- Promotes regular physical activity
- Accessible to a wide audience, including seniors
- Perfect complement to an outdoor fitness area
- Encourages safe, independent exercise
The elliptical is a must-have for democratizing cardio at
.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Outdoor Elliptical
Who is the outdoor elliptical suitable for?
What muscles does it target?
Can it be used outdoors all year round?
Is it suitable for local authorities?
Does the elliptical conform to standards?
with EN 16630, guaranteeing safety and durability in the open air.
Does it require adjustment before use?
Is it designed for intensive use in public spaces?
