Ref. HER-10-2Street Workout Equipement
Single
bar – Street Workout stations
EN16630-compliant single bar for street workouts, perfect for outdoor pull-ups and dips in sports parks.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.8 m
- P 0.3 m
- H 2.4 m
Overview

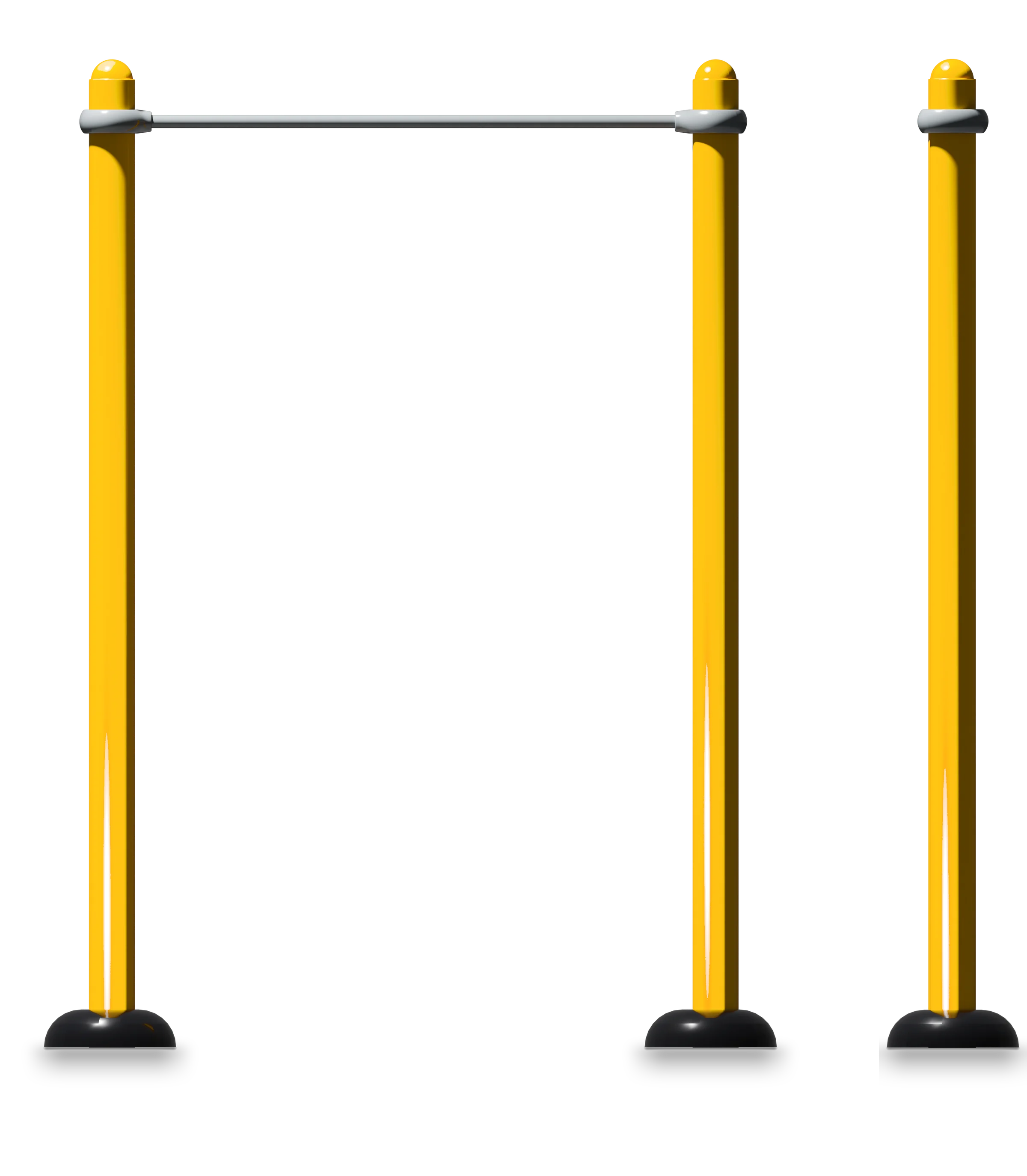

Single bar - Street Workout stations
The single bar from the Street Workout range is an essential piece of equipment for a complete outdoor street workout.
It offers a wide choice of exercises for working numerous upper-body muscle groups. Designed specifically for outdoor street workout, this bar enables you to perform pull-ups, jumps, pull-ups, leg lifts and much more. It's ideal for those looking to improve strength, mobility and coordination, while enjoying the benefits of outdoor training.
Ref. HER-10-2 · Street Workout Equipement
The figures
Technical specifications
Single barTechnical sheet · dimensions in mm
- Length
- 1,803
- Width
- 325
- Height
- 2,431
- Safety area
- 3,325 × 4,803 mm · 13.6 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 1,200 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.3 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & Materials
- Hot-dip galvanized steel:The single bar structure is manufactured from high-grade galvanized steel, providing exceptional resistance to rust, UV exposure and harsh outdoor conditions.
- Precision-welded frame:Each joint is reinforced through professional welding techniques, ensuring long-term structural integrity even under repeated dynamic loads.
- Ergonomic pull-up bar:The horizontal bar is sized and positioned to accommodate a wide range of grip widths and exercise variations, supporting both beginners and advanced athletes.
- A durable powder-coated finish adds an additional layer of corrosion protection while maintaining a clean, professional appearance in public spaces.
- Built to withstand intensive daily use in outdoor environments, this equipment is engineered for longevity with minimal maintenance requirements.
For whom, where
Recommended audiences & environments
- Public parks and green spaces:Ideal for municipal installations where residents of all fitness levels gather for outdoor physical activity.
- School and university campuses:Encourages students to engage in bodyweight training during breaks, promoting an active lifestyle from an early age.
- Residential estates and private gardens:Its compact footprint makes it perfectly suited for smaller outdoor areas where space is at a premium.
- Outdoor fitness zones and street workout areas:A natural fit for dedicated calisthenics spaces, complementing other outdoor fitness equipment installations.
Whether installed in a busy urban park or a quiet residential garden, the Single Bar adapts seamlessly to its environment. It serves a broad audience — from young beginners discovering calisthenics to seasoned athletes refining their pull-up technique — making it a versatile and inclusive addition to any outdoor fitness space.
What sets it apart
Built to last outdoors
In brief
Why choose the Single Bar?
The Single Bar is the go-to solution for facilities looking to offer a simple yet highly effective upper-body training station outdoors. Its straightforward design maximises exercise versatility while keeping the installation footprint minimal, making it accessible to athletes at every level. From pull-ups to leg raises, it delivers measurable strength and mobility gains with no electricity or complex maintenance required. Designed by Herkules Fitness, it guarantees robust construction, long-term durability, and compliance with outdoor fitness standards.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Single bar
Which muscle groups does the Single Bar target?
The Single Bar primarily targets the back (latissimus dorsi, rhomboids), biceps, and shoulders through pull-up variations. Exercises such as leg raises and knee tucks also engage the core muscles significantly. This makes it a comprehensive upper-body and core training station within a single compact piece of equipment.
Is the Single Bar suitable for beginners?
Yes, the Single Bar is accessible to users of all fitness levels. Beginners can start with assisted pull-ups or jumping pull-ups to build initial strength, while more advanced athletes can progress to muscle-ups or slow negatives. The straightforward design removes barriers to entry and encourages gradual, safe progression.
What type of ground installation is required for the Single Bar?
The Single Bar is designed for permanent in-ground installation, typically set in concrete for maximum stability. The posts should be anchored to the recommended depth specified in the installation guide to ensure the structure can safely handle dynamic loads during intensive use. Professional installation by qualified personnel is strongly recommended.
Does the Single Bar meet outdoor fitness safety certifications?
Herkules Fitness designs its street workout equipment in compliance with applicable European standards for outdoor fitness equipment, including EN 16630. This ensures the Single Bar meets established requirements for structural integrity, safety, and suitability for use in public spaces. Always refer to the product documentation for full certification details.
What maintenance does the Single Bar require over time?
Thanks to its hot-dip galvanized steel construction, the Single Bar requires very little routine maintenance. Periodic visual inspections are recommended to check for any signs of wear on welds, fixings, or surface coating. Cleaning with water and a mild detergent is sufficient to keep the equipment in optimal condition throughout the year.
What is the maximum user weight capacity of the Single Bar?
The Single Bar is engineered to support the static and dynamic loads generated during typical street workout exercises. For precise load capacity figures and dimensional specifications, please refer to the official product data sheet or contact the Herkules Fitness team directly, as values may vary depending on installation conditions and configuration.
