Ref. USB-03USB Rechargeable Fitness Equipment
Reel – Fitness equipment with USB recharge
Reel - USB recharging fitness equipment for upper body cardio, mobility and energy sustainable, robust and inclusive for outdoor with Herkules
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.4 m
- P 0.6 m
- H 1.3 m
Overview
Reel - Fitness equipment with USB recharge
Moulinet is a USB-rechargeable outdoor fitness machine dedicated to working the upper limbs through circular arm rotation.
Its biomechanics are based on fluid, continuous movement of the shoulders, elbows and wrists, promoting both upper-body cardio and joint mobility. The energy produced by rotation is converted into electricity to power an integrated USB socket, transforming effort into a useful resource. This device combines training, gentle rehabilitation and a sustainable approach.
Ref. USB-03 · USB Rechargeable Fitness Equipment
The figures
Technical specifications
ReelTechnical sheet · dimensions in mm
- Length
- 1,445
- Width
- 649
- Height
- 1,275

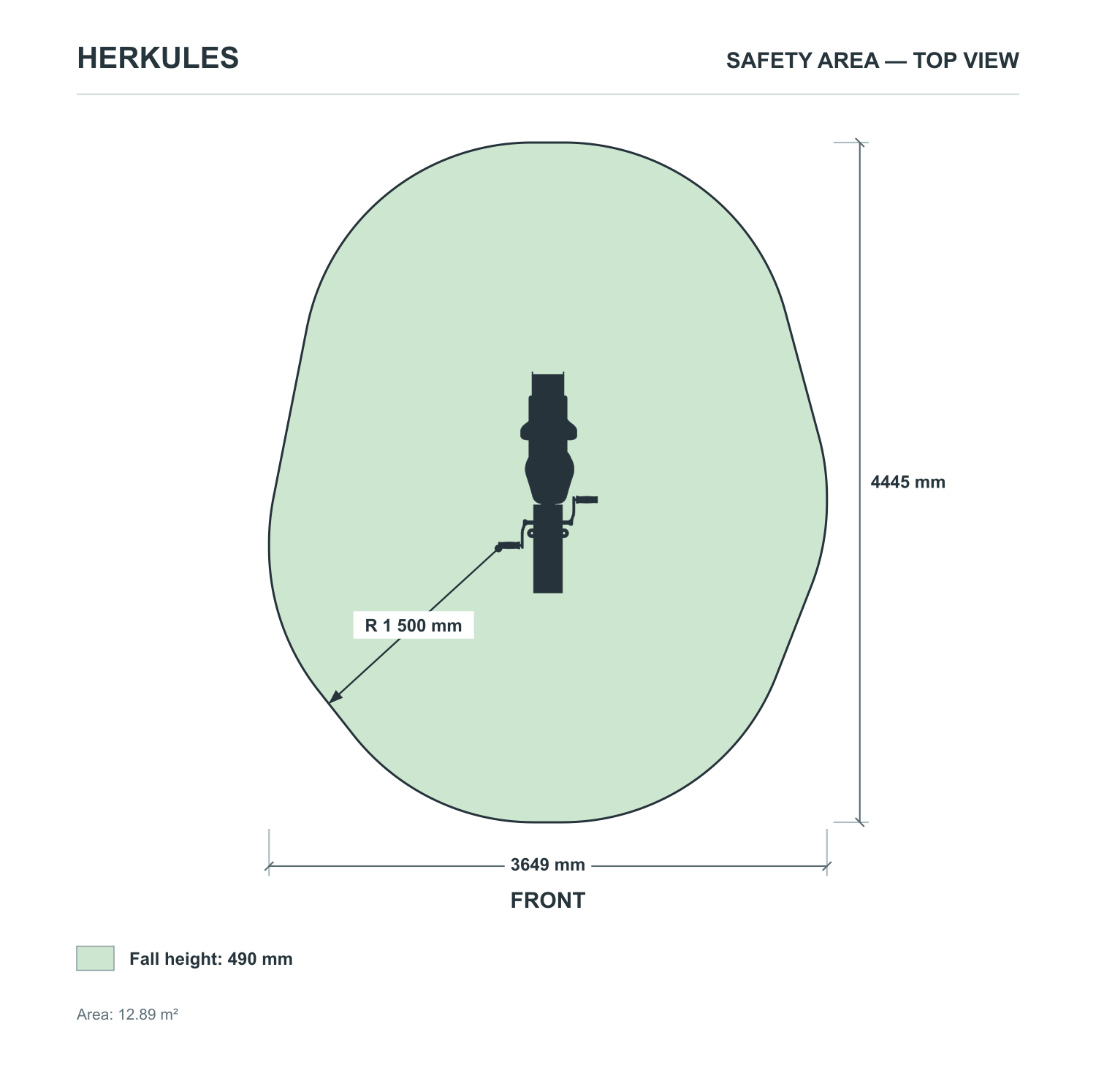

- Safety area
- 3,649 × 4,445 mm · 12.89 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
Le Moulinet is designed to be accessible to all, including people with reduced mobility.
It enables:
- Continuous arm rotations with adjustable intensity
- Generating energy to recharge a device via USB
- Improve upper body endurance and coordination
It's advisable to maintain an upright posture and perform regular, smooth rotations to protect the shoulders. Quality of execution always takes precedence over quantity.
What it trains
Function
- Upper-body cardiowith continuous arm movement
- Autonomous power generationvia mechanical rotation
- Joint mobilityof shoulders, elbows and wrists
- Functional strengthening ofarms and trunk
An inclusive device that makes effort worthwhile and motivating
What the standard requires
Safety & use
Safety & use
- Free fall height
- 490 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.432 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Stainless steel structurefor intensive outdoor use
- Integrated power generation systemwith secure USB output
- High-performance corrosion protectionagainst UV and weathering
- Sturdy cranks with smooth, ergonomic rotation
- Durable equipment combining technology and strength
For whom, where
Recommended Public & Environment
- Connected outdoor fitness areas
- Urban parks and innovative public spaces
- Communities, campuses and eco-neighborhoods
- PRM areas and inclusive health trails
A multi-purpose facility that promotes accessible and responsible physical activity.
What sets it apart
Built to last outdoors
In brief
Why choose Moulinet?
The USB Charging Reel is a strategic device for activating upper-body cardio and mobility, often neglected outdoors. It promotes inclusion, gentle re-education and motivation through the production of useful energy. Designed in stainless steel by Herkules Fitness, it guarantees robustness, safety and longevity for modern outdoor settings.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Reel
Which muscles does the USB reel use?
The reel mainly involves the shoulders (deltoids), biceps, triceps and forearms during rotation. The trunk muscles are also involved in postural stabilization. This Herkules Fitness machine provides a cardio-functional workout for the upper body, while improving muscular coordination and endurance.
Is the USB reel an effective cardio device?
Yes, it's an excellent cardio tool for the upper body. A sustained rhythm of rotation increases heart rate and energy production. It's particularly suitable for people who can't use their legs intensely, while remaining fun and motivating.
How does the reel's built-in USB charging system work?
USB charging works via a generator integrated into the rotation mechanism. The mechanical energy produced by the arms is converted into electricity and delivered via a protected USB plug. The system is autonomous, with no mains connection, and safe for public outdoor use.
Is this machine accessible to people with reduced mobility?
Yes, this unit is particularly suitable for people with reduced mobility. It can be used in standing or seated position, including in a wheelchair. Work is concentrated on the upper limbs, making it an inclusive machine, ideal for accessible fitness trails.
What maintenance is required for the Herkules Fitness Reel?
The USB Reel requires very little maintenance. Regular cleaning of the cranks and periodic checking of the fasteners and USB module are all that's required. Resistant materials and protected components ensure excellent durability, even in demanding outdoor conditions.
Is the USB plug safe for public use?
Yes, the Reel's USB plug is designed for safe public use. It delivers a voltage suitable for small electronic devices, and is protected against humidity, power surges and inappropriate use. The system is fully autonomous and complies with safety requirements.
Does the Herkules Fitness USB Reel comply with safety standards for the public sector?
Yes, the Herkules Fitness USB Charging Reel complies with European standards for outdoor fitness equipment. Its sturdy structure, ergonomic design and secure electrical components guarantee reliable, open-access use for the community.
