Ref. HER-19Street Workout Equipement
Outdoor monkey
bridge – Street Workout
Outdoor monkey bridge for agility, coordination and upper body strength. Sturdy, safe street workout equipment for communities
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 2.4 m
- P 1.8 m
- H 2.6 m
Overview

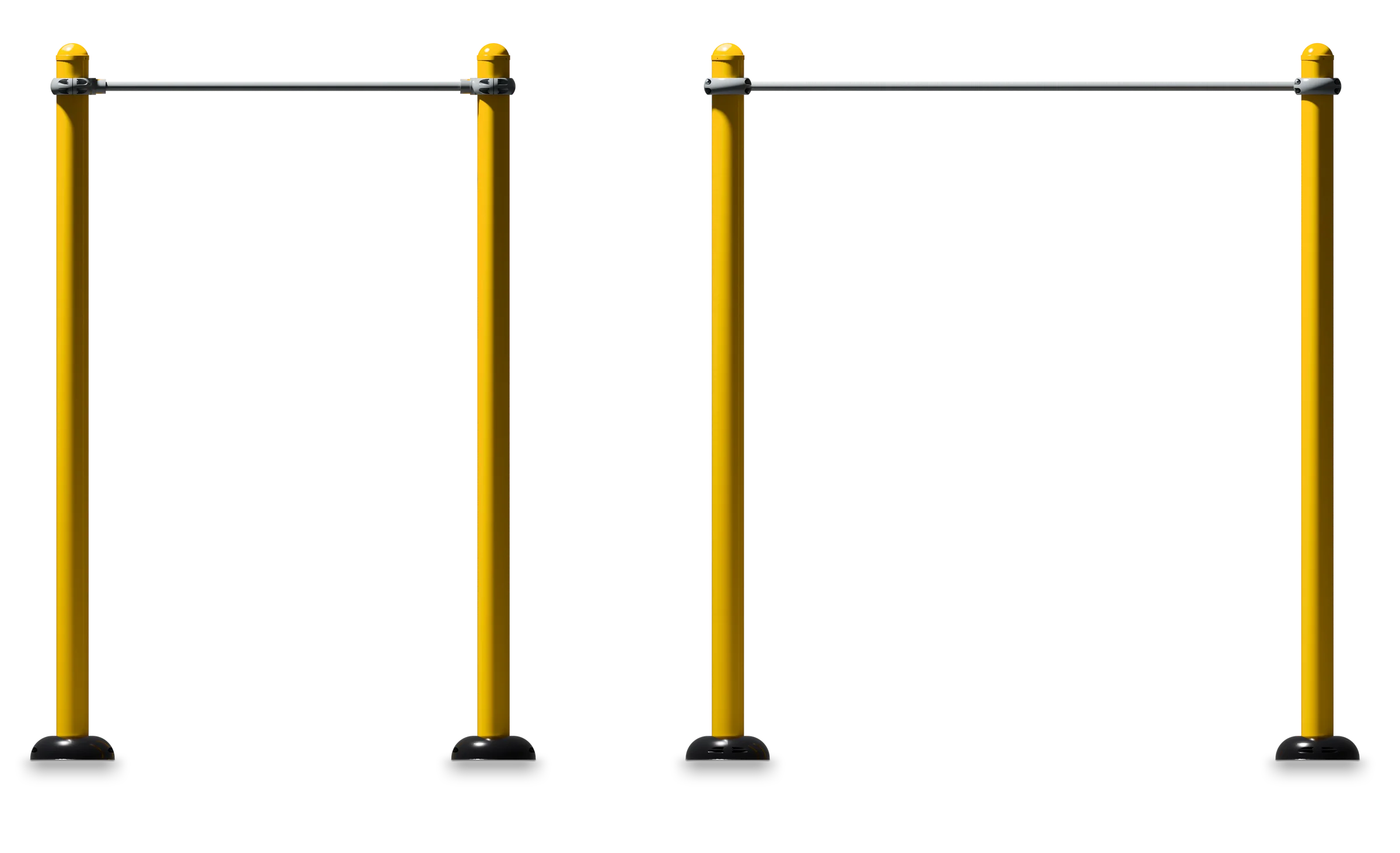

Outdoor monkey bridge - Street Workout
The outdoor monkey bridge is an iconic piece of street workout and ninja course equipment, designed to develop strength, coordination and agility. Moving from bar to bar, the user intensely trains upper-body muscles and improves proprioception, all while having fun in a safe outdoor environment.
Ideal for street workout areas, urban parks or fitness trails, the monkey bridge offers a complete, progressive workout, suitable for beginners and advanced athletes alike.
Ref. HER-19 · Street Workout Equipement
The figures
Technical specifications
Outdoor monkey bridgeTechnical sheet · dimensions in mm
- Length
- 2,400
- Width
- 1,801
- Height
- 2,554

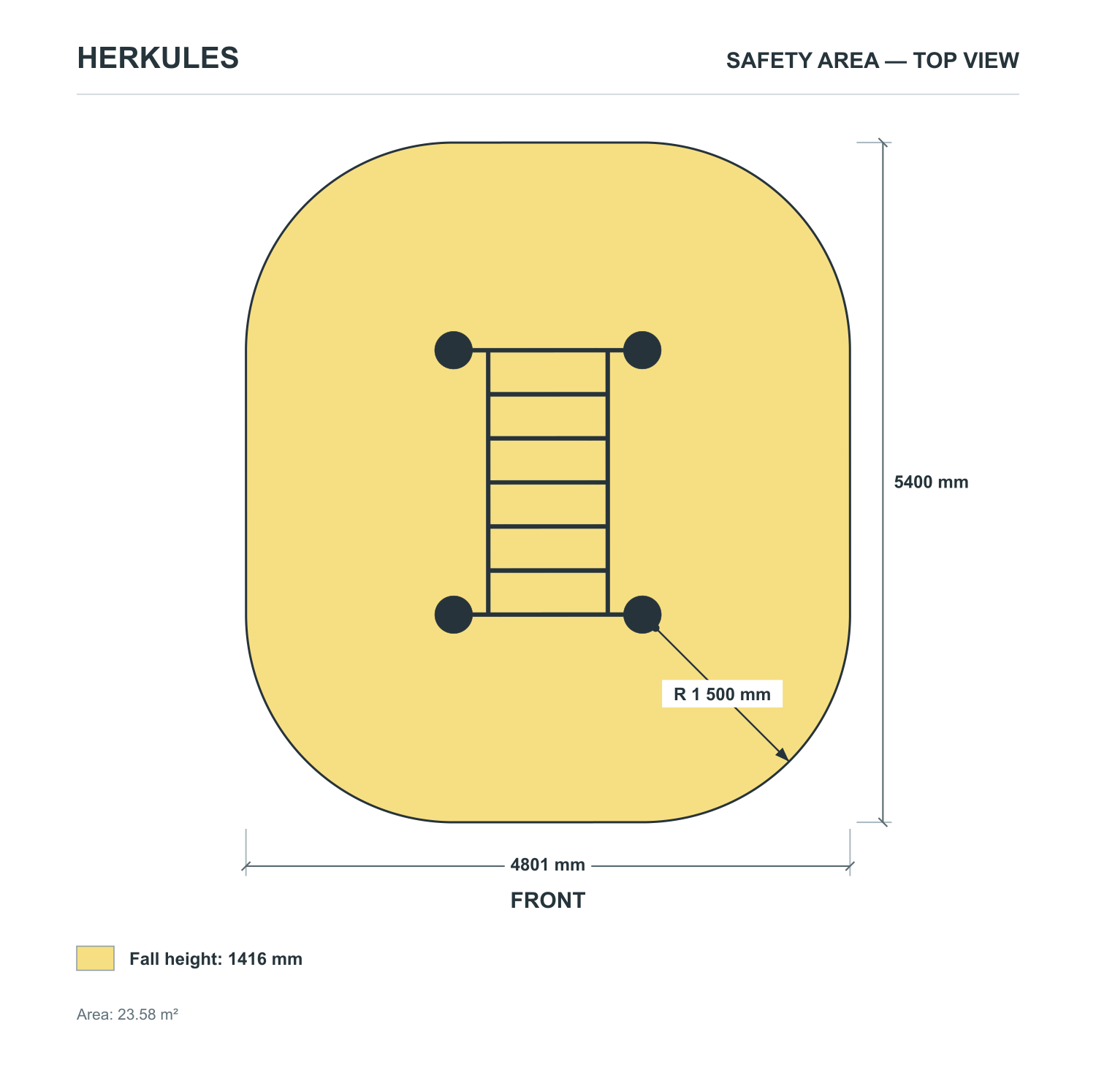

- Safety area
- 5,400 × 4,801 mm · 23.58 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
- Grasp the first bar with both hands and suspend yourself.
- Move forward, grasping each bridge bar in turn.
- Keep the body stable and control every movement to work on strength and balance.
- Adapt speed and rhythm to your level.
Coach's tip: use smooth, regular movements to maximize muscular engagement and protect joints.
What it trains
Function
- Strengthening arms, shoulders and back
- Work on coordination and proprioception
- Developing agility and functional strength
- Support for street workouts and calisthenics
- Promotes mobility and body control
What the standard requires
Safety & use
Safety & use
- Free fall height
- 1,416 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.6 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structure, suitable for outdoor use
- Anti-slip barsfor a secure grip
- Anti-corrosion treatmentto withstand the elements
- Floor-mountedfor stability and safety
The monkey bridge is designed to last over time and to withstand collective use in public spaces.
For whom, where
Recommended Public & Environment
- Street workoutareas and callisthenics parks
- Urban parks and recreational areas
- Communities and municipalities
- Ninja course and outdoor fitness areas
- Free access to sports facilities
What sets it apart
Built to last outdoors
In brief
Why choose Echelle Horizontale?
- Develops upper body strength and endurance
- Improves agility, coordination and mobility
- Suitable for all levels, from beginners to advanced
- Robust equipment for heavy-duty collective use
- The perfect complement to a street workout station or fitness trail
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Outdoor monkey bridge
What is the purpose of an outdoor monkey bridge?
Is it suitable for beginners?
Can it be used outdoors all year round?
Where can this equipment be installed?
Can the structure withstand high visitor numbers?
Yes, its sturdy galvanized steel construction and anti-corrosion treatment ensure excellent resistance to repeated use and outdoor weather conditions.
What kind of maintenance is recommended for a community?
Regular inspection of fixings and bars is recommended. Annual preventive maintenance guarantees safety, compliance and longevity.
comply with European standards?
