Ref. THJ-C04Outdoor Fitness Stations
4-Sided
Pylons – Outdoor Fitness Stations
Central 4-Sided Pylon, designed to accommodate multiple outdoor fitness equipment and optimize space in sports areas.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
Product view
- L 0.6 m
- P 0.6 m
- H 1.9 m
Overview

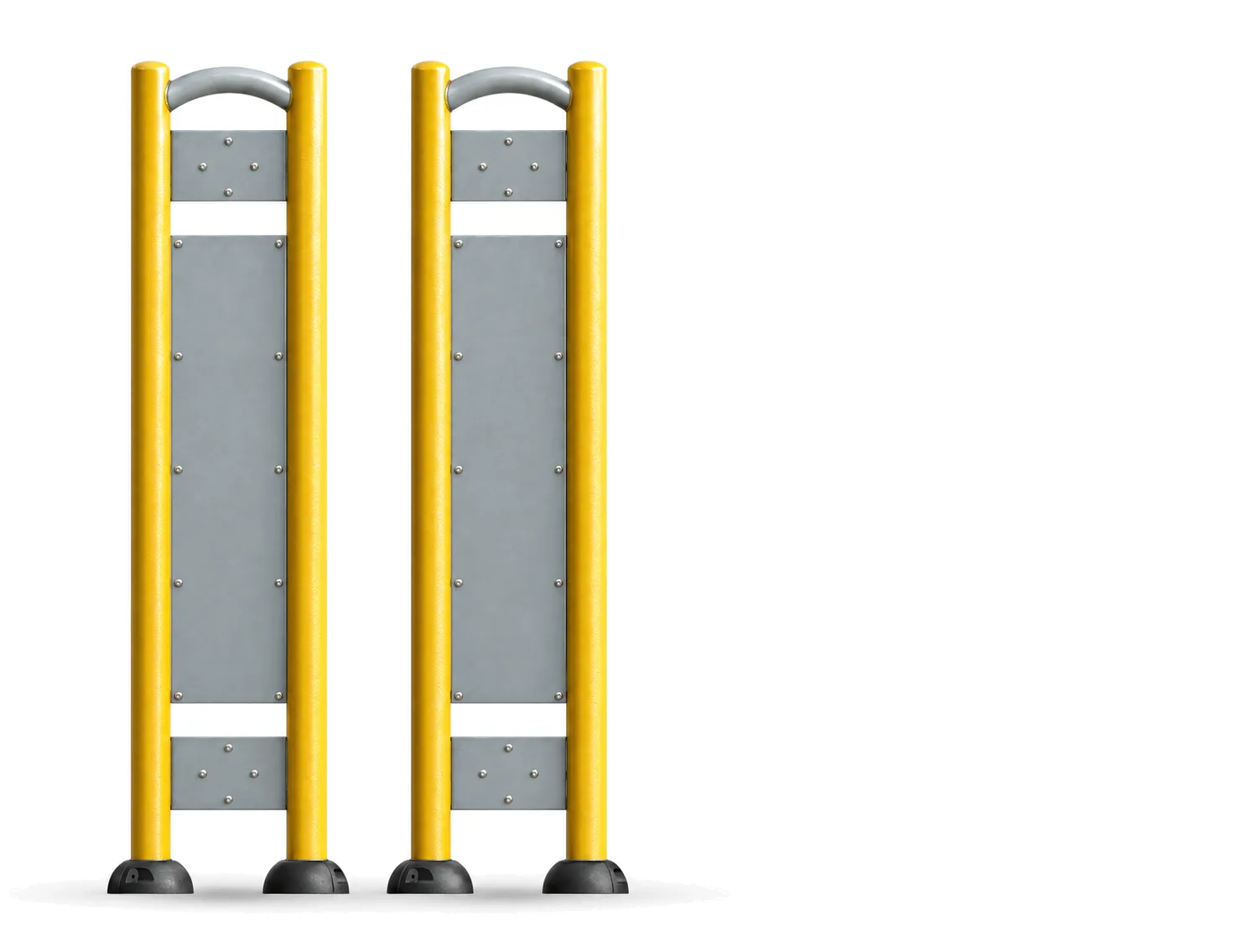

4-Sided Pylons - Outdoor Fitness Stations
The 4-Sided Pylon is the central element of your Outdoor Fitness Stations: it serves as the main structure to create a multi-activity apparatus, accessible and easy to read for all users. Designed to accommodate equipment from the fitness mix range, it allows you to create a 4-sided configuration, ideal for optimizing space and streamlining practice in a sports area.
Thanks to its top and bottom mountings, this central pylon facilitates the integration of different drive modules and ensures consistent installation in a dedicated outdoor area. It also supports instruction panels in 3 languages, for intuitive, safe use on sites with a varied public.
Ref. THJ-C04 · Outdoor Fitness Stations
The figures

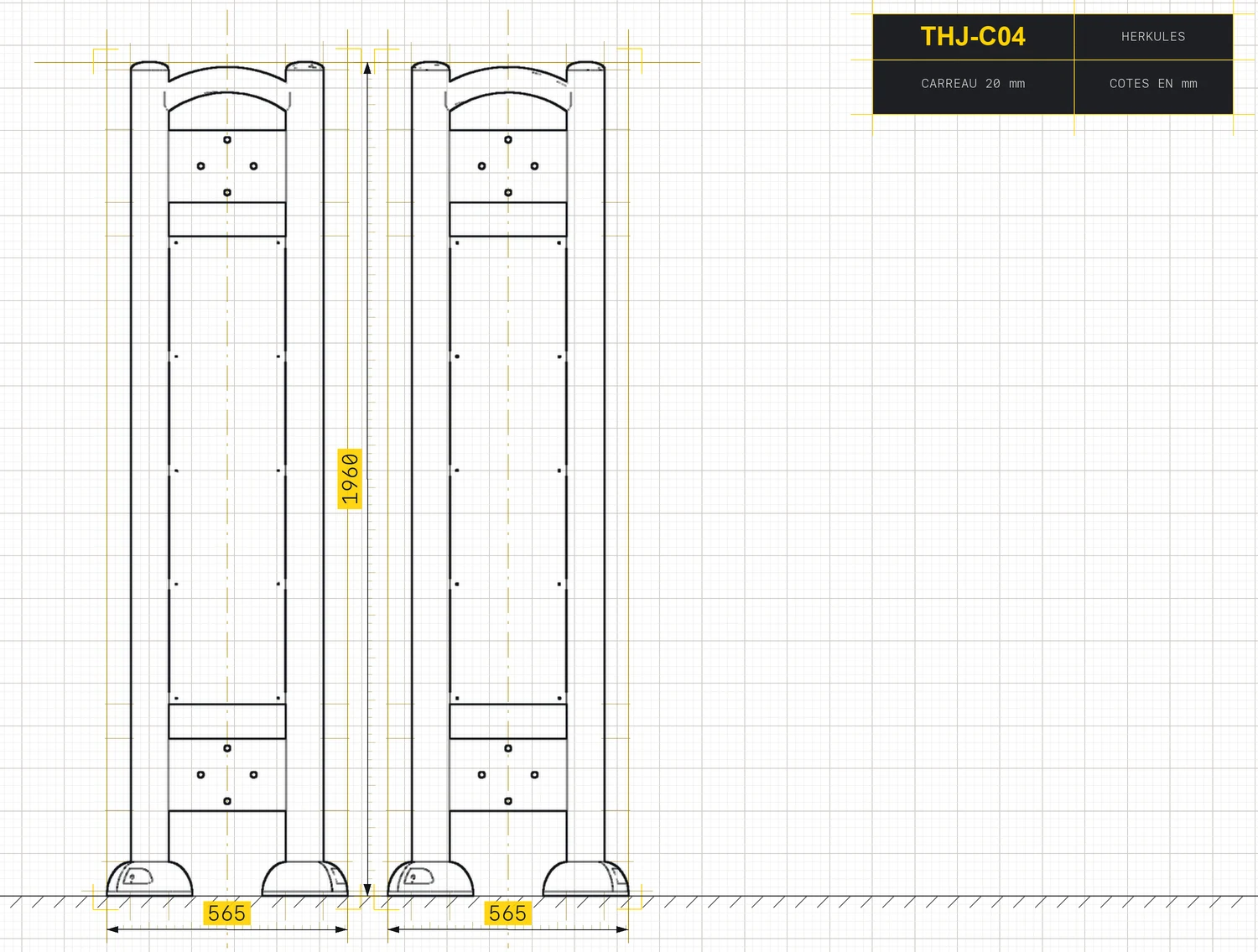

Technical specifications
Footprint
- Length
- 570 mm
- Width
- 570 mm
- Height
- 1,940 mm
Material & compliance
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
- Creation of a 4-sided apparatus on a fitness area or dedicated outdoor zone
- Installation at the heart of an outdoor weight station to structure the training area
- Sports facilities for local authorities: parks, city stadiums, fitness trails
- Equipment for tourist sites: campsites, leisure centres, hotels, vacation homes
- Integration into school and university environments: schools, colleges, high schools
- Corporate deployment to encourage physical activity and well-being outdoors
What it trains
Function
- Serve as a central support for 4-sided mounting of outdoor fitness equipment
- Optimize footprint by grouping modules around a single point
- Facilitate the organization of a multi-user station to limit waiting times and improve traffic flow
- Improve understanding with instruction panels in 3 languages
- Enhancing the coherence and legibility of an open-access sports area
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.55 m³
- Anchoring depth
- 600 mm
- Fixing
- Set in concrete
Built to last outdoors
Design & materials
- Hot-dip galvanized steel structurein-depth anti-corrosion treatment for maximum resistance to weather, UV and outdoor temperature variations.
- Reinforced top and bottom anchorstop and bottom anchors ensure optimum stability when assembling fitness mix modules around the central tower.
- Symmetrical 4-sided geometrysection designed to accommodate equipment on each side, guaranteeing balanced load distribution and 360° accessibility around the structure.
- Scratch- and graffiti-resistant thermosetting epoxy finish for easy daily maintenance in busy public spaces.
- Durability designed for intensive community use: all components are selected to guarantee optimum longevity without the need for heavy maintenance.
For whom, where
Recommended audience & environment
- Municipal parks and urban green spaces looking to structure a self-service fitness area around a compact, multi-activity facility.
- City stadiums, fitness trails and open-air sports areas, where optimizing the footprint is a priority for local authorities.
- Schools, universities and companies wishing to offer a training area accessible to all levels, without compulsory supervision.
- Tourist and leisure sites - campsites, leisure resorts, vacation homes - in search of robust, attractive sports facilities for a variety of audiences.
The Pylône 4 Faces is aimed at any public or private space manager wishing to deploy a coherent, functional outdoor fitness station that can be immediately used by users of all ages and sporting levels.
What sets it apart
Built to last outdoors
In brief
Why choose the 4-Sided Pylon?
The 4-Sided Pylon is the ideal solution for structuring an outdoor fitness area without sacrificing available space: by grouping several pieces of equipment around a single central point, it facilitates exercise and reduces waiting times. It is equally suited to local authorities, tourist sites and sports facilities. Designed by Herkules Fitness, it guarantees sturdiness, modularity and legibility for all users.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : 4-Sided Pylons
What equipment can be mounted on a 4-Sided Pylon?
The Pylône 4 Faces is compatible with modules from the Herkules Fitness mix fitness range. Each face can accommodate a different piece of equipment - pull-up bar, push-up station, exercise panel or other equipment - to create a multi-activity station tailored to the needs of the site.
What type of soil is needed to install the central tower?
The pylon is designed for installation by grouting into a concrete slab, in accordance with current anchoring recommendations for outdoor sports equipment. Stable, level ground is essential to guarantee the safety of the structure and the durability of the joints, particularly in the event of intensive use.
Does the Pylône 4 Faces comply with European safety standards?
Yes, Herkules Fitness outdoor fitness equipment is designed to comply with EN 16630 standards for permanently installed outdoor fitness equipment. This compliance guarantees user safety and facilitates the purchasing process for public authorities.
How many users can work around the tower at the same time?
Thanks to its 4-sided configuration, the pylon allows several users to work out on different apparatus at the same time, reducing waiting times on the sports area. The exact number of users depends on the modules installed on each side and the space available around the structure.
What are the maintenance requirements for this type of outdoor structure?
Maintenance of the 4-Sided Pylon is limited thanks to the anti-corrosion treatment of the galvanized steel and the resistant epoxy finish. Regular visual inspection of fasteners and assembled modules is recommended, as is periodic cleaning with clear water to preserve the appearance and legibility of the instruction panels.
Are instruction panels available in several languages?
Yes, the exercise panels integrated into Pylônes 4 Faces are available in 3 languages, making them easy to understand for all audiences, including tourists and non-French-speaking users. This feature is particularly appreciated on sites with international traffic.
