Ref. THJ-D02Outdoor Fitness Stations
Pull – Outdoor Fitness Stations
Outdoor pullover: durable galvanized steel fitness equipment meeting EN16630 standards. Ideal for communities and parks, perfect for outdoor weight training.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 2

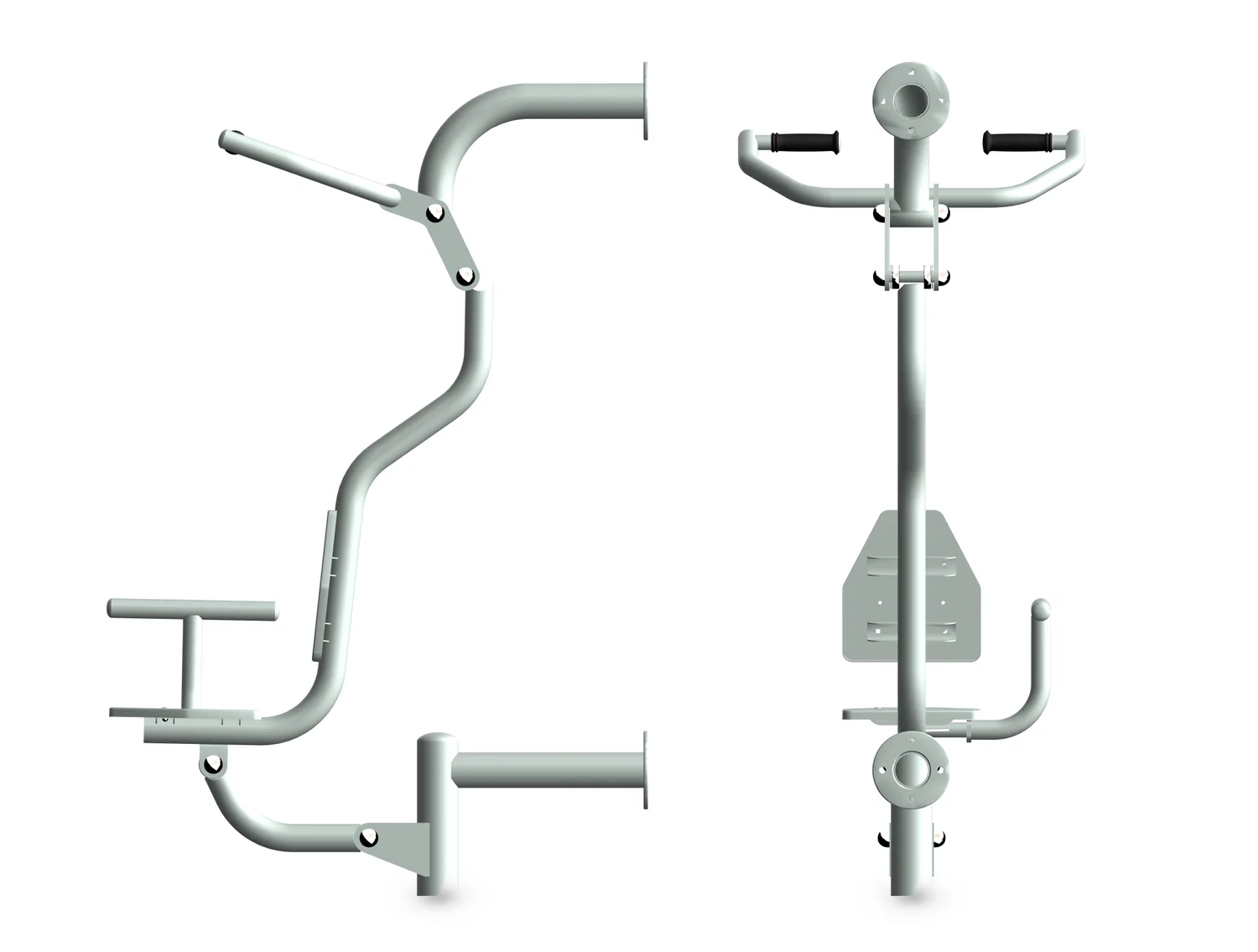

Product view
- L 2.3 m
- P 0.7 m
- H 2.0 m
Overview
Pull - Outdoor Fitness Stations
The Pull from the Outdoor Fitness Stations range is ideal outdoor fitness equipment for strengthening the upper body, especially the back, biceps and shoulders. It's designed to withstand the elements and provide a safe, effective training experience for all users. Suitable for beginners and experienced athletes alike, it can be installed in parks, public spaces or on outdoor fitness trails.
Ref. THJ-D02 · Outdoor Fitness Stations
The figures

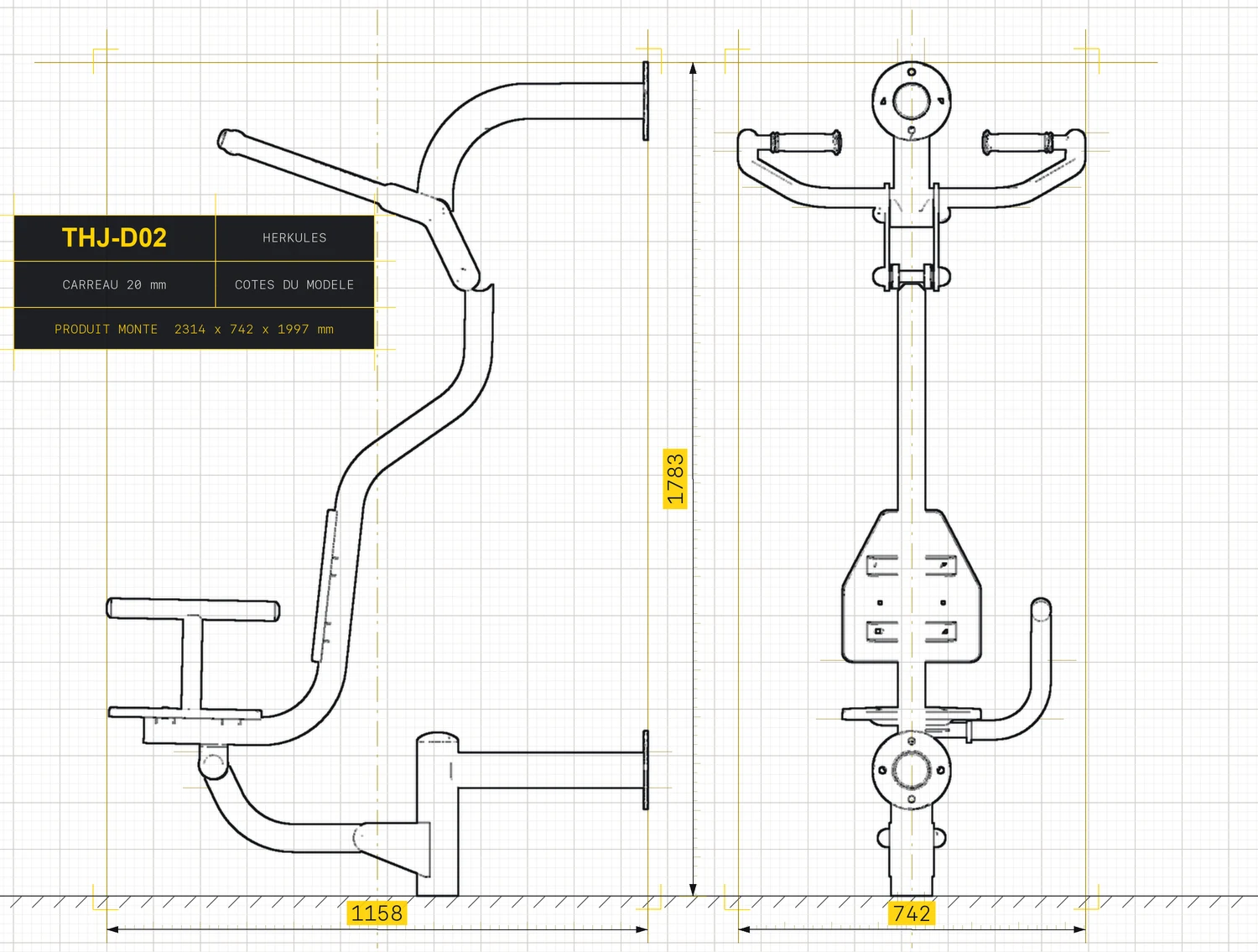

Technical specifications
Footprint
- Length
- 2,314 mm
- Width
- 742 mm
- Height
- 1,997 mm
- Safety area
- 5,314 × 3,742 mm (19.9 m²)
Material & compliance
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 430 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 2
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.28 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & Materials
- Galvanized steel structure:The Pull is built from hot-dip galvanized steel, offering exceptional resistance to rust, UV exposure, and harsh weather conditions year-round.
- Ergonomic handles:The grips are designed to fit naturally in the hand, reducing wrist strain and ensuring a safe, comfortable pulling motion for users of all sizes.
- Anti-corrosion coating:A powder-coated finish provides an additional layer of protection against moisture and abrasion, maintaining the equipment's appearance over time.
- Non-slip foot pads and reinforced anchor points ensure maximum stability during use, even on uneven surfaces.
- Every component is selected for long-term outdoor durability, minimizing maintenance needs and ensuring a reliable lifespan in public environments.
For whom, where
Recommended audiences & environments
- Municipal parks and green spaces looking to offer free, accessible fitness equipment to residents of all ages.
- Outdoor fitness trails and parcours circuits where users perform a sequence of bodyweight exercises in a natural setting.
- School grounds and university campuses seeking safe upper-body training equipment for students and young adults.
- Sports complexes and recreational areas aiming to complement indoor gym facilities with open-air alternatives.
The Pull - Outdoor Fitness Station adapts seamlessly to a wide range of public and semi-public environments. Whether integrated into a dedicated outdoor fitness station circuit or installed as a standalone unit, it provides communities with a durable, inclusive solution for upper-body strength training in the open air.
What sets it apart
Built to last outdoors
In brief
Why choose the Pull?
The Pull targets the back, biceps, and shoulders with a controlled lever movement that suits both beginners and seasoned athletes. Its robust construction makes it perfectly suited for high-traffic public spaces where reliability and safety are non-negotiable. Suitable for parks, fitness trails, and community sports areas, it encourages outdoor physical activity for all. Designed by Herkules Fitness, it guarantees lasting performance, weather resistance, and compliance with the highest standards for public fitness equipment.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Pull
Which muscles does the Pull outdoor fitness station primarily target?
The Pull is specifically designed to strengthen the upper body, focusing on the latissimus dorsi (back), biceps, and shoulder muscles. Regular use also engages the core as a stabilizing group, making it a comprehensive upper-body exercise for outdoor training.
Is the Pull suitable for users with no prior fitness experience?
Yes, the Pull is designed to accommodate all fitness levels, from complete beginners to experienced athletes. The lever movement is intuitive and easy to learn, and the controlled range of motion reduces the risk of injury, making it a safe first step into outdoor strength training.
What type of ground surface is required for installing the Pull?
The Pull can be installed on most solid surfaces, including concrete, compacted earth, and asphalt. It is anchored via ground bolts or a concrete footing, depending on the substrate. Herkules Fitness provides detailed installation guidelines to ensure stability and safety on any terrain.
Does the Pull comply with European safety standards for outdoor fitness equipment?
Yes, the Pull is designed in compliance with EN 16630, the European standard governing permanently installed outdoor fitness equipment for public use. This certification ensures that the equipment meets strict requirements for structural integrity, user safety, and resistance to vandalism and weathering.
What maintenance does the Pull outdoor fitness station require?
The Pull requires minimal maintenance thanks to its galvanized steel construction and powder-coated finish. A periodic visual inspection for wear, loose bolts, or surface damage is recommended. Cleaning with water and a mild detergent is sufficient to keep the equipment in optimal condition throughout the year.
What are the maximum user weight capacity and key dimensions of the Pull?
The Pull is engineered to support users up to 150 kg, making it suitable for the vast majority of adults. Its compact footprint allows installation in tight spaces within fitness circuits or parks. For exact dimensional drawings and load specifications, please consult the product technical sheet or contact the Herkules Fitness team directly.
