Ref. THJ-P02Outdoor Fitness Stations
Poteau
M – Outdoor Fitness Stations
Modular central M post for outdoor sports stations. Ensure stability and versatility in your community projects with Herkules Fitness.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
Product view
- L 0.4 m
- P 0.3 m
- H 1.1 m
Overview

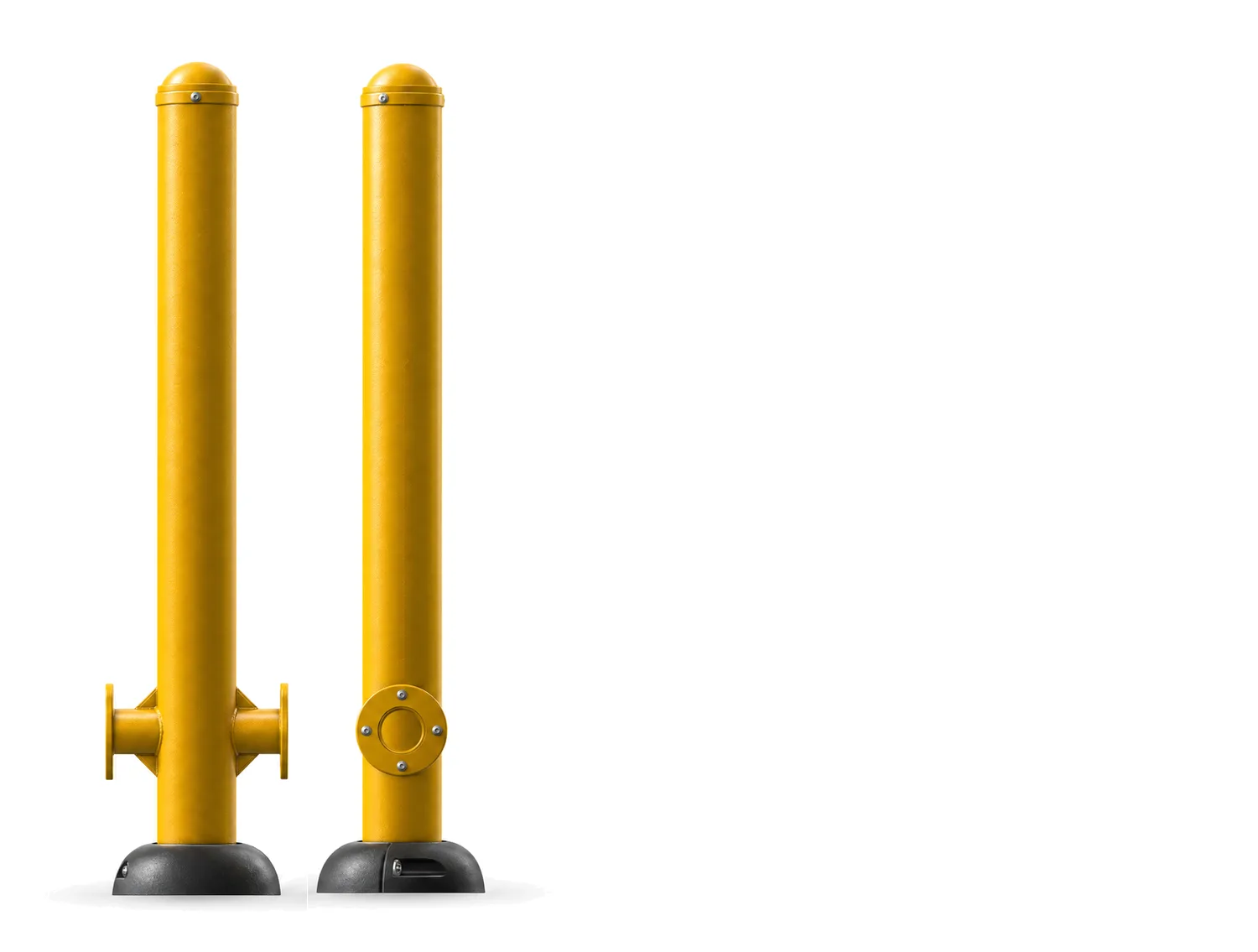

Poteau M - Outdoor Fitness Stations
The Poteau M is a structuring element of outdoor fitness stations: it serves as a central post to which the equipment in the Fitness Mix range can be attached to create clear, well-organized double apparatus.
Designed for low mounting only, it can be adapted to modules requiring low mounting. Its medium size makes it easy to set up in a sports area, and positions the instruction plate at a convenient height for quick reading before exercise.
Ref. THJ-P02 · Outdoor Fitness Stations
The figures

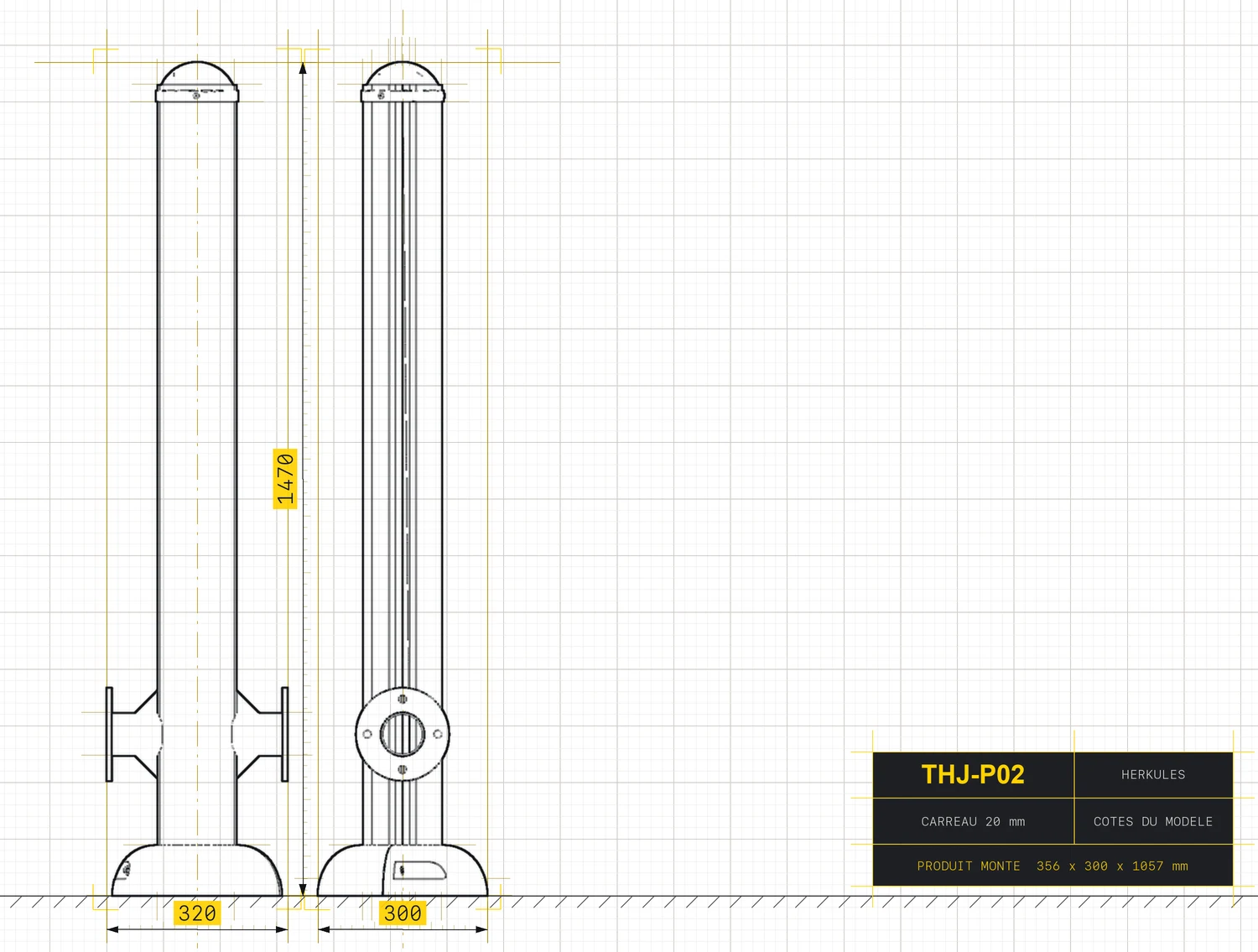

Technical specifications
Footprint
- Length
- 356 mm
- Width
- 300 mm
- Height
- 1,057 mm
Material & compliance
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
- Central assembly point for creating double apparatus on an outdoor fitness station (Fitness Mix range).
- Outdoor installation in a dedicated area: park, fitness area, fitness trail or multisport area.
- Suitable for high-traffic sites: local authorities, leisure centers, campsites, hotels, businesses, schools.
- Support for instructions on instruction signs in 2 languages.
What it trains
Function
- Create a modular outdoor fitness station by linking two pieces of equipment around a single pole.
- Structure the sports area: clearer layout, smoother circulation, coherent installation.
- Improve user autonomy with bilingual instruction plates.
- Enhance user safety by making information accessible and immediately visible on site.
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.15 m³
- Anchoring depth
- 600 mm
- Fixing
- Anchored
Built to last outdoors
Design & materials
- Hot-dip galvanized steel structurethe post benefits from a deep-dip galvanizing treatment that provides lasting protection against corrosion, rust and weathering in outdoor environments.
- Integrated bottom fixingsanchoring points are positioned at the bottom of the post, designed to receive compatible modules from the Fitness Mix range without play or instability.
- Robust, ergonomic finishthe average size of the post is calculated to position the instruction sign at natural reading height, accessible to all user sizes.
- Bilingual, visibly-mounted, UV- and weather-resistant instruction plates for lasting legibility in the field.
- The entire design meets the robustness requirements for intensive use in the public sector, ensuring optimum longevity without heavy maintenance.
For whom, where
Recommended audience & environment
- Municipal parks and public gardens wishing to create a modular fitness area that is easy to understand for all users.
- Leisure centers, campsites and hotels offering self-service sports facilities with clearly identified equipment.
- Schools, universities and businesses looking to integrate a compact, well-organized fitness trail into their outdoor space.
- Sports associations and clubs wishing to complete or rationalize an existing facility with coherent double apparatus.
Poteau M is designed for all managers of public spaces who want to create modular, easy-to-read and durable outdoor fitness stations, without having to multiply their floor space. It's suitable for beginners and regular users alike, thanks to instructions for use displayed directly on site.
What sets it apart
Built to last outdoors
In brief
Why choose Poteau M?
Poteau M is the ideal solution for structuring a modular outdoor fitness station, limiting the footprint while maximizing exercise possibilities. It is ideal for local authorities, sports facility managers and developers wishing to create coherent facilities that are easy to use independently. Its bilingual instruction plates enhance accessibility for all audiences. Designed by Herkules Fitness, it guarantees robustness, compatibility with the Fitness Mix range and durability adapted to intensive outdoor environments.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Poteau M
What exactly is Poteau M used for in an outdoor fitness station?
Poteau M acts as a central structuring post: it connects two pieces of equipment from the Fitness Mix range around the same axis to form a double apparatus. It thus organizes the sports area in a clear and compact way, reducing the number of posts required on site.
What equipment can be mounted on Poteau M?
Poteau M is compatible with Fitness Mix modules featuring bottom-mounted fixtures. It is designed to be combined with other posts in the range to create equipment combinations tailored to the needs of each installation. It is advisable to check module compatibility when designing your project.
Is Poteau M suitable for year-round outdoor installation?
Yes, Poteau M is entirely designed for permanent outdoor use. Its hot-dip galvanized steel protects it from corrosion, rust and severe climatic variations, including frost, humidity and prolonged UV exposure. It does not require seasonal sheltering.
What are the ground installation requirements for Poteau M?
The Poteau M is anchored in the ground in accordance with the technical recommendations supplied by Herkules Fitness. Installation must be carried out by a qualified professional, on a suitable surface to ensure stable, durable anchoring. The type of soil and depth of anchoring should be determined according to the configuration of the site.
Are instruction plates really useful for independent users?
Absolutely. Bilingual instruction plaques on Poteau M enable every user to quickly understand the available exercises and safety instructions, without the need for a supervisor. Their positioning at a convenient height and their weather resistance guarantee lasting legibility on site.
Does Poteau M require regular maintenance?
Poteau M requires minimal maintenance thanks to its galvanized finish and resistant materials. It is nevertheless recommended to carry out periodic visual inspections to check the condition of fixings, instruction plates and the general structure, in line with good practice for the management of outdoor community sports facilities.
