Ref. THJ-D22Outdoor Fitness Stations
Skater – Outdoor Fitness Stations
Outdoor skateboarder, sturdy fitness equipment in galvanized steel to EN16630 standard, designed for communities and sports areas.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 2

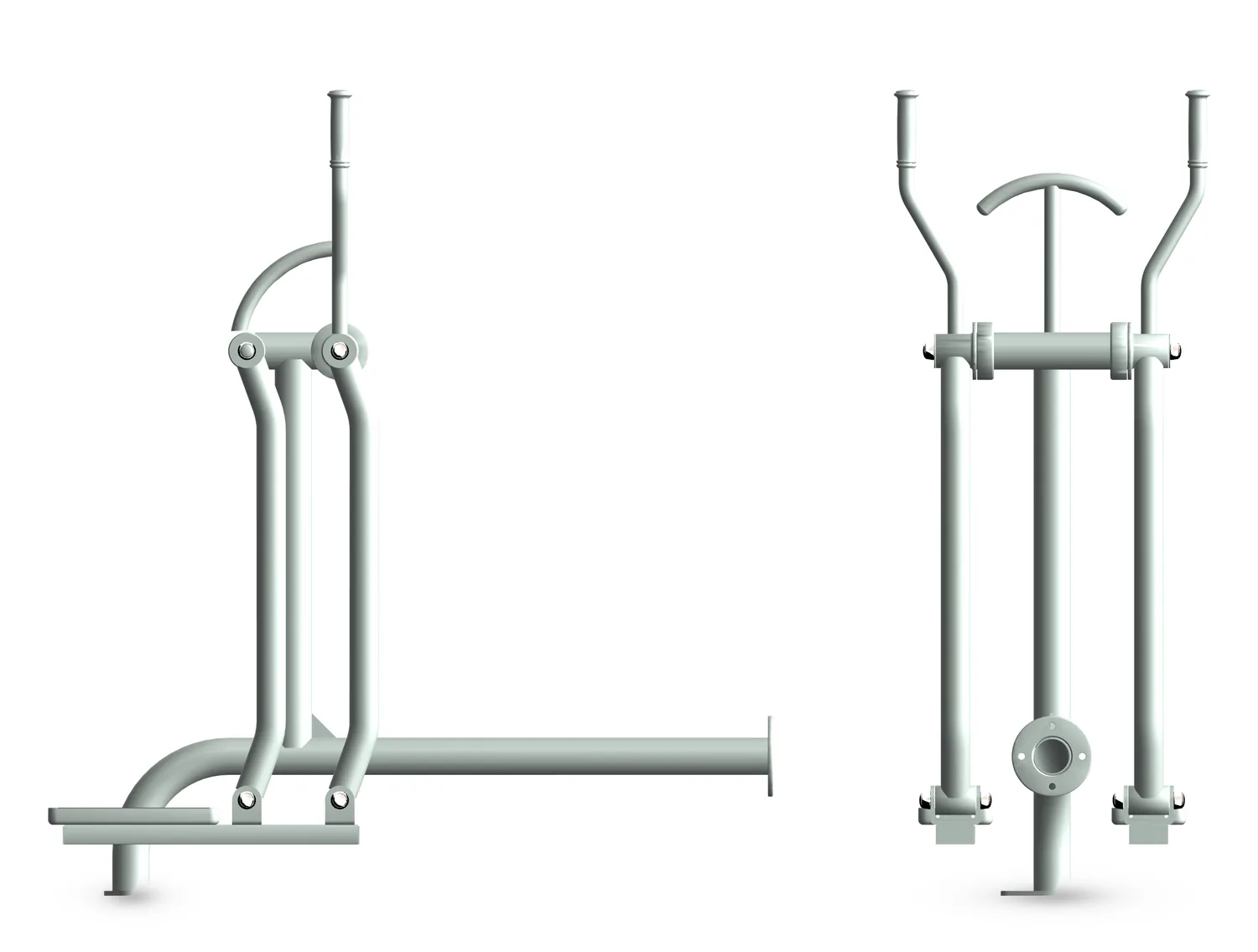

Product view
- L 3.0 m
- P 0.6 m
- H 2.0 m
Overview
Skater - Outdoor Fitness Stations
The Skater from the Outdoor Fitness Stations range is a dynamic, playful piece of equipment, ideal for improving endurance, coordination and muscle tone.
Designed for outdoor use, it is made from robust, weather-resistant materials, guaranteeing exceptional durability even under intensive use. Thanks to its fluid skating motion, this equipment reproduces the movements of rollerblading or cross-country skiing, while exercising the whole lower body. Easy to use, the skater is suitable for a wide range of users, from beginners to advanced athletes, and fits perfectly into parks, public spaces or outdoor fitness areas.
Ref. THJ-D22 · Outdoor Fitness Stations

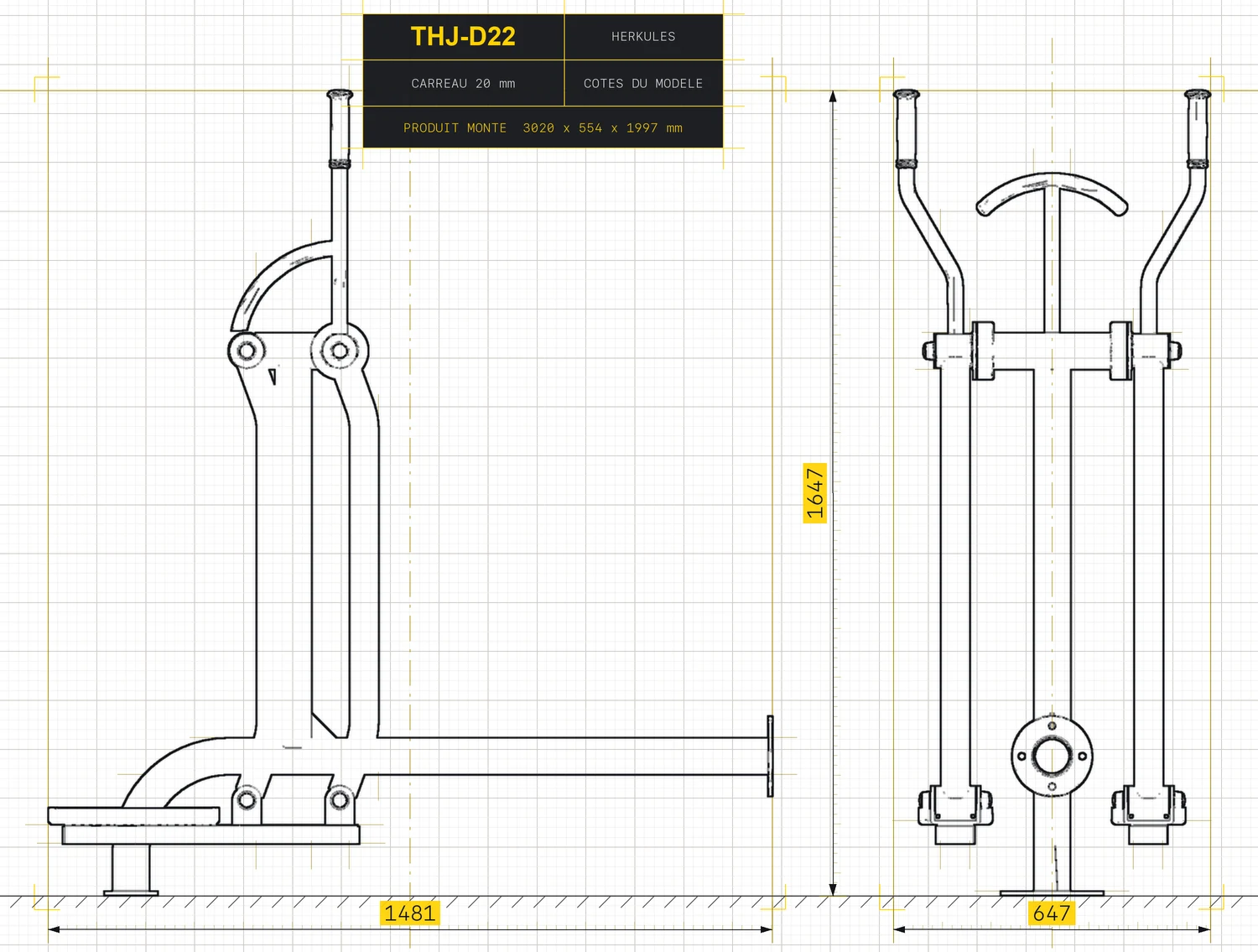

The figures
Technical specifications
Footprint
- Length
- 3,020 mm
- Width
- 554 mm
- Height
- 1,997 mm
- Safety area
- 6,020 × 3,554 mm (21.4 m²)
Material & compliance
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 150 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 2
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.28 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structurethe main frame is made of hot-dip galvanized steel, offering optimum resistance to corrosion and the most demanding climatic conditions.
- Multi-layer anti-corrosion treatmenta powder-coated epoxy polyester paint provides long-lasting protection against humidity, UV and temperature variations.
- Ergonomic platforms and handlesthe footrests feature textured non-slip surfaces, while the handles offer a secure, comfortable grip for all body sizes.
- Axes and moving parts are designed with precision bearings to ensure smooth, silent and jerk-free sliding motion, even after years of intensive use.
- The entire design complies with EN 16630 standards for permanently installed outdoor fitness equipment, ensuring exemplary longevity and safety in public spaces.
For whom, where
Recommended audience & environment
- Municipal parks and green spacesideal for equipping outdoor fitness areas frequented by a varied public, from juniors to senior citizens.
- Fitness trails and jogging pathsthe skateboarder fits perfectly into a cardio-training circuit to complement the aerobic effort of runners and walkers.
- Residences and condominiums with communal areasa user-friendly solution that makes physical activity accessible to all residents, with no time constraints.
- Schools and leisure centersappreciated for its playfulness, it encourages young people to engage in regular physical activity spontaneously.
Whatever the environment, the Patineur - Stations de Fitness Extérieure adapts to all user profiles thanks to its intuitive movement and free access. To discover all our compatible equipment, please consult our complete range of outdoor fitness equipment.
What sets it apart
Built to last outdoors
In brief
Why choose Le Patineur?
Patineur stands out for its ability to provide a complete cardiovascular workout while preserving joints thanks to its non-impact movement. Accessible from adolescence onwards and suitable for senior citizens in search of a gentle, invigorating activity, it is suitable for a very wide range of users in public spaces. Its intuitive operation reduces the risk of poor posture and encourages spontaneous engagement. Designed by Herkules Fitness, it guarantees sturdiness, safety and pleasure of use over the long term.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Skater
Which muscle groups does the skater use?
The skater primarily targets the quadriceps, hamstrings, glutes and calves during alternate gliding movements. Abdominal muscles and trunk stabilizers are also activated to maintain balance throughout the session, providing a complete lower-body muscle workout.
Is the skater suitable for the elderly or people in rehabilitation?
Yes, the lateral gliding movement without ground impact is particularly gentle on knees, hips and ankles. It is therefore recommended for senior citizens wishing to maintain their joint mobility, as well as for people undergoing functional rehabilitation, provided that medical advice is sought if necessary.
On what type of floor can this equipment be installed?
The skater can be anchored to stable surfaces such as concrete, tarmac or prefabricated foundation slabs. It is recommended to combine its installation with a shock-absorbing floor covering (wood shavings, recycled rubber) to guarantee user safety in the event of a fall and to comply with EN 1177 ground impact standards.
Is this equipment certified for use in public spaces?
Yes, the skateboarder is designed and manufactured in compliance with European standard EN 16630, which governs fitness equipment for permanent outdoor installation. This certification guarantees the structural strength, user safety and durability of the equipment under conditions of intensive and repeated use.
What maintenance is needed to keep the skater in good condition?
Low-maintenance thanks to corrosion-resistant materials. A monthly visual inspection of fasteners, bearings and anti-slip coatings is recommended. Cleaning with clear water and neutral soap is sufficient to remove seasonal deposits. In the event of wear and tear on moving parts, maintenance kits are available from Herkules Fitness.
What is the maximum load supported by the skater?
The skater is sized to support a user load of up to 120 kg, making it accessible to the vast majority of adults. The galvanized steel structure and precision bearings are tested to withstand repeated stress well beyond the normal conditions of use in public spaces.
