Ref. THJ-D30Outdoor Fitness Stations
Low Pull
Up – Outdoor Fitness Stations
Low Pull Up outdoor, outdoor fitness machine in galvanized steel, EN16630 compliant, designed for community weight training.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 2
Product view
- L 3.6 m
- P 0.8 m
- H 2.0 m
Overview
Low Pull Up - Outdoor Fitness Stations
The Low Pull Up apparatus from the Outdoor Fitness Stations range is designed to strengthen the muscles of the upper body, in particular the back, biceps and shoulders.
This outdoor fitness equipment is perfect for those who want to build muscle strength while enjoying the fresh air. Suitable for all fitness levels, the Low Pull Up is ideal for parks, recreation areas and health trails, offering an excellent complement to an outdoor fitness routine.
Ref. THJ-D30 · Outdoor Fitness Stations
The figures

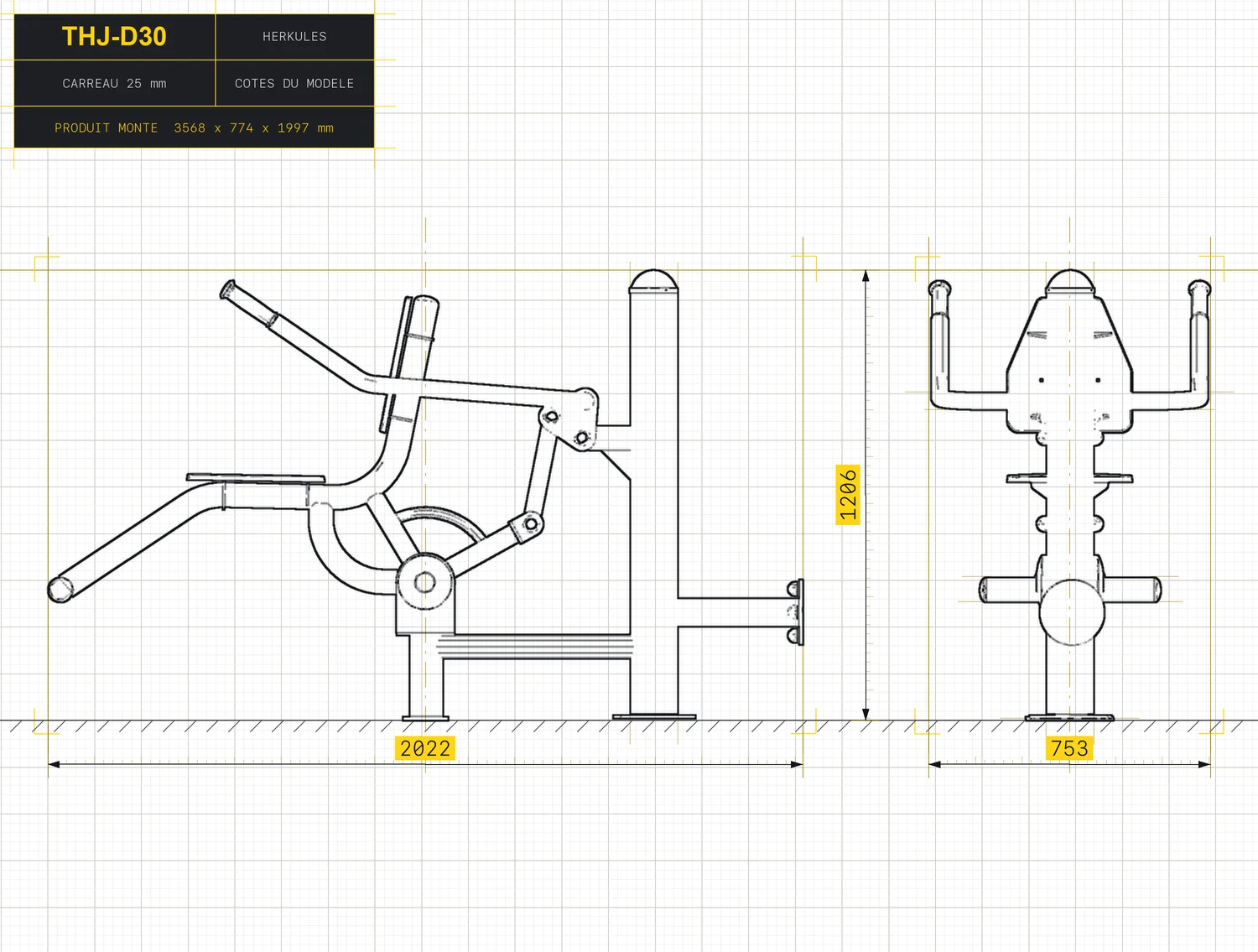

Technical specifications
Footprint
- Length
- 3,568 mm
- Width
- 774 mm
- Height
- 1,997 mm
- Safety area
- 6,568 × 3,774 mm (24.8 m²)
Material & compliance
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 515 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 2
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.49 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Hot-dip galvanized steel structurethe Low Pull Up frame is made from high-strength galvanized steel, guaranteeing optimum strength in the face of repeated mechanical stress.
- Enhanced anti-corrosion treatmentmulti-layer protection against oxidation and weathering ensures exceptional longevity in outdoor environments, whatever the season.
- Ergonomic textured handlesthe grips are designed to offer a secure, comfortable grip, reducing hand fatigue during exercise series.
- The chair and footrest are sized to fit a wide variety of body shapes, facilitating correct posture from the very first use.
- The entire structure is designed to withstand intensive use in public spaces, with sturdy joints to limit premature wear.
For whom, where
Recommended audience & environment
- Public parks and gardensperfectly suited to urban green spaces where residents of all ages want to enjoy accessible outdoor physical activity.
- Health and fitness trailsideal in conjunction with other equipment to create a complete training circuit that stimulates the upper body.
- Residences and sports complexesintegrates harmoniously into the fitness zones of condominiums, university campuses or leisure centers.
- Beaches and seaside areasthe anti-corrosion design makes this equipment reliable even in wet and salty environments.
Whether you're equipping a community, a recreational area or a residential complex, the Low Pull Up is a natural part of a complete, sustainable outdoor fitness offering, accessible to the greatest number of people.
What sets it apart
Built to last outdoors
In brief
Why choose Low Pull Up?
The Low Pull Up is the benchmark equipment for effectively strengthening back, biceps and shoulders outdoors, without the need for special sports supervision. Its accessibility makes it a popular solution for beginners and regular exercisers alike, who want to maintain their fitness levels on a daily basis. Perfectly integrated into any park or fitness trail, it enhances a community's sports facilities. Designed by Herkules Fitness, it guarantees robustness, safety and long-term durability.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Low Pull Up
Which muscles are most involved in Low Pull Up?
Low Pull Up primarily targets the back muscles, biceps and shoulders. It also stimulates the stabilizing muscles of the trunk when maintaining a sitting posture. Regular use helps improve functional strength and upper-body coordination.
Is this machine suitable for seniors or beginners?
Yes, the Low Pull Up is designed to suit all levels, including seniors and people with little experience of sports training. The seated position and gestures guided by the handles make exercise intuitive and safe, limiting the risk of poor posture.
What are the floor requirements for installing Low Pull Up?
The unit must be anchored to stable ground, preferably concrete or compacted, to ensure a solid, secure hold. A clear space around the equipment is recommended for comfortable, collision-free operation.
Is the Low Pull Up certified for use in public spaces?
Herkules Fitness equipment is designed in compliance with current European standards for outdoor fitness equipment intended for community use. We invite you to contact our team to obtain technical documentation and certifications specific to this product.
What maintenance is required to extend the unit's life?
The structure's anti-corrosion treatment means that maintenance is minimal. We recommend regular inspection of fasteners, cleaning of handles with a non-abrasive product and checking for visible damage. No special lubrication is required under normal conditions of use.
What is the maximum load supported by the Low Pull Up?
The maximum permissible load varies according to the configuration and technical specifications of the chosen model. For precise data on maximum user weight and equipment dimensions, we recommend that you consult the technical data sheet or contact the Herkules Fitness team directly.
