Ref. THJ-D09Outdoor Fitness Stations
Masseur
Dos – Outdoor Fitness Stations
Back massager, outdoor wellness equipment in galvanized steel, EN16630 compliant. Designed for collective parks, perfect for relaxation and mobility.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 2

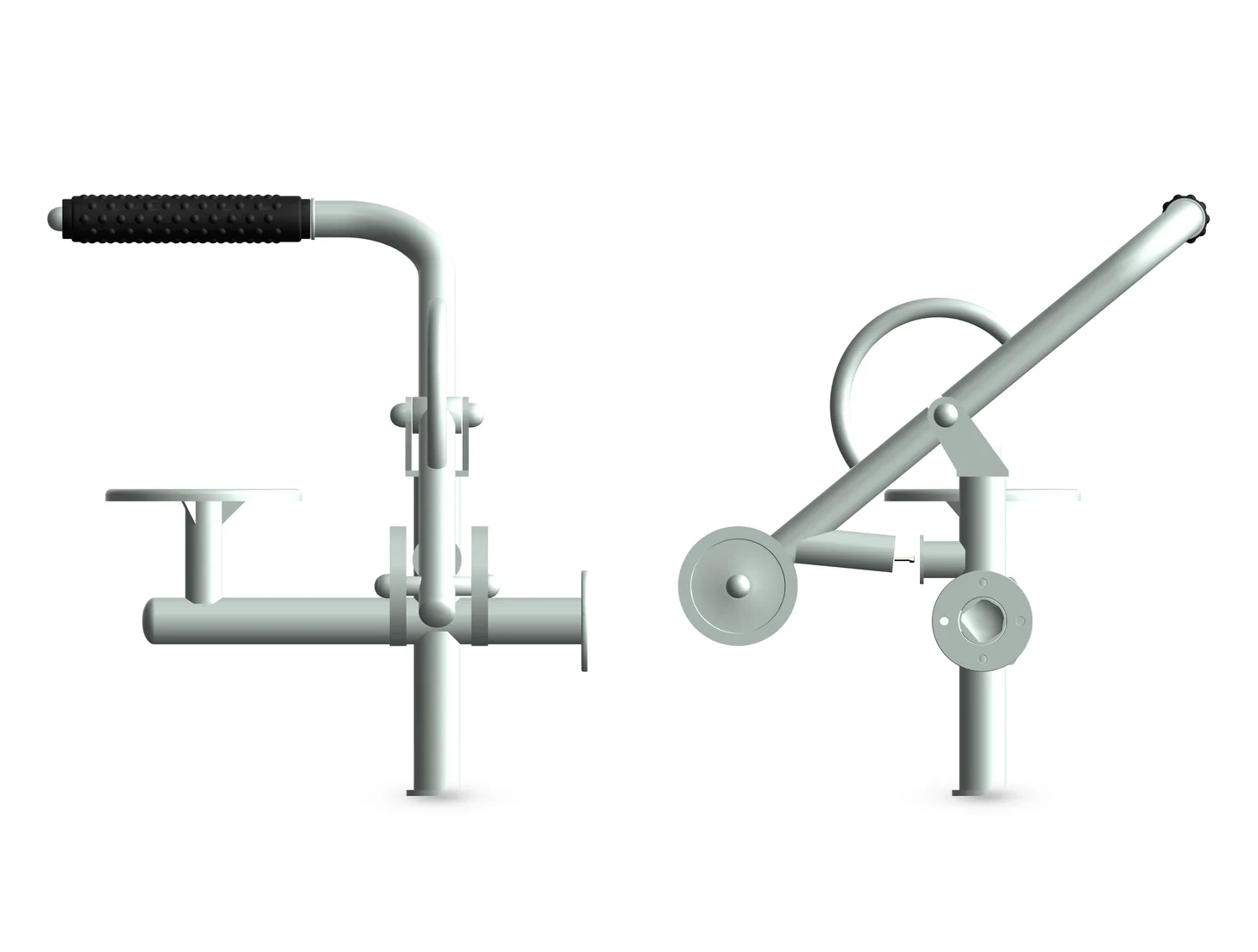

Product view
- L 1.8 m
- P 0.8 m
- H 2.0 m
Overview
Masseur Dos - Outdoor Fitness Stations
The Back Massager from the Outdoor Fitness Stations range is a piece of outdoor relaxation equipment designed to promote muscle relaxation and improve recovery.
Thanks to its ergonomic roller, this equipment offers a relaxing back massage, helping to relieve tension and relax muscles after a workout. It's ideal for parks, leisure areas and outdoor fitness trails, offering users a moment of relaxation at the heart of their fitness routine.
Ref. THJ-D09 · Outdoor Fitness Stations
The figures

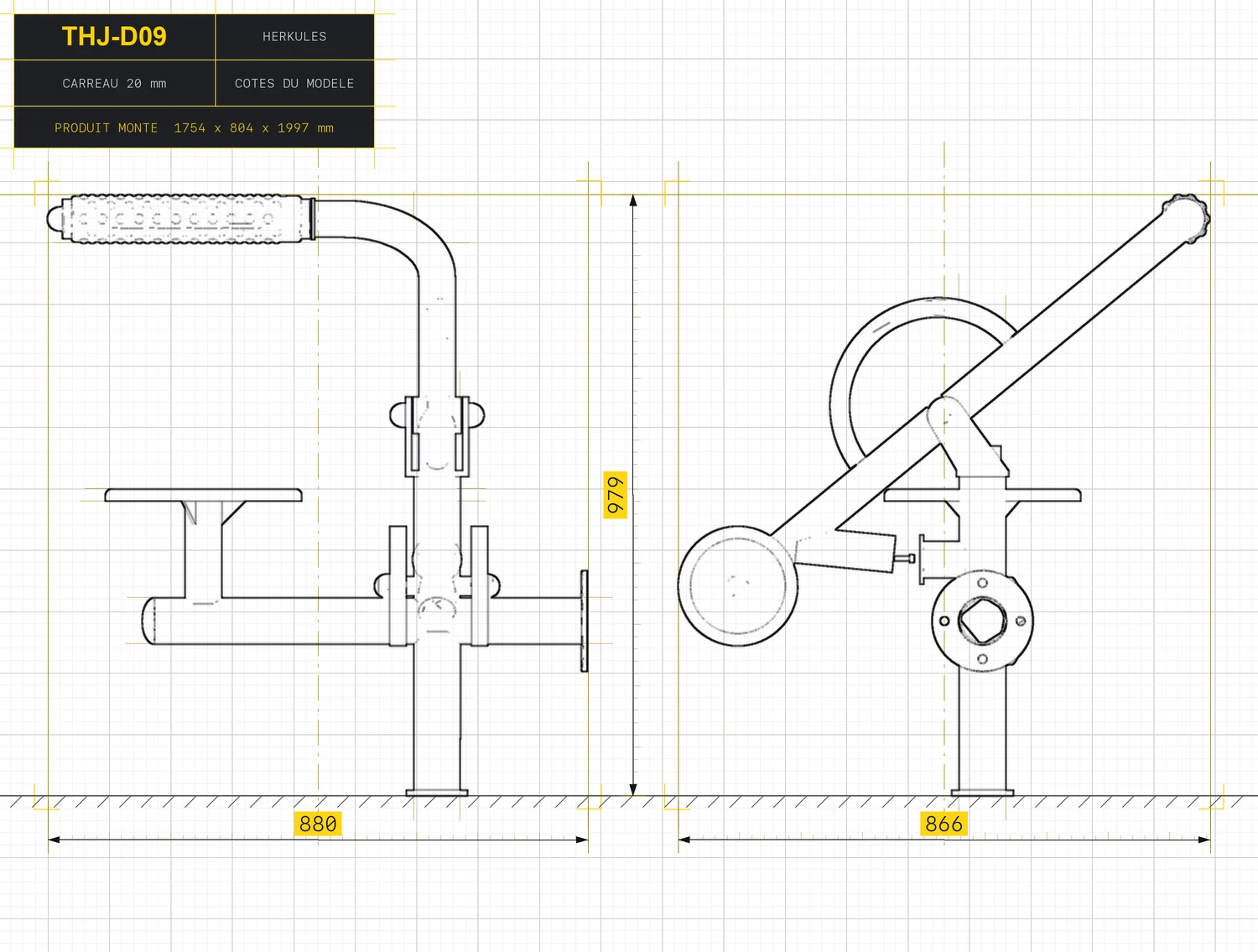

Technical specifications
Footprint
- Length
- 1,754 mm
- Width
- 804 mm
- Height
- 1,997 mm
- Safety area
- 4,754 × 3,804 mm (18.1 m²)
Material & compliance
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 500 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 2
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.24 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structurethe main frame is made of hot-dip galvanized steel, guaranteeing optimum resistance to weather and climatic variations.
- Reinforced anti-corrosion treatmenta coat of polyester epoxy paint is applied to the entire structure to provide lasting protection against rust and oxidation.
- Ergonomic, highly durable rollerthe massage roller is made of robust, wear-resistant materials, suitable for intensive, all-season outdoor use.
- The open design, with no complex moving parts, reduces the risk of mechanical failure and simplifies maintenance.
- All components are selected to offer maximum durability over several decades, even in high-traffic environments.
For whom, where
Recommended audience & environment
- Public parks and green spacesideal for integrating a recovery area into a municipal park or public garden frequented by all generations.
- Health and fitness trailperfectly integrated at the end of the trail to provide a station for muscular recovery after exercise.
- Outdoor fitness zonesan effective complement to an outdoor fitness area, adding a dimension of well-being and relaxation.
- Senior residences and care facilitiesparticularly well-suited to seniors and people who want to relieve back strain on a daily basis in a safe, accessible environment.
This equipment is aimed at a wide audience, from sports enthusiasts looking for active recovery to senior citizens wishing to look after their backs in the great outdoors. Its intuitive ease of use makes it an inclusive piece of equipment, appreciated in any outdoor environment that promotes well-being.
What sets it apart
Built to last outdoors
In brief
Why choose the Masseur Dos?
The Back Massager is the ideal solution for integrating a moment of muscular recovery into the heart of your outdoor living spaces. Accessible to all ages and physical levels, it meets the growing needs of local authorities wishing to offer equipment that combines well-being and practicality. Its simple, effective concept encourages regular, independent use. Designed by Herkules Fitness, it guarantees unfailing sturdiness, optimum safety and longevity for intensely frequented public environments.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Masseur Dos
Which muscles and areas of the back are targeted by the Masseur Dos - Stations de Fitness Extérieure?
The Back Massager primarily targets the paravertebral muscles, trapezius and lumbar region. Thanks to the ergonomic roller, users can target specific areas of tension by adjusting their posture as they move back and forth, providing effective relief across the entire spine.
Is this equipment suitable for seniors and people who are not very sporty?
Yes, the Back Massager is particularly recommended for senior citizens and people who are not accustomed to sport. Its use requires no intense physical effort: simply sit back and let the roller perform the massage. Access to the chair is easy and requires no particular agility.
What type of floor is recommended for the Masseur Dos?
The Masseur Dos can be installed on different types of ground: concrete, asphalt or stabilized slabs. It is anchored to the ground by grouting, ensuring a solid, secure hold. It is advisable to provide a non-slip surface nearby to ensure user safety, particularly in wet weather.
Is the equipment certified and compliant with current European standards?
Yes, the Masseur Dos is designed and manufactured in compliance with European standards applicable to outdoor sports equipment, in particular EN 16630, which guarantees user safety and facilitates installation in public spaces managed by local authorities.
What maintenance operations are required to keep the equipment in good condition?
Maintenance of the Masseur Dos is minimal thanks to its sturdy design in anti-corrosion galvanized steel. Regular cleaning with water and neutral soap is all that's needed to remove dirt. Periodic visual inspection of fasteners and roller is recommended to detect any wear and tear and ensure user safety.
What is the maximum load supported by the Back Massager and what are its dimensions?
The Back Massager is designed to support users of varying builds, with a maximum recommended load generally between 100 and 120 kg. For precise dimensions and full technical details, please consult the product data sheet or contact our Herkules Fitness team directly for personalized assistance.
