Ref. SN-12Stainless steel fitness equipment
Pull – Stainless steel fitness equipment
316L stainless steel outdoor Pull device, EN16630 compliant. Moisture- and salt-resistant, ideal for public areas and seasides.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1

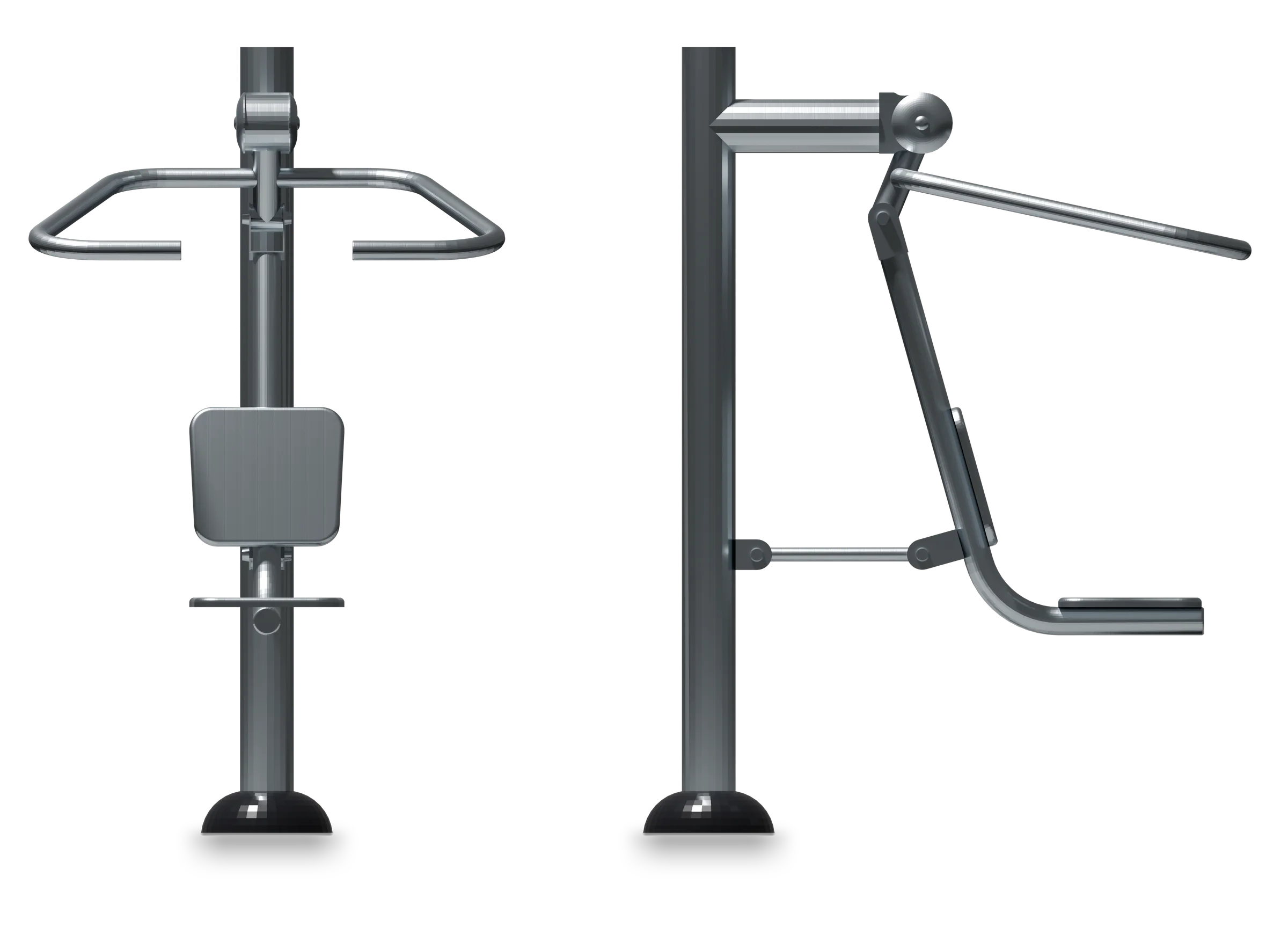

Product view
- L 1.3 m
- P 1.0 m
- H 1.7 m
Overview
Pull - Stainless steel fitness equipment
The Pull apparatus is designed for fitness enthusiasts looking to strengthen the upper body effectively.
Made entirely from stainless steel, it can withstand the harshest weather conditions, while remaining aesthetically pleasing and functional. The Pull Inox works the muscles of the arms, shoulders and back, thanks to body-weight pull-ups. This equipment is suitable for users of all levels, offering a progressive approach to outdoor muscle strengthening.
Ref. SN-12 · Stainless steel fitness equipment
The figures
Technical specifications
PullTechnical sheet · dimensions in mm
- Length
- 1,294
- Width
- 1,014
- Height
- 1,671

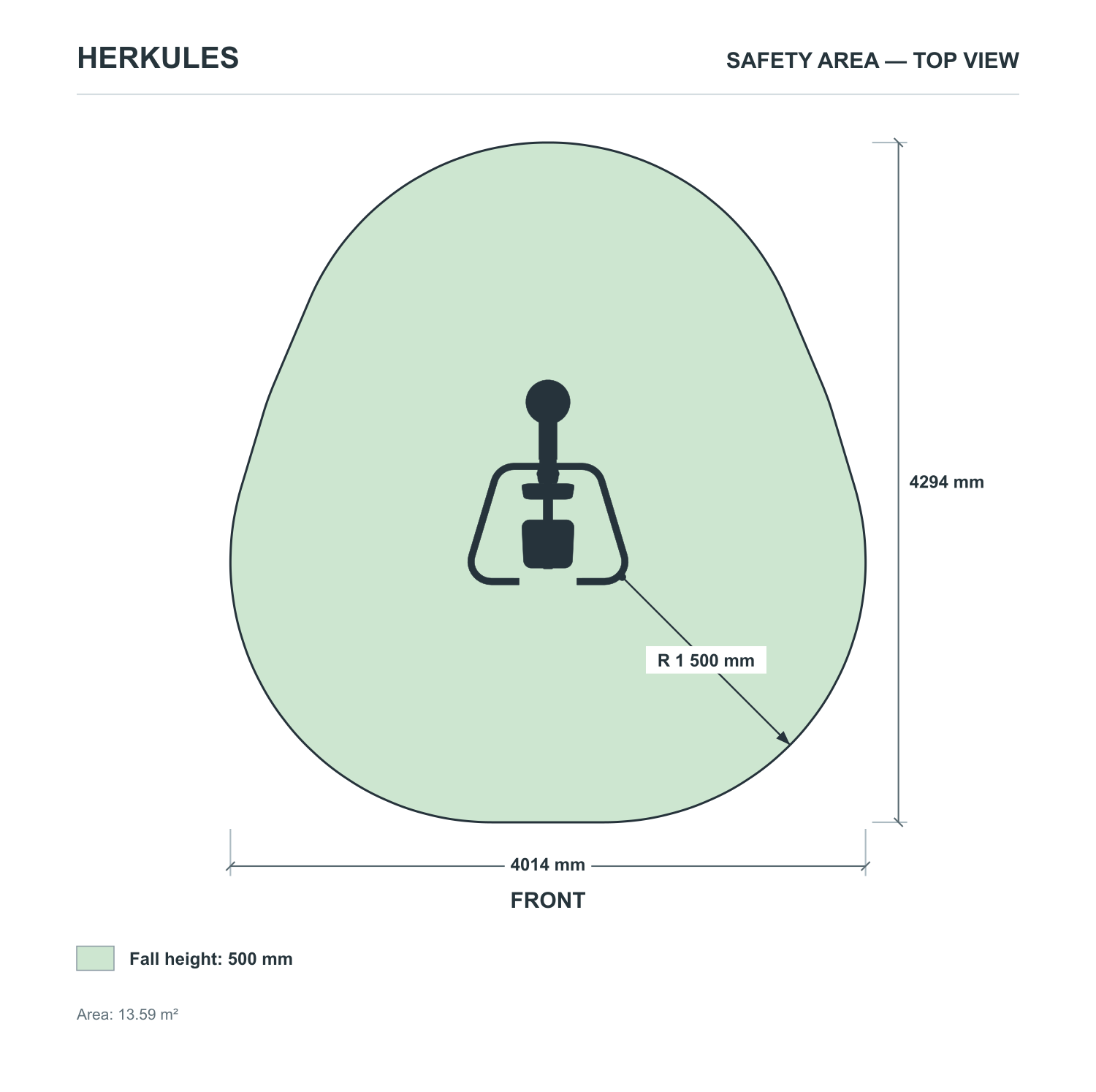

- Safety area
- 4,014 × 4,294 mm · 13.59 m²
- Material
- Stainless steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 500 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.15 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- Pre-assembled
Built to last outdoors
Design & Materials
- Marine-grade stainless steel:The entire structure is crafted from high-quality stainless steel (AISI 304/316), offering exceptional resistance to corrosion, rust and UV exposure in any climate.
- Anti-corrosion treatment:The steel surfaces are brushed and passivated to maximise longevity, even in coastal or high-humidity environments.
- Ergonomic pull-up bar:The bar diameter is optimised for a secure, comfortable grip, accommodating a wide range of hand sizes and training styles.
- All fixings and anchor points are made from stainless steel to ensure structural integrity and consistent safety over time.
- Built to last for decades with minimal maintenance, this equipment retains both its structural performance and its clean, modern aesthetic in any outdoor setting.
For whom, where
Recommended audiences & environments
- Municipal parks and green spaces:Ideal for open-access outdoor fitness areas serving a diverse adult population.
- Sports complexes and athletics facilities:A natural complement to existing training infrastructure for athletes seeking upper-body conditioning.
- Schools and university campuses:Encourages physical activity among students with a safe, low-maintenance piece of equipment.
- Residential districts and urban fitness trails:Perfectly suited to compact outdoor gym setups designed to promote community well-being.
The Pull is a versatile addition to any stainless steel fitness equipment installation, delivering long-term value for public bodies, property developers and facility managers looking to invest in durable, inclusive outdoor sport infrastructure.
What sets it apart
Built to last outdoors
In brief
Why choose the Pull?
The Pull delivers one of the most effective upper-body exercises available — the pull-up — in a robust, weather-proof format built for permanent outdoor use. It suits beginners and seasoned athletes alike, offering a progressive training experience accessible to the widest possible public. Its sleek stainless steel finish ensures it integrates seamlessly into any urban or natural landscape. Designed by Herkules Fitness, it guarantees long-lasting safety, performance and visual appeal for collective fitness spaces.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Pull
Which muscle groups does the Pull target during training?
The Pull primarily works the latissimus dorsi, biceps and rear deltoids, making it one of the most complete upper-body exercises available on outdoor fitness equipment. Secondary muscles engaged include the trapezius, rhomboids and core stabilisers, contributing to improved posture and functional strength.
Is the Pull suitable for beginners with no prior pull-up experience?
Yes, the Pull is accessible to all fitness levels. Beginners can start with assisted pull-ups by keeping one foot lightly on the ground or using a resistance band looped over the bar for support. As strength develops, users can progress to full unassisted repetitions at their own pace.
What type of ground surface is required for installation?
The Pull is designed for permanent installation and requires a concrete foundation or equivalent solid ground anchoring to ensure stability under load. Installation should be carried out by a qualified professional in accordance with the technical specifications provided by Herkules Fitness, ensuring compliance with local safety standards.
Does the Pull meet outdoor fitness equipment safety certifications?
The Pull is manufactured in compliance with European standards for outdoor fitness equipment, including EN 16630, which governs fixed outdoor fitness equipment for public use. This ensures it meets strict requirements for structural integrity, load capacity, entrapment risk and overall user safety.
What maintenance does the Pull require once installed?
Thanks to its stainless steel construction, the Pull requires very little routine maintenance. Periodic visual inspections are recommended to check anchor points and fixings for tightness. Occasional cleaning with water and a mild detergent is sufficient to keep the bar hygienic and free from surface deposits, particularly in high-use environments.
What is the maximum user weight capacity of the Pull?
The Pull is engineered to accommodate the dynamic loads generated during pull-up exercises by adult users in a public setting. For precise maximum load specifications and dimensional data, please refer to the technical data sheet available from Herkules Fitness or contact our team directly for project-specific guidance.
