Ref. SN-11Stainless steel fitness equipment
Push – Stainless steel fitness equipment
Push unit in robust, durable 316L stainless steel. EN16630-compliant, designed for outdoor fitness facilities in humid areas.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.3 m
- P 0.7 m
- H 1.8 m
Overview

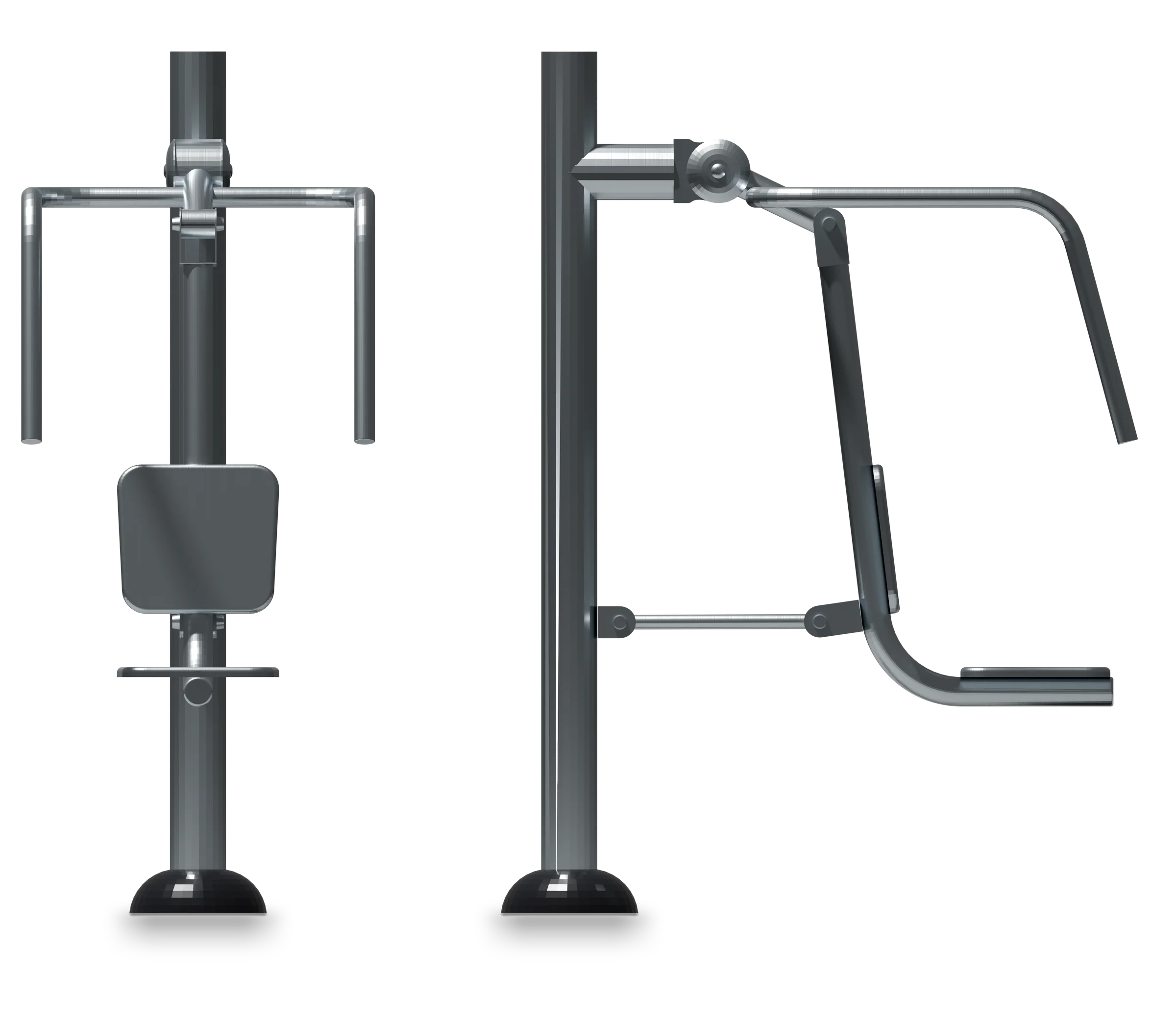

Push - Stainless steel fitness equipment
Push is a stainless steel outdoor fitness machine dedicated to the upper-body push movement.
Its guided biomechanics reproduce a functional movement similar to the bench press, stimulating the pectoral muscles, shoulders and triceps, while engaging the gainage to stabilize the torso. This controlled movement promotes muscular strengthening, improved posture and the prevention of imbalances, while guaranteeing a safe and accessible workout for all.
Ref. SN-11 · Stainless steel fitness equipment
The figures
Technical specifications
PushTechnical sheet · dimensions in mm
- Length
- 1,297
- Width
- 720
- Height
- 1,753

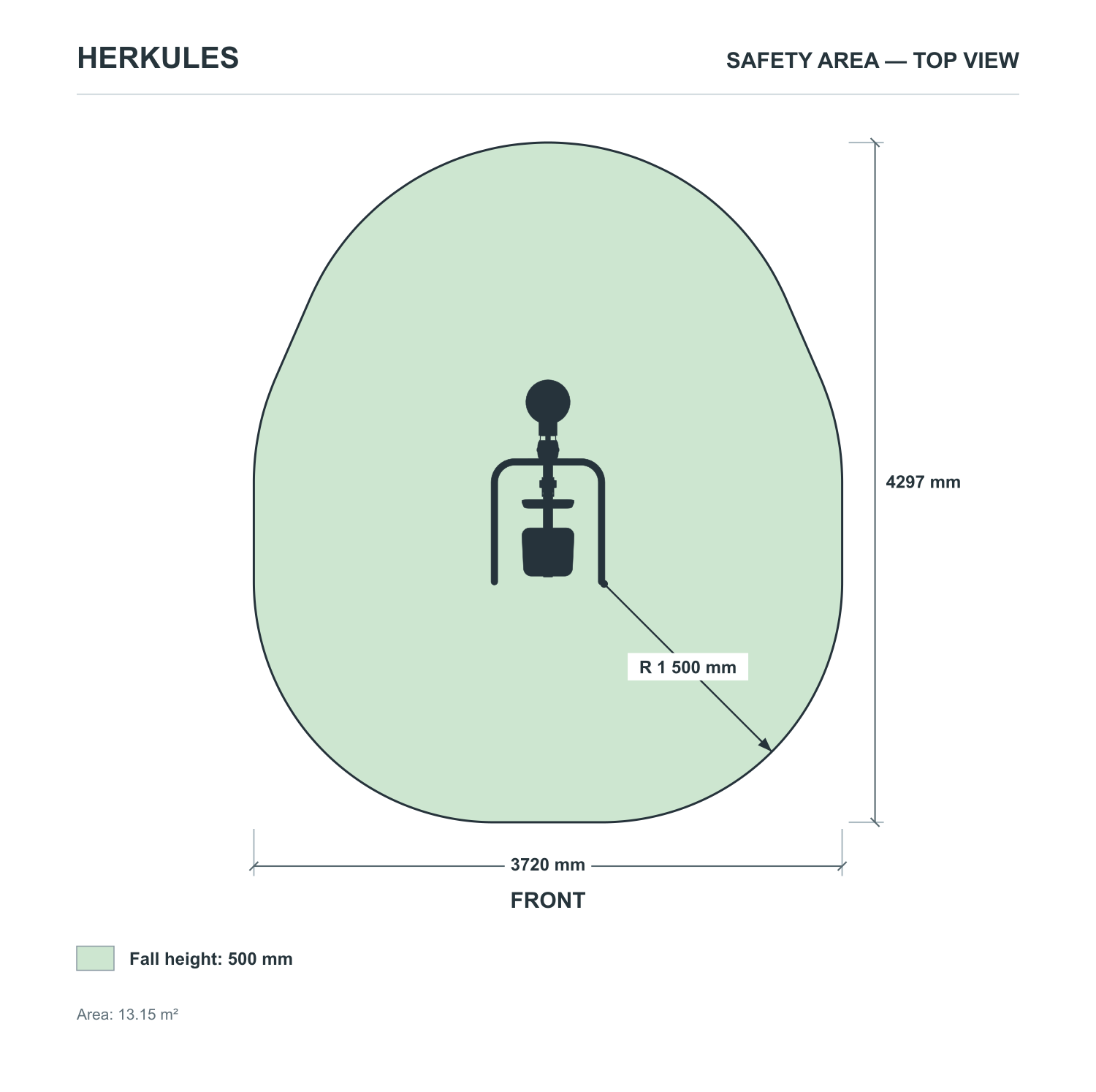

- Safety area
- 3,720 × 4,297 mm · 13.15 m²
- Material
- Stainless steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
The Push is designed to be accessible to everyone, from beginners to advanced riders.
It enables:
- Perform a controlled push movement with the upper body
- Strengthen pectorals, shoulders and triceps
- Improve shoulder and trunk stability
It's advisable to keep your back straight and your shoulders low, and to control the amplitude of your movements to protect your joints. Quality of execution always takes precedence over quantity.
What it trains
Function
- Targeted strengthening ofpushing muscles
- Developing functionalupper body strength
- Stabilizing the shoulder girdlefor strong shoulders
- Improved posturethrough balanced muscle work
An essential exercise for a strong, harmonious upper body
What the standard requires
Safety & use
Safety & use
- Free fall height
- 500 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.15 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- Pre-assembled
Built to last outdoors
Design & materials
- Stainless steel structuredesigned for intensive outdoor use
- Reinforced,weather- and UV-resistant anti-corrosion treatment
- Stable, ergonomic designfor safe use
- Sturdy, non-slip, comfortable handles
- Durable equipment designed for demanding public environments
For whom, where
Recommended Public & Environment
- Open-access outdoor fitness areas
- Urban parks and municipal sports facilities
- Communities, schools, and universities
- Physical training zones and fitness trails
Versatile equipment for independent, regular training.
What sets it apart
Built to last outdoors
In brief
Why choose Push?
It is a fundamental piece of equipment for developing upper-body thrust, essential for many everyday movements. It provides effective muscle strengthening while respecting joint alignment. Designed in stainless steel by Herkules Fitness, it offers robustness, reliability and longevity that are perfectly suited to outdoor community installations.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Push
Which muscles are involved in the stainless steel push-up?
The Push inox extérieur mainly involves the pectoral muscles for the pushing action, the triceps for arm extension and the front shoulders for stabilizing the movement. The trunk muscles are also engaged to maintain a stable posture. This Herkules Fitness machine provides effective, targeted upper-body strengthening.
Is this device suitable for beginners?
The Push is ideal for beginners thanks to its intuitive, guided movement. Intensity can be adjusted naturally by modifying the speed and amplitude of the movement. It's a safe way to learn the push movement, without overloading shoulders or elbows.
At what age can the stainless steel Push be used safely?
The Outdoor Push is generally accessible from adolescence, when coordination and minimum strength are acquired. Adults and senior citizens can also use it, adapting the rhythm and amplitude of the movement. For younger users, supervised practice is recommended to ensure correct posture.
Does this machine pose any risk to shoulders?
Used correctly, it presents no particular risk to the shoulders. It's important to control amplitude, avoid sudden movements and keep shoulders low. Fluid, progressive execution strengthens the shoulder girdle while protecting the joints.
Does this equipment comply with local authority safety standards?
Yes, the Herkules Fitness Push is designed in compliance with European standards for outdoor fitness equipment. Its sturdy structure, safe surfaces and ergonomic design guarantee reliable, open-access use in communities and public spaces.
Can this equipment be integrated into an outdoor training circuit?
This piece of equipment fits perfectly into an outdoor training circuit. It acts as an upper-body strengthening station between cardio and mobility exercises. This complementarity makes it possible to offer complete, functional and accessible sessions on Herkules Fitness installations.
Is it suitable for outdoor strength training?
Yes, this machine is perfectly suited to outdoor strength training. It uses mechanical resistance or body weight, enabling safe, progressive work. Its stainless steel design guarantees excellent weather resistance, making the Push a reliable piece of equipment for Herkules Fitness outdoor fitness areas.
