Ref. USB-06USB Rechargeable Fitness Equipment
Rowing
Machine – Fitness equipment with USB charging
Rowing machine - USB-charged fitness equipment for complete cardio, all-round strengthening and sustainable energy production outdoors.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.8 m
- P 0.8 m
- H 1.3 m
Overview
Rowing Machine - Fitness equipment with USB charging

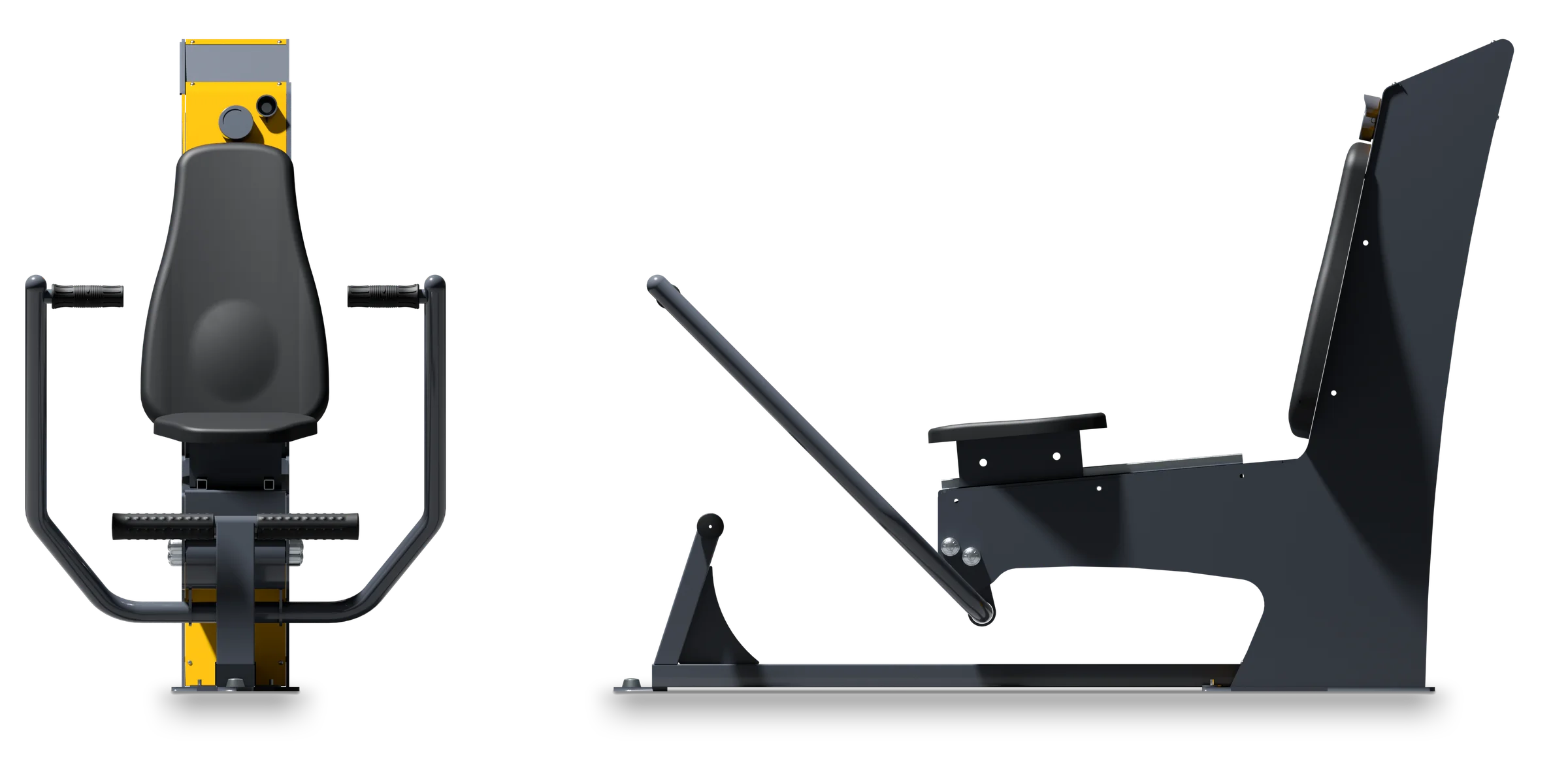

Rowing Machine is a USB-charged outdoor fitness machine designed to faithfully reproduce the biomechanical movement of rowing.
This complete movement combines leg thrust, trunk engagement and arm pull in a fluid kinetic chain. The coordinated effort generates mechanical energy that is transformed into electricity via an integrated USB plug. This rowing machine provides intense cardio work, overall muscular strengthening and a concrete appreciation of effort in a sustainable and innovative way.
Ref. USB-06 · USB Rechargeable Fitness Equipment
The figures
Technical specifications
Rowing MachineTechnical sheet · dimensions in mm
- Length
- 1,759
- Width
- 822
- Height
- 1,275
- Safety area
- 3,822 × 4,759 mm · 14.84 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
The Rameur is designed to be accessible to a wide range of people, from occasional users to regular athletes.
It enables:
- Perform a complete and coordinated rowing motion
- Generating energy to recharge a device via USB
- Develop cardio-respiratory and muscular endurance
It's advisable to keep your back straight, initiate the movement with your legs and follow the pull without jerking to protect your lumbar vertebrae. Quality of execution always takes precedence over quantity.
What it trains
Function
- Intensive cardio trainingfor large muscle groups
- Autonomous power generationthrough complete and powerful movement
- Overall muscular strengthening ofthe lower and upper body
- Improvedmotor coordination and synchronization
Total exercise that transforms effort into useful energy
What the standard requires
Safety & use
Safety & use
- Free fall height
- 530 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.28 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Stainless steel structuredesigned for intensive outdoor use
- Integrated power generation systemwith secure USB output
- High-performance corrosion protectionagainst UV and weathering
- Sturdy, ergonomic and durable seat, handles and rails
- Reliable equipment combining technology and outdoor strength
For whom, where
Recommended Public & Environment
- Connected outdoor fitness areas
- Urban parks and innovative sports areas
- Communities, campuses and eco-neighborhoods
- Sustainable and educational sports zones
A modern facility that promotes complete and responsible physical activity.
What sets it apart
Built to last outdoors
In brief
Why choose the Rower?
The USB-charged Rowing Machine is one of the most complete pieces of equipment for developing endurance, strength and coordination outdoors. It engages up to 80% of the body's muscles, while providing a tangible benefit from effort through energy production. Designed in stainless steel by Herkules Fitness, it guarantees robustness, safety and longevity for innovative outdoor installations.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Rowing Machine
Which muscles does the Herkules Fitness USB Rowing Machine work?
The USB Rowing Machine intensely trains the quadriceps, glutes and hamstrings during the push, then the back, shoulders and arms during the pull. The abdominal and lumbar muscles ensure trunk stability. This Herkules Fitness machine thus provides functional, all-round muscle strengthening.
Is this equipment an effective cardio machine?
Yes, it's an excellent cardio machine. Continuous, coordinated movement rapidly raises the heart rate. The more powerfully and consistently you row, the greater your energy expenditure and electricity production, making your workout both intense and motivating.
How does USB recharging work on the Rowing Machine?
USB recharging works via a generator integrated into the rowing mechanism. The mechanical energy produced by movement is converted into electricity and then delivered via a secure USB plug. The system is totally autonomous, with no mains connection, and is suitable for outdoor public use.
Is this device suitable for people with sensitive joints?
It may be suitable for people with sensitive joints, as the movement is fluid and impact-free. However, it is advisable to control amplitude and intensity, particularly in the knees and back. A gentle progression allows you to enjoy the benefits while respecting your body.
What maintenance is required for the Herkules Fitness Rowing Machine?
It requires very little maintenance. Regular cleaning of the seat, handles and rails is all that's required, along with periodic checks of the fasteners and USB module. Stainless steel materials ensure excellent resistance to outdoor weather conditions.
Is the USB plug safe for public use?
Yes, the Rameur's USB plug is designed for safe public use. It delivers a voltage suitable for small electronic devices and is protected against humidity, power surges and inappropriate handling. The system is self-contained and complies with safety standards.
Does the Rameur comply with safety standards for public facilities?
Yes, the Herkules Fitness Rower with USB charging complies with European standards for outdoor fitness equipment. Its sturdy structure, ergonomic design and secure electrical components guarantee safe, reliable use in open-access environments.
