Ref. USB-04USB Rechargeable Fitness Equipment
Stepper – Fitness equipment with USB charging
Eco-responsible outdoor stepper designed for communities. Combines strength, cardio and energy autonomy.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.0 m
- P 0.5 m
- H 1.4 m
Overview

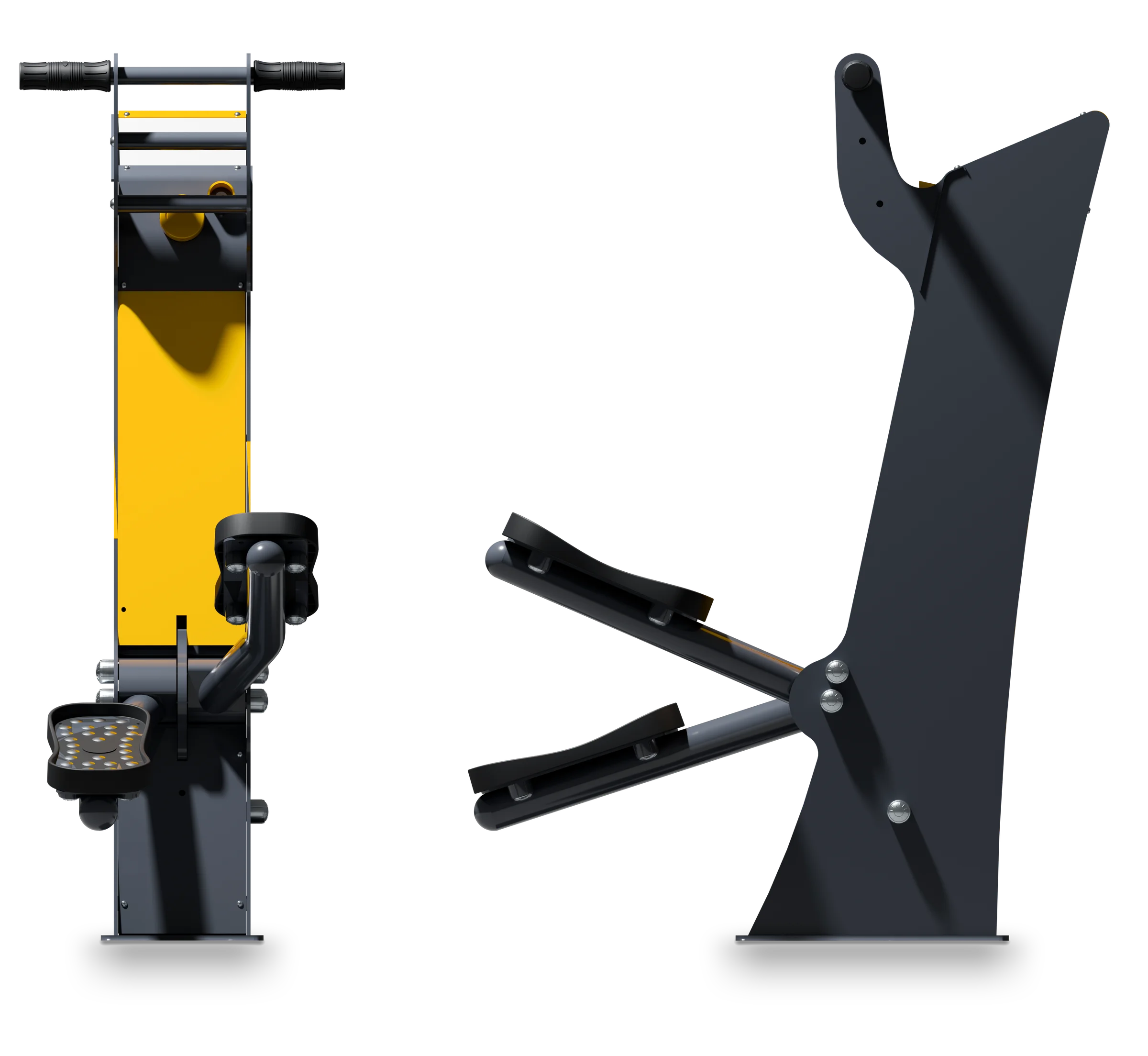

Stepper - Fitness equipment with USB charging
The Stepper from the USB-charged fitness equipment range is designed to improve cardiovascular endurance and strengthen legs and glutes through a controlled walking motion.
Featuring 5 levels of adjustable magnetic resistance, this outdoor fitness equipment adapts to the capabilities of each user, offering personalized progression. As well as strengthening muscles, the stepper also generates energy to recharge a phone or tablet via a USB socket or induction charging zone, combining physical training with energy efficiency.
Ref. USB-04 · USB Rechargeable Fitness Equipment
The figures
Technical specifications
StepperTechnical sheet · dimensions in mm
- Length
- 986
- Width
- 500
- Height
- 1,363

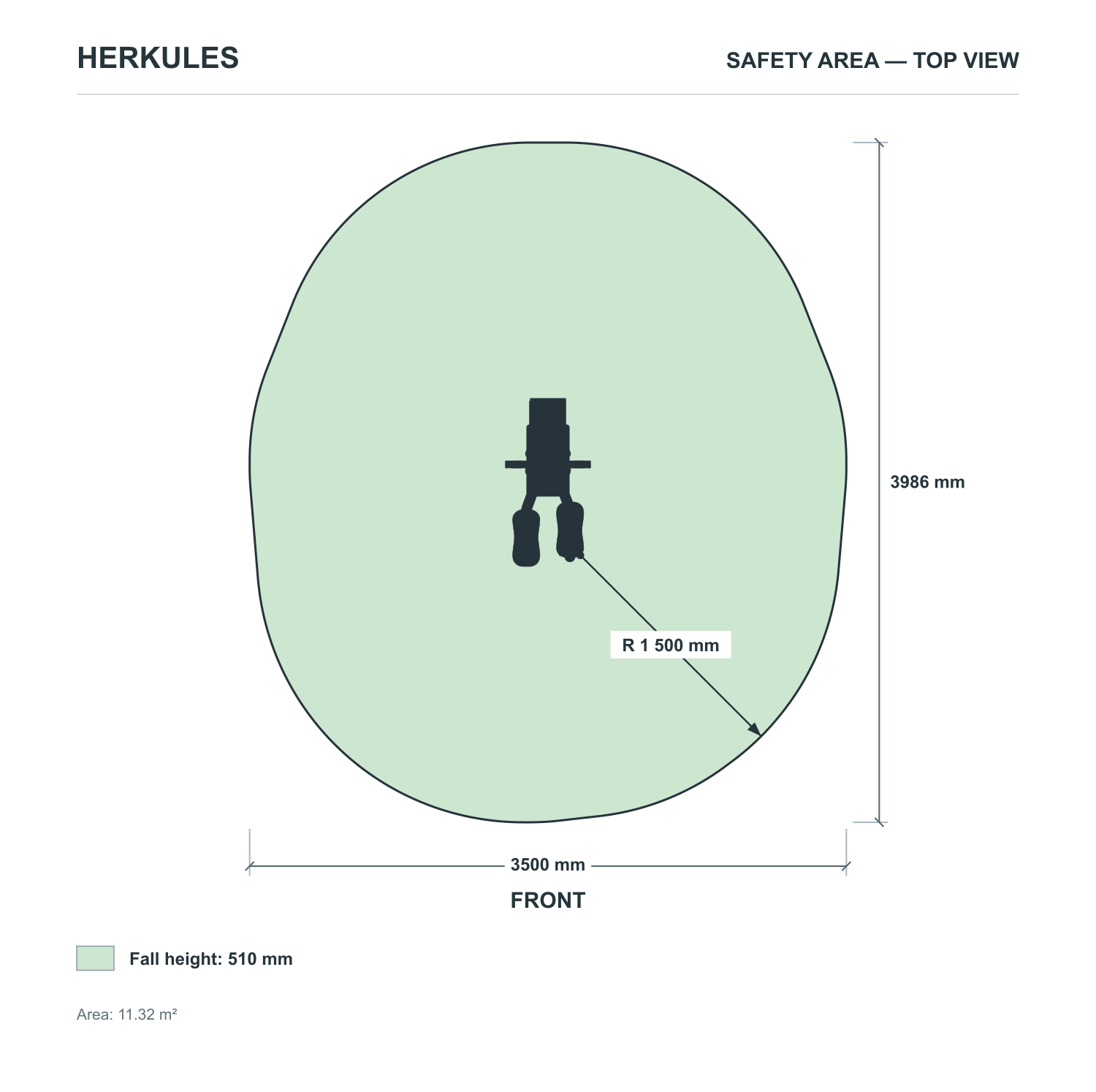

- Safety area
- 3,500 × 3,986 mm · 11.32 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years

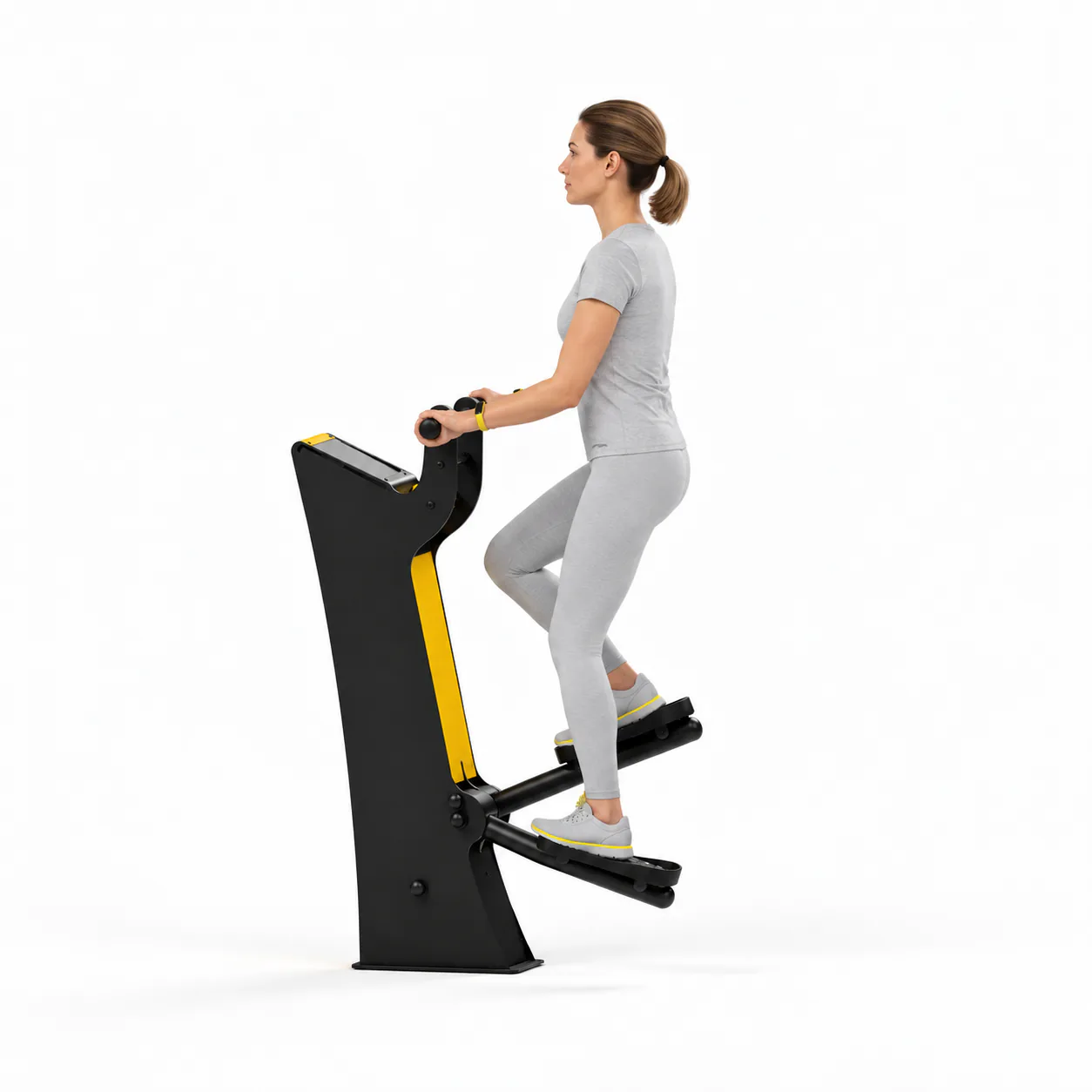

How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 510 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.216 m³
- Anchoring depth
- 600 mm
- Assembly
- Pre-assembled
Built to last outdoors
Design & Materials
- Galvanized steel structure:The main frame is built from hot-dip galvanized steel, ensuring exceptional resistance to outdoor conditions including rain, UV exposure, and temperature fluctuations.
- Anti-corrosion treatment:Each component undergoes a multi-layer protective coating process, extending the equipment's lifespan in high-traffic public environments.
- Ergonomic footrests and handles:The textured, non-slip footrests and contoured grip handles are designed to support natural body movement and maximize user safety during exercise.
- The magnetic resistance mechanism is fully sealed and weatherproof, maintaining consistent performance across all 5 resistance levels over time.
- Every element is engineered for low maintenance and long-term durability, making this stepper a cost-effective investment for parks, fitness trails, and public facilities.
For whom, where
Recommended audiences & environments
- Urban fitness parks:Perfect for city councils and municipalities looking to install modern, energy-generating workout stations in public green spaces.
- Outdoor gym circuits:Integrates seamlessly into multi-station fitness trails, offering a low-impact cardio option alongside strength equipment.
- Rehabilitation and senior wellness areas:The adjustable resistance and fluid stepping motion make it suitable for older adults or those recovering from lower-limb injuries.
- Schools and university campuses:Encourages active breaks and sustainable energy awareness among younger users in open-air recreational zones.
Whether installed along a jogging path or within a dedicated outdoor gym, this outdoor fitness equipment adapts to diverse public settings. Its USB charging feature adds genuine everyday value, making it a standout addition to any community wellness project.
What sets it apart
Built to last outdoors
In brief
Why choose the Stepper?
The Stepper - Fitness equipment with USB charging combines effective low-impact cardio training with an innovative energy recovery system, making every outdoor workout both productive and eco-responsible. Its 5-level adjustable magnetic resistance makes it accessible to a wide range of users, from beginners to regular athletes. Ideal for public spaces seeking modern, sustainable fitness solutions. Designed by Herkules Fitness, it guarantees robust construction, weatherproof performance, and lasting value for any community installation.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Stepper
Which muscle groups does the Stepper target during a workout session?
The Stepper primarily targets the quadriceps, hamstrings, glutes, and calves through its controlled stepping motion. It also engages the core muscles when users maintain an upright posture throughout the exercise. This makes it an effective full lower-body workout tool suitable for all fitness levels.
Is the Stepper suitable for elderly users or people with limited mobility?
Yes, the low-impact nature of the stepping motion makes it particularly well-suited for older adults or users with reduced joint mobility. The adjustable magnetic resistance can be set to its lowest level for gentle, rehabilitative movement. Sturdy handles provide additional support and balance throughout the session.
What type of ground surface is recommended for installing the Stepper outdoors?
The Stepper is designed for permanent installation on a firm, level surface such as concrete or compacted aggregate. Anchoring points are included to ensure stability and safety in high-traffic public environments. It is not recommended for installation on loose gravel or soft ground without prior ground reinforcement.
Does the Stepper meet any safety or quality certifications for public use?
Herkules Fitness designs its outdoor equipment in compliance with European safety standards applicable to public fitness installations. The Stepper is built to withstand intensive daily use in community spaces. For specific certification documentation, please contact our technical team directly for up-to-date compliance information.
How does the USB charging feature work on this outdoor fitness equipment?
As users step, the mechanical motion drives an integrated energy recovery system that converts physical effort into electrical power. This energy is stored and made available via a USB socket or induction charging zone mounted on the equipment. Users can charge a smartphone or tablet directly while exercising outdoors.
What maintenance is required to keep the Stepper in optimal condition over time?
The Stepper requires minimal routine maintenance thanks to its weatherproof construction and sealed magnetic resistance system. A periodic visual inspection of moving parts, bolts, and the charging module is recommended, ideally twice a year. Cleaning with water and a mild detergent is sufficient to maintain the structure's appearance and hygiene.
