Ref. USB-01USB Rechargeable Fitness Equipment
Elliptical Bike with
USB Charging | Herkules
Fitness
Elliptical Bike - USB-charged fitness equipment for complete, non-impact, innovative and durable outdoor cardio with Herkules Fitness.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 2.4 m
- P 0.6 m
- H 1.7 m
Overview
Elliptical Bike with USB Charging | Herkules Fitness
Elliptical bike is an innovative outdoor fitness machine featuring a USB recharging system powered by human energy.
The fluid elliptical motion combines walking, running and climbing without impact, simultaneously stimulating legs, arms and trunk. The energy generated by the user is converted to power a USB socket, transforming physical effort into a useful resource. This device promotes cardio, coordination and motivation, while being part of a sustainable and responsible approach.
Ref. USB-01 · USB Rechargeable Fitness Equipment
The figures
Technical specifications
Elliptical Bike with USB Charging | Herkules FitnessTechnical sheet · dimensions in mm
- Length
- 2,403
- Width
- 601
- Height
- 1,658

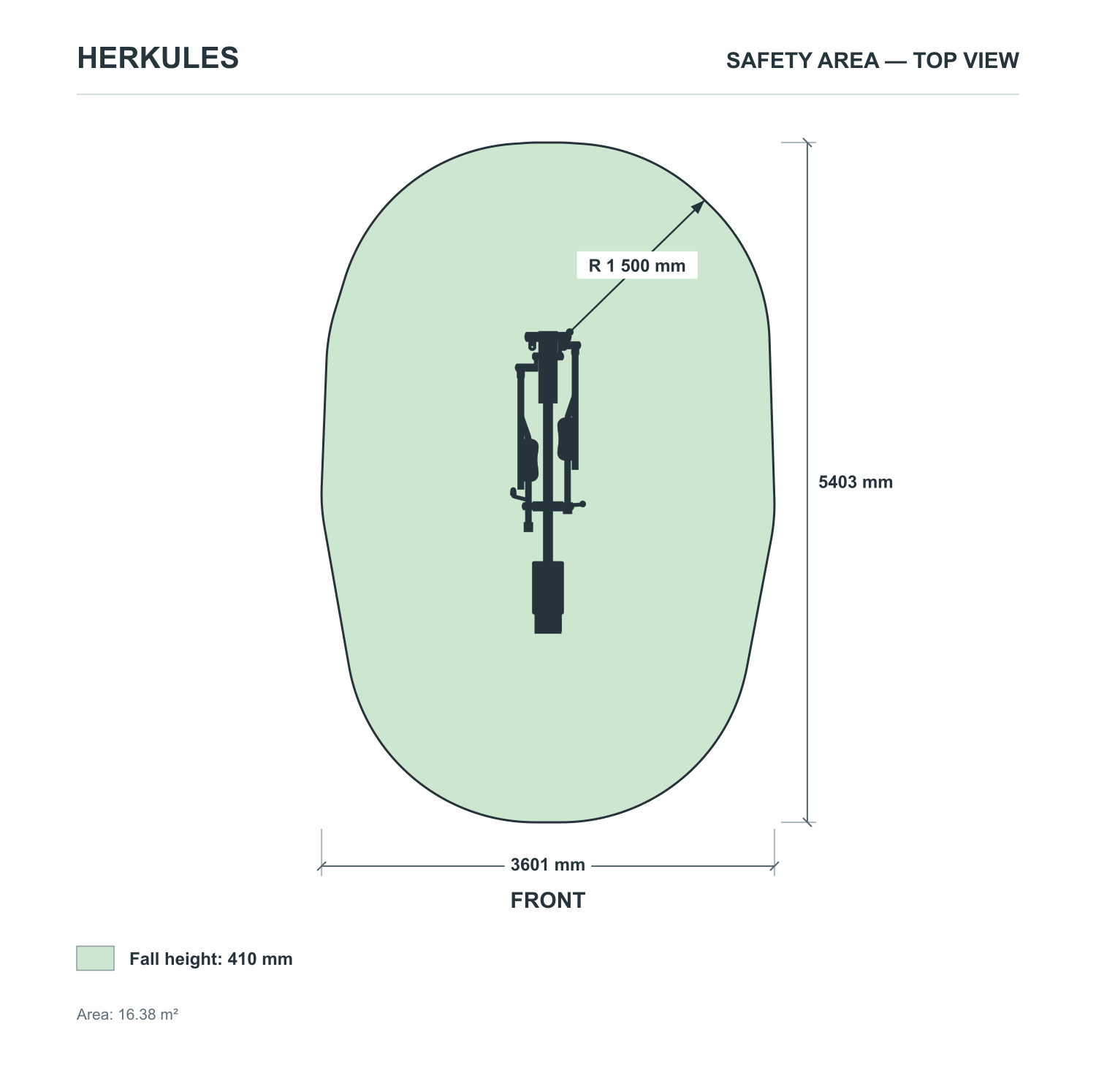

- Safety area
- 3,601 × 5,403 mm · 16.38 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
The Elliptical Bike is designed to be accessible to all, with no sporting prerequisites.
It enables:
- Perform a continuous, low-impact elliptical motion
- Generating energy to recharge a device via USB
- Improve endurance and overall coordination
It is recommended to maintain an upright posture and fluid movement to optimize energy production and preserve joints. Quality of execution always takes precedence over quantity.
What it trains
Function
- Complete cardio workoutfor the whole body
- Autonomous energy generationthrough human movement
- Joint protectionthrough non-impact movement
- Improved coordinationand motor rhythm
A fun, engaging device that gives meaning to effort
What the standard requires
Safety & use
Safety & use
- Free fall height
- 410 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.432 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Stainless steel structuredesigned for intensive outdoor use
- Integrated power generation systemwith secure USB output
- High-performance anti-corrosion treatmentagainst weathering and UV rays
- Sturdy, non-slip handles and footrests
- Durable equipment combining technology and outdoor strength
For whom, where
Recommended Public & Environment
- Connected outdoor fitness areas
- Urban parks and innovative public spaces
- Communities, campuses and eco-neighborhoods
- Sport and sustainable development awareness zones
A modern facility that promotes useful and responsible physical activity.
What sets it apart
Built to last outdoors
In brief
Why choose the Elliptical Bike?
The Elliptical Bike with USB charging transforms cardio training into an interactive, long-lasting experience. It motivates users by giving a concrete purpose to their effort, while offering a complete, impact-free workout. Designed in stainless steel by Herkules Fitness, it combines innovation, robustness and ecological commitment for modern public spaces.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Elliptical Bike with USB Charging | Herkules Fitness
Which muscles does the USB-charging Elliptical Bike work?
The movement of the legs stimulates the quadriceps, hamstrings, glutes and calves. The arms, shoulders and back are engaged via the movable handles, while the abdominals provide stability. This Herkules Fitness machine provides an all-round muscular workout while producing useful energy.
Is the USB-charged Elliptical Bike an effective cardio machine?
Yes, this USB-chargeable device is an excellent cardio machine. As the user maintains a steady pace, energy expenditure and electricity production increase. It helps improve cardiovascular endurance, while providing a motivating workout by recharging electronic devices.
How does the device's built-in USB recharger work?
USB recharging works via an energy-generation system built into the Elliptical. The elliptical motion generates electricity, which is converted and delivered via a secure USB output. The user can recharge a smartphone or small electronic device while exercising, without having to connect to the mains.
What maintenance is required for this connected device?
The Herkules Fitness Elliptical with USB charging requires very little maintenance. Regular cleaning of the contact surfaces and periodic checking of the fasteners and USB module are all that's required. The stainless steel structure and protected components ensure excellent resistance to external conditions.
Is the USB plug safe for public use?
Yes, the USB plug is designed for safe public use. It delivers a voltage suitable for small electronic devices and is protected against humidity and power surges. The system is completely self-sufficient and presents no risk to the user when used as recommended.
Does this device comply with local authority safety standards?
Yes, this unit has been designed in compliance with European standards for outdoor fitness equipment. Its sturdy structure, ergonomic design and safe components guarantee reliable use in open-access environments.
Can the Elliptical Bike be integrated into a sustainable sports career?
The Elliptical Bike with USB charging fits perfectly into a sustainable or connected sports pathway. It enhances human energy, raises awareness of sustainable development and enriches the user experience. It is an innovative cardio station ideal for responsible urban development projects.
