Ref. THJ-D20Outdoor Fitness Stations
Seated
massager – Outdoor Fitness Stations
Seated massager, outdoor wellness equipment in galvanized steel, EN16630 compliant. Perfect for communities and public spaces.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 2

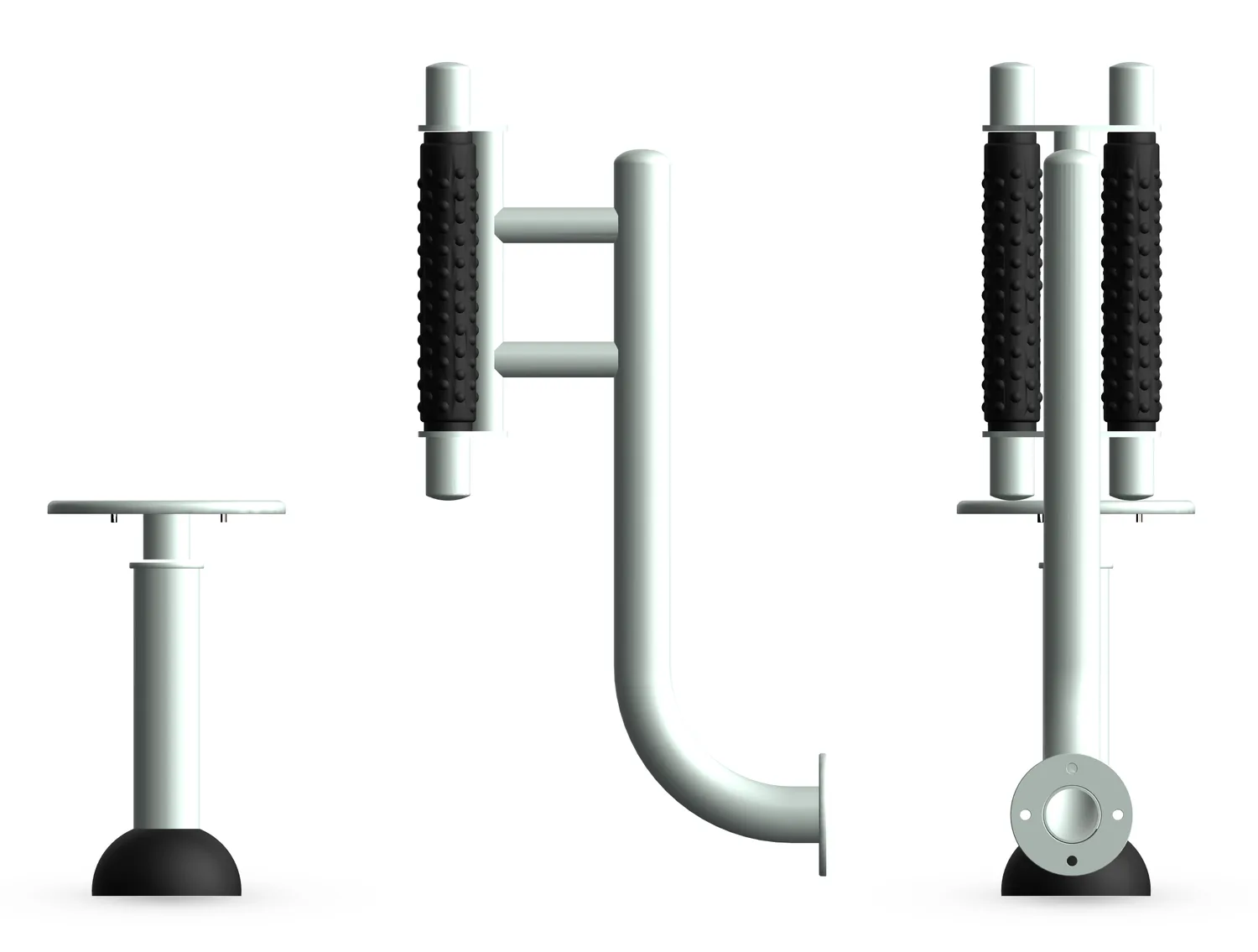

Product view
- L 1.9 m
- P 0.6 m
- H 2.0 m
Overview
Seated massager - Outdoor Fitness Stations
The Seated Massager from the Outdoor Fitness Stations range is a piece of outdoor fitness equipment designed to promote muscle relaxation and improve recovery.
Thanks to its ergonomic rollers, this equipment offers a relaxing back massage, helping to release tension built up after a workout. Ideal for parks, public spaces and fitness trails, the Seated Massager allows users to relax while enjoying the benefits of an outdoor workout.
Ref. THJ-D20 · Outdoor Fitness Stations
The figures

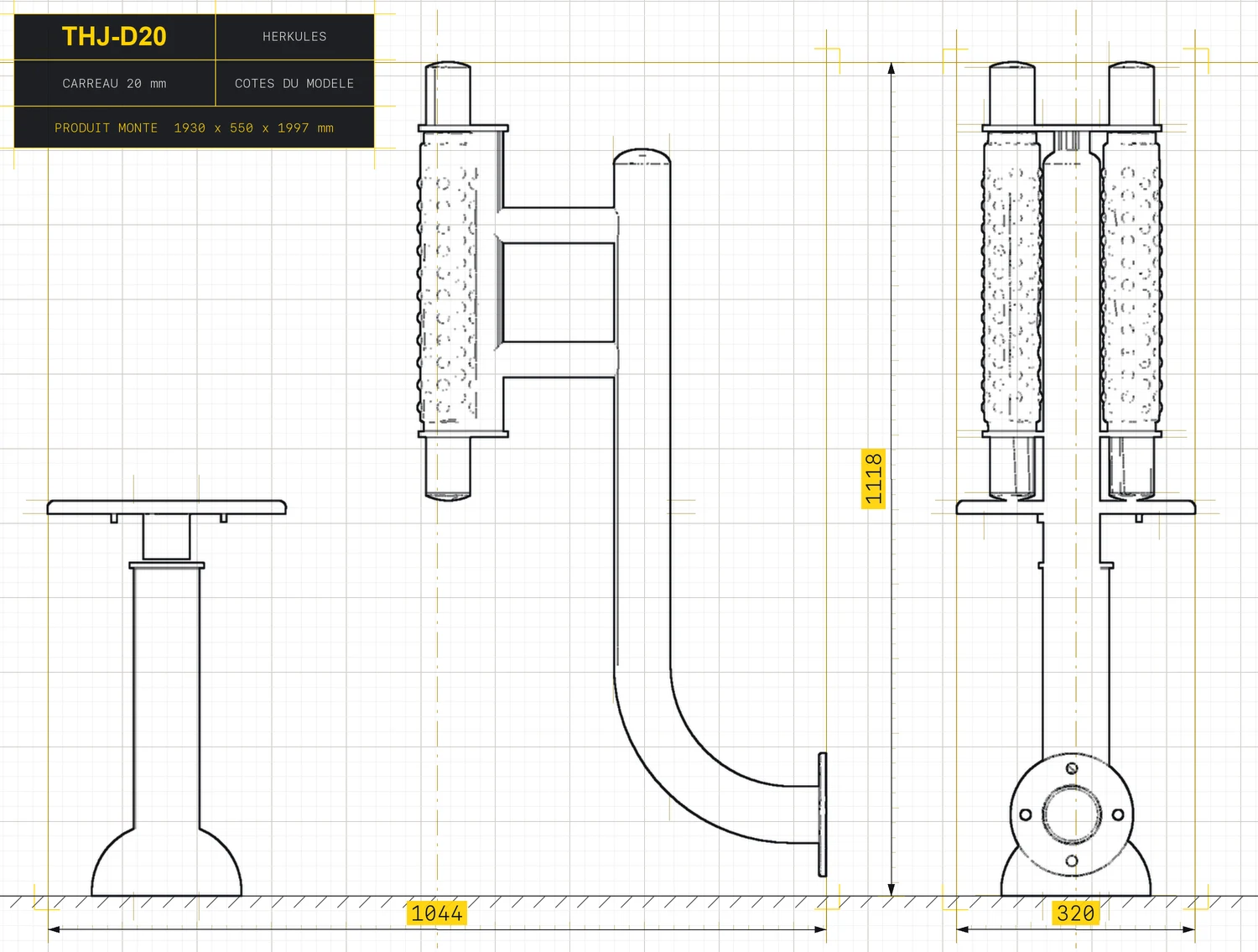

Technical specifications
Footprint
- Length
- 1,930 mm
- Width
- 550 mm
- Height
- 1,997 mm
- Safety area
- 4,930 × 3,550 mm (17.5 m²)
Material & compliance
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 530 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 2
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.28 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structurethe main frame is made of hot-dip galvanized steel, guaranteeing optimum resistance to weather and climatic variations for prolonged outdoor use.
- Ergonomic rollers made of resistant materialthe massage rollers are designed to provide the right amount of pressure on the back, ensuring maximum comfort while withstanding intensive, daily use.
- Multi-layer anti-corrosion treatmenta polyester epoxy paint applied in the cab provides additional protection against rust, UV rays and humidity, preserving the aesthetic appearance of the equipment.
- The seat is designed to accommodate users of varying morphologies, with a sloping backrest for a natural massage posture.
- The materials used guarantee exceptional durability in urban and natural environments, reducing maintenance costs for local authorities.
For whom, where
Recommended audience & environment
- Urban parks and green spacesideal for walkers, Sunday sports enthusiasts and senior citizens looking for a relaxing break in the heart of nature.
- Fitness trail and outdoor fitness circuitsperfectly integrated at the end of the course to allow users to decompress the muscles used during training.
- Senior residences and nursing homesparticularly suited to the elderly, who benefit from gentle relief of back tension without undue physical strain.
- Leisure centers and outdoor centresthe ideal complement to a relaxation area for families and groups after sports or outdoor activities.
The Masseur Assis integrates harmoniously into any outdoor fitness environment, adding a dimension of recovery and well-being often absent from traditional equipment. It is an invaluable asset for local authorities wishing to offer complete sports facilities accessible to all.
What sets it apart
Built to last outdoors
In brief
Why choose the Seated Massager?
The Seated Massager meets an essential need often neglected in outdoor sports areas: muscle recovery accessible to all, without any particular technical effort. It can be used by regular athletes, senior citizens and occasional park users alike, providing immediate relief from back strain. Designed by Herkules Fitness, it guarantees unfailing sturdiness, ergonomics designed for the comfort of every user, and aesthetic integration into any urban or natural environment.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Seated massager
Which muscles and areas of the body does the Seated Massager target?
The Seated Massager primarily targets the paravertebral, lumbar and thoracic muscles of the back. By rotating the torso on the ergonomic rollers, the user also stimulates the flank muscles, helping to release lower cervical tension, which is often contracted after physical exertion.
Is the Seated Massager suitable for the elderly or beginners?
Yes, the Seated Massager is particularly recommended for senior citizens and people who are not used to strenuous physical exercise. Its use requires no sustained muscular effort: simply sit down and perform light body rotations at your own pace, making it accessible to a very wide audience.
What are the ground installation requirements for this equipment?
The Masseur Assis can be installed on any type of stable ground, whether concrete, asphalt, draining slabs or stabilized soil. The plates are anchored in the ground. To ensure user safety, we recommend a clearance zone around the unit in compliance with EN 16630 standards.
Is this equipment certified to European safety standards?
The Masseur Assis is designed and manufactured in compliance with European standard EN 16630, which governs fitness equipment permanently installed outdoors. This certification guarantees the conformity of the equipment in terms of structural safety, mechanical resistance and absence of risks for users.
How to maintain and clean the Masseur Assis to extend its life?
Maintenance of the Masseur Assis is simple and straightforward. Regular cleaning with clear water and neutral soap is all that's needed to keep the equipment hygienically clean. It is advisable to periodically check that the fixing bolts, rollers and paint coating are in good condition, and to contact Herkules Fitness if any damage is found.
What is the maximum load supported by the Seated Massager and what are its dimensions?
The Masseur Assis is designed to accommodate adult users of various morphologies and supports a standard working load in compliance with the requirements of standard EN 16630. For precise dimensions and full technical specifications, please contact our sales team or consult the technical data sheet available on request.
