Ref. THJ-D21SOutdoor Fitness Stations
Stepper – Outdoor Fitness Stations
Outdoor stepper, collective fitness equipment in galvanized steel, EN16630 compliant. Ideal for strengthening legs and cardio in the open air.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 2
Product view
- L 1.7 m
- P 0.6 m
- H 2.0 m
Overview
Stepper - Outdoor Fitness Stations
The Stepper from the Stations de Fitness Extérieure range is an outdoor fitness machine designed to strengthen leg muscles, particularly the quadriceps, calves and glutes.
This equipment is perfect for improving cardiovascular endurance and toning the lower body. The Stepper is suitable for all fitness levels and is ideal for parks, recreation areas and health trails, offering an excellent complement to an outdoor fitness routine.
Ref. THJ-D21S · Outdoor Fitness Stations
The figures

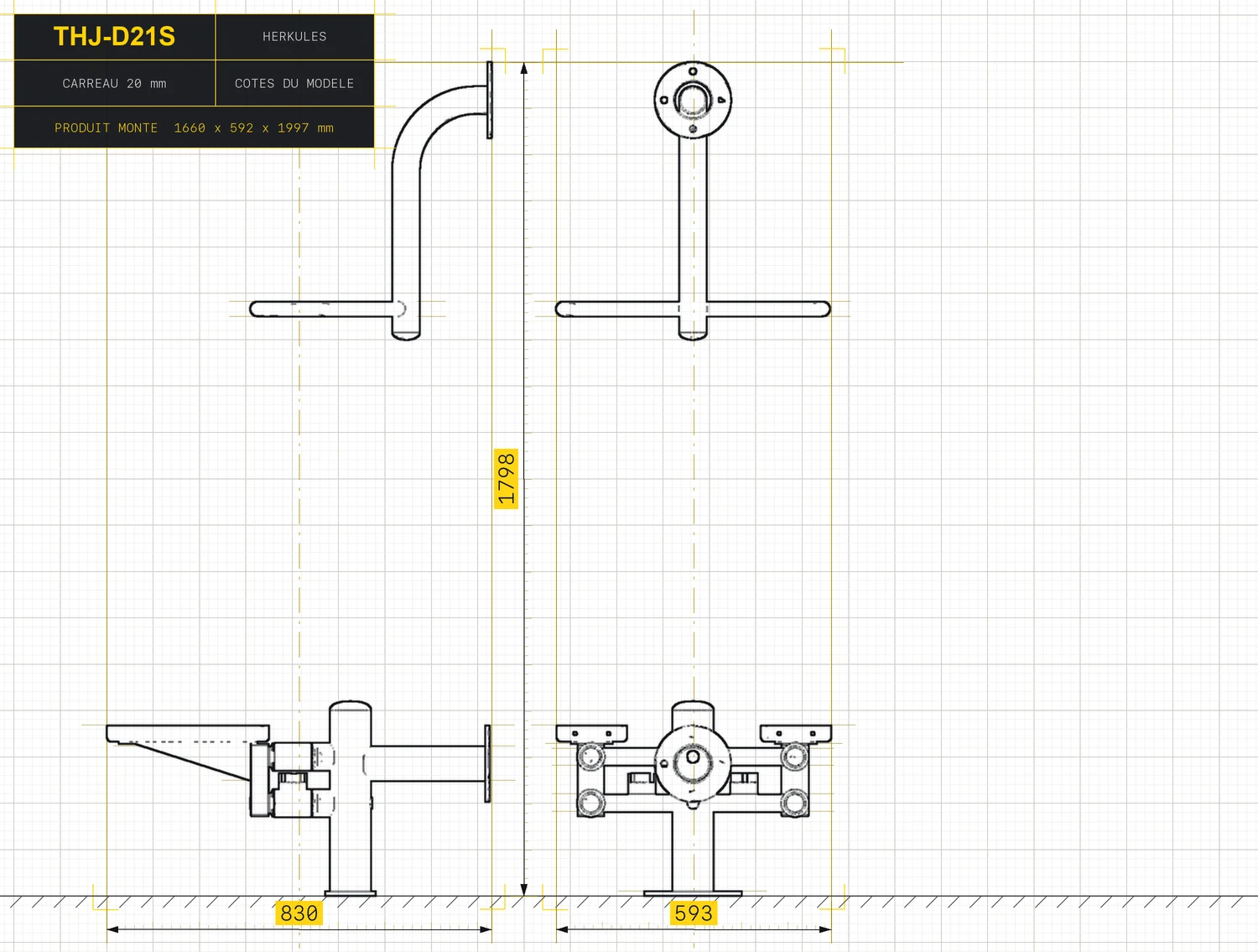

Technical specifications
Footprint
- Length
- 1,660 mm
- Width
- 592 mm
- Height
- 1,997 mm
- Safety area
- 4,660 × 3,592 mm (16.73 m²)
Material & compliance
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 368 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 2
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.18 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structurethe main frame is made of hot-dip galvanized steel, offering optimum resistance to weathering and climatic variations.
- Multi-layer anti-corrosion treatmentpowder-applied epoxy polyester paint provides long-lasting protection against rust, UV and humidity.
- Ergonomic pedals and handlesthe contact surfaces are designed to ensure a secure grip and stable support, even in wet weather.
- The rotation axes are made of stainless steel with sealed bearings, ensuring smooth, maintenance-free movement.
- All components are selected to guarantee maximum durability in outdoor environments, with a lifespan designed for intensive collective use.
For whom, where
Recommended audience & environment
- City parks and public gardensideal for city dwellers who want to keep fit outdoors, at any time of day.
- Fitness trails and bike pathsPerfectly integrated into signposted fitness circuits, encouraging regular, progressive exercise.
- Residences and leisure areassuitable for condominiums, campsites or vacation centers that want to offer a fitness area accessible to all.
- Schools and sports centerssuitable for teenagers and adults as an introduction to supervised physical activity.
This Stepper - Stations de Fitness Extérieure is designed for beginners as well as for active people wishing to complete their workout. Discover all our solutions on our page dedicated to outdoor fitness.
What sets it apart
Built to last outdoors
In brief
Why choose a Stepper?
The Stepper is an effective solution for strengthening the lower body and improving cardiovascular endurance, without requiring any special sporting skills. It is suitable for a wide range of users, from senior citizens looking to improve their mobility to active adults wanting to tone their legs outdoors. Its installation in communal areas makes regular exercise accessible to all. Designed by Herkules Fitness, it guarantees robustness, safety and longevity in all outdoor environments.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Stepper
Which muscles does the Stepper work best?
The Stepper primarily targets the quadriceps, glutes and calves, essential muscles of the lower limb. The up-and-down movement alternates the contraction of these muscle groups, promoting progressive, balanced strengthening of the lower body.
Is the Stepper suitable for seniors or beginners?
Yes, this equipment is designed to suit all fitness levels. The movements are gentle and low-impact on the joints, making it a particularly recommended choice for seniors, people undergoing light rehabilitation or beginners wishing to resume physical activity.
On what type of floor can this outdoor Stepper be installed?
The Stepper can be anchored to a variety of surfaces: concrete, asphalt or stabilized slabs. The Stepper is anchored to the ground using special mounting plates. We recommend that you leave a clear space around the unit, in compliance with current safety standards.
Does this equipment comply with European safety standards?
Yes, the Herkules Fitness Stepper is designed and manufactured in compliance with European standards applicable to outdoor fitness equipment, in particular EN 16630. This compliance guarantees user safety and facilitates integration into public and collective spaces.
What maintenance is required to keep the Stepper in good condition?
Stepper maintenance is simple and straightforward. Regular visual inspection of axles, fixing bolts and contact surfaces is recommended. Periodic cleaning with water and an annual check of mechanical parts are all that's needed to ensure optimum long-term performance.
What is the maximum load the Stepper can support?
The Stepper is designed for intensive collective use and can support a standard user load in compliance with EN 16630, i.e. generally up to 150 kg. For precise information on dimensions and maximum approved load, please consult the technical data sheet available on request.
