Ref. THJ-B10Classic fitness equipment

Surfeur – Outdoor fitness equipment

Enhance your balance and core strength with the Surfeur – a robust, engaging outdoor fitness apparatus designed for intensive use.

Get a quote →Try it in the configurator

Technical data · DWG · 3D

Warranty: Up to 10 years
Certification: EN16630:2015
Number of users: 2

Overview Specifications Use Function Safety Installation Design Audience

Overview

Surfeur - Outdoor fitness equipment

The Surfeur is an outdoor fitness apparatus dedicated to dynamic balance and coordination training.

Its biomechanical movement involves a lateral transfer of body weight, simulating a controlled glide akin to footwork in board sports. This fluid oscillation intensely engages stabilizing muscles, hips, and the core, while enhancing proprioception. Its ergonomic design ensures safe practice, accessible to all fitness levels.

Ref. THJ-B10 · Classic fitness equipment

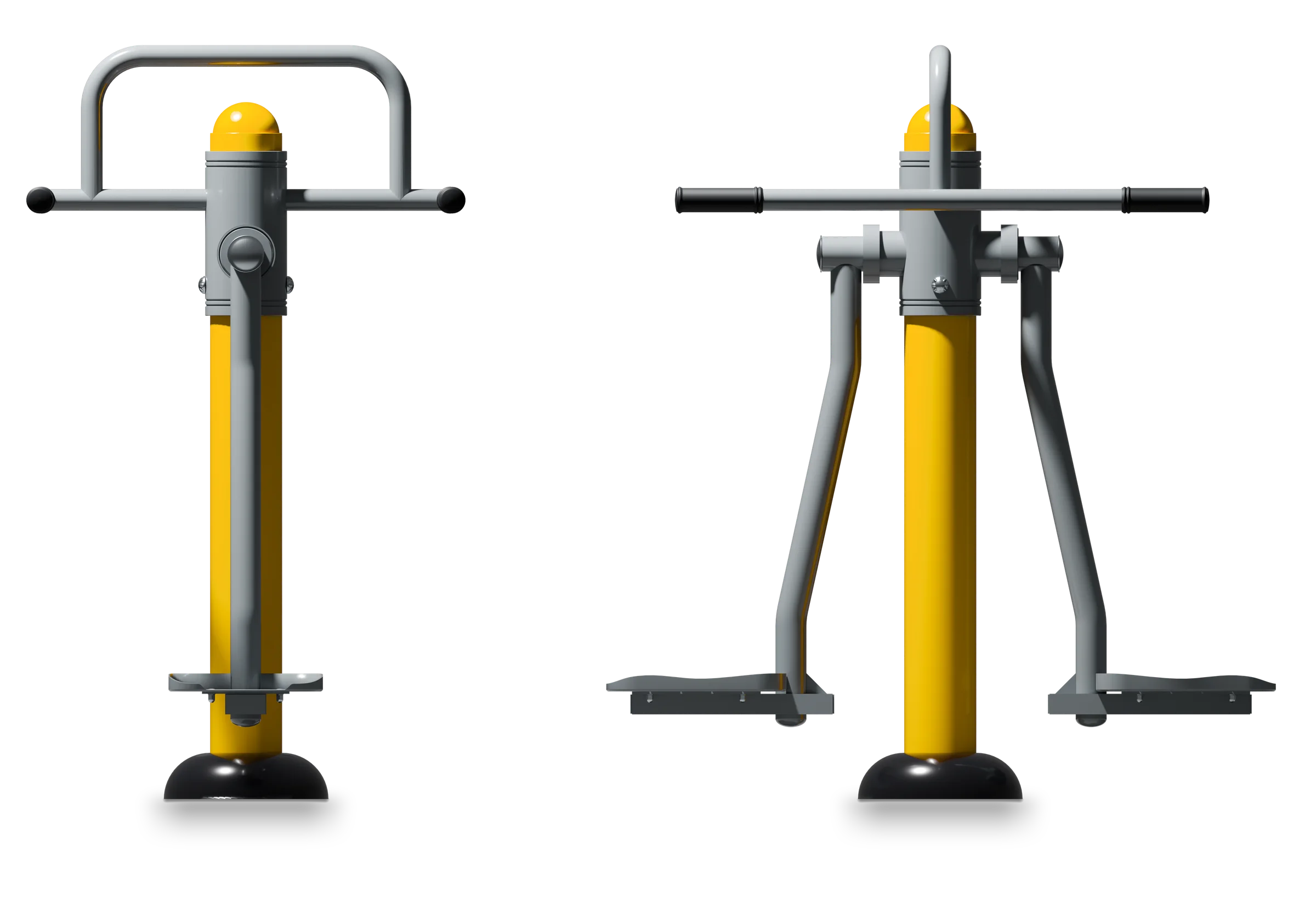

Surfeur - Outdoor fitness equipment — Rendering — Front and side views

The figures

Technical specifications

THJ-B10

SurfeurTechnical sheet · dimensions in mm

Length: 1,302
Width: 854
Height: 1,466
Safety area: 4,302 × 3,854 mm · 13.89 m²
Material: Galvanized powder-coated steel
Certification: EN16630:2015
Warranty: Up to 10 years

Surfeur - Outdoor fitness equipment — Dimensioned drawing

How to use it

Use

The Surfeur is designed for both the general public and experienced athletes.

It enables:

Continuous lateral movements for balance training
Strengthens deep and stabilizing muscles
Coordination and postural control in dynamic situations

To stabilize the movement, keep your gaze straight and your core engaged. Prioritize controlled execution over range of motion for safe practice.

Downloads →

Pédalier d'un appareil de fitness extérieur Herkules, gros plan sur le mécanisme

What it trains

Function

Balance and ProprioceptionEnhances body control
Core StrengtheningIntense activation of the abdominal muscles
Hip MobilityFluid lateral footwork
Neuromuscular CoordinationSynchronizes movements

A functional exercise promoting everyday stability and agility

Use →

Balance · Abs · Mobility

What the standard requires

Safety & use

Free fall height: 700 mm
Minimum user height: 140 cm
Maximum user weight: 150 kg
Number of users: 2

Permitted surfacing

700 mm

Concrete, stone

Bituminous surfacing

Natural topsoil

Turf

Bark chippings

Wood chips

Sand

Gravel

EPDM

01 0002 0003 000

Surfeur - Outdoor fitness equipment — Safety area — Safety area

Putting it in place

Installation

Safety areathe surface given in the table, clear all around.
Concrete basepoured to the stated volume and depth, then cured.
Fixingthe unit is bolted onto the cured base.
Handoverplumb, tightness and no play before service.
Upkeepregular visual check and periodic retightening (EN 16630).

Anchor frame base cast in open ground

Bolted down on an existing concrete slab

Installation

Concrete volume: 0.15 m³
Anchoring depth: 600 mm
Fixing: Bolted
Assembly: Pre-assembled

Built to last outdoors

Design & materials

Galvanized Steel StructureDesigned for intensive outdoor use
Anti-Corrosion TreatmentWeather and UV resistant
Non-Slip PlatformEnsures optimal foot stability
Fluid and silent movement mechanism
A durable design meeting the requirements of public spaces

For whom, where

Recommended Public & Environment

Outdoor fitness areas and health trails
Urban parks and municipal sports facilities
Communities, schools, and universities
Physical conditioning and rehabilitation areas

Engaging and functional equipment that encourages regular use.

What sets it apart

Built to last outdoors

In brief

Why Choose the Surfeur?

The Surfeur is a key apparatus for developing balance, stability, and coordination—essential skills often overlooked in traditional training. Its controlled lateral movement strengthens deep muscles and improves posture, all while being gentle on your joints. Built to last, it embodies the quality and robustness synonymous with Herkules Fitness.

Downloads

Online fitness park configurator

The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.

1 Choose your equipment
2 Visualize your layout
3 Check compliance
4 Receive your project

🛠 Launch configurator Free - No obligation - Immediate results

Dimensioned layout plan of the Argentan fitness park, from the project file

3D perspectives of the Argentan fitness park, from the project file

You may wonder

Frequently asked questions : Surfeur

Which Muscles Does the Surfeur Engage?

The Surfeur primarily engages the deep abdominal muscles, glutes, adductors, abductors, and the stabilizing muscles of the ankles and knees.

Is the Surfeur Suitable for Balance Training?

Yes, the Surfeur is specifically designed to improve balance and proprioception through its continuous, controlled lateral movement.

Is This Apparatus Accessible to Beginners?

Yes, the Surfeur allows for a progressive learning curve. Beginners can limit the range of motion and build confidence over time.

Is the Surfeur Effective for Fall Prevention?

Yes, by strengthening stabilizing muscles and coordination, the Surfeur helps improve stability and reduce the risk of imbalance, particularly for seniors.

Can the Surfeur Be Integrated into Circuit Training?

Absolutely, the Surfeur integrates perfectly into circuit training, adding balance and core work between more dynamic exercises.

Does this equipment comply with European safety standards?

Yes, the Surfeur complies with EN 16630, ensuring safe use in public spaces and communal facilities.

What type of ground is recommended for installation?

The Surfeur must be installed on a stable surface in accordance with recommendations, such as a concrete slab or a shock-absorbing surface suitable for outdoor fitness equipment.
