Ref. HE-04Outdoor Bodybuilding Machines
Back
Press – Adjustable weight machines
Optimize your back with the EN16630-compliant outdoor Back Press, a durable, hard-wearing machine for collective use in parks and public spaces.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.6 m
- P 1.5 m
- H 2.4 m
Overview
Back Press - Adjustable weight machines
The back press with adjustable weights is designed to strengthen back, shoulder, arm and triceps muscles. This apparatus is ideal for those who want to train outdoors, while taking advantage of the adjustable resistance to progress at their own pace. Designed specifically for outdoor fitness, this unit is made from robust materials that guarantee optimum durability in all weather conditions.
Ref. HE-04 · Outdoor Bodybuilding Machines
The figures
Technical specifications
Back PressTechnical sheet · dimensions in mm
- Length
- 1,559
- Width
- 1,452
- Height
- 2,445

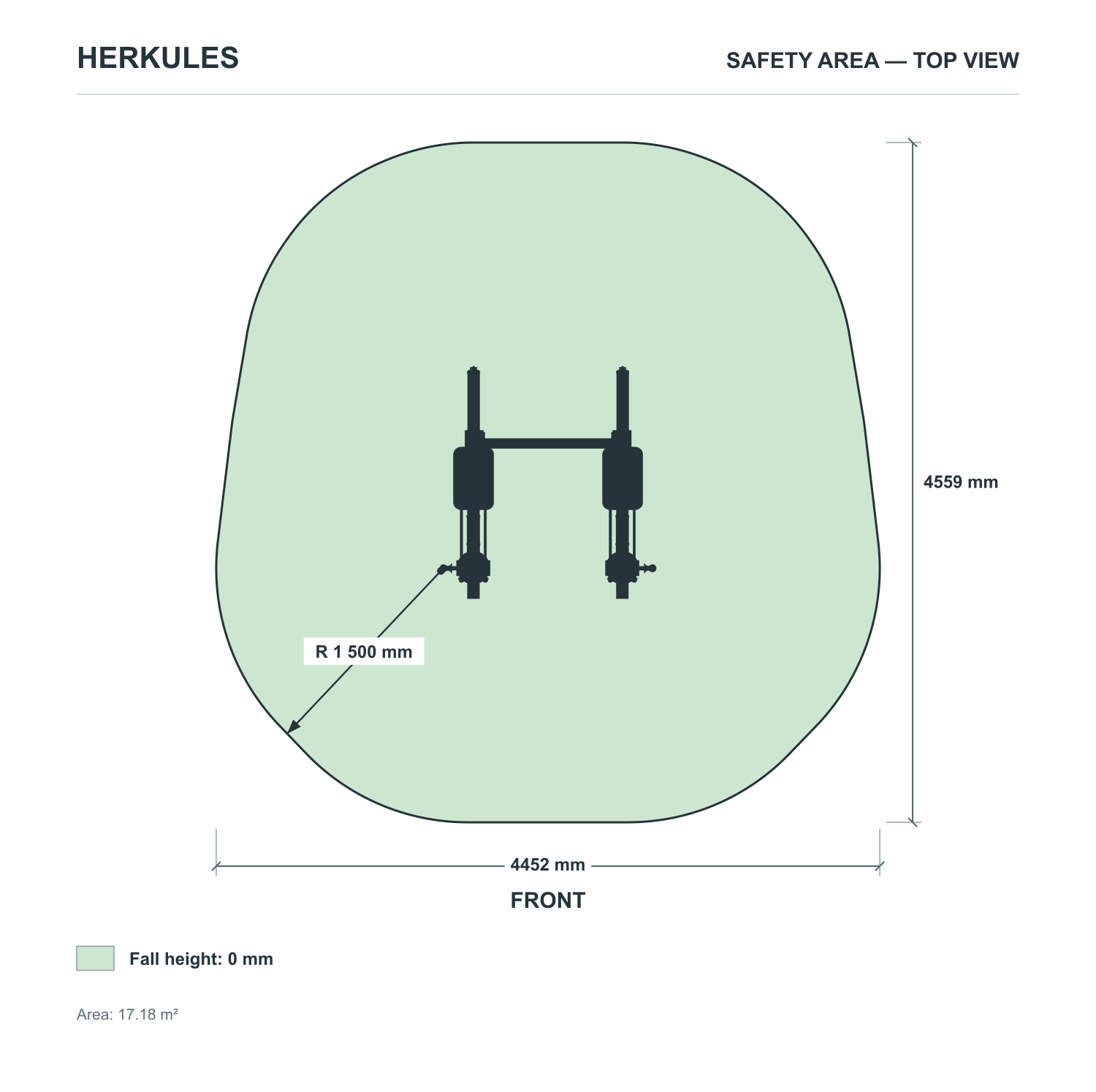

- Safety area
- 4,559 × 4,452 mm · 17.18 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 0 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.432 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structurethe main frame is made of hot-dip galvanized steel, offering optimum corrosion and weather resistance for intensive outdoor use.
- Enhanced anti-corrosion treatmentan epoxy powder coating provides additional protection against humidity, UV and temperature variations, guaranteeing a long-lasting, aesthetically pleasing finish.
- Ergonomic handlesthe handles are coated with a non-slip material that ensures a secure grip, even in wet weather, reducing the risk of injury.
- The adjustable load system is designed for simple, intuitive handling, allowing users to quickly and safely modify resistance.
- Each component is selected for its robustness and longevity, making this unit a reliable long-term investment for any outdoor fitness area.
For whom, where
Recommended audience & environment
- Municipal parks and green spacesideal for equipping outdoor fitness zones accessible to all residents, encouraging regular physical activity in the heart of nature.
- Schools and universitiesperfectly suited to landscaped playgrounds and campuses wishing to offer sports facilities outside school hours.
- Residences and condominiumsan attractive solution for outdoor common areas, enabling residents of all ages to exercise without leaving their homes.
- Sports and leisure facilitieseffectively complements an existing outdoor fitness trail by adding a targeted upper-body exercise with adjustable resistance.
The Back Press - Adjustable-load fitness equipment integrates harmoniously into any outdoor fitness project, whether it's an isolated installation or a complete sports trail. Its versatility and sturdiness make it an ideal choice for local authorities wishing to offer their users high-quality, long-lasting equipment.
What sets it apart
Built to last outdoors
In brief
Why choose the Back Press?
The Back Press stands out for its ability to effectively target the upper body - back, shoulders, arms and triceps - thanks to an adjustable load system that is suitable for beginners and experienced athletes alike. It meets the needs of communities looking for inclusive equipment, accessible to all levels and age groups. Designed by Herkules Fitness, it guarantees rugged sturdiness and optimum safety in the most demanding outdoor environments.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Back Press
Which muscles are mainly involved in the Back Press?
The Back Press mainly targets the back muscles (large dorsal, rhomboids), shoulders (deltoids), triceps and biceps. It also contributes to core stability thanks to the natural sheathing required by the pulling movement. It's a complete exercise for developing upper-body strength.
Is this machine suitable for seniors and beginners?
Yes, the adjustable load system allows each user to choose a resistance level suited to his or her level, making it particularly accessible to seniors and beginners. Progress is thus natural and safe, with no risk of muscular overload. The ergonomic handles also offer optimum grip comfort.
What are the soil and anchoring requirements for Back Press installation?
The unit must be anchored in a concrete slab to ensure stability and user safety. Installation must be carried out by a qualified professional, in accordance with the foundation plans supplied by Herkules Fitness. The ground must be level, firm and clear with a sufficient safety radius around the unit.
Is the Back Press certified for use in public areas?
Yes, Herkules Fitness outdoor fitness equipment is designed to meet current European standards for outdoor fitness equipment, in particular EN 16630. This certification guarantees the structural and functional safety of the equipment for intensive group use in public areas.
What maintenance is required to keep the Back Press in good condition over time?
Maintenance is minimal thanks to the anti-corrosion treated materials used in manufacture. We recommend regular visual inspection (bolts, handles, load system) and cleaning with water and a mild detergent. In the event of deterioration of coatings, a touch-up of epoxy paint can significantly extend service life.
What are the available load ranges and approximate dimensions of the device?
The adjustable-load Back Press offers several adjustable resistance levels to suit a wide range of users, from beginners to advanced athletes. For precise dimensions, detailed load ranges and layout drawings, please contact the Herkules Fitness team directly or consult the technical data sheet available on request.
