Ref. HE-03Outdoor Bodybuilding Machines
Dead
Lift – Adjustable weight machines
Build strength and stamina with the Dead Lift Outdoor Community Lift, a robust piece of equipment designed for outdoor fitness and safe weight training.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1

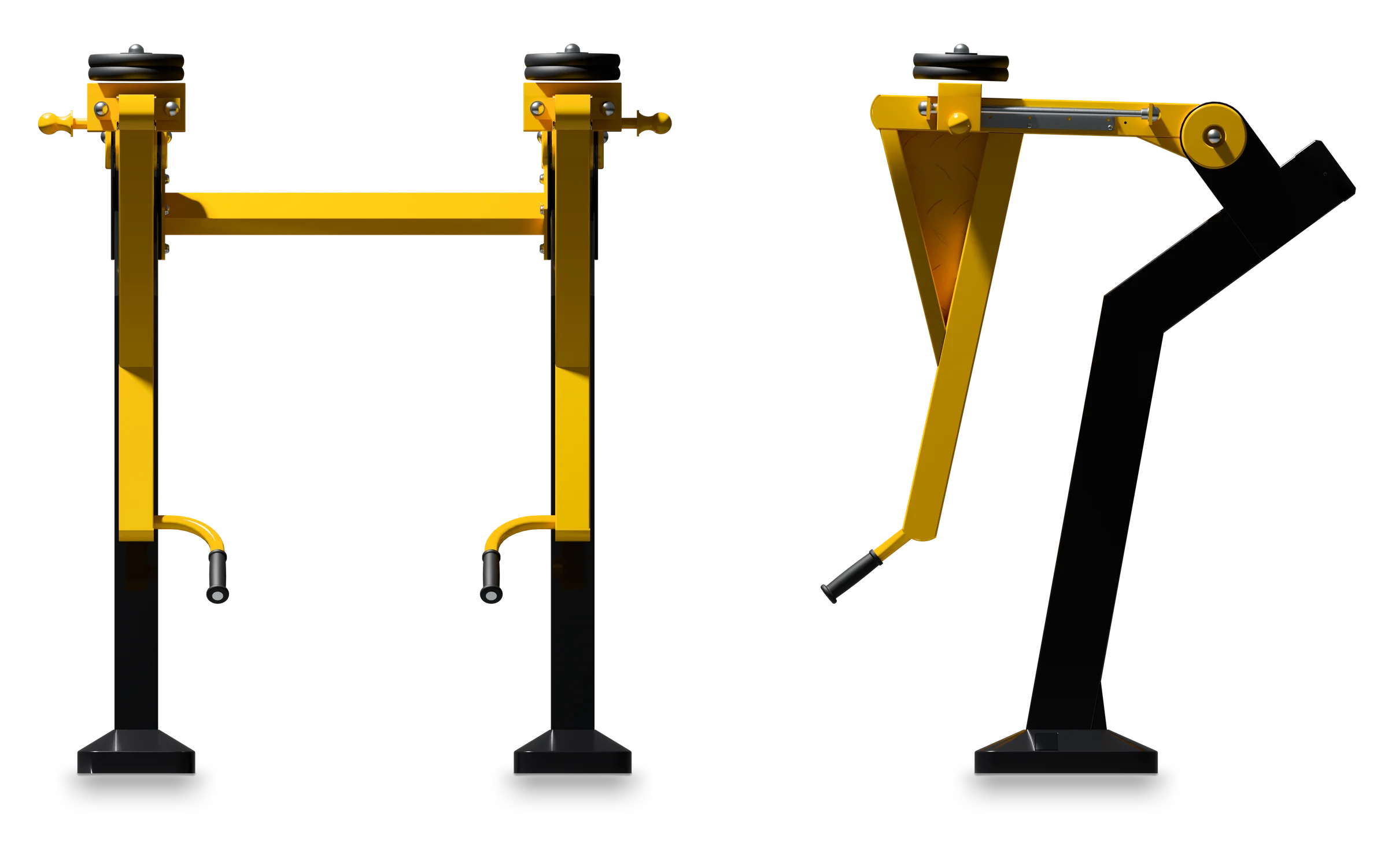

Product view
- L 1.5 m
- P 1.2 m
- H 1.7 m
Overview
Dead Lift - Adjustable weight machines
The dead lift is specially designed for those who want to build strength and muscle mass in the lower body, especially the thighs, glutes and back. This equipment is ideal for outdoor training, even in demanding environments. Thanks to its adjustable weights, it can be adapted to every level of user, from beginner to advanced, offering a progressive approach to muscle strengthening.
Ref. HE-03 · Outdoor Bodybuilding Machines
The figures
Technical specifications
Dead LiftTechnical sheet · dimensions in mm
- Length
- 1,452
- Width
- 1,227
- Height
- 1,672

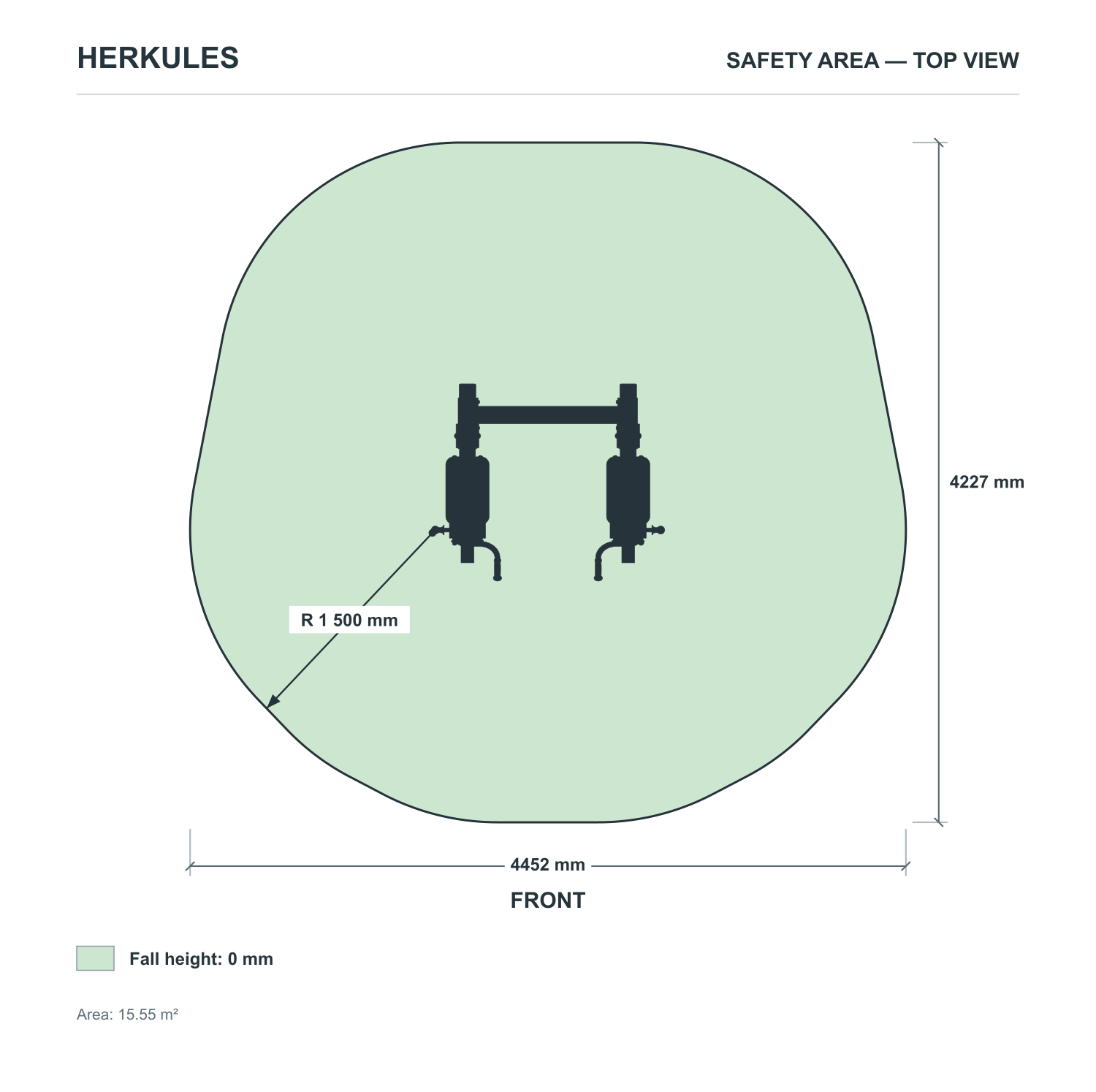

- Safety area
- 4,227 × 4,452 mm · 15.55 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 0 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.432 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Hot-dip galvanized steel framethe dead lift frame is made from high-strength galvanized steel, designed to withstand heavy loads and repeated mechanical stress.
- Multi-layer anti-corrosion treatmentan epoxy powder finish combined with galvanizing protects the device against rust, humidity and the elements, guaranteeing maximum outdoor durability.
- Ergonomic, non-slip handlesthe grip bar is designed to provide a secure, comfortable hold, reducing the risk of slipping, even in wet weather.
- The adjustable weights are integrated on a secure locking system, allowing quick and reliable adjustment between each session.
- The entire structure is designed for intensive use in public spaces, ensuring long-term robustness and safety.
For whom, where
Recommended audience & environment
- Municipal parks and green spacesideal for outdoor fitness zones accessible to all citizens.
- Leisure centers and sports complexesperfect for enriching a multi-purpose training offer for regular sportsmen and women.
- Schools and universitiessuitable for young adults wishing to strengthen their muscles in a safe environment.
- Residences and condominiums with communal areasa sustainable solution for offering quality facilities to a community of active residents.
The adjustable dead lift fits perfectly into any outdoor fitness trail, whether it's designed for the general public or for experienced exercisers. Its robust design and inclusive nature make it a preferred choice for communities wishing to promote physical activity accessible to all.
What sets it apart
Built to last outdoors
In brief
Why choose the Dead Lift with adjustable loads?
The Dead Lift - Adjustable-load body-building equipment is the ideal solution for developing lower-body and back strength outdoors, whatever the user's level. Its progressive design is equally suited to beginners and experienced athletes, enabling safe, independent use in public spaces. Designed by Herkules Fitness, it guarantees exemplary durability, optimum safety and harmonious integration into any outdoor sports facility.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Dead Lift
Which muscle groups are involved in outdoor deadlifts?
The dead lift primarily targets the hamstrings, quadriceps, glutes and erector spinae muscles. By simultaneously mobilizing these major muscle groups, it contributes to the development of overall lower-body strength and improved posture, making it a particularly complete functional exercise.
Is the machine suitable for beginners with no experience of bodybuilding?
Yes, thanks to its adjustable weight system, the machine allows each user to adapt the load to his or her starting level. Beginners can start with light resistance and gradually increase the load as their strength and technique improve, in complete safety.
What type of flooring is suitable for this outdoor exercise machine?
The unit is designed to be anchored to a concrete slab or stabilized soil, in accordance with Herkules Fitness installation recommendations. A solid foundation is essential to guarantee the stability of the structure under load and to ensure the safety of users during each exercise.
Is this equipment certified for use in public areas?
Herkules Fitness equipment is designed to comply with current European standards for outdoor fitness equipment, in particular EN 16630, which guarantees structural safety, mechanical strength and suitability for intensive collective use.
What maintenance is required to keep the device in good condition over time?
Maintenance of the dead lift is simple and straightforward: we recommend regularly checking the tightness of the bolts, checking the condition of the weight locking system and cleaning the unit with clear water. Galvanization and epoxy coating significantly reduce maintenance requirements due to corrosion.
What is the maximum load supported by the device and what are its overall dimensions?
The adjustable-load dead lift is designed to support loads suitable for intensive public use, with adjustment ranges for safe progress. For precise technical data on maximum load and overall dimensions, please consult the available technical data sheet or contact the Herkules Fitness team directly.
