Ref. HE-07Outdoor Bodybuilding Machines
Leg
Press – Adjustable weight machines
Work on your legs with the Leg Press outdoor adjustable-load machine, a sturdy outdoor strength training machine suitable for sports communities.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.3 m
- P 1.2 m
- H 1.7 m
Overview

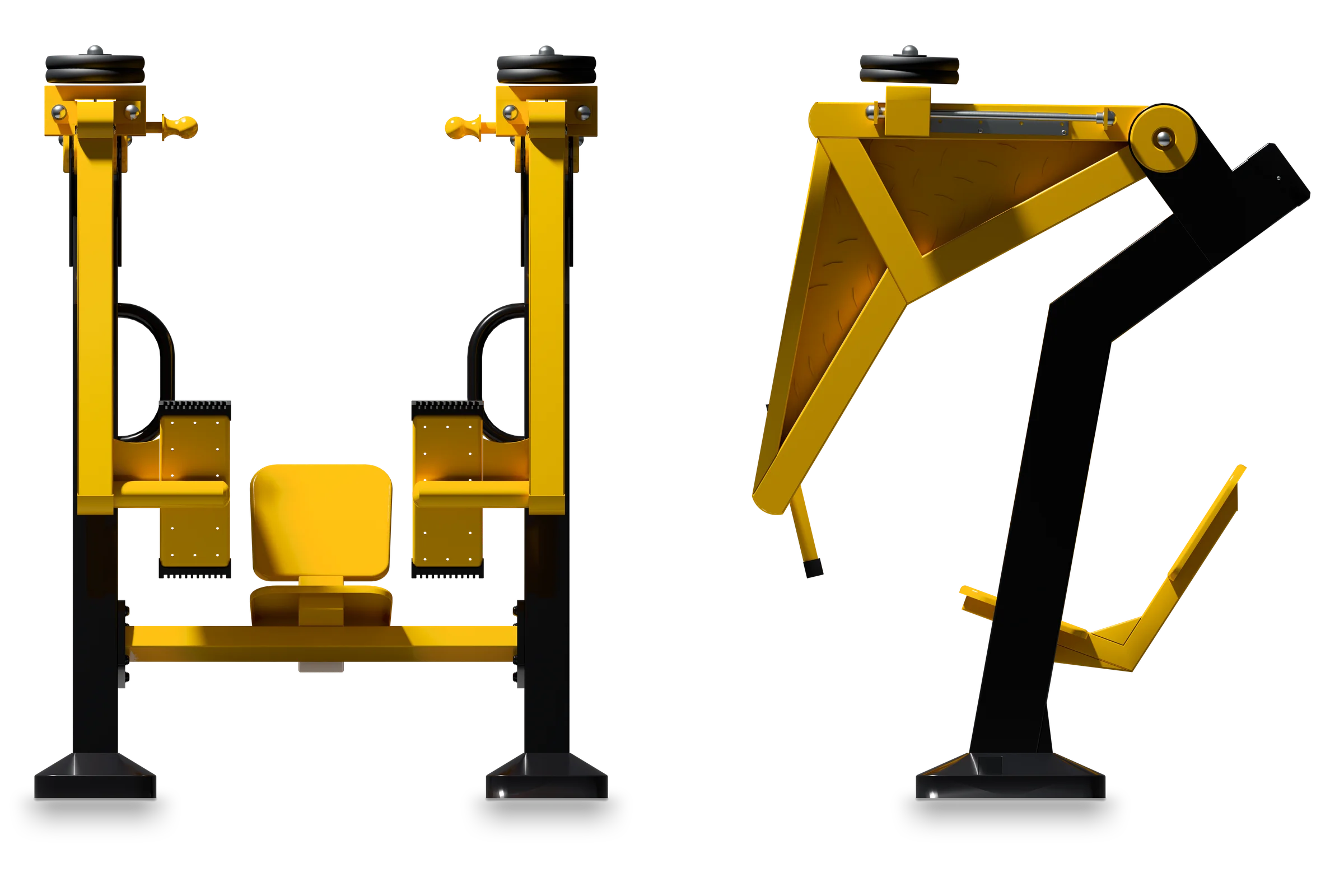

Leg Press - Adjustable weight machines
The leg press is designed to target and develop leg strength, particularly in the quadriceps, hamstrings and glutes.
This equipment is ideal for outdoor training and features adjustable weights, allowing users to customize the intensity of their workout. Whether you're a beginner or an experienced exerciser, the leg press helps you build leg strength while enjoying the benefits of an outdoor workout.
Ref. HE-07 · Outdoor Bodybuilding Machines
The figures
Technical specifications
Leg PressTechnical sheet · dimensions in mm
- Length
- 1,270
- Width
- 1,237
- Height
- 1,668

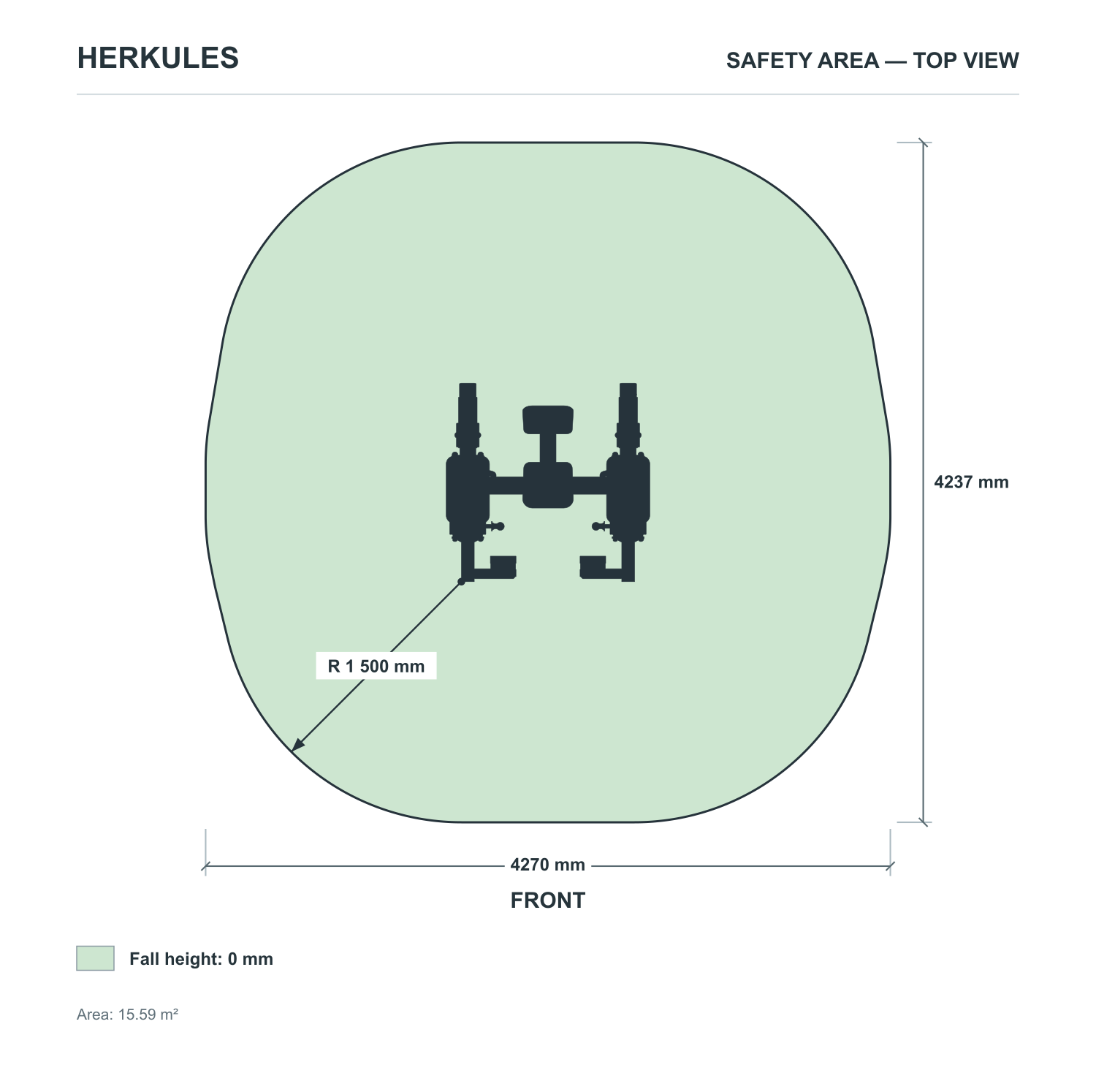

- Safety area
- 4,237 × 4,270 mm · 15.59 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 0 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.432 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Hot-dip galvanized steel structurethe main frame is made of high-strength galvanized steel, offering optimum protection against rust and weathering.
- Multi-layer anti-corrosion treatmentan epoxy polyester paint applied in the cab ensures long-lasting resistance to UV, humidity and temperature variations.
- Ergonomic, non-slip platformthe pushing surface is designed to guarantee maximum foot grip, whatever the weather, and make every repetition safe.
- Weights and adjustment mechanisms are designed for intuitive handling, facilitating rapid adjustment between different users.
- The overall design guarantees long-term, intensive use in outdoor environments, with minimal maintenance requirements.
For whom, where
Recommended audience & environment
- Municipal parks and green spacesideal for equipping open-access fitness areas, accessible to all residents.
- Sports complexes and outdoor gymsperfectly suited to sports facilities wishing to offer outdoor weight training.
- Residences and condominiumssuitable for common areas in residences seeking to offer quality equipment to their residents.
- Schools and universitiesrecommended for sports courts or active recreation areas in higher education establishments.
The Leg Press integrates perfectly into any outdoor fitness project, whether it's a one-off installation or a complete sports course designed for a varied audience.
What sets it apart
Built to last outdoors
In brief
Why choose the Leg Press?
The Leg Press is the benchmark equipment for effectively strengthening the lower limbs outdoors, thanks to its adjustable loads adapted to all levels. It is ideal for local authorities wishing to offer structured training to their users, as well as for athletes looking to progress independently. Its sturdiness and design for public spaces make it a long-lasting investment. Designed by Herkules Fitness, it guarantees safety, durability and performance for years of intensive use.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Leg Press
What muscles does the Leg Press mainly work?
The Leg Press primarily targets the quadriceps, hamstrings and glutes. Depending on the position of the feet on the platform, the focus may be more on the glutes (high feet) or quadriceps (low feet). The calves are also used for stabilization throughout the movement.
Is the Leg Press suitable for beginners?
Yes, the Leg Press is perfectly suited to beginners, thanks to its adjustable load system that allows you to start with light resistance and gradually increase the intensity. The guided movement also makes it easier to learn the technique without undue risk of injury.
What are the soil and anchoring requirements for installation?
The Leg Press requires solid anchoring in a concrete slab or stabilized floor to guarantee stability during exercise. Herkules Fitness provides the necessary anchoring plans and technical recommendations for a safe and compliant installation.
Is the device certified for use in public areas?
Herkules Fitness equipment is designed and manufactured in compliance with current European standards for open-access fitness equipment. They meet the safety requirements for installation in public spaces such as parks and municipal facilities.
What maintenance is required to keep the Leg Press in good condition?
The Leg Press is low-maintenance thanks to its galvanized steel structure and anti-corrosion treatment. Regular visual inspection of fasteners and moving parts is recommended, along with periodic cleaning with water to remove deposits and keep the unit in perfect working order.
What are the maximum loads and dimensions of the device?
The maximum load-bearing capacity and precise dimensions of the Leg Press can be found in the product data sheet. For detailed information or advice on how to integrate the Leg Press into your project, please do not hesitate to contact the Herkules Fitness team directly.
