Ref. HER-21Street Workout Equipement
Jump
Obstacles – Street Workout stations
Jump Obstacles, outdoor jumping module for explosiveness and agility with professional Herkules Fitness robustness.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
Product view
Drag to rotateOverview
Jump Obstacles - Street Workout stations
Jump Obstacles is an outdoor street workout station featuring successive obstacles for dynamic jumping and clearance work.
It is designed to develop lower-limb strength, coordination and reaction capacity. Biomechanics are based on the stretch-shorten cycle, involving quadriceps, glutes, calves and trunk stabilizing muscles. This module promotes explosiveness, agility and control of landings in urban environments.
Ref. HER-21 · Street Workout Equipement
The figures
Technical specifications
Material & compliance
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
Jump Obstacles are designed for teenagers and adults, from intermediate to advanced levels.
In particular, they enable :
- Successive jumps with crossing
- Working on coordination and responsiveness
- Improve horizontal and vertical relaxation
We recommend bending the knees on landing and stabilizing the trunk to limit joint stress. Mastery of support takes precedence over speed of execution.
What it trains
Function
- Development ofleg explosiveness
- Improved agilityand coordination
- Strengthening stabilizing muscles
- Dynamic cardiovascular work
- A key module for outdoor athletic training
What the standard requires
Safety & use
Safety & use
- Free fall height
- 200 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
Permitted surfacing
Putting it in place
Installation

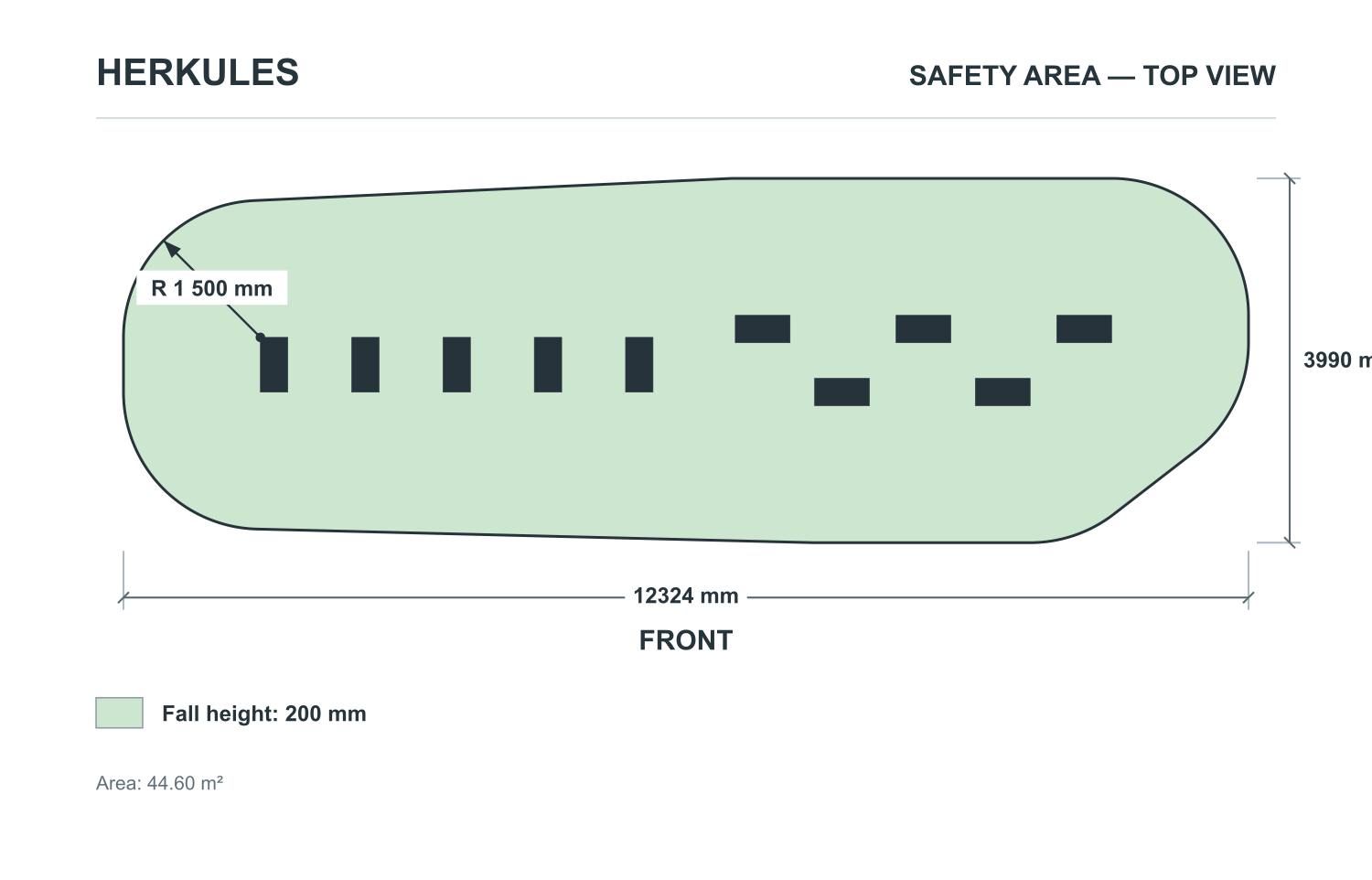

- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 1.6 m³
- Anchoring depth
- 400 mm
- Fixing
- Bolted
- Assembly
- Pre-assembled
Built to last outdoors
Design & materials
- Galvanized steel structurefor intensive outdoor use
- Reinforced anti-corrosion treatmentagainst UV and weathering
- Robust obstaclesdesigned for repeated impacts
- Stable, safe design
- Durable equipment for demanding collective environments
For whom, where
Recommended Public & Environment
- Urban parks and street workout areas
- Local authorities
- Sports clubs and schools
- Open-access physical training zones
A dynamic solution to enhance a modern street workout area.
What sets it apart
Built to last outdoors
In brief
Why choose Jump Obstacles?
Jump Obstacles - Street Workout Stations add an athletic, playful dimension to an urban park. Crossing obstacles stimulates coordination, explosiveness and agility, attracting a varied sporting public. Designed by Herkules Fitness, these modules guarantee robustness, safety and durability for local authorities.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Jump Obstacles
Are Jump Obstacles - Street Workout stations suitable for advanced training?
Yes, Jump Obstacles - Street Workout Stations are particularly suited to intermediate and advanced users wishing to develop their power and reactivity. They are ideal for dynamic outdoor sessions.
Which muscles are mainly involved?
This module mainly stimulates the quadriceps, glutes and calves, while strongly engaging the stabilizing muscles of the trunk during the landing phases.
Can they be used on an outdoor training circuit?
Absolutely. They are a dynamic workshop in a circuit combining pull-ups, sheathing and cardio exercises, providing a complete lower-body workout.
What's the point of crossing?
Crossing develops coordination, agility and motor control. It adds a functional and sporting dimension to public spaces.
Can the structure withstand repeated impacts?
Yes, their robust galvanized steel design and anti-corrosion treatment ensure excellent resistance to repeated impacts and outdoor weather conditions.
What kind of maintenance is recommended for a community?
Regular checks of fixings and obstacles are recommended. Annual preventive maintenance guarantees safety, compliance and longevity.
Do Jump Obstacles comply with European standards?
Yes, Herkules Fitness Jump Obstacles - Street Workout Stations comply with European standards for outdoor sports equipment, ensuring safe and reliable use.
