Ref. HER-05Street Workout Equipement
Station
Fit – Street Workout stations
Station Fit - Street Workout stations, versatile outdoor structure for bodyweight training and urban fitness with Herkules Fitness sturdiness.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 6
Product view
- L 8.2 m
- P 1.8 m
- H 2.6 m
Overview
Station Fit - Street Workout stations

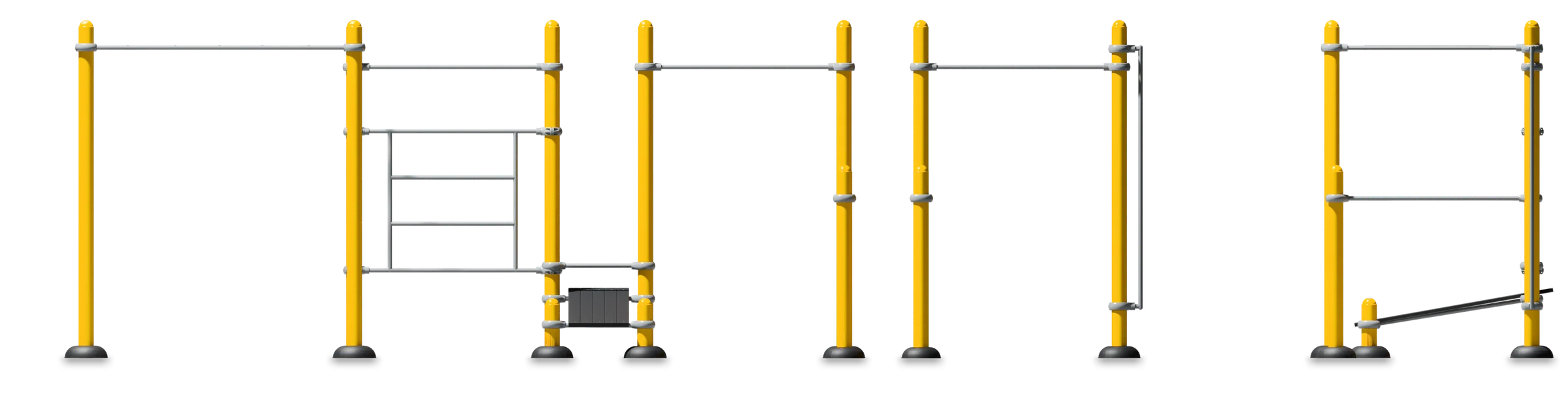

Station Fit is an outdoor street workout structure designed to provide a complete functional bodyweight workout.
It combines pull-up bars, dips supports and sheathing elements to work simultaneously on strength, stability and coordination. Biomechanics are based on polyarticular movements involving back, pectoral, shoulder, arm and deep muscles. This station promotes the development of relative strength and muscular endurance in an urban environment.
Ref. HER-05 · Street Workout Equipement
The figures
Technical specifications
Station FitTechnical sheet · dimensions in mm
- Length
- 8,151
- Width
- 1,839
- Height
- 2,556

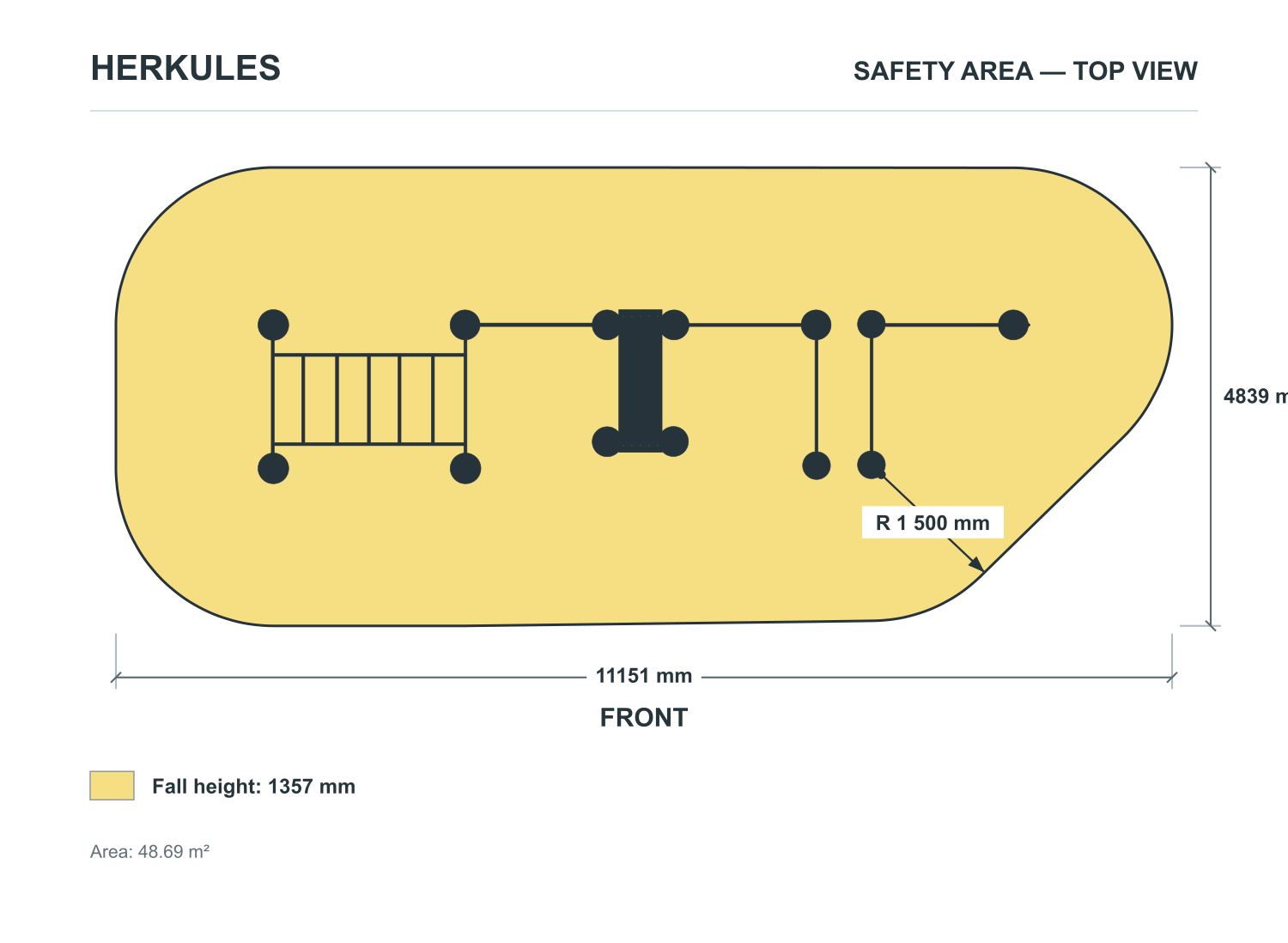

- Safety area
- 4,839 × 11,151 mm · 48.69 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
Station Fit is designed for teenagers and adults, from supervised beginners to advanced levels.
It notably enables:
- Perform pull-ups in different holds
- Dips and push-ups
- Work on static and dynamic sheathing
It's advisable to adapt exercises to your own level, and to focus on controlled movement. Quality of execution always takes precedence over quantity.
What it trains
Function
- Overall strengthening ofthe upper body
- Work on sheathingand stabilizing muscles
- Improvedintermuscular coordination
- Development offunctional endurance
A versatile solution for urban training
What the standard requires
Safety & use
Safety & use
- Free fall height
- 1,357 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 6
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 1.95 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- À
Built to last outdoors
Design & materials
- Galvanized steel structurefor heavy-duty outdoor use
- Reinforced anti-corrosion treatmentagainst UV and weathering
- Stable design with secure anchoring
- Sturdy bars with comfortable grip
- Equipment designed to last in a public environment
For whom, where
Recommended Public & Environment
- Urban parks and street workout areas
- Local authorities
- Schools and universities
- Free access to sports facilities
A strategic module to energize an outdoor fitness area.
What sets it apart
Built to last outdoors
In brief
Why choose Station Fit?
The Station Fit - Stations Street Workout is a central element of a modern, attractive sports area. It provides a complete bodyweight workout, while encouraging self-sufficiency. Developed by Herkules Fitness, this structure meets the robustness, safety and durability requirements of local authorities.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Station Fit
What types of exercise can be performed on Station Fit - Stations Street Workout?
The Station Fit - Stations Street Workout allows you to perform pull-ups, dips, incline push-ups, leg raises and sheathing exercises. This versatility promotes a complete upper-body and core workout, suitable for all levels.
Is this equipment suitable for beginners?
Yes, this station is suitable for beginners, provided that the progression is appropriate. Simplified exercises such as passive suspensions and inclined push-ups make it easy to get the hang of.
Which layout is best for a community?
A concrete slab or shock-absorbing surface in compliance with current standards is recommended. A clear area around the structure guarantees safety and ease of use.
Is the structure resistant to intensive use?
Yes, its galvanized steel design and anti-corrosion treatment ensure excellent resistance to repeated use and demanding climatic conditions.
Can it be integrated into a complete sports program?
Absolutely. This module can be combined with other street workout or cardio stations to create a coherent, progressive and attractive space for different sports profiles.
Is a regular technical inspection necessary?
Yes, periodic inspection of fixings and bars is recommended. Annual preventive maintenance ensures the safety and longevity of the installation in a public environment.
Does Station Fit comply with current European standards?
Yes, the Herkules Fitness Station Fit - Stations Street Workout complies with European standards for outdoor sports equipment. Its safe design guarantees reliable use in open-access areas.
