Ref. HER-04Street Workout Equipement
Station
Parcours – Street Workout stations
Station Parcours - Street Workout Stations, dynamic outdoor structure for functional courses and street workout with Herkules sturdiness.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 9

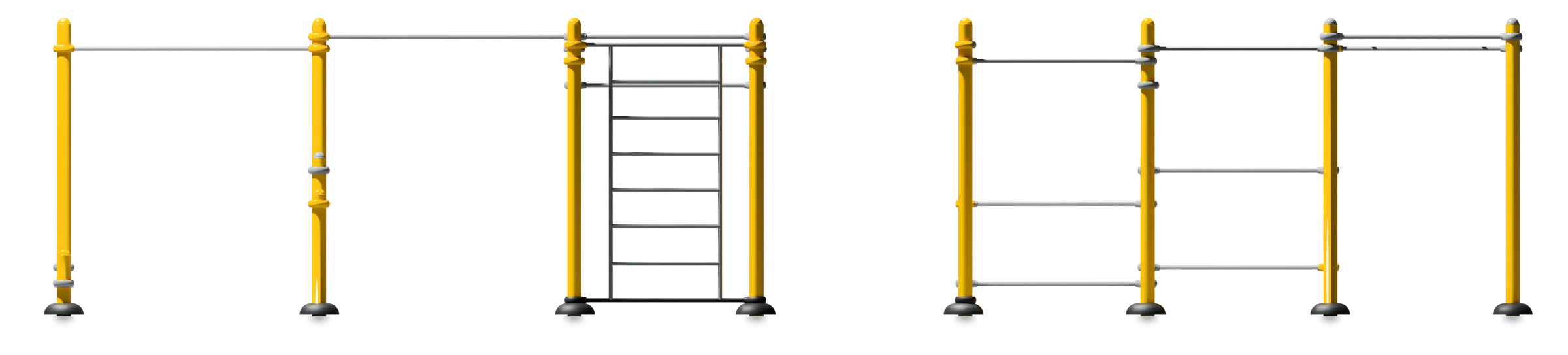

Product view
- L 6.0 m
- P 4.8 m
- H 2.4 m
Overview
Station Parcours - Street Workout stations
Station Parcours is an outdoor street workout structure designed to create a sequence of functional exercises on the move.
It combines different modules (bars, crossing supports, suspension elements) to work on coordination, agility and bodyweight strength. Biomechanics are based on alternating pushes, pulls, controlled jumps and sheathing phases. This configuration favors dynamic, all-round training, close to the logic of an urban course.
Ref. HER-04 · Street Workout Equipement
The figures
Technical specifications
Station ParcoursTechnical sheet · dimensions in mm
- Length
- 5,965
- Width
- 4,802
- Height
- 2,431

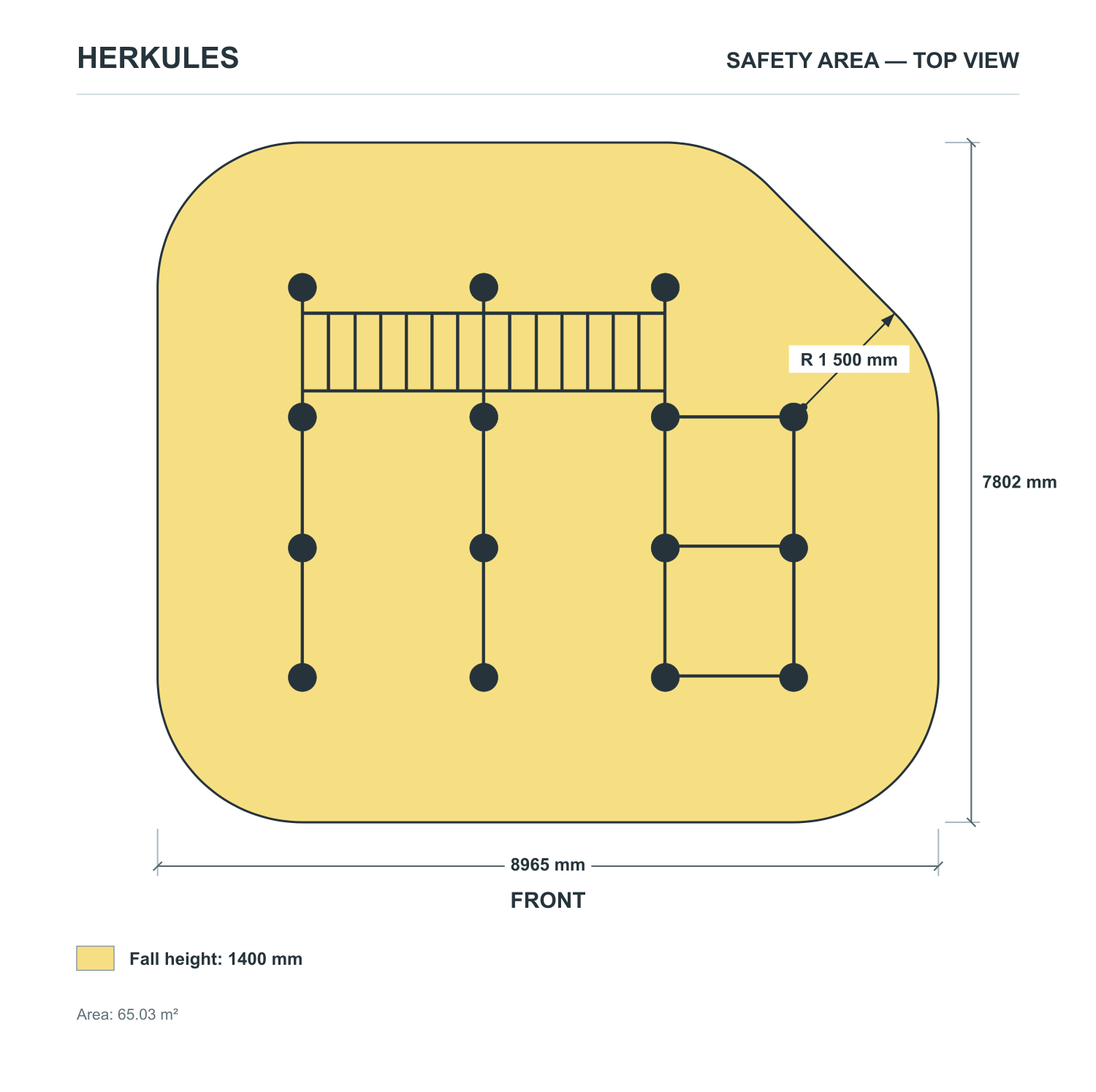

- Safety area
- 7,802 × 8,965 mm · 65.03 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
Station Parcours is designed for teenagers and adults, from intermediate to advanced levels.
It notably enables:
- Linking exercises on the move
- Overcoming obstacles and developing agility
- Strengthening the upper body in suspension
It is advisable to adapt the speed of execution to your level and to secure each landing. Technical mastery takes precedence over performance.
What it trains
Function
- Development of agilityand coordination
- Overallbodyweight muscle strengthening
- Working on dynamic sheathing
- Improvedfunctional endurance
An ideal module for complete outdoor training
What the standard requires
Safety & use
Safety & use
- Free fall height
- 1,400 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 9
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 2.25 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structuredesigned for heavy-duty use
- Reinforced anti-corrosion treatmentagainst weathering and UV rays
- Secure anchoringfor maximum stability
- Sturdy bars and supports with comfortable grip
- Designed to withstand demanding urban environments
For whom, where
Recommended Public & Environment
- Urban parks and sports areas
- Local authorities
- Schools and universities
- Free access to sports facilities
A structuring solution to create an attractive sports trail.
What sets it apart
Built to last outdoors
In brief
Why choose Station Parcours?
The Parcours - Street Workout Stations provide a dynamic training space that encourages movement and exercise sequences. It meets the expectations of exercisers looking for variety and intensity. Designed by Herkules Fitness, this structure guarantees robustness, safety and durability for local authorities.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Station Parcours
Is Station Parcours - Stations Street Workout suitable for bootcamp-style training?
Yes, the Station Parcours - Stations Street Workout is perfectly suited to bootcamp or timed circuit formats. Its configuration encourages a rapid sequence of varied exercises, ideal for outdoor group sessions.
Can we organize local competitions on this equipment?
Absolutely. This structure makes it possible to organize municipal sports challenges and events around street workouts and functional courses, enhancing the attractiveness of public spaces.
Does the structure support high dynamic loads?
Yes, its design in thick galvanized steel enables it to withstand the dynamic loads associated with controlled jumps and explosive movements, while complying with usage recommendations.
Can it be integrated into an intergenerational park?
Yes, it can complement a health sports or gentle fitness zone to provide a multi-public offering, while maintaining a coherent layout.
What kind of maintenance do you need for your community?
Regular inspection of fasteners, welds and gripping surfaces is recommended. Annual preventive maintenance guarantees safety and longevity in intensive use.
Does Parcours comply with European standards?
Yes, the Herkules Fitness Station Parcours - Stations Street Workout complies with European standards for outdoor sports equipment. It ensures reliable use in open-access environments.
What safety surface is recommended?
An unobstructed area complying with current standards is essential. Installation on shock-absorbing or stabilized ground, with anchoring to a concrete slab, guarantees safety and stability.
