Ref. HER-01Street Workout Equipement
Station Cross
Training – Street Workout stations
Station Cross Training - Street Workout Stations, complete outdoor structure for functional training and street workout with Herkules Fitness sturdiness.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 11
Product view
- L 5.8 m
- P 3.9 m
- H 3.6 m
Overview
Station Cross Training - Street Workout stations
Station Cross Training is a versatile street workout structure designed for complete outdoor functional training.
It features a series of pull-ups, dips, hangs, leg raises and sheathing exercises as part of an overall workout. Biomechanics are based on body weight, simultaneously stimulating the upper and lower body and deep muscles. This station promotes the development of strength, coordination and muscular endurance.
Ref. HER-01 · Street Workout Equipement
The figures
Technical specifications
Station Cross TrainingTechnical sheet · dimensions in mm
- Length
- 5,837
- Width
- 3,890
- Height
- 3,627

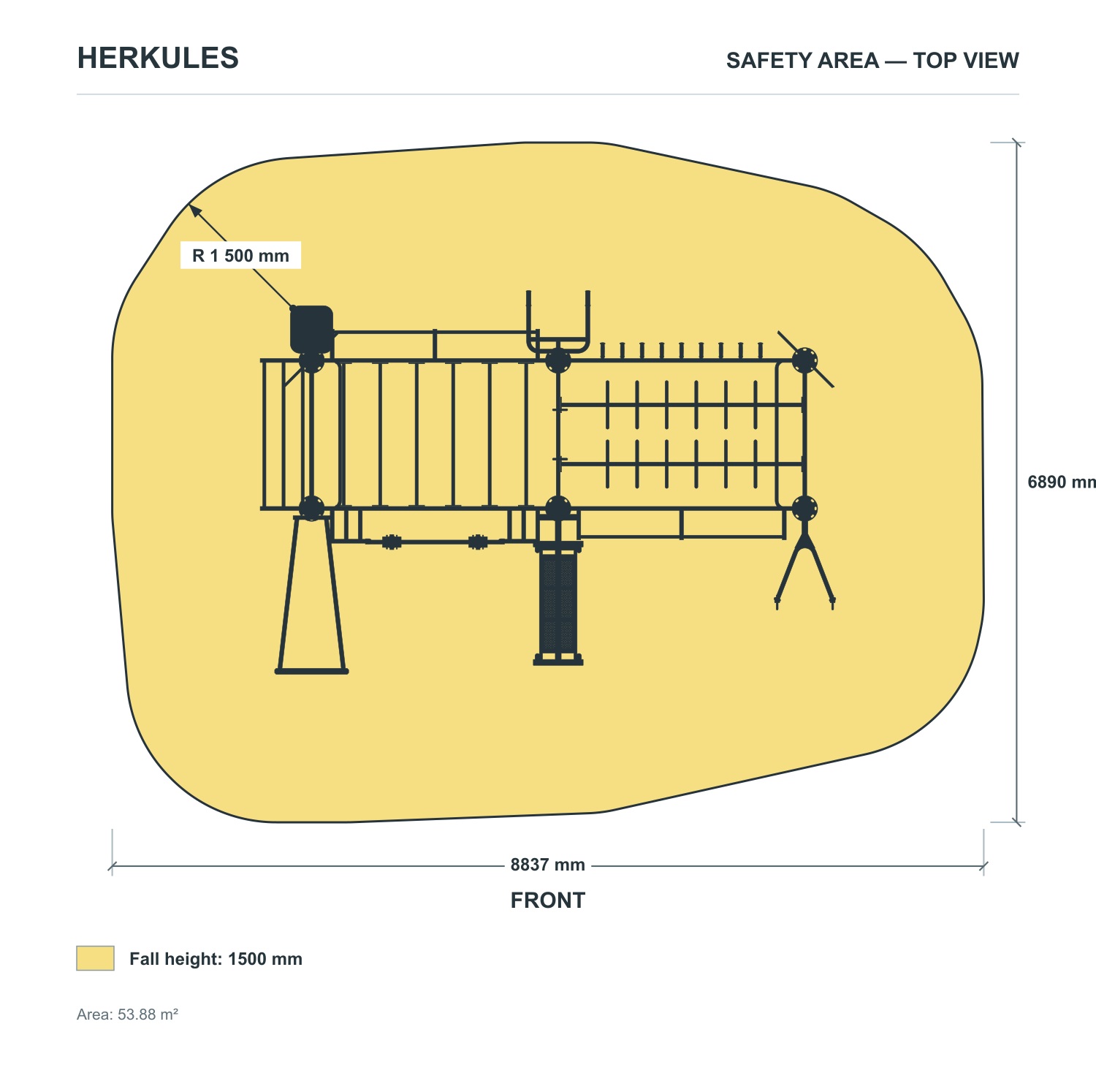

- Safety area
- 8,837 × 6,890 mm · 53.88 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
The Cross Training Station is designed for intermediate to advanced athletes.
It notably enables:
- Perform pull-ups and variations in a wide or tight grip
- Dips and push-ups
- Work on sheathing and leg raises
It's advisable to adapt exercises to your level, and to favour controlled execution. Technical mastery always takes precedence over volume.
What it trains
Function
- Completeupper body strengthening
- Sheathingand deep muscle work
- Development of muscular endurance
- Improved coordinationand stability
An ideal structure for intensive functional training
What the standard requires
Safety & use
Safety & use
- Free fall height
- 1,500 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 11
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.928 m³
- Anchoring depth
- 500 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structuredesigned for intensive outdoor use
- UV- and weather-resistant reinforced anti-corrosion treatment
- Stable, secure designfor bodyweight training
- Sturdy, non-slip grip bars
- Durable equipment for demanding public environments
For whom, where
Recommended audience & environment
- Urban parks and street workout areas
- Local authorities and sports complexes
- Schools and universities
- Open-access physical training zones
A multi-purpose resort that encourages independence and sporting progress.
What sets it apart
Built to last outdoors
In brief
Why choose Station Cross Training?
The Cross Training Station - Stations Street Workout is a cornerstone of a modern urban training space. It provides complete bodyweight training, adaptable to different levels. Designed by Herkules Fitness, it offers sturdiness, safety and longevity for local authorities wishing to develop an open-access sports facility.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Station Cross Training
What exercises can be performed on the Cross Training Station - Street Workout Stations?
The Cross Training Station - Street Workout Stations offers pull-ups, dips, incline push-ups, leg raises, suspended sheathing and dynamic exercises. This diversity promotes a complete upper-body and core workout, suitable for regular exercisers.
What safety area should be provided around the structure?
For the Cross Training Station - Street Workout Stations, a clear area complying with current standards is essential. Installation on a cushioned or stabilized surface is recommended to ensure user safety.
Is this equipment suitable for beginners?
Yes, even if it's mainly aimed at intermediate or experienced users, this station can be used by beginners thanks to simplified exercises such as passive suspensions or inclined push-ups. Pedagogical support is recommended for safe progress.
Is it possible to integrate this resort into a wider sports circuit?
Absolutely. It's a central element that can be complemented by balance, cardio or mobility modules to create a coherent, scalable street workout space.
What kind of maintenance is needed?
Periodic inspection of fasteners and bars is recommended. Regular cleaning maintains the quality of the gripping surfaces. Annual preventive maintenance guarantees durability and safety.
Does the Cross Training Station comply with European standards?
