Ref. HER-03Street Workout Equipement
Station
Gym – Street Workout stations
EN16630-compliant gym station, perfect for developing strength and agility outdoors, suitable for young and old alike.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 10
Product view
- L 6.9 m
- P 4.3 m
- H 3.7 m
Overview
Station Gym - Street Workout stations
Station Gym is an outdoor street workout structure dedicated to complete bodyweight functional training.
It combines pull-up bars, dips supports and sheathing modules for multi-joint work. Biomechanics are based on active stabilization of the trunk and simultaneous engagement of the upper and deep muscle chains. This station develops relative strength, muscular endurance and coordination, while promoting body control.
Ref. HER-03 · Street Workout Equipement
The figures
Technical specifications
Station GymTechnical sheet · dimensions in mm
- Length
- 6,929
- Width
- 4,300
- Height
- 3,727

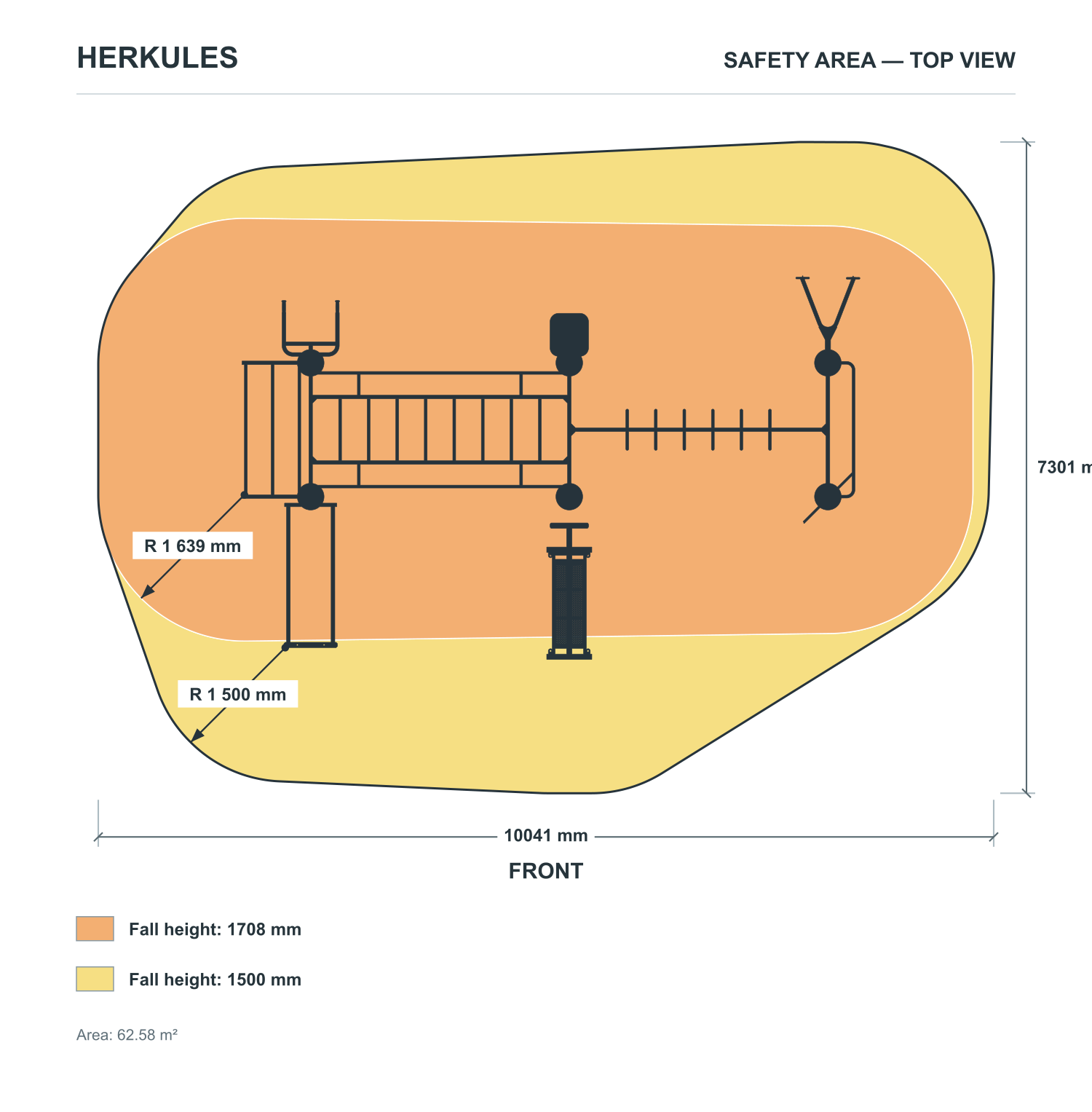

- Safety area
- 10,041 × 7,301 mm · 62.58 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
Station Gym is designed for teenagers and adults, from intermediate to advanced levels.
It notably enables:
- Perform pull-ups at different heights
- Perform dips and push-ups
- Work on static and dynamic sheathing
It's advisable to adapt exercises to your level, and to favour controlled execution. Technique takes priority over intensity.
What it trains
Function
- Overall strengthening ofthe upper body
- Work on deep musclesand sheathing
- Improvedintermuscular coordination
- Development of muscular endurance
A complete solution for urban training
What the standard requires
Safety & use
Safety & use
- Free fall height
- 1,708 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 10
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 1.168 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Hot-dip galvanized steel structurefor maximum corrosion protection, suitable for outdoor environments exposed to the elements.
- Two-layer surface treatmentcombining galvanizing and polyester epoxy paint, guaranteeing resistance to UV rays and extreme climatic variations.
- Ergonomic bars and handleswith optimized diameters for a secure grip and extended comfort of use, whatever your morphology.
- Assembled using stainless steel bolts and certified welds, ensuring impeccable structural rigidity under repeated dynamic loads.
- The entire design meets current European standards, offering exceptional durability for intensive use in public spaces.
For whom, where
Recommended audience & environment
- Urban parks and municipal green spaceswishing to offer a functional fitness area accessible to all.
- Schools and universitiesseeking to encourage physical activity outside the classroom.
- Residential neighborhoods and social landlordslooking to revitalize common outdoor spaces with a sustainable sports facility.
- Military bases, training centers and sports clubsrequiring robust outdoor physical preparation equipment.
The Station Gym fits in perfectly with any outdoor sports development project undertaken by local authorities or public space managers. Discover all our solutions in our outdoor fitness range to create a complete and coherent space.
What sets it apart
Built to last outdoors
In brief
Why choose The Station Gym?
The Station Gym offers a complete functional training solution, combining in a single module everything you need to work on traction, sheathing and bodyweight push-ups. It is designed for teenagers and adults from intermediate to advanced levels, in both public and private facilities. Designed by Herkules Fitness, it guarantees rugged sturdiness, long-lasting installation and a professional-quality street workout experience.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Station Gym
Which muscle groups do you use most on the Station Gym?
The Station Gym primarily targets the back, biceps and shoulders via the pull-up bars, the triceps and pectoralis major during dips, and all the deep muscles of the trunk during sheathing exercises. Its multi-joint approach ensures balanced, all-round strengthening of the body.
What is the safest age to use The Station Gym?
Station Gym is designed for teenagers aged 14 and over and adults. It is suitable for intermediate to advanced levels, which implies a minimum mastery of basic bodyweight movements. For younger children or complete beginners, a supervisor is recommended.
What type of floor is suitable for installing the Station Gym?
The Station Gym can be installed on any stable, flat surface, generally by grouting concrete into base plates or directly via buried stringers, depending on the configuration of the site. A shock-absorbing surface to EN 1177 standards (wood shavings, rubber tiles) is strongly recommended under and around the structure for user safety.
Is The Station Gym certified for use in public areas?
Yes, the Gym Station is designed to comply with European standards for outdoor fitness equipment for collective use, notably EN 16630, and is suitable for installation in public spaces such as parks, municipal sports areas or school facilities.
What maintenance is required to keep the Station Gym in good condition?
Regular visual inspection of welds, bolts and surface coatings is recommended, ideally twice a year. In the event of paint deterioration or the appearance of surface rust, touching up with a suitable epoxy paint is generally sufficient. Cleaning is carried out with clear water and a non-abrasive product.
What are the dimensions and maximum load-bearing capacity of the Gym Station?
The exact dimensions and maximum working load of the HER-03 Gym Station can be found in the downloadable data sheet on the product page. As a general rule, our street workout structures are designed to withstand dynamic loads in compliance with EN 16630, guaranteeing safe, intensive use.
