Ref. HER-25Street Workout Equipement

Rhythm
Rings – Street Workout stations

Rhythm Rings, outdoor coordination and agility module for dynamic training with professional Herkules Fitness sturdiness.

Technical data · DWG · 3D

Warranty
Up to 10 years
Certification
EN16630:2015
Number of users
1
Rhythm Rings - Street Workout stations

Product view

OverviewSpecificationsUseFunctionSafetyInstallationDesignAudience

Overview

Rhythm Rings - Street Workout stations

Anneaux de Rythme (Rhythm Rings ) is an outdoor street workout station dedicated to improving coordination, stance speed and motor precision.

Arranged on the ground in different patterns, the rings enable you to link fast steps, short jumps, lateral movements and synchronization exercises. Biomechanics are based on dynamic supports that stimulate the calves, quadriceps, glutes and stabilizing muscles of the trunk. This module develops agility, rhythm and neuromuscular control.

Ref. HER-25 · Street Workout Equipement

Rhythm Rings - Street Workout stations — Rendering
Top view

The figures

Technical specifications

Material & compliance

Material
Galvanized powder-coated steel
Certification
EN16630:2015
Warranty
Up to 10 years
Rhythm Rings - Street Workout stations — Dimensioned drawing
Dimensioned drawing

How to use it

Use

Rhythm Rings are designed for teenagers and adults, from beginner to advanced levels.

In particular, they enable :

  • Carry out fast, varied strides
  • Work on arm-leg coordination
  • Improve responsiveness and precision of movements

A low center of gravity and light footing are recommended. Precise foot placement takes precedence over speed of execution.

Downloads →
Outdoor sports area at the foot of apartment blocks

What it trains

Function

  • Development ofmotor coordination
  • Improved agilityand rhythm
  • Lower limb strengthening
  • Proprioception training

A fun, technical module for urban spaces

Use →
Legs Balance
Legs Calves Glutes
Legs · Calves · Glutes · Balance

What the standard requires

Safety & use

Safety & use

Free fall height
20 mm
Minimum user height
140 cm
Maximum user weight
150 kg
Number of users
1

Permitted surfacing

20 mm
Concrete, stone
Bituminous surfacing
Natural topsoil
Turf
Bark chippings
Wood chips
Sand
Gravel
EPDM
01 0002 0003 000

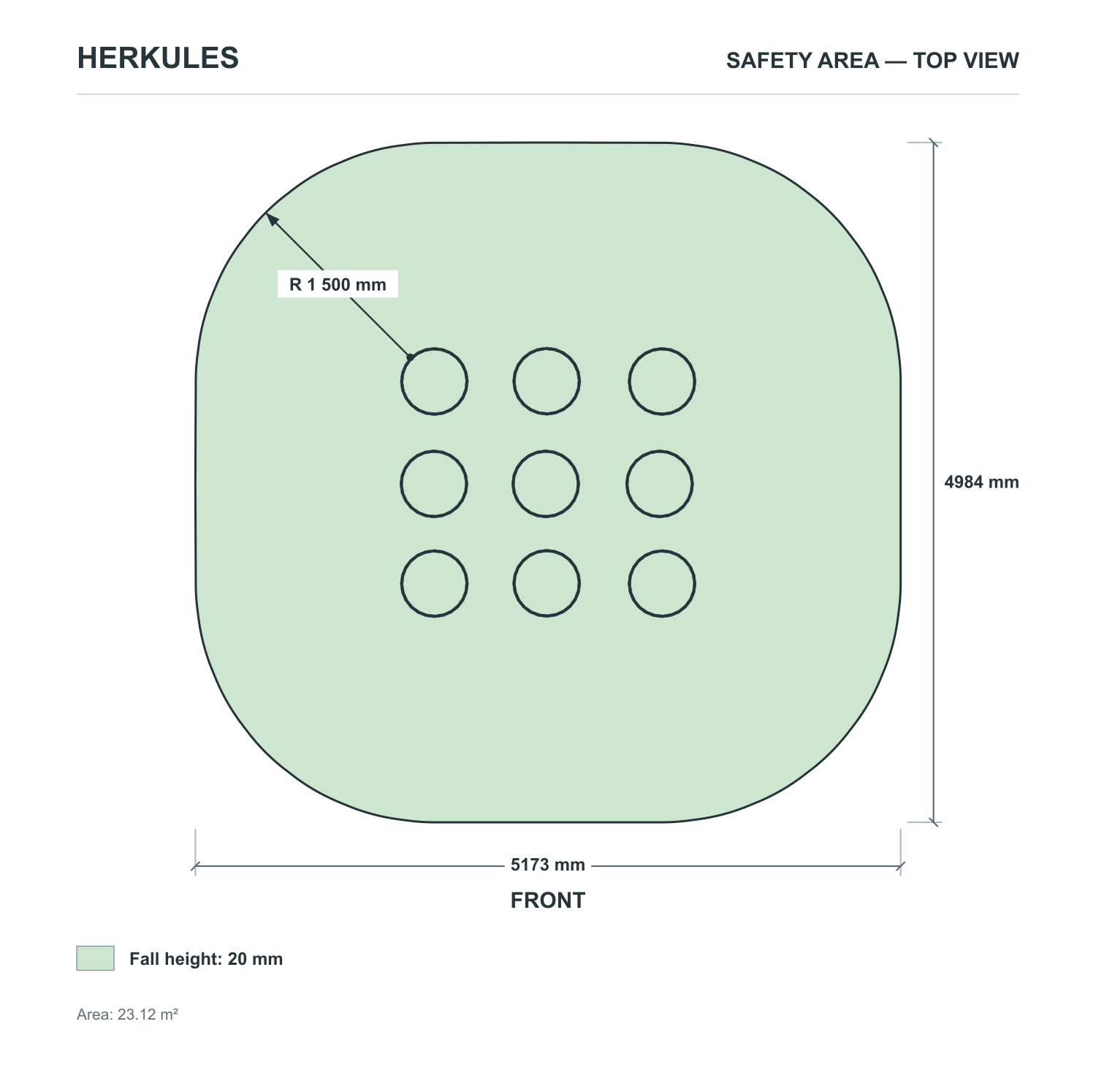

Rhythm Rings - Street Workout stations — Safety area
Safety area

Putting it in place

Installation

  • Safety areathe surface given in the table, clear all around.
  • Concrete basepoured to the stated volume and depth, then cured.
  • Fixingthe unit is bolted onto the cured base.
  • Handoverplumb, tightness and no play before service.
  • Upkeepregular visual check and periodic retightening (EN 16630).
Anchor frame base cast in open ground
150500Threaded rodsNatural groundConcrete base
Bolted down on an existing concrete slab
200160M16 anchorsExisting slabNatural ground

Installation

Concrete volume
0.777 m³
Anchoring depth
150 mm
Fixing
Bolted
Assembly
Pre-assembled

Built to last outdoors

Design & materials

  • Galvanized steel structurefor intensive outdoor use
  • Weatherproof and UV-resistant anti-corrosion treatment
  • Robust ringsdesigned for repeated support
  • Stable, safe design
  • Sustainable equipment for a collective environment

For whom, where

Recommended Public & Environment

  • Urban parks and street workout areas
  • Local authorities
  • Schools and sports clubs
  • Open-access physical training zones

A strategic solution to energize a modern street workout space.

Installation · Tolstoï
Installation · Tolstoï

What sets it apart

Built to last outdoors

In brief

Why choose Anneaux de Rythme?

Rhythm Rings - Street Workout Stations bring a playful, technical dimension to an urban park. They encourage the development of coordination and attract a varied public thanks to accessible, progressive exercises. Designed by Herkules Fitness, these modules guarantee robustness, safety and durability for local authorities.

Downloads

Outdoor sports installation at dusk

Online fitness park configurator

The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.

  • 1 Choose your equipment
  • 2 Visualize your layout
  • 3 Check compliance
  • 4 Receive your project

🛠 Launch configurator Free - No obligation - Immediate results

Dimensioned layout plan of the Argentan fitness park, from the project file3D perspectives of the Argentan fitness park, from the project file

You may wonder

Frequently asked questions : Rhythm Rings

Are Rhythm Rings - Street Workout stations suitable for group sessions?

Yes, Rhythm Rings - Street Workout Stations are ideal for group workshops and timed courses. They allow you to organize exercises adapted to different levels.

Which muscles are mainly involved?

This module mainly trains the calves, quadriceps and glutes, while also mobilizing the stabilizing muscles during rapid changes of support.

Can they be used in specific physical preparation?

Absolutely. They can be effectively integrated into programs designed to improve speed, coordination and agility, useful in many sporting disciplines.

What's the point of precision support work?

Precision work improves neuromuscular coordination, joint stability and reaction capacity, contributing to better overall performance.

Can the structure withstand heavy use?

Yes, their robust galvanized steel design and anti-corrosion treatment ensure excellent resistance to repeated use and outdoor weather conditions.

What kind of maintenance is recommended for a community?

Regular inspection of fixings and rings is recommended. Annual preventive maintenance guarantees safety, compliance and longevity.

Do Rhythm Rings comply with European standards?

Yes, Herkules Fitness Rhythm Rings - Street Workout Stations comply with European standards for outdoor sports equipment, ensuring safe and reliable use.
