Ref. HER-07Street Workout Equipement
Station
Étoile – Street Workout stations
Station Étoile - Street Workout stations, multi-station outdoor structure for collective bodyweight training with professional sturdiness.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 4
Product view
- L 3.3 m
- P 3.3 m
- H 2.6 m
Overview
Station Étoile - Street Workout stations
Station Étoile is an outdoor street workout structure with a radiating configuration enabling simultaneous training on several axes.
Thanks to its star-shaped bars, it encourages multi-position work: pull-ups, hang-ups, dips and sheathing exercises can be performed in parallel. Biomechanics are based on body weight and active trunk stabilization, involving back, pectoral, arm and deep muscles. This layout optimizes space and encourages group practice.
Ref. HER-07 · Street Workout Equipement
The figures
Technical specifications
Station ÉtoileTechnical sheet · dimensions in mm
- Length
- 3,300
- Width
- 3,300
- Height
- 2,557

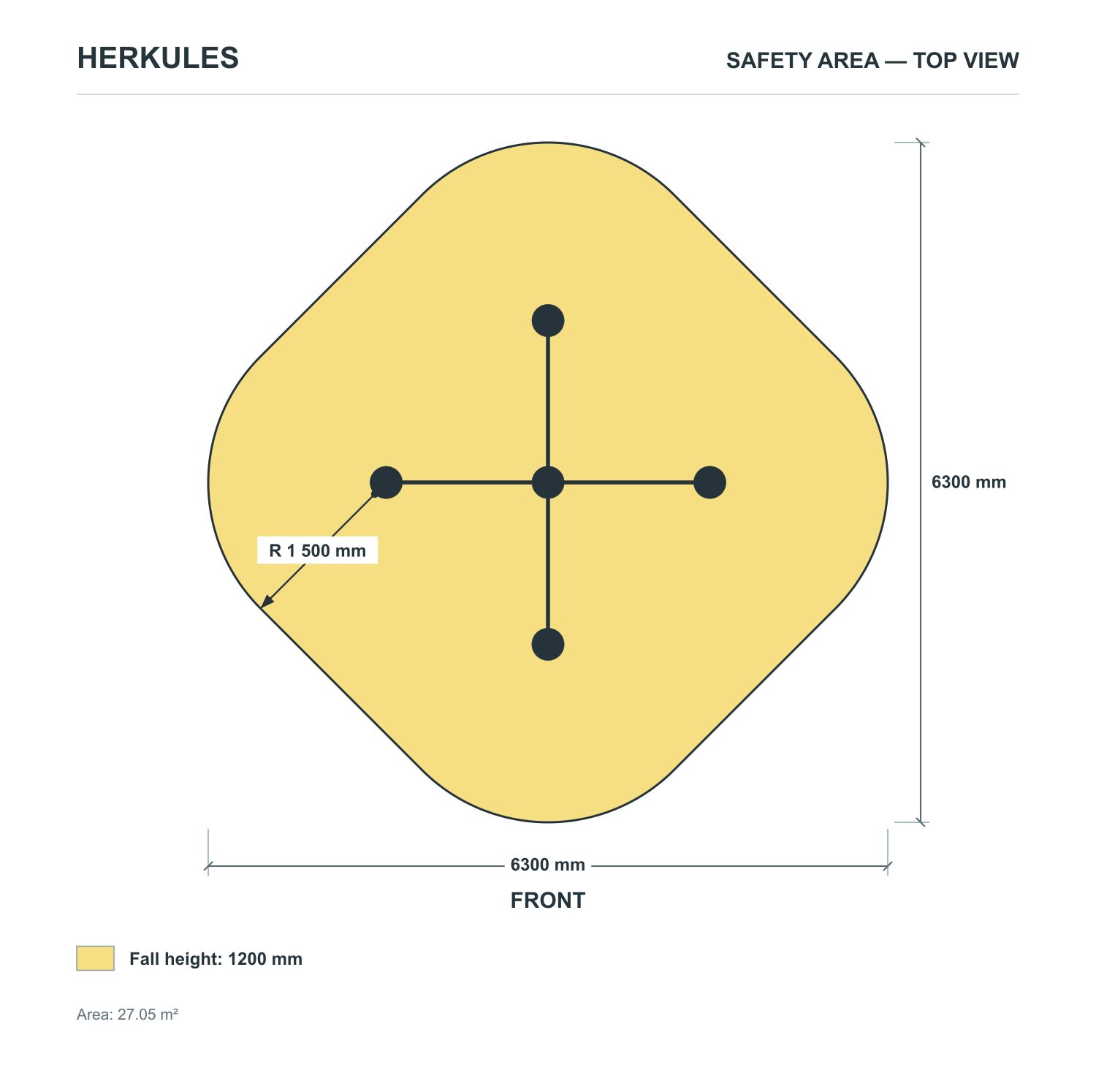

- Safety area
- 6,300 × 6,300 mm · 27.05 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
Station Étoile is designed for teenagers and adults, from intermediate to advanced levels.
It notably enables:
- Perform pull-ups in a variety of holds
- Suspension and sheathing exercises
- Organize multi-user group training sessions
It is advisable to coordinate movements when several users are practising simultaneously. Technical mastery takes priority over intensity.
What it trains
Function
- Space-optimized multi-station training
- Completeupper body strengthening
- Sheathingand stability training
- Developing cohesionin group practice
- An ideal structure for urban sports areas
What the standard requires
Safety & use
Safety & use
- Free fall height
- 1,200 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 4
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.75 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structurefor heavy-duty use
- Reinforced anti-corrosion treatmentagainst weathering and UV rays
- Stable radial designwith secure anchoring
- Sturdy bars with non-slip finish
- Designed to last in demanding public environments
For whom, where
Recommended Public & Environment
- Urban parks and street workout areas
- Local authorities
- School and university campuses
- Free access to sports facilities
A strategic module to energize a group fitness area.
What sets it apart
Built to last outdoors
In brief
Why choose Station Étoile?
Thanks to its radial design, the Station Étoile - Stations Street Workout can accommodate several users simultaneously. It encourages group sessions and optimizes the use of space. Designed by Herkules Fitness, this structure combines robustness, safety and durability for local authorities wishing to develop an attractive sports area.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Station Étoile
Does Station Étoile - Stations Street Workout allow safe simultaneous use?
Yes, the Station Étoile - Stations Street Workout is designed to accommodate several users at a time. Its star-shaped configuration distributes workout zones and limits interference, provided that the instructions for use and the safety zone are respected.
Is it suitable for supervised group training?
Absolutely. This structure is ideal for group sessions such as circuit training or technical workshops. It allows several participants to work in rotation around the module.
How much safety area should be provided around the station?
An open area complying with current European standards is essential. Installation on a cushioned or stabilized surface with concrete slab guarantees stability and safety.
Is the structure resistant to intensive use in an urban environment?
Yes, its thick galvanized steel design and anti-corrosion treatment make it highly resistant to repeated use and harsh weather conditions.
Can it be integrated into an intergenerational development project?
Yes, it can complement a health sports or gentle fitness zone to provide a diversified offering, while maintaining a coherent urban layout.
What kind of maintenance is recommended for communities?
Periodic inspection of fixings and bars is recommended. Annual preventive maintenance ensures the safety and longevity of the equipment.
Does Station Étoile comply with European standards?
Yes, the Stations Étoile - Stations Street Workout Herkules Fitness complies with European standards for outdoor sports equipment, guaranteeing reliable use in open-access areas.
