Ref. USB-08USB Rechargeable Fitness Equipment
Tirage
Vertical – Fitness equipment with USB charging
Tirage Vertical - USB-charged fitness equipment for strengthening the back, improving posture and generating sustainable energy outdoors.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1

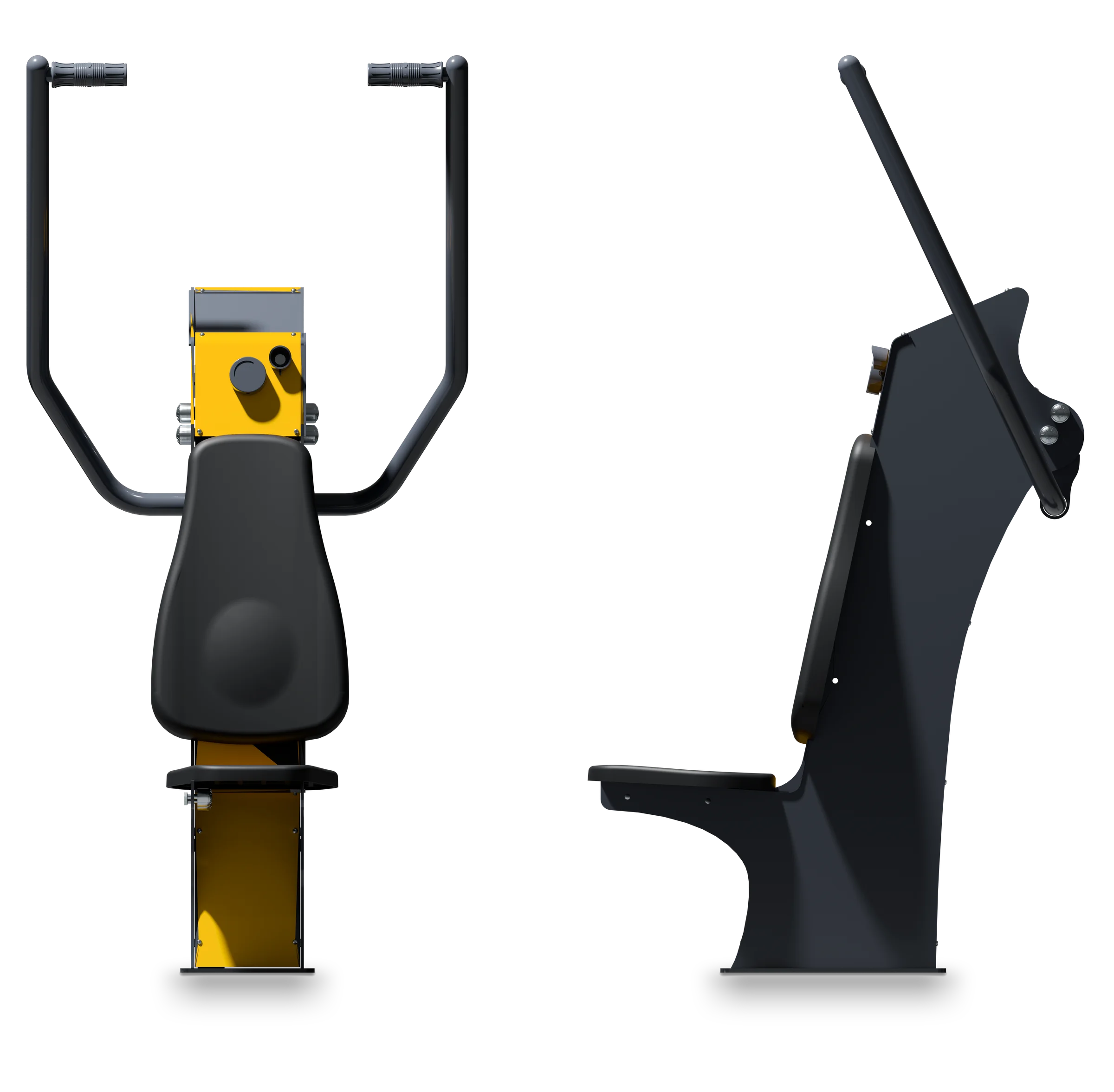

Product view
- L 0.9 m
- P 0.8 m
- H 1.7 m
Overview
Tirage Vertical - Fitness equipment with USB charging
Tirage Vertical is a USB-charged outdoor fitness machine designed to reproduce a guided vertical traction movement.
The biomechanics mainly involve the back muscles through shoulder depression and adduction, combined with elbow flexion. This structuring gesture strengthens the posterior chain of the upper body, while engaging the sheathing to stabilize the trunk. The energy produced during the pull-ups is converted into electricity via an integrated USB socket, transforming effort into a useful resource.
Ref. USB-08 · USB Rechargeable Fitness Equipment
The figures
Technical specifications
Tirage VerticalTechnical sheet · dimensions in mm
- Length
- 924
- Width
- 822
- Height
- 1,707

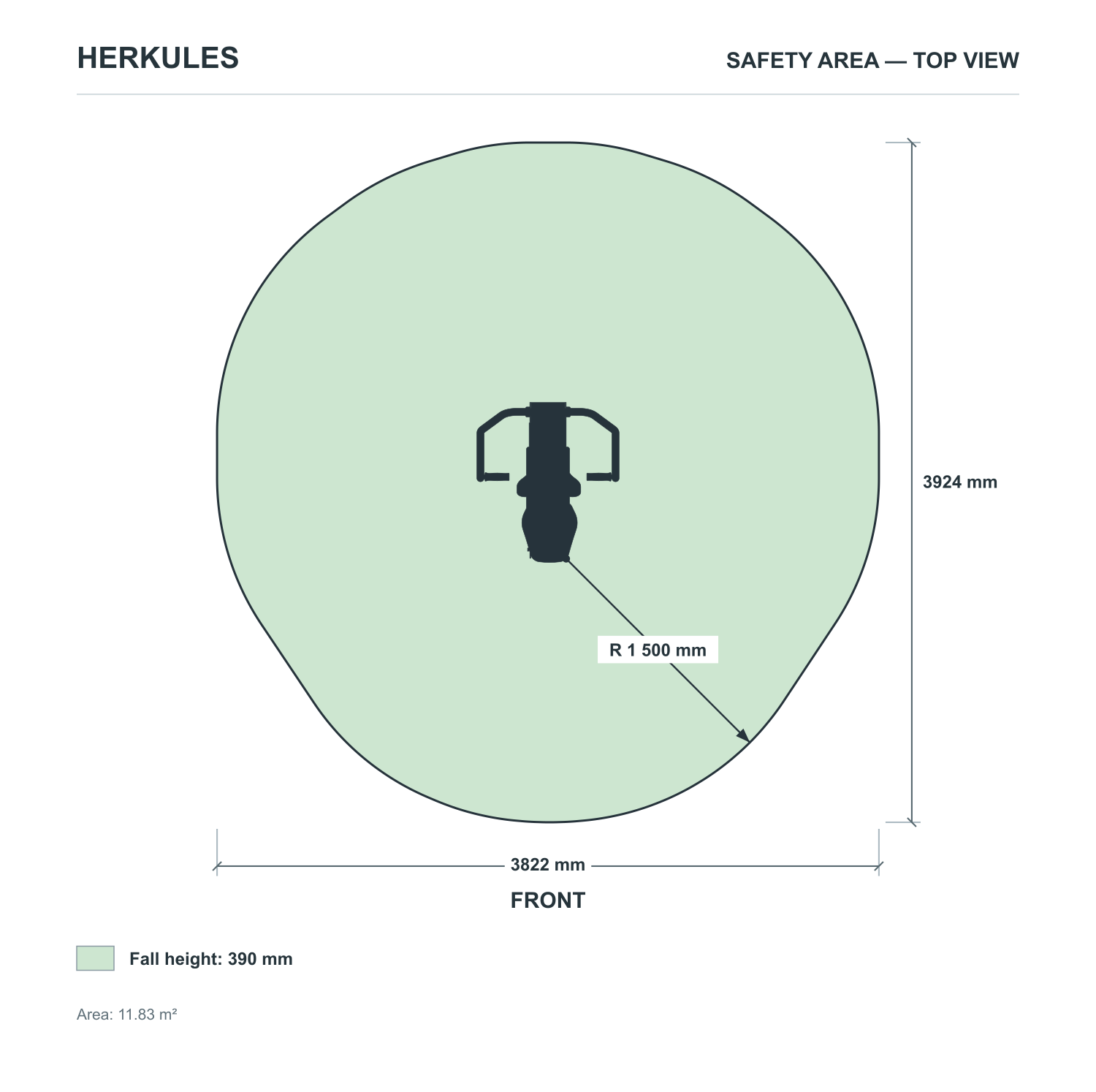

- Safety area
- 3,822 × 3,924 mm · 11.83 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years

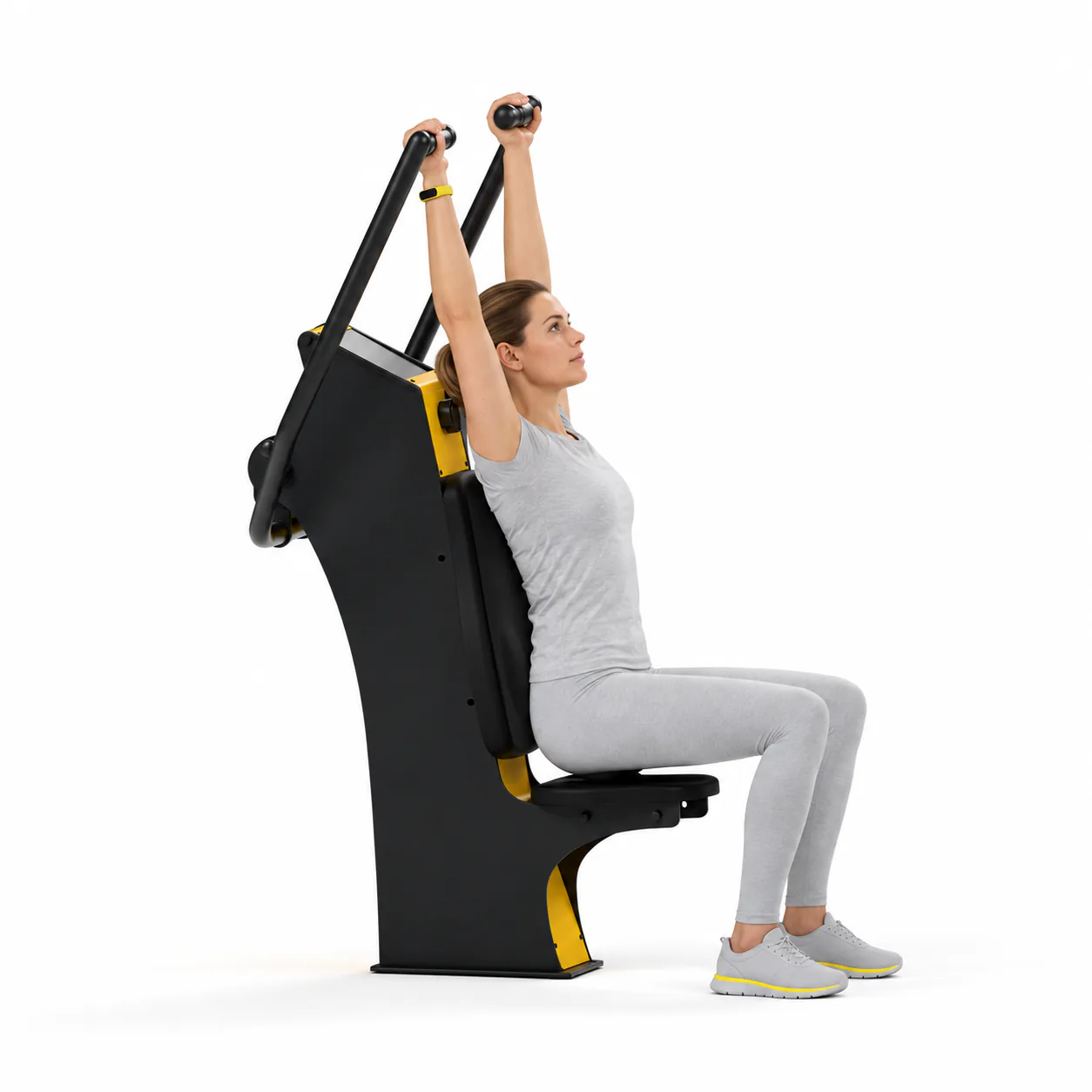

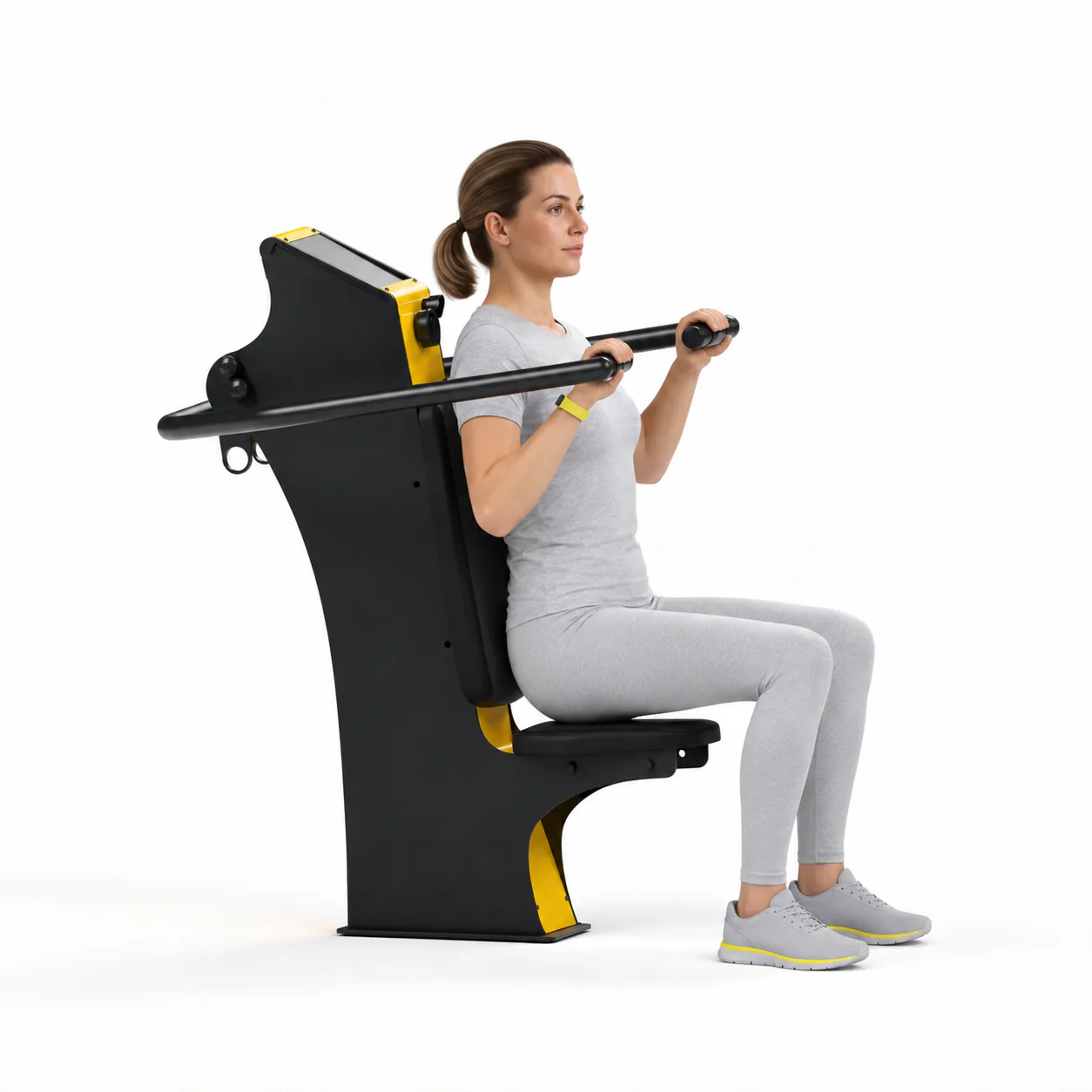

How to use it
Use
Tirage Vertical is designed to be accessible to a wide range of people, from occasional users to regular sportsmen and women.
It enables:
- Safe, controlled vertical pulling
- Generating energy to recharge a device via USB
- Strengthen back, arms and postural stability
It's best to keep your torso upright, shoulders low, and pull smoothly to protect your shoulders and spine. Quality of execution always takes precedence over quantity.
What it trains
Function
- Targeted strengthening ofthe back and posterior chain
- Autonomous power generationthrough traction movement
- Stabilizing the shoulder girdlefor strong shoulders
- Improving posturethrough back work
A fundamental exercise that combines strength and energy benefits
What the standard requires
Safety & use
Safety & use
- Free fall height
- 390 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.216 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- Pre-assembled
Built to last outdoors
Design & materials
- Stainless steel structuredesigned for intensive outdoor use
- Integrated power generation systemwith secure USB output
- High-performanceUV- and weather-resistant anti-corrosion treatment
- Ergonomic handles and smooth-running pull mechanism
- Durable equipment combining technology and outdoor reliability
For whom, where
Recommended Public & Environment
- Connected outdoor fitness areas
- Urban parks and innovative sports areas
- Communities, campuses and eco-neighborhoods
- Zones for physical preparation and sustainable sports
Modern equipment that promotes back strengthening and responsible effort.
What sets it apart
Built to last outdoors
In brief
Why choose Tirage Vertical?
The Vertical Puller with USB recharge is an essential device for strengthening the back, the pillar of posture and back pain prevention. It effectively balances everyday pushing movements while giving a concrete purpose to effort through energy production. Designed in stainless steel by Herkules Fitness, it guarantees robustness, safety and longevity for innovative outdoor installations.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Tirage Vertical
Which muscles are involved in the USB Vertical Pull?
The Vertical Pull-Up mainly involves the large dorsi, rhomboids and trapezius muscles during the pull. The biceps and forearms participate in the pull, while the abdominal and lumbar muscles ensure trunk stability. This Herkules Fitness machine provides functional, balanced upper-body strengthening.
Is it effective for strengthening muscles?
Yes, it's very effective for strengthening back and arm muscles. Guided movement enables targeted training in complete safety. The more the user controls and repeats the movement, the greater the muscular intensity and energy production, making the workout both effective and motivating.
How does USB recharging work?
USB recharging works thanks to a generator integrated into the pulling mechanism. The mechanical energy produced during the pulls is converted into electricity and then delivered via a protected USB plug. The system is self-contained, with no mains connection, and perfectly suited to outdoor public use.
Is this machine suitable for people with sensitive shoulders?
The USB-charged Vertical Pull may be suitable for people with sensitive shoulders, provided they adopt a moderate amplitude and controlled movement. Mechanical guidance helps maintain proper joint alignment. It is advisable to start gradually, and to consult a health professional in the event of known pathology.
What maintenance is required for this equipment?
This equipment requires very little maintenance. Regular cleaning of handles and contact surfaces, as well as periodic checking of fasteners and USB module, are all that's required. Stainless materials and protected components ensure excellent resistance to external conditions.
Does Tirage Vertical comply with community safety standards?
Yes, the Herkules Fitness Vertical Pull-up with USB charging complies with European standards for outdoor fitness equipment. Its sturdy structure, ergonomic design and secure electrical components guarantee safe, reliable use in open-access environments.
Is the USB plug safe for public use?
Yes, the USB plug is designed for safe public use. It delivers a voltage suitable for small electronic devices, and is protected against moisture, power surges and inappropriate handling. The system is self-contained and complies with external safety requirements.
