Ref. HER-18Street Workout Equipement
Vertical
Scale – Street Workout stations
Vertical ladder, technical outdoor module for vertical traction and coordination with professional Herkules Fitness sturdiness.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1

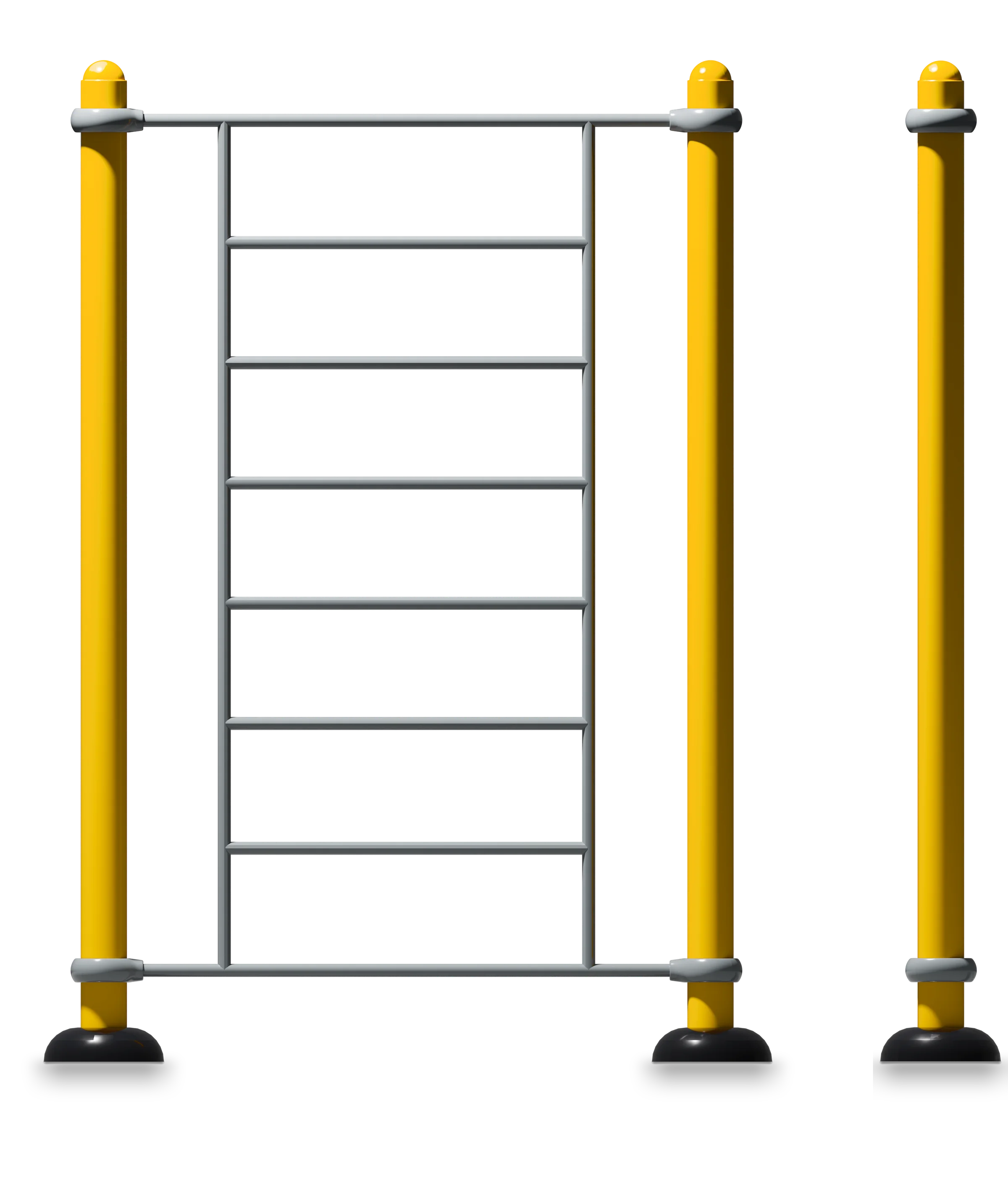

Product view
- L 1.8 m
- P 0.3 m
- H 2.5 m
Overview
Vertical Scale - Street Workout stations
Vertical Ladder is an outdoor street workout station designed for vertical traction and coordination work at height.
It enables you to perform controlled ascents, static suspensions, controlled descents and suspended gainage exercises. Biomechanics are based on open-chain traction, involving the back, biceps, forearms and stabilizing muscles of the trunk. This module develops relative strength, arm-leg coordination and body control.
Ref. HER-18 · Street Workout Equipement
The figures
Technical specifications
Vertical ScaleTechnical sheet · dimensions in mm
- Length
- 1,782
- Width
- 295
- Height
- 2,451

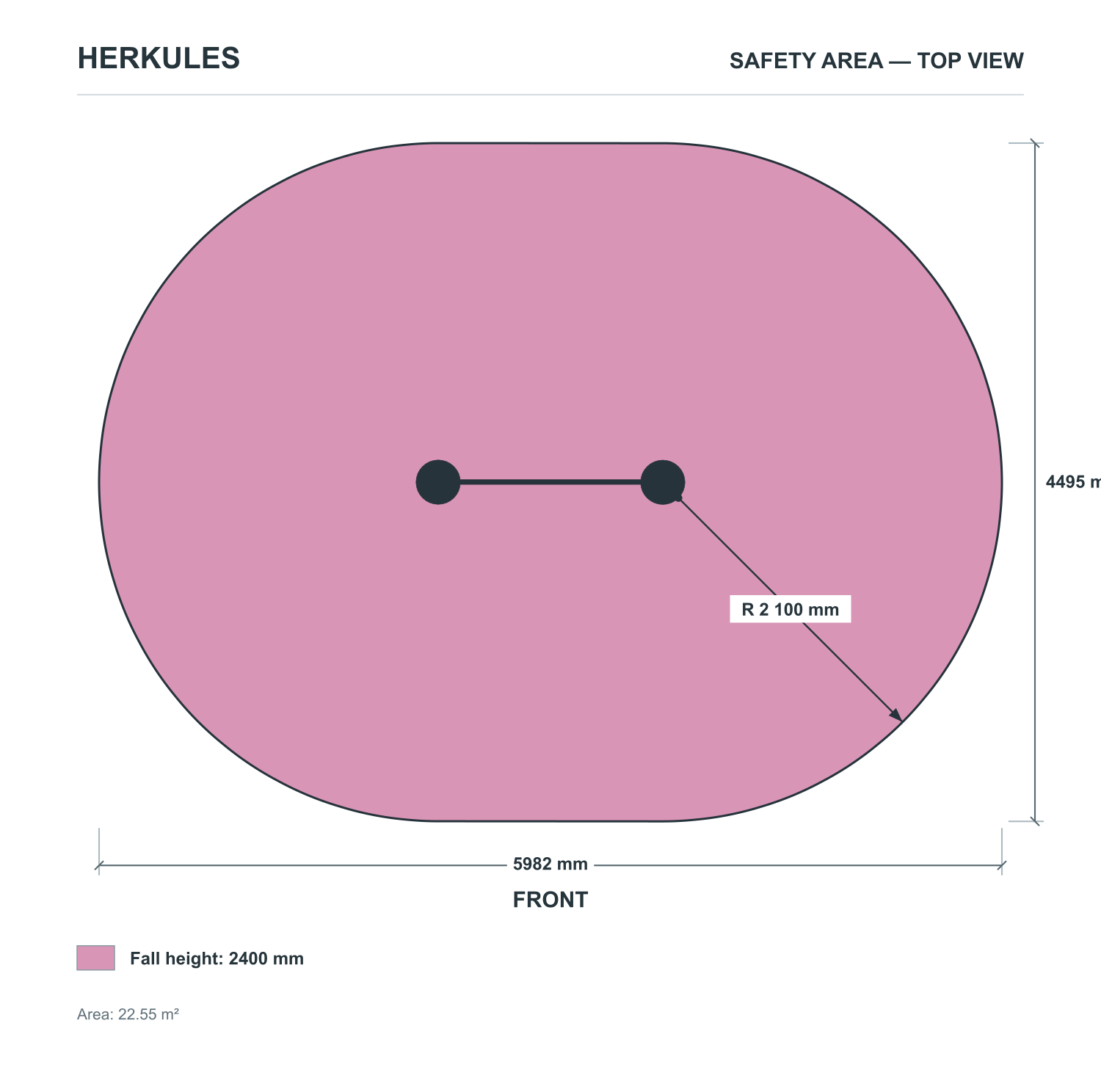

- Safety area
- 4,495 × 5,982 mm · 22.55 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
The Vertical Scale is designed for teenagers and adults, from intermediate to advanced levels.
It notably enables:
- Perform controlled traction climbs
- Working on suspension and grip
- Improve coordination in vertical movement
It is advisable to control each hold and secure the descent. Mastery of movement takes precedence over speed of execution.
What it trains
Function
- Backand arm strengthening
- Gripand forearm work
- Suspension training
- Improvedvertical coordination
- A technical module for complete outdoor training
What the standard requires
Safety & use
Safety & use
- Free fall height
- 2,400 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.3 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structuredesigned for intensive outdoor use
- Reinforced anti-corrosion treatmentagainst UV and weathering
- Sturdy uprightsdesigned for heavy use
- Stable design with secure fastening
- Durable equipment for demanding collective environments
For whom, where
Recommended Public & Environment
- Urban parks and street workout areas
- Local authorities
- Schools and universities
- Free-access sports areas
A dynamic solution to enhance a modern street workout area.
What sets it apart
Built to last outdoors
In brief
Why choose Échelle Verticale?
The Vertical Ladder - Street Workout Stations brings a vertical and technical dimension to an urban training space. It develops traction strength, coordination and height control. Designed by Herkules Fitness, this structure guarantees sturdiness, safety and durability for local authorities.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Vertical Scale
Is the Vertical Scale - Street Workout stations suitable for advanced users?
Yes, the Vertical Ladder - Street Workout Stations is particularly suitable for intermediate and advanced exercisers who want to work on vertical traction and coordination at height.
Which muscles are mainly involved?
This module mainly targets the back, biceps and forearm muscles, while at the same time putting a lot of pressure on the trunk stabilizing muscles during suspension.
Can it be integrated into a complete street workout program?
Absolutely. It perfectly complements dips, horizontal suspension or sheathing modules, enriching the diversity of exercises available.
What's the advantage of vertical outdoor work?
Vertical work develops coordination, relative strength and body control. It provides a rewarding technical challenge.
Can the structure withstand high visitor numbers?
Yes, its sturdy galvanized steel construction and anti-corrosion treatment ensure excellent resistance to repeated use and outdoor weather conditions.
What kind of maintenance is recommended for a community?
Regular inspection of fixings and bars is recommended. Annual preventive maintenance guarantees safety, compliance and longevity.
Does the Vertical Scale comply with European standards?
Yes, the Herkules Fitness Vertical Ladder - Street Workout Stations complies with European standards for outdoor sports equipment, ensuring safe and reliable use.
