Ref. THJ-B11Classic fitness equipment

Walker – Outdoor Fitness Equipment

Boost stamina and mobility with the Walker - Outdoor Fitness Machine, robust and ideal for intensive outdoor use.

Get a quote →Try it in the configurator

Technical data · DWG · 3D

Warranty: Up to 10 years
Certification: EN16630:2015
Number of users: 1

Overview Specifications Use Function Safety Installation Design Audience

Overview

Walker - Outdoor Fitness Equipment

The Strider is outdoor fitness equipment designed to replicate a fluid and natural pendulum walking motion.

This gentle biomechanics mobilizes the lower limbs alternately while engaging coordination and balance. The continuous movement promotes cardiorespiratory activation, improves blood circulation, and maintains hip and knee mobility, without joint impact. Its ergonomics allow for comfortable and secure use, suitable for all profiles.

Ref. THJ-B11 · Classic fitness equipment

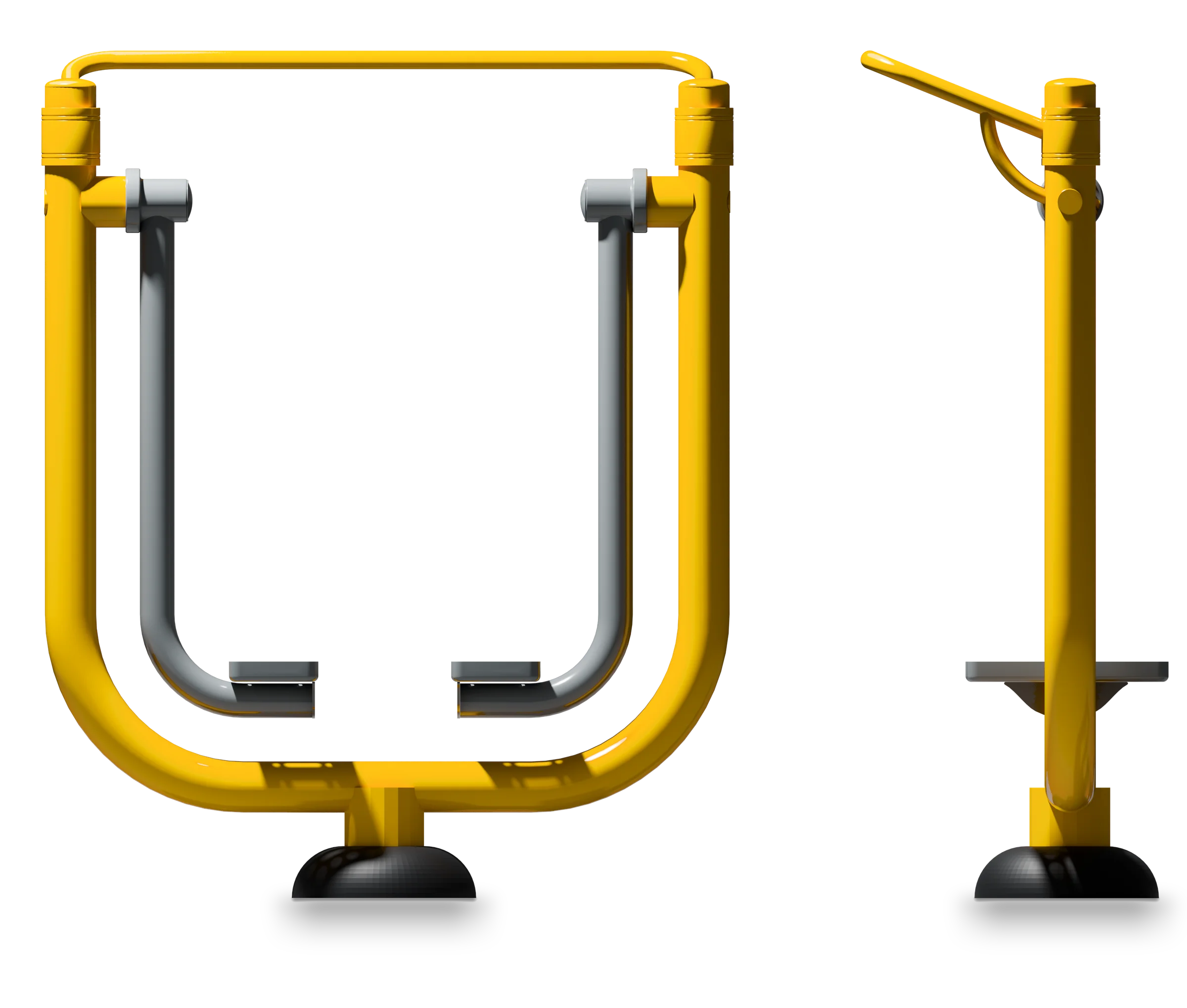

Walker - Outdoor Fitness Equipment — Rendering — Front and side views

The figures

Technical specifications

THJ-B11

WalkerTechnical sheet · dimensions in mm

Length: 1,201
Width: 534
Height: 1,471
Safety area: 4,201 × 3,534 mm · 12.28 m²
Material: Galvanized powder-coated steel
Certification: EN16630:2015
Warranty: Up to 10 years

Walker - Outdoor Fitness Equipment — Dimensioned drawing

How to use it

Use

The Strider is designed to be accessible to all users, from beginners to regular practitioners.

It enables:

Active striding with low joint impact.
Gentle and progressive cardiovascular stimulation.
Coordinated mobilization of the legs and pelvis.

It is recommended to keep your torso straight and to follow the movement without forcing the range of motion. The fluidity of the motion ensures comfort and safety.

Downloads →

Pédalier d'un appareil de fitness extérieur Herkules, gros plan sur le mécanisme

What it trains

Function

Gentle Cardioimproves endurance and breathing.
Joint Mobilitymaintains hips, knees, and ankles.
Motor Coordinationsynchronizes lower limbs.
Functional Balancestability during alternating movement.

An accessible exercise promoting regular practice.

Use →

Legs · Cardio · Mobility · Balance

What the standard requires

Safety & use

Free fall height: 700 mm
Minimum user height: 140 cm
Maximum user weight: 150 kg
Number of users: 1

Permitted surfacing

700 mm

Concrete, stone

Bituminous surfacing

Natural topsoil

Turf

Bark chippings

Wood chips

Sand

Gravel

EPDM

01 0002 0003 000

Walker - Outdoor Fitness Equipment — Safety area — Safety area

Putting it in place

Installation

Safety areathe surface given in the table, clear all around.
Concrete basepoured to the stated volume and depth, then cured.
Fixingthe unit is bolted onto the cured base.
Handoverplumb, tightness and no play before service.
Upkeepregular visual check and periodic retightening (EN 16630).

Anchor frame base cast in open ground

Bolted down on an existing concrete slab

Installation

Concrete volume: 0.15 m³
Anchoring depth: 600 mm
Fixing: Bolted
Assembly: Pre-assembled

Built to last outdoors

Design & materials

Galvanized steel structuredesigned for intensive outdoor use
Anti-Corrosion TreatmentWeather and UV resistant
Non-slip pedalsensuring secure footing.
Fluid and silent pendulum mechanism.
A durable design suited for public spaces.

For whom, where

Recommended Public & Environment

Outdoor fitness areas and health trails
Urban parks and municipal sports facilities
Communities, schools, and leisure centers
Wellness and gentle physical activity areas

Simple and functional equipment promoting regular physical activity.

What sets it apart

Built to last outdoors

In brief

Why choose The Strider?

The Strider is essential equipment for maintaining gentle cardio activity while preserving joints. It allows for progressive maintenance of endurance, mobility, and coordination, making it an ideal solution for all users. Its robust and reliable design perfectly illustrates the expertise and durability synonymous with Herkules Fitness.

Downloads

Online fitness park configurator

The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.

1 Choose your equipment
2 Visualize your layout
3 Check compliance
4 Receive your project

🛠 Launch configurator Free - No obligation - Immediate results

Dimensioned layout plan of the Argentan fitness park, from the project file

3D perspectives of the Argentan fitness park, from the project file

You may wonder

Frequently asked questions : Walker

Which muscles are engaged by The Strider?

The Strider primarily engages the quadriceps, hamstrings, glutes, and calves, while lightly engaging the core stabilizing muscles.

Is The Strider primarily for cardio or muscle strengthening?

The Strider is primarily a gentle cardio machine, promoting endurance and mobility more than intense muscle strengthening.

Is this machine suitable for beginners?

Yes, The Strider is perfectly suited for beginners thanks to its natural, intuitive, and low-impact movement.

Is The Strider suitable for seniors?

Yes, The Strider is particularly recommended for seniors thanks to its fluid movement and low impact on joints.

Can The Strider be used for warm-up?

Absolutely, The Strider is ideal for warming up before a more intense session, as it progressively activates the cardiovascular system and joints.

Does this equipment comply with European safety standards?

Yes, The Strider complies with EN 16630 standard, ensuring safe use in public and community spaces.

What type of ground is recommended for installation?

The Strider must be installed on a stable surface and in accordance with recommendations, such as a concrete slab or suitable shock-absorbing surfacing.
