Ref. THJ-B18Classic fitness equipment

Cavalier – Outdoor fitness equipment

Boost your cardio, coordination, and endurance with the Cavalier - Outdoor Fitness Equipment, robust, engaging, and designed for intensive outdoor use.

Get a quote →Try it in the configurator

Technical data · DWG · 3D

Warranty: Up to 10 years
Certification: EN16630:2015
Number of users: 1

Overview Specifications Use Function Safety Installation Design Audience

Overview

Cavalier - Outdoor fitness equipment

Cavalier is an outdoor fitness machine designed to engage the entire body through an alternating up-and-down leg movement, combined with coordinated arm action.

This biomechanics, inspired by the riding motion, strongly engages the lower limbs, cardiovascular system, and overall coordination. The fluid movement improves endurance, hip mobility, and postural stability, while limiting joint impact. Its ergonomics ensure comfortable and progressive use, suitable for all users.

Ref. THJ-B18 · Classic fitness equipment

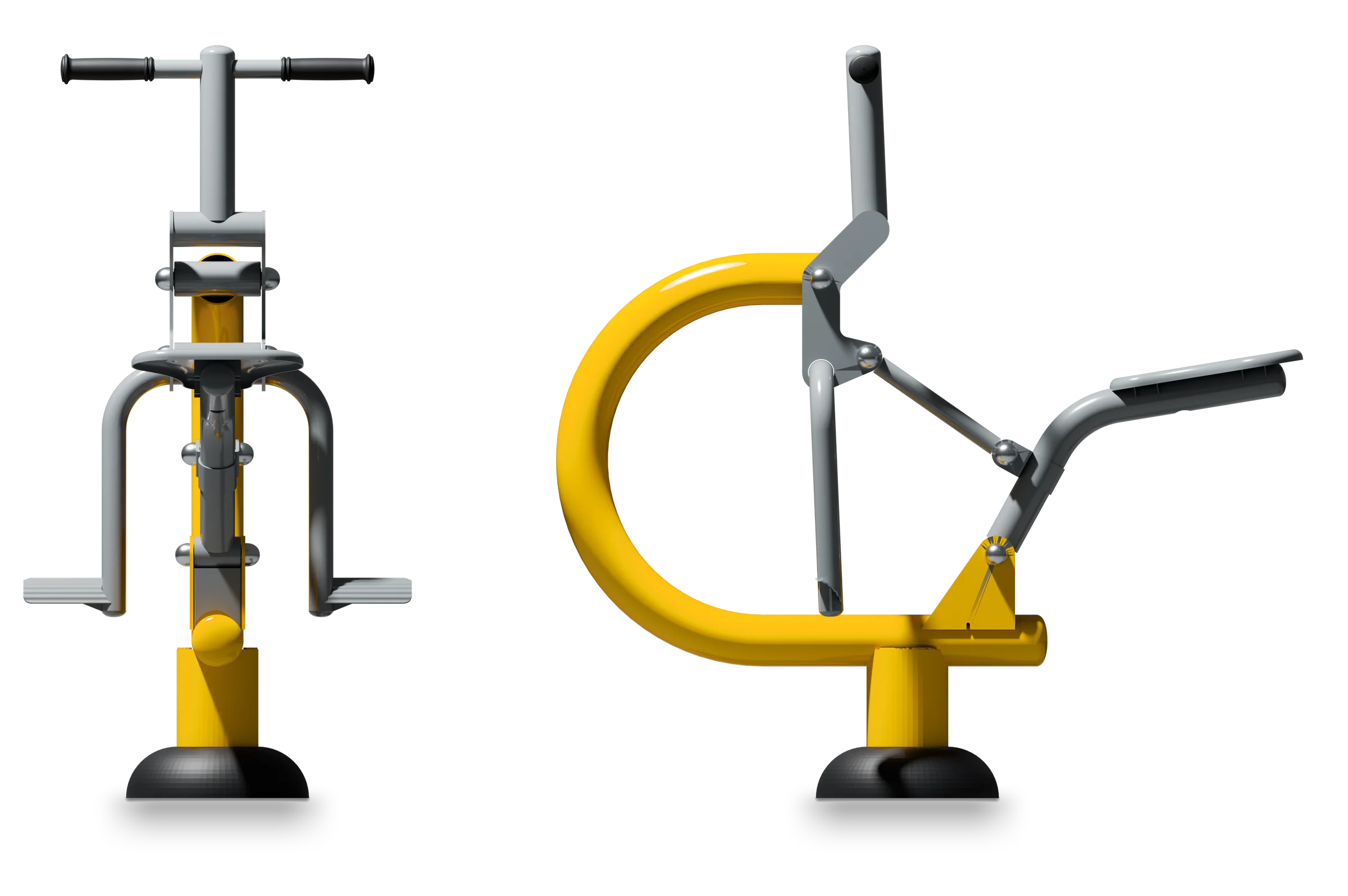

Cavalier - Outdoor fitness equipment — Rendering — Front and side views

The figures

Technical specifications

THJ-B18

CavalierTechnical sheet · dimensions in mm

Length: 1,311
Width: 682
Height: 1,321
Safety area: 3,682 × 4,311 mm · 12.36 m²
Material: Galvanized powder-coated steel
Certification: EN16630:2015
Warranty: Up to 10 years

Cavalier - Outdoor fitness equipment — Dimensioned drawing

How to use it

Use

The Cavalier is designed for a wide audience, from beginners to regular users.

It enables:

Alternating leg movement for cardiovascular workout
Arm-leg coordination for a full-body workout
Functional strengthening of lower limbs and core

Maintain a straight back and synchronize movements. A regular, controlled pace ensures safety and efficiency.

Downloads →

Pédalier d'un appareil de fitness extérieur Herkules, gros plan sur le mécanisme

What it trains

Function

Complete Cardioimproves endurance and breathing
Leg Strengtheningengages quadriceps, glutes, and calves.
Motor Coordinationsynchronizes cross-body movements
Hip Mobilityfluid and natural movement

A dynamic exercise promoting general physical fitness

Use →

Legs · Cardio · Glutes · Calves

What the standard requires

Safety & use

Free fall height: 950 mm
Minimum user height: 140 cm
Maximum user weight: 150 kg
Number of users: 1

Permitted surfacing

950 mm

Concrete, stone

Bituminous surfacing

Natural topsoil

Turf

Bark chippings

Wood chips

Sand

Gravel

EPDM

01 0002 0003 000

Cavalier - Outdoor fitness equipment — Safety area — Safety area

Putting it in place

Installation

Safety areathe surface given in the table, clear all around.
Concrete basepoured to the stated volume and depth, then cured.
Fixingthe unit is bolted onto the cured base.
Handoverplumb, tightness and no play before service.
Upkeepregular visual check and periodic retightening (EN 16630).

Anchor frame base cast in open ground

Bolted down on an existing concrete slab

Installation

Concrete volume: 0.15 m³
Anchoring depth: 600 mm
Fixing: Bolted
Assembly: Pre-assembled

Built to last outdoors

Design & materials

Galvanized steel structuredesigned for intensive outdoor use
Anti-Corrosion TreatmentWeather and UV resistant
Non-slip pedals and handlesfor optimal safety
Fluid and silent movement mechanism
Durable design suitable for public environments.

For whom, where

Recommended Public & Environment

Outdoor fitness areas and health trails
Urban parks and municipal sports facilities
Communities, schools, and leisure centers
Open-access fitness zones

Engaging equipment that encourages regular, independent use.

What sets it apart

Built to last outdoors

In brief

Why choose Cavalier?

The Cavalier is a versatile piece of equipment that effectively combines cardio, coordination, and leg strengthening. Its dynamic movement stimulates the entire body while remaining gentle on the joints, making it an ideal choice for overall physical maintenance. Robust and built to last, it fully embodies the reliability and quality of Herkules Fitness.

Downloads

Online fitness park configurator

The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.

1 Choose your equipment
2 Visualize your layout
3 Check compliance
4 Receive your project

🛠 Launch configurator Free - No obligation - Immediate results

Dimensioned layout plan of the Argentan fitness park, from the project file

3D perspectives of the Argentan fitness park, from the project file

You may wonder

Frequently asked questions : Cavalier

Which muscles does the Cavalier engage?

The Cavalier primarily engages the quadriceps, glutes, calves, as well as the core and shoulder muscles for coordination.

Is the Cavalier primarily for cardio or strength training?

The Cavalier is primarily a cardio machine, while also providing functional strengthening for the lower limbs and core.

Is this machine suitable for beginners?

Yes, the Cavalier allows for gradual progression. Beginners can adjust the pace to work at their own rhythm.

Is the Cavalier suitable for seniors?

Yes, thanks to its fluid and low-impact movement, the Cavalier is suitable for seniors, provided it is used in a controlled manner.

Can the Cavalier be used for warm-up?

Absolutely, the Cavalier is ideal for warm-up, as it gradually activates cardio and joints.

Does this equipment comply with European safety standards?

Yes, the Cavalier complies with EN 16630 standard, ensuring safe use in public spaces.

What type of ground is recommended for installation?

The Cavalier must be installed on a stable surface and in accordance with recommendations, such as a concrete slab or suitable shock-absorbing surfacing.
