Ref. HEH-09Piston Exercise Machines
Chest Press
Machine – Piston Machines
Chest press outdoor machine to strengthen pectorals, shoulders and triceps. Sturdy, safe fitness equipment for parks and communities
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1

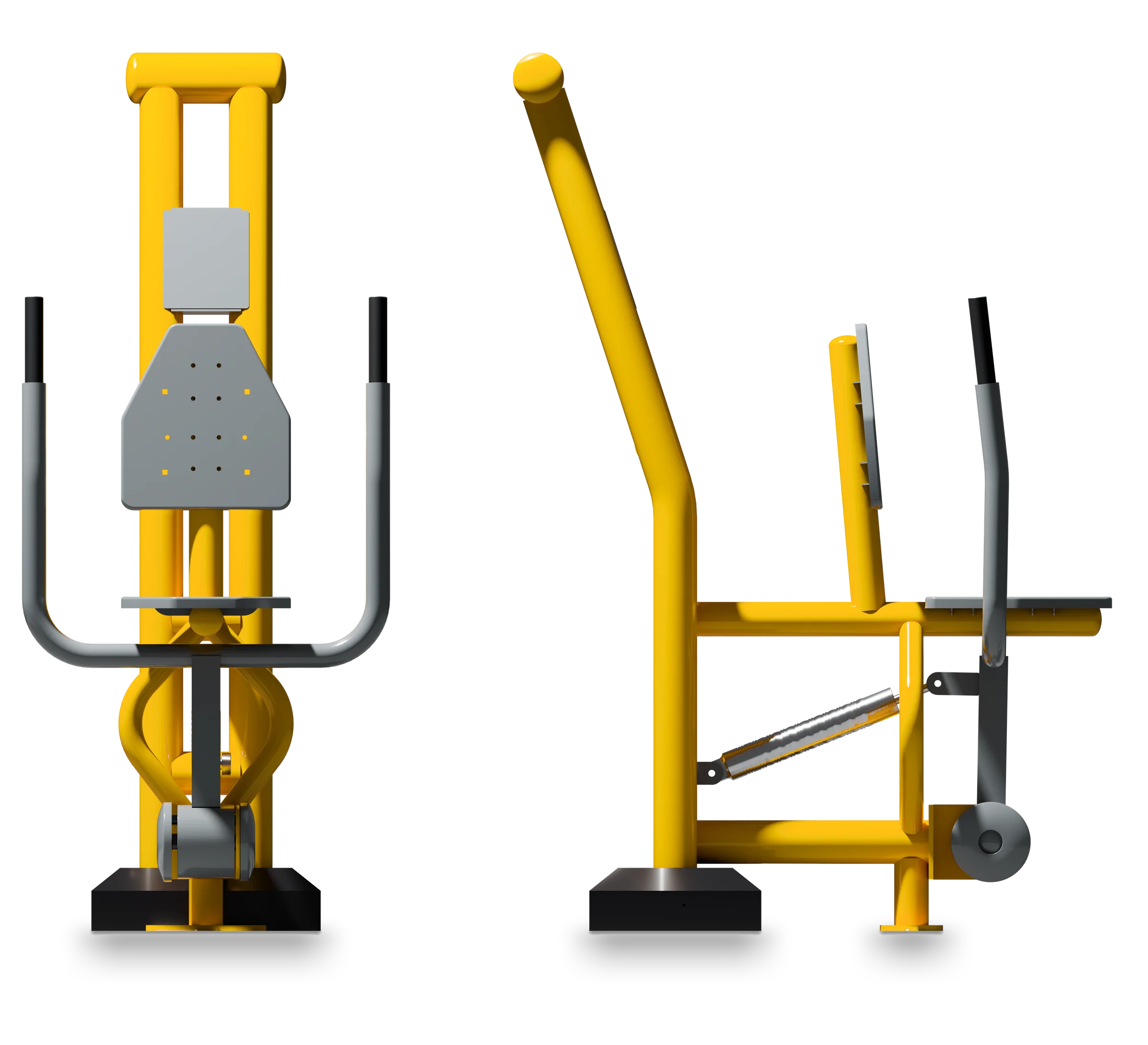

Product view
- L 1.0 m
- P 0.6 m
- H 1.5 m
Overview
Chest Press Machine - Piston Machines
The outdoor chest press is designed to strengthen the upper body, primarily targeting pectorals, shoulders and triceps. Inspired by traditional body-building machines, it reproduces the bench press movement in a version adapted for outdoor, free-access use.
Simple to use and ergonomic, this machine enables users to perform a guided and controlled movement, promoting effective muscle work while limiting joint stress. It fits perfectly into an outdoor fitness area, health trail or urban training space.
Ref. HEH-09 · Piston Exercise Machines
The figures
Technical specifications
Chest Press MachineTechnical sheet · dimensions in mm
- Length
- 1,045
- Width
- 642
- Height
- 1,533

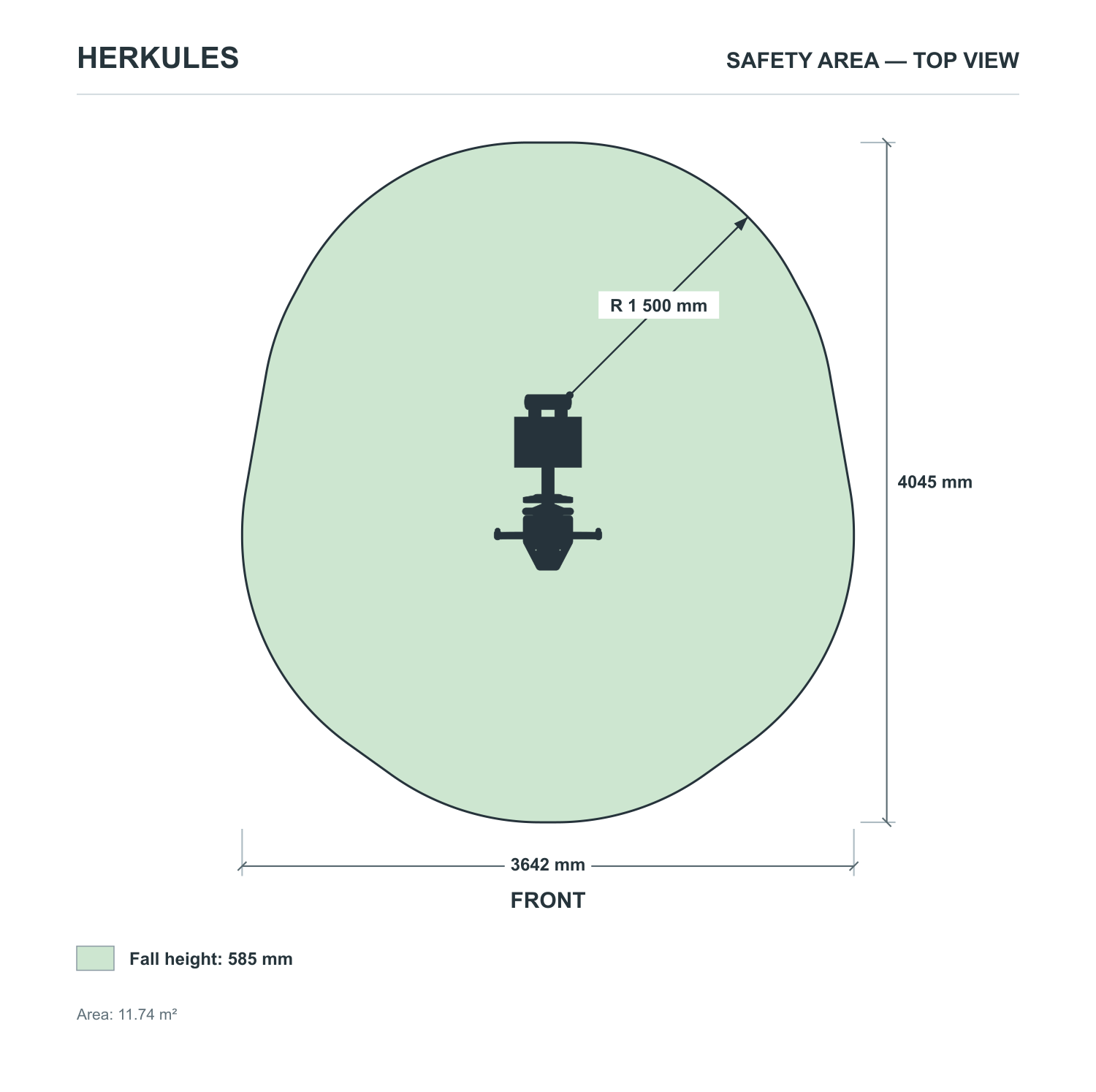

- Safety area
- 4,045 × 3,642 mm · 11.74 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
- Sit on the seat, with your back well positioned against the backrest.
- Grip the handles at chest height.
- Push your arms forward, controlling the movement.
- Return slowly to the initial position.
Coach's tip: keep shoulders low and chest open to better engage pectorals and protect joints.
What it trains
Function
- Strengthening pectoral muscles
- Stress on shoulders and triceps
- Developing upper body strength
- Improved stability and muscle control
- Guided movement for safe practice
What the standard requires
Safety & use
Safety & use
- Free fall height
- 585 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.24 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structure, built for intensive outdoor use
- Anti-corrosion treatmentto withstand the elements
- Ergonomic, non-slip handles
- Floor-mountedfor stability and safety
The machine is designed to withstand regular use in public sports areas.
For whom, where
Audience & Recommended Environments
- Outdoor fitness areas
- Parks and urban sports areas
- Communities and municipalities
- Health trail
- Free-access training areas
What sets it apart
Built to last outdoors
In brief
Why choose this chest press?
- Effectively strengthens pectoral muscles and arms
- Provides safe, guided movement
- Accessible to beginners and regular practitioners alike
- Robust equipment for collective use
- The perfect complement to an outdoor fitness area
