Ref. HEH-08Piston Exercise Machines
Triceps – Piston Machines
Piston triceps, robust, ergonomic outdoor unit. Perfect for communities and sports parks looking for a secure arm station.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 0.9 m
- P 0.7 m
- H 1.5 m
Overview

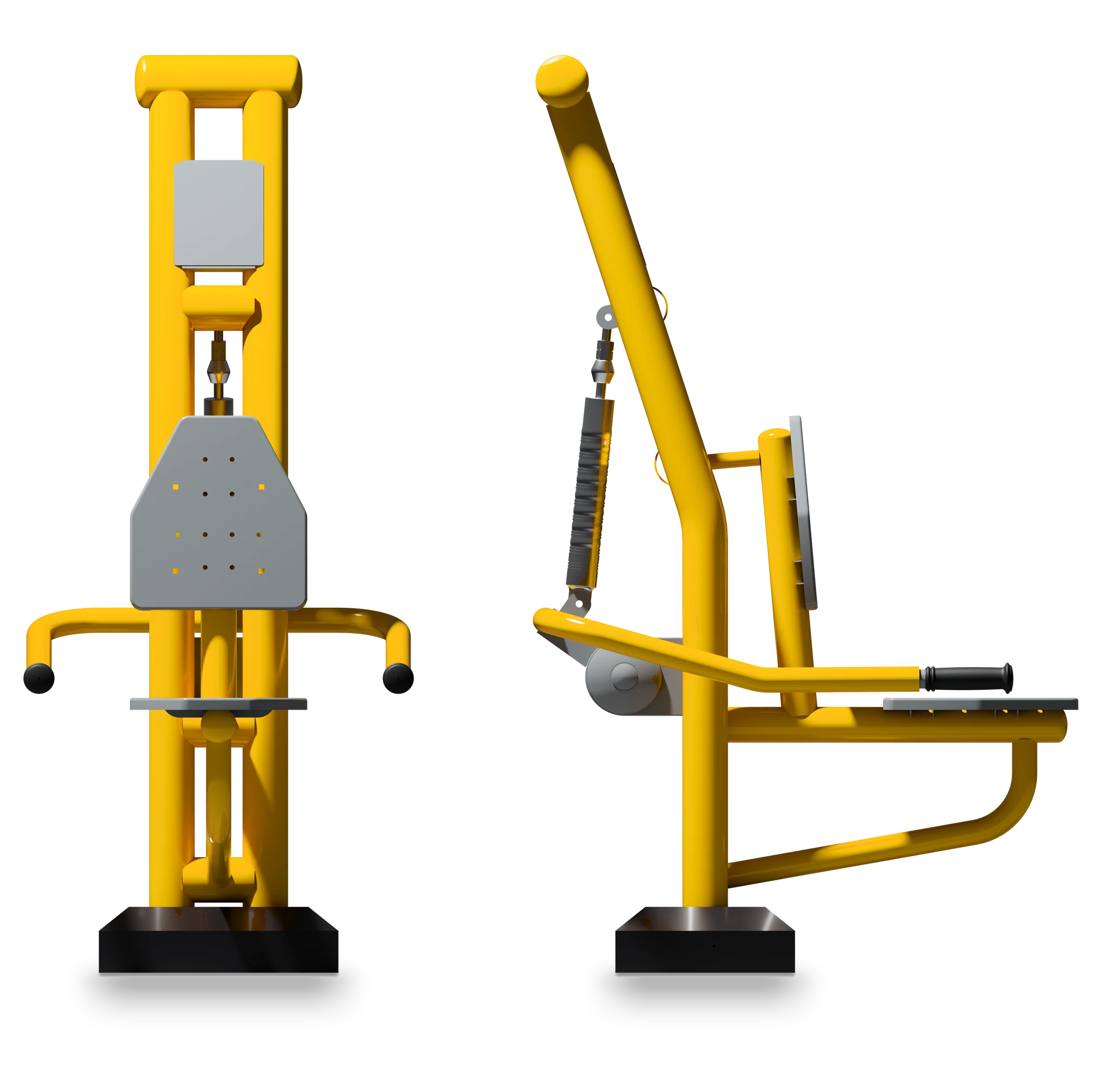

Triceps - Piston Machines
The Triceps apparatus from the Piston Bodybuilding Equipment range is designed to strengthen the triceps and improve upper-body strength progressively and effectively.
This outdoor fitness machine is equipped with an adjustable hydraulic piston offering 8 levels of resistance, enabling users to personalize the intensity of their workout according to their level and objectives. Ideal for developing arm strength, this machine provides a targeted workout in a pleasant outdoor environment.
Ref. HEH-08 · Piston Exercise Machines
The figures
Technical specifications
TricepsTechnical sheet · dimensions in mm
- Length
- 911
- Width
- 652
- Height
- 1,533
- Safety area
- 3,911 × 3,652 mm · 11.86 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 450 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.216 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structurerobust, hot-dip galvanized frame for maximum resistance to corrosion, weathering and freeze/thaw cycles.
- Adjustable hydraulic pistonprecision hydraulic mechanism offering 8 progressive resistance levels, designed for intensive outdoor use without frequent maintenance.
- Ergonomic handles and seatnon-slip grip surfaces and anatomical seat ensure comfort and safety during every repetition.
- Two-layer anti-corrosion treatment (epoxy primer + polyester finish) for optimum resistance to UV and atmospheric agents.
- All components are designed for long-term durability in high-traffic public environments, reducing maintenance costs for local authorities.
For whom, where
Recommended audience & environment
- Municipal parks and green spacesideal for outdoor fitness zones accessible to all residents.
- Rehabilitation centers and retirement homesadjustable resistance makes it ideal for muscle maintenance programs for seniors.
- Sports complexes and stadiumsthe perfect complement to training equipment for athletes wishing to work the upper body.
- Schools, colleges and university campusesencourage regular physical activity among young people in a safe and attractive environment.
It's a natural fit for any outdoor fitness trail designed for communities. Its versatility in terms of audience and environment makes it a long-lasting investment for urban planners wishing to offer inclusive, sustainable facilities.
What sets it apart
Built to last outdoors
In brief
Why choose the Triceps machine?
The Triceps - Appareils de Musculation Piston is distinguished by its 8 levels of hydraulic resistance, enabling every user, from beginner to advanced athlete, to progress at his or her own pace without risk of injury. Its robust design and meticulous ergonomics make it perfectly suited to high-traffic public areas. Designed by Herkules Fitness, it guarantees reliability, longevity and safety to meet the requirements of the most demanding local authorities.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Triceps
Which muscles does the Piston Triceps machine work?
This machine primarily targets the triceps brachii, located at the back of the arm, while secondarily soliciting the shoulders and stabilizing muscles of the trunk. Regular training effectively tones and strengthens the upper body, improving overall fitness.
Is the Triceps device suitable for the elderly or people undergoing rehabilitation?
Yes, thanks to its 8 progressive resistance levels, it can be set at a very low intensity, making it accessible to seniors and people undergoing muscular rehabilitation. However, it is advisable to consult a health professional before starting any specific training program.
What types of floor are compatible with this appliance?
The equipment can be anchored to a variety of surfaces: concrete, asphalt, stabilized slabs or even woodchip floors for green spaces. Installation is carried out by chemical or mechanical sealing, in accordance with the technical recommendations supplied by Herkules Fitness, to guarantee perfect stability.
Is the Triceps Piston certified for use in public areas?
Yes, the entire Piston Bodybuilder range is designed and manufactured in compliance with current European standards for outdoor fitness equipment intended for the public sector. Certifications guarantee user safety and facilitate administrative procedures for public tenders.
What maintenance is required to keep the device in good condition?
Maintenance is minimal, thanks to corrosion-resistant materials and a hydraulic piston designed for intensive outdoor use. We recommend periodic visual inspection of fasteners, checking handles for wear and cleaning with clear water a few times a year to preserve the finish.
What are the dimensions and maximum load capacity of this device?
The Triceps - Appareils de Musculation Piston is designed to accommodate adult users of varying morphologies, with a maximum user load generally set at 150 kg. For precise overall dimensions and full technical specifications, please consult the available technical data sheet or contact our Herkules Fitness team directly.
