Ref. HEH-10Piston Exercise Machines
Push – Piston machines
Piston Push, durable outdoor weight training equipment. Designed for communities, it provides a safe, progressive workout.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.0 m
- P 0.7 m
- H 1.5 m
Overview
Push - Piston machines

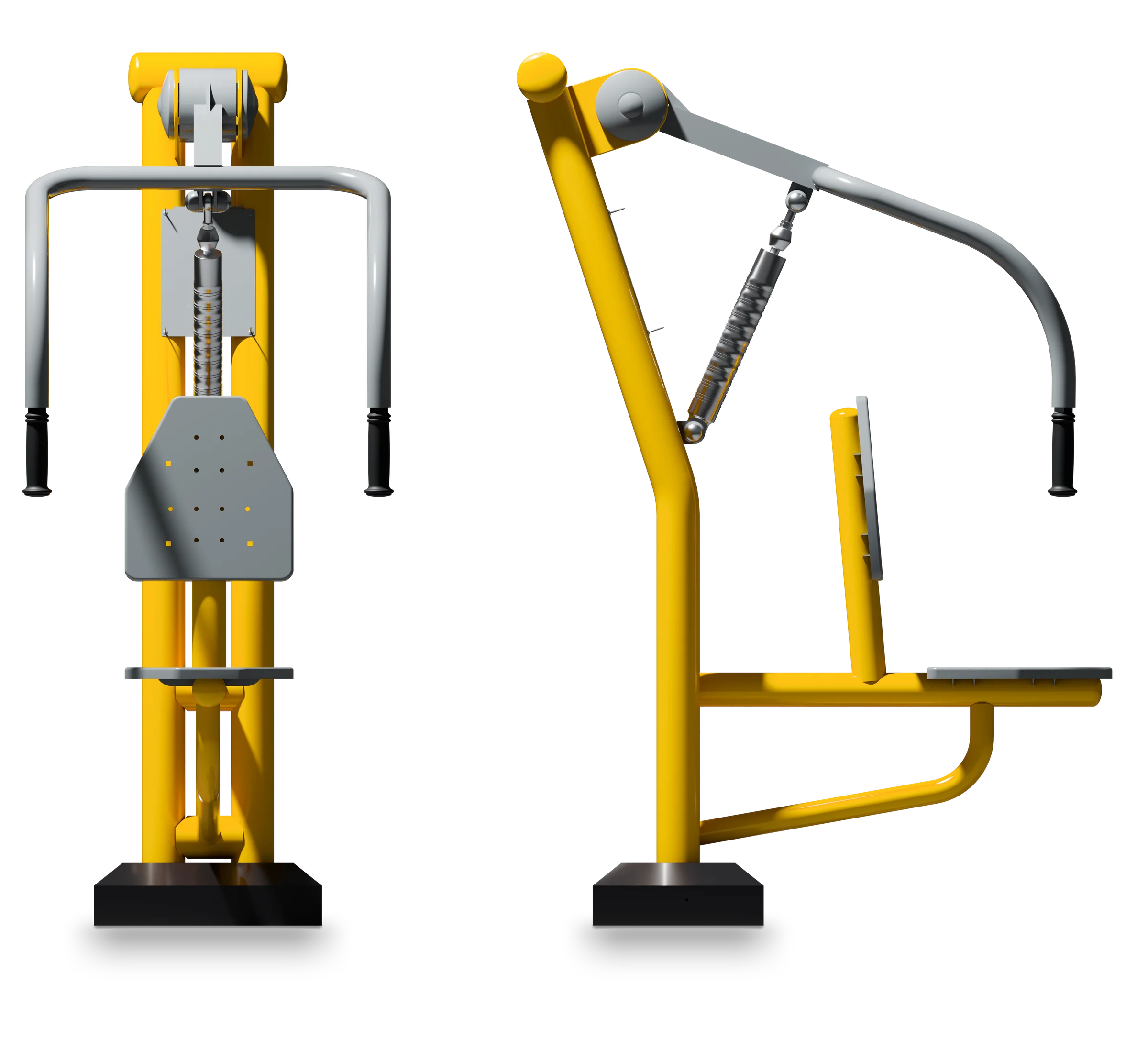

The Push apparatus from the Piston Bodybuilder range is designed to develop upper-body muscles, in particular shoulders, triceps and chest, using a vertical push movement.
This outdoor fitness machine is equipped with an adjustable hydraulic piston offering 8 resistance levels, enabling users to adapt exercise intensity to their level, whether beginner or advanced. The ergonomic design ensures targeted muscle work while preserving user safety.
Ref. HEH-10 · Piston Exercise Machines
The figures
Technical specifications
PushTechnical sheet · dimensions in mm
- Length
- 1,045
- Width
- 652
- Height
- 1,533
- Safety area
- 4,045 × 3,652 mm · 12.02 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 555 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.216 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structurethe main frame is made of hot-dip galvanized steel, offering optimum resistance to weather and temperature variations for durable outdoor installation.
- Adjustable hydraulic pistonthe central mechanism is equipped with a professional-grade hydraulic piston, designed to offer 8 progressive resistance levels with smooth, precise regulation in every use.
- Ergonomic, non-slip handlesthe hand grips are designed to ensure a secure hold, reduce joint stress and ensure optimum comfort of use, even in wet conditions.
- The anti-corrosion treatment applied to all metal surfaces effectively protects the unit against rust, UV and atmospheric agents.
- The sturdiness of all components guarantees an exceptionally long service life in public environments, even when subjected to intensive, repeated use.
For whom, where
Recommended audience & environment
- Municipal parks and green spacesideal for equipping outdoor fitness areas accessible to all residents, as part of an active public health policy.
- Sports complexes and outdoor gymsperfect for complementing an outdoor weight-training course designed for regular sportsmen and women wishing to work the upper body.
- Residences and condominiumsadapted to outdoor common areas where residents of all ages can enjoy safe, supervised physical activity.
- Schools and leisure centerssuitable for teenagers and adults in supervised environments that encourage the discovery of bodybuilding in real-life conditions.
The Push fits perfectly into any outdoor fitness layout, whether for beginners or experienced users. Its versatility and ease of use make it an essential piece of equipment for any community wishing to promote physical activity outdoors.
What sets it apart
Built to last outdoors
In brief
Why choose Push?
The Push is a particularly effective piston trainer for strengthening the upper body, with 8 levels of hydraulic resistance to suit all user profiles. It's equally suited to beginners and experienced athletes looking to develop shoulders, triceps and chest in the open air. Its safe design and meticulous ergonomics make it the perfect choice for any outdoor community space. Designed by Herkules Fitness, it guarantees reliability, longevity and compliance with the requirements of public facilities.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Push
Which muscles are mainly worked with the Push?
The Push primarily targets the shoulders (deltoids), triceps and pectoral muscles thanks to its vertical push movement. The abdominal muscles are also engaged to stabilize the trunk throughout the exercise, contributing to better overall posture.
Is this machine suitable for beginners?
Yes, the Push is perfectly suited to beginners, thanks to its 8 adjustable resistance levels on the hydraulic piston. Users can start at a low intensity and progress at their own pace, without the risk of overloading their muscles or joints.
What are the installation requirements for Push?
The Push can be installed on various types of flooring, including concrete, asphalt or specific slabs, in accordance with the technical recommendations supplied by Herkules Fitness. A clear safety zone around the equipment is recommended to ensure user safety and compliance with current standards.
Is Push certified for use in public spaces?
Yes, Herkules Fitness piston machines are designed and manufactured to meet the requirements of community sports equipment. They comply with European standards applicable to outdoor fitness equipment for public use.
What maintenance is required to keep the Push in good condition?
Maintenance of the Push is minimal, thanks to its anti-corrosion galvanized steel design. We recommend regular visual inspections, checking that the hydraulic piston is working properly, and cleaning the unit with a non-abrasive product to preserve its finish over time.
What is the maximum load supported by the Push?
The Push is designed for intensive group use by adults. To find out the maximum approved load and precise dimensions of the machine, please consult the official technical data sheet or contact the Herkules Fitness team directly.
