Ref. HEH-03Piston Exercise Machines

Leg Press Outdoor
Machine

Leg press machine for outdoor fitness. Strengthen thighs, glutes and calves with robust, smooth-running and safe equipment.

Get a quote →Try it in the configurator

Technical data · DWG · 3D

Warranty: Up to 10 years
Certification: EN16630:2015
Number of users: 1

Overview Specifications Use Function Safety Installation Design Audience

Overview

Leg Press Outdoor Machine

The outdoor leg press from Herkules Fitness is designed for powerful, safe, outdoor lower-body strengthening.

It provides an effective, joint-friendly workout for the legs, thanks to a guided, controlled movement. Its resistance can be adjusted by means of an 8-level piston, allowing you to adapt the intensity of exercise to the level and capabilities of each user. Accessible to all levels, this machine is ideal for outdoor fitness areas, health trails and open-access sports facilities.

Ref. HEH-03 · Piston Exercise Machines

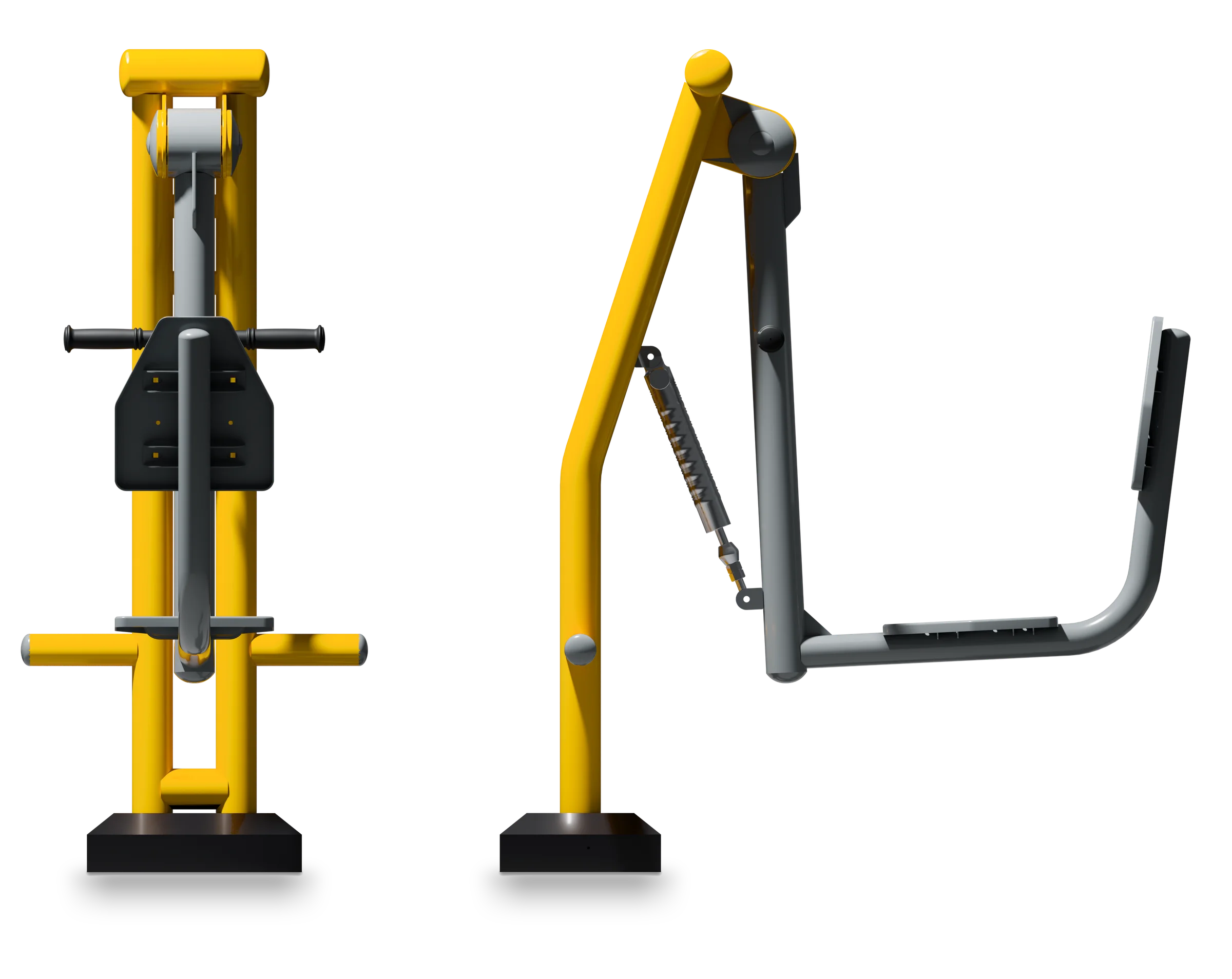

Leg Press Outdoor Machine — Rendering — Front and side views

The figures

Technical specifications

HEH-03

Leg Press Outdoor MachineTechnical sheet · dimensions in mm

Length: 1,286
Width: 646
Height: 1,533
Safety area: 4,286 × 3,646 mm · 12.58 m²
Material: Galvanized powder-coated steel
Certification: EN16630:2015
Warranty: Up to 10 years

Leg Press Outdoor Machine — Dimensioned drawing

How to use it

Use

- Sit on the seat with your back firmly against the backrest.
- Place your feet shoulder-width apart on the platform.
- Gradually push with your legs, without locking
your knees completely.
- Return slowly to the initial position to maintain control of the
movement.

Coach's tip: use a controlled amplitude and a regular
cadence to maximize muscular work without overloading the
knees.

Downloads →

Femme utilisant un appareil de musculation piston Herkules parmi les bouleaux

What it trains

Function

- Targeted strengthening of quadriceps, hamstrings, glutes and calves
- Lower-body work with guided movement
- Improves functional strength and stability
- Developsmuscular endurance in the legs
- Fluid movement reduces joint stress

Use →

Thighs · Glutes · Calves

What the standard requires

Safety & use

Free fall height: 370 mm
Minimum user height: 140 cm
Maximum user weight: 150 kg
Number of users: 1

Permitted surfacing

370 mm

Concrete, stone

Bituminous surfacing

Natural topsoil

Turf

Bark chippings

Wood chips

Sand

Gravel

EPDM

01 0002 0003 000

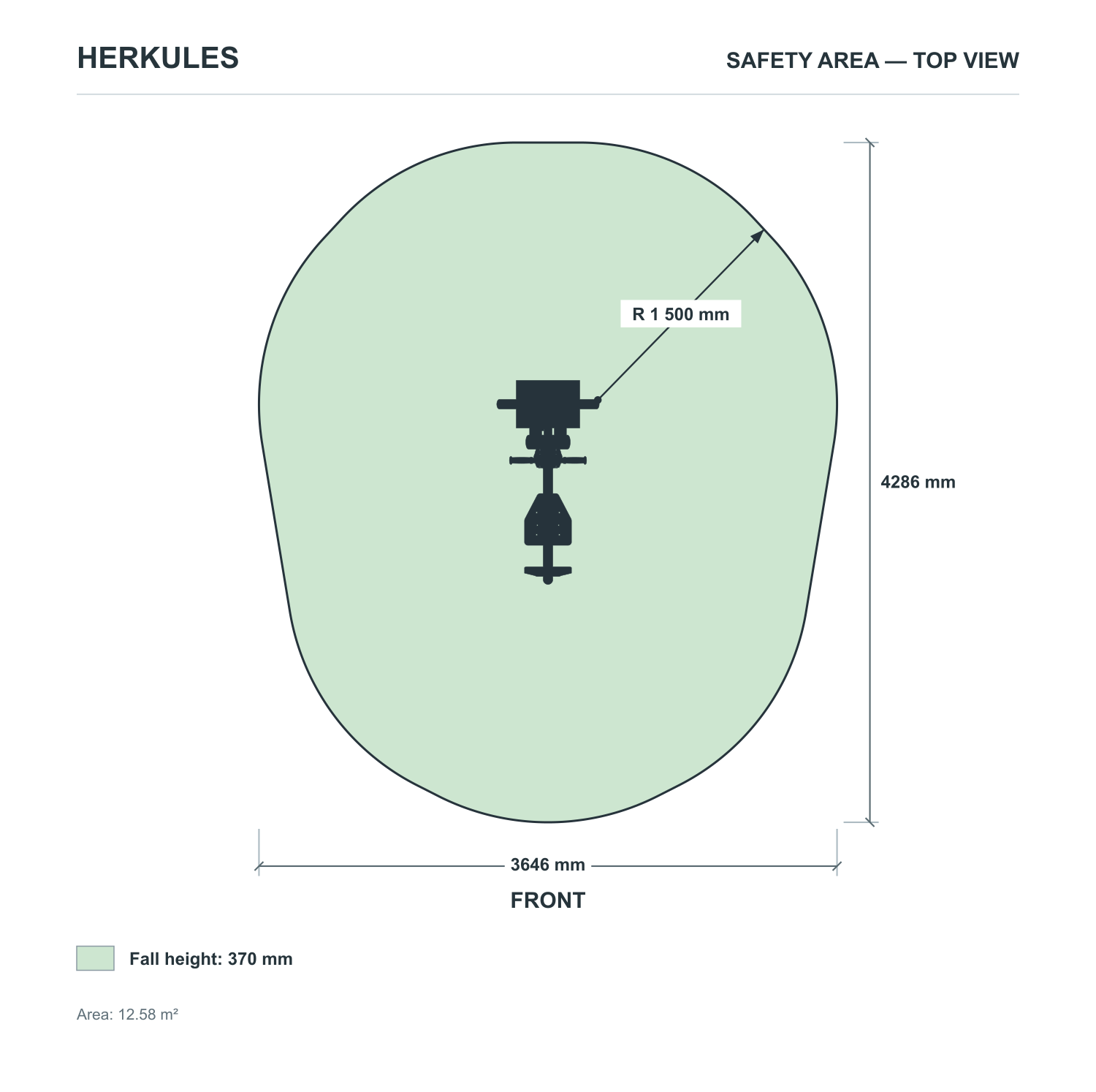

Leg Press Outdoor Machine — Safety area — Safety area

Putting it in place

Installation

Safety areathe surface given in the table, clear all around.
Concrete basepoured to the stated volume and depth, then cured.
Fixingthe unit is bolted onto the cured base.
Handoverplumb, tightness and no play before service.
Upkeepregular visual check and periodic retightening (EN 16630).

Anchor frame base cast in open ground

Bolted down on an existing concrete slab

Installation

Concrete volume: 0.216 m³
Anchoring depth: 600 mm
Fixing: Bolted
Assembly: To be assembled

Built to last outdoors

Design & materials

- Galvanized steel structuredesigned for intensive outdoor use

- Anti-corrosion treatment to withstand the elements
- Non-slip platform for stable, safe pushing
- Ergonomic seat and backrest for correct body alignment

This machine has been designed to last, even in daily use
free access.

For whom, where

Audience & Recommended Environments

- Parks and outdoor fitness areas
- Communities and municipalities
- Senior residences and health trails
- Urban sports areas
- Outdoor fitness areas

What sets it apart

Built to last outdoors

In brief

Why choose this outdoor leg press?

- Effectively strengthens legs and glutes
- Promotes stable posture and secure movement
- Accessible to a wide audience, including beginners
- Perfect complement to a balanced outdoor fitness area
- Encourages regular, progressive muscle strengthening

Downloads

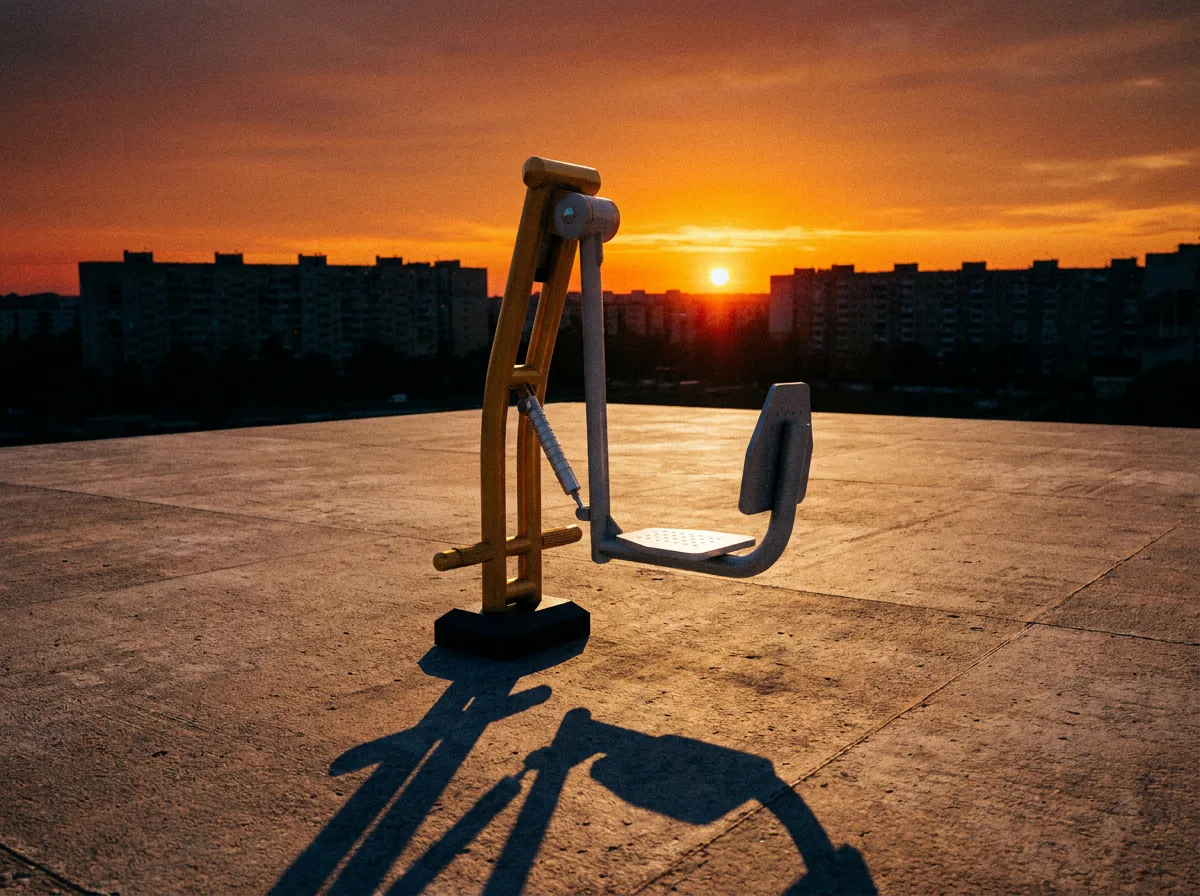

Appareil de musculation piston Herkules sur un toit, immeubles à contre-jour au coucher du soleil

Online fitness park configurator

The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.

1 Choose your equipment
2 Visualize your layout
3 Check compliance
4 Receive your project

🛠 Launch configurator Free - No obligation - Immediate results

Dimensioned layout plan of the Argentan fitness park, from the project file

3D perspectives of the Argentan fitness park, from the project file

You may wonder

Frequently asked questions : Leg Press Outdoor Machine

Who can benefit from leg press?

It is accessible to all levels, from beginners to regular athletes, thanks to its guided and intuitive movement.

Which muscles does it work?

Quadriceps, hamstrings, glutes and calves, with additional stabilization work.

Can it be used outdoors all year round?

Yes, its robust structure and anti-corrosion treatment make it suitable for permanent outdoor use.

Is it suitable for communities and public spaces?

Yes, it's designed for free-access use in parks, municipal areas and fitness trails.

Does it comply with safety standards?

Yes, the Herkules Fitness outdoor leg press machine is designed
in accordance with EN 16630, guaranteeing safety and durability.

How does resistance adjustment work?

Resistance can be adjusted by means of an 8-level aluminum piston, allowing the intensity of effort to be adapted to the level and capabilities of each user.

How many people can successively use it on a free-access basis?

The machine is designed for intensive use in public spaces, with components sized for frequent, repeated use by many users.
