Ref. HEH-18Piston Exercise Machines
Bikes – Piston Exercisers
Piston bike, robust and durable outdoor cardio machine. Designed for community use, it combines comfort and safety.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1

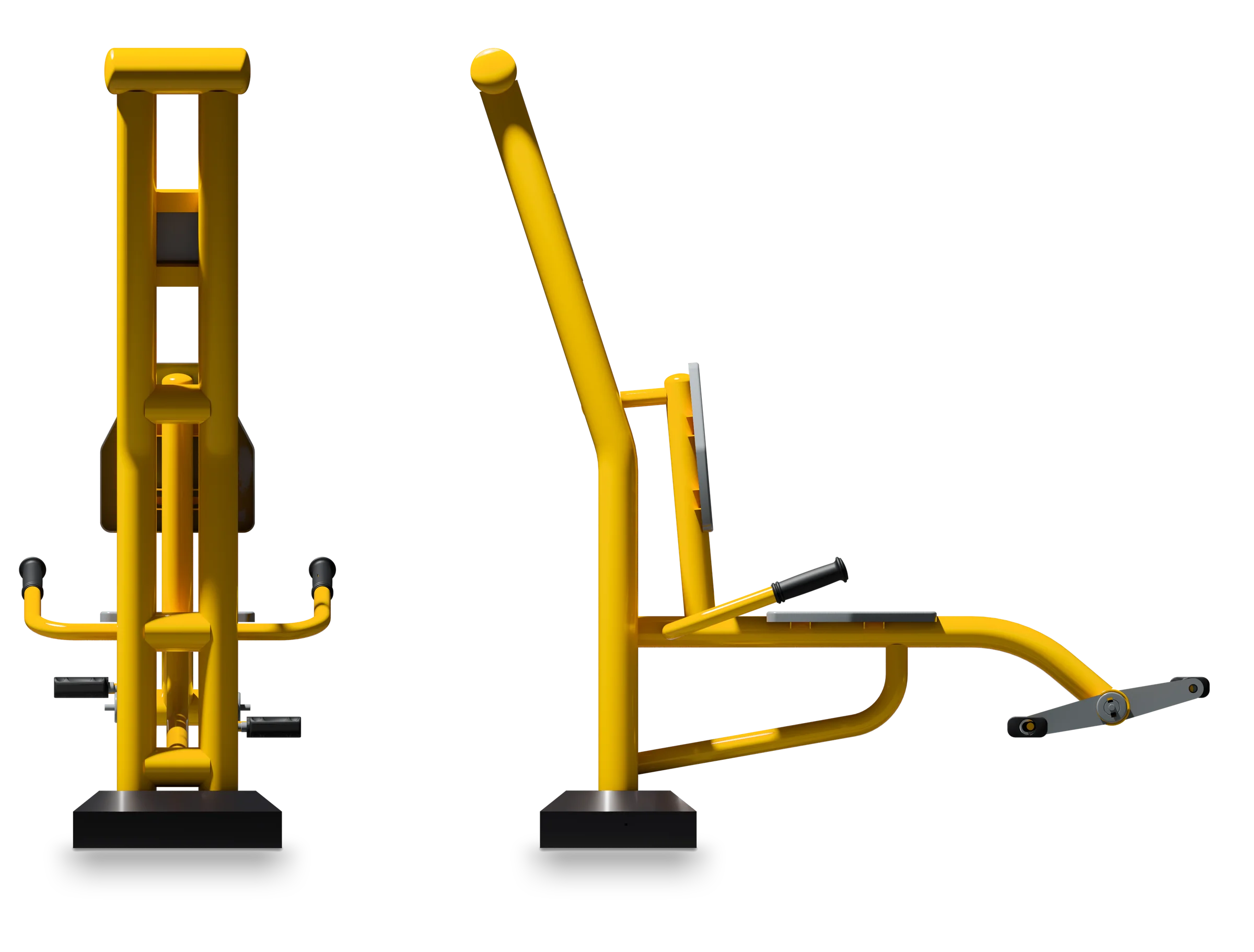

Product view
- L 1.4 m
- P 0.6 m
- H 1.5 m
Overview
Bikes - Piston Exercisers
The Piston Exercise Bike is an innovative piece of fitness equipment designed to combine performance, strength and comfort.
With its robust steel design and hydraulic piston system, it offers fluid, adjustable resistance to suit all fitness levels. Ideal for outdoor training, it withstands the elements and intensive use, guaranteeing exceptional durability. Its ergonomic design, combining a comfortable seat and non-slip pedals, provides an optimal workout to strengthen legs and improve endurance. This bike is the perfect choice for public spaces, sports parks and outdoor fitness facilities.
Ref. HEH-18 · Piston Exercise Machines
The figures
Technical specifications
BikesTechnical sheet · dimensions in mm
- Length
- 1,416
- Width
- 607
- Height
- 1,533

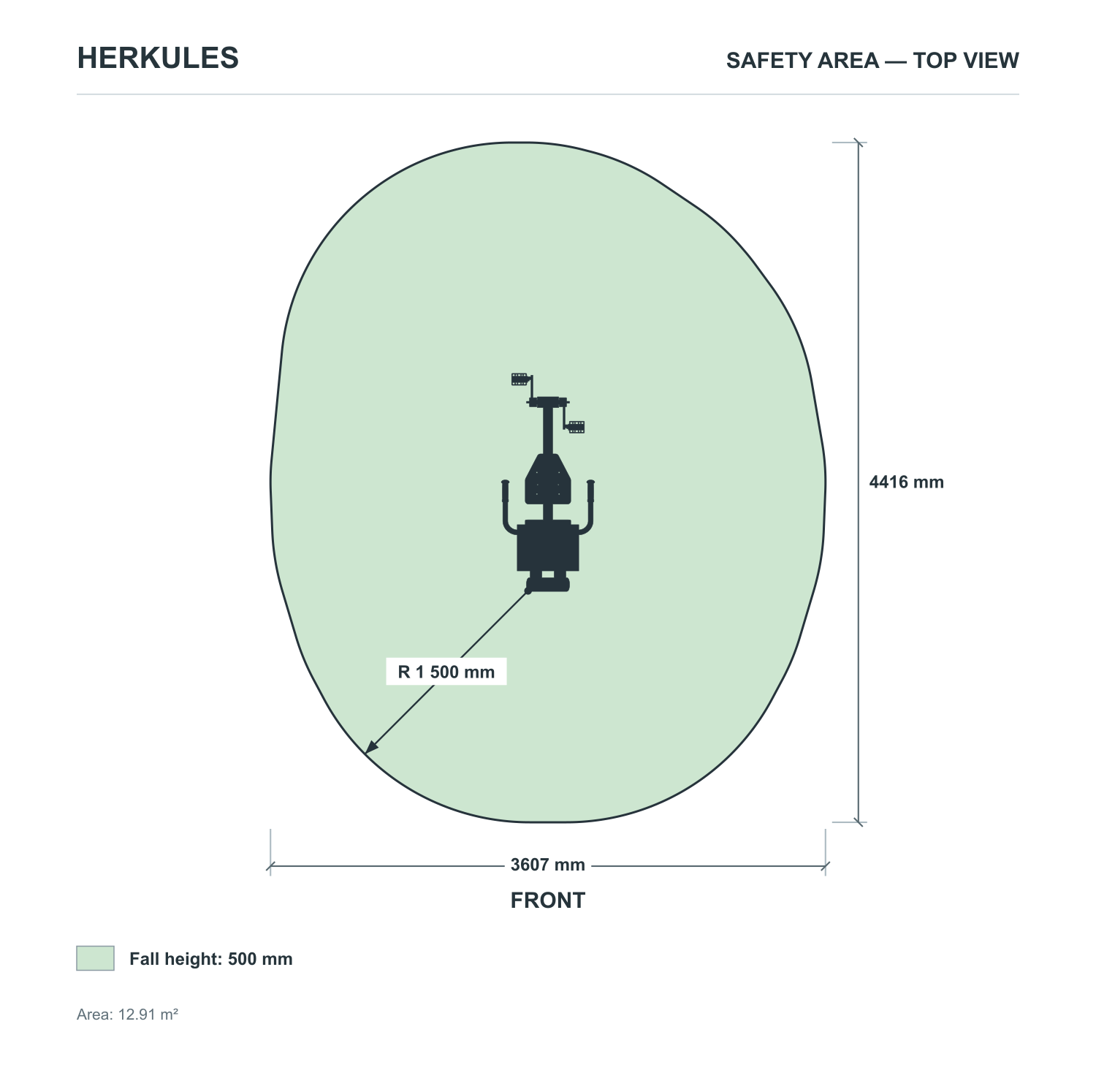

- Safety area
- 4,416 × 3,607 mm · 12.91 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 500 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.216 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structurethe main frame is made of hot-dip galvanized steel, offering optimum resistance to corrosion and the most demanding climatic conditions.
- Hydraulic piston systemhigh-quality pistons guarantee smooth, progressive resistance, without jerking, for safe, natural pedaling every time.
- Ergonomics designed for everyonethe height-adjustable saddle, anatomically-designed handles and non-slip pedals ensure optimum comfort for users of varying morphologies.
- The surface anti-corrosion treatment protects the entire structure against humidity, UV and temperature variations, prolonging the life of the equipment.
- Designed for intensive use in public spaces, this bike combines structural robustness with low maintenance, guaranteeing exceptional long-term durability.
For whom, where
Recommended audience & environment
- Municipal parks and green spacesideal for outdoor fitness areas frequented by a wide cross-generational audience.
- Residences and condominiumsperfect for outdoor communal areas wishing to offer a sports facility accessible to all residents.
- Schools and leisure centerssuitable for teenagers and young adults looking to develop their physical fitness in a safe, fun environment.
- Rehabilitation facilities and nursing homesthanks to its gentle, adjustable resistance, it is ideal for fitness programs for seniors or people undergoing light rehabilitation.
This bike fits in perfectly with any outdoor fitness layout, whether it's set up as a sports trail, fitness area or group wellness space. Its sturdiness and affordability make it a must-have for communities keen to offer sustainable, inclusive equipment.
What sets it apart
Built to last outdoors
In brief
Why choose the Vélo Musculation Piston?
The Vélo - Appareils de Musculation Piston stands out for its ability to provide effective cardio and strength training outdoors, without complex maintenance constraints. Its progressive hydraulic resistance makes it accessible to beginners and experienced athletes alike, in a variety of collective environments. Its installation in public spaces makes it a major asset for local authorities wishing to promote physical activity for all. Designed by Herkules Fitness, it guarantees impeccable build quality and longevity for intensive use.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Bikes
Which muscles are mainly involved when using this piston bike?
The piston bike primarily targets the muscles of the lower limbs: quadriceps, hamstrings, calves and glutes. Maintaining your posture also stimulates back and abdominal muscles. It's a complete exercise, particularly effective for toning and strengthening the lower body.
Is this bike suitable for the elderly or users in rehabilitation?
Yes, thanks to its hydraulic piston system offering gentle, progressive resistance, this bike is ideal for seniors and those in the light fitness phase. The pedaling motion is fluid and without joint impact, making it a safe machine for a wide range of profiles.
What are the ground requirements for installing this outdoor bike?
The bike must be anchored to a stable, level surface, preferably concrete, asphalt or stabilized slabs. Bolting to the ground is recommended to guarantee user safety. Herkules Fitness can supply layout plans and technical recommendations adapted to your project.
Is this bike certified for use in public spaces?
Yes, this bike from the Piston Bodybuilders range is designed to meet the requirements of outdoor fitness equipment for communities, in compliance with current European standards for outdoor sports equipment. Please contact our team for full technical documentation.
What maintenance is needed to keep this bike in good condition?
Maintenance of this bike is minimal thanks to its galvanized steel structure and anti-corrosion treatment. Regular cleaning with water and a periodic check of fasteners and pistons are all that's needed to keep the unit in perfect working order, even after years of intensive outdoor use.
What is the maximum load capacity supported by this piston bike?
This outdoor bike is designed to support users of various morphologies, with a load capacity generally adapted to the standards of collective equipment. For exact maximum load and dimensions, please consult the technical data sheet available on request from our sales department.
