Ref. HER-17Street Workout Equipement
Double Parallel
Bars – Street Workout stations
Double parallel bars, sturdy outdoor station for dips and technical upper-body strengthening with Herkules Fitness professional quality.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 2

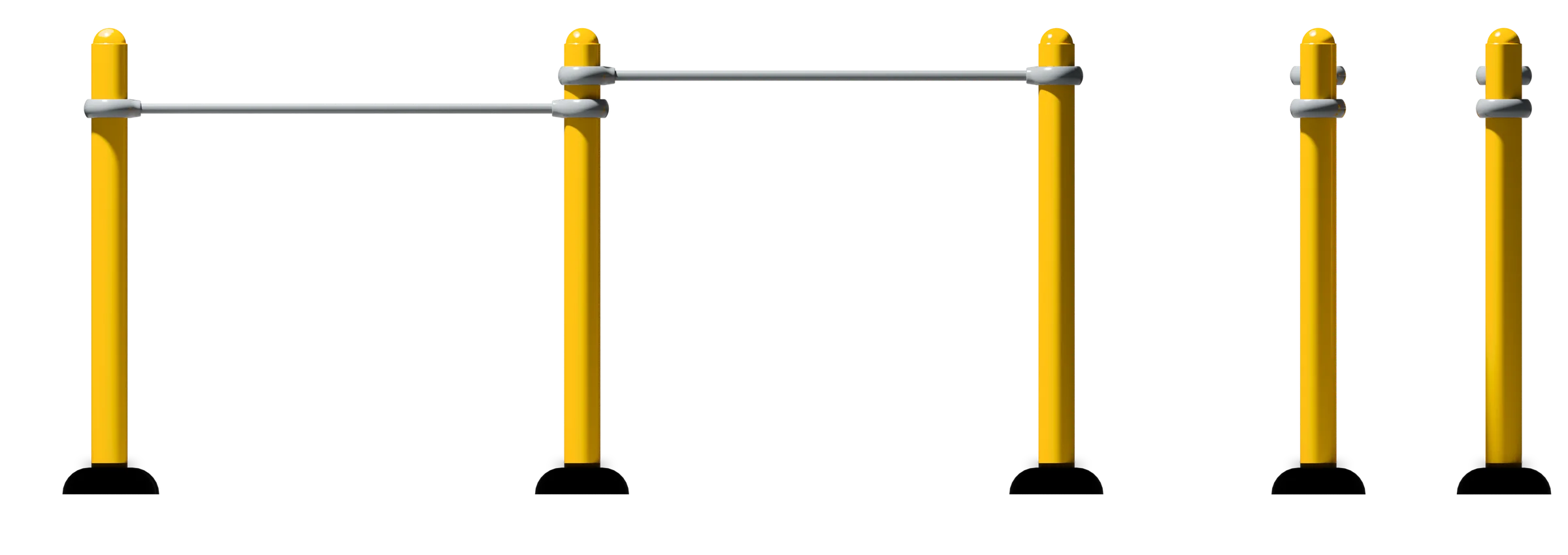

Product view
- L 3.3 m
- P 0.9 m
- H 1.5 m
Overview
Double Parallel Bars - Street Workout stations
Barres Parallèles Doubles is an outdoor street workout station featuring two lines of parallel bars for simultaneous or differentiated work.
It features dips, handstands, lateral traverses and dynamic sheathing exercises. Biomechanics are based on closed-chain pushing movements, involving pectorals, triceps, anterior deltoids and trunk stabilizing muscles. This module encourages technical progress and collective training.
Ref. HER-17 · Street Workout Equipement
The figures
Technical specifications
Double Parallel BarsTechnical sheet · dimensions in mm
- Length
- 3,258
- Width
- 875
- Height
- 1,460

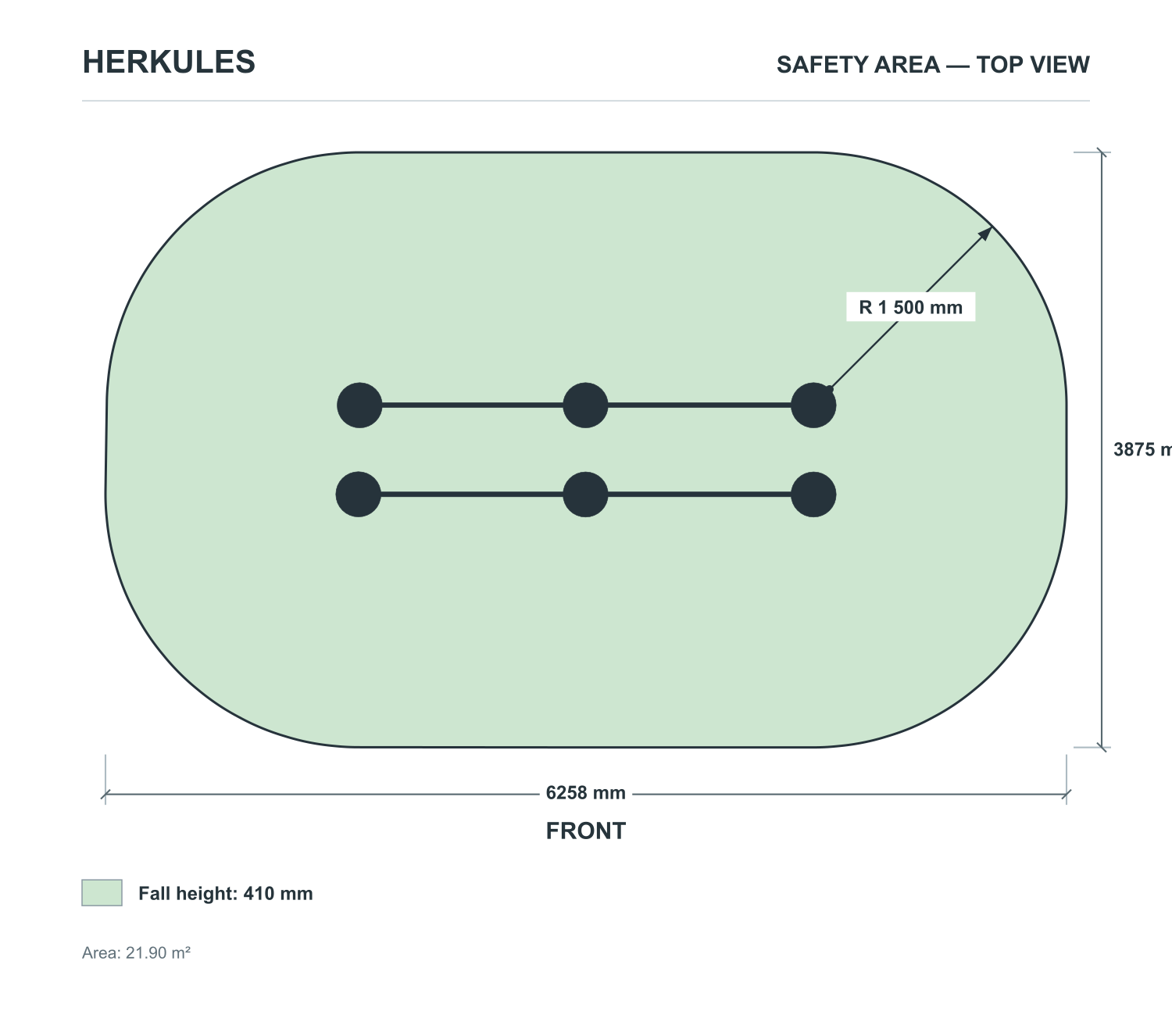

- Safety area
- 6,258 × 3,875 mm · 21.9 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
The Double Parallel Bars are designed for teenagers and adults, from intermediate to advanced levels.
They specifically enable:
- Perform controlled full-amplitude dips
- Perform static handstands with outstretched arms
- Working on the dynamic support sheathing
It's advisable to keep the shoulders engaged and avoid sagging the torso. Joint control always takes precedence over depth of movement.
What it trains
Function
- Targetedupper body strengthening
- Advanced sheathing work
- Simultaneous drive possible
- Development ofscapular stability
A high-performance module for a complete street workout area
What the standard requires
Safety & use
Safety & use
- Free fall height
- 410 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 2
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.75 m³
- Anchoring depth
- 500 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structuredesigned for intensive outdoor use
- Reinforced anti-corrosion treatmentagainst weathering and UV rays
- Sturdy barsfor heavy use
- Stable design with secure fastening
- Durable equipment for demanding collective environments
For whom, where
Recommended Public & Environment
- Urban parks and street workout areas
- Local authorities
- Schools and universities
- Free-access sports areas
An effective solution for enhancing the appeal of an outdoor fitness area.
What sets it apart
Built to last outdoors
In brief
Why choose Double Parallel Bars?
Double Parallel Bars - Street Workout Stations can accommodate two users simultaneously, while offering technically demanding work. They encourage progress towards advanced movements and optimize the use of space. Designed by Herkules Fitness, they guarantee robustness, safety and durability for the community.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Double Parallel Bars
Are Double Parallel Bars - Street Workout stations suitable for collective use?
Yes, the Double Parallel Bars - Street Workout Stations are designed to enable simultaneous training, facilitating group sessions or outdoor circuit training.
Which muscles are mainly involved?
This module mainly targets the pectoral, triceps and shoulder muscles, while also mobilizing the core stabilizer muscles during dynamic holds and transitions.
Can we progress to more advanced movements?
Yes, this station is an ideal base from which to develop technical movements such as weighted dips or dynamic weight-bearing transitions.
What is the advantage of a dual configuration?
The double configuration favors simultaneous practice and optimizes the capacity of an urban park, reinforcing the attractiveness of the sports area.
Can the structure withstand high visitor numbers?
Yes, its sturdy galvanized steel construction and anti-corrosion treatment ensure excellent resistance to repeated use and outdoor weather conditions.
What kind of maintenance is recommended for a community?
Regular inspection of fixings and bars is recommended. Annual preventive maintenance guarantees safety, compliance and longevity.
Do Double Parallel Bars comply with European standards?
Yes, Herkules Fitness Double Parallel Bars - Street Workout Stations comply with European standards for outdoor sports equipment, ensuring safe and reliable use.
