Ref. THJ-B13Classic fitness equipment

Leg Press
Double – Outdoor Fitness Equipment

Strengthen your legs with the Leg Press Double - Sturdy, safe outdoor fitness equipment, ideal for intensive outdoor use.

Get a quote →Try it in the configurator

Technical data · DWG · 3D

Warranty: Up to 10 years
Certification: EN16630:2015
Number of users: 2

Leg Press Double - Outdoor Fitness Equipment

Overview Specifications Use Function Safety Installation Design Audience

Overview

Leg Press Double - Outdoor Fitness Equipment

Double Leg Press is outdoor fitness equipment designed for powerful and secure lower body strengthening through a guided pushing movement.

Its biomechanics replicate a simultaneous extension of the hips, knees, and ankles, promoting optimal recruitment of the quadriceps, glutes, and hamstrings. The dual configuration allows for parallel use, encouraging group training while ensuring a stable and joint-friendly posture.

Ref. THJ-B13 · Classic fitness equipment

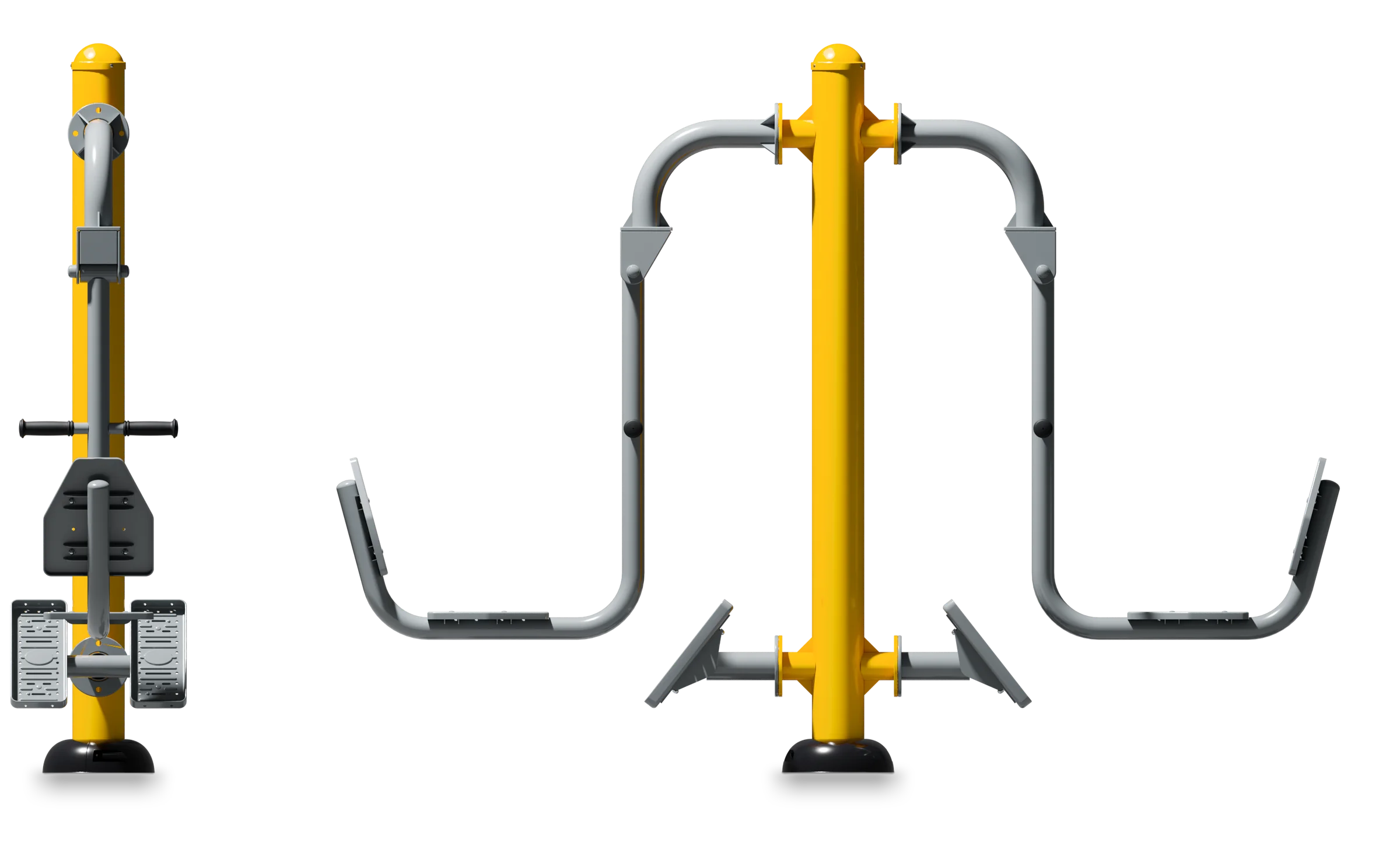

Leg Press Double - Outdoor Fitness Equipment — Rendering — Front and side views

The figures

Technical specifications

THJ-B13

Leg Press DoubleTechnical sheet · dimensions in mm

Length: 2,693
Width: 472
Height: 1,957
Safety area: 5,694 × 3,472 mm · 16.8 m²
Material: Galvanized powder-coated steel
Certification: EN16630:2015
Warranty: Up to 10 years

Leg Press Double - Outdoor Fitness Equipment — Dimensioned drawing

How to use it

Use

The Double Leg Press is designed for athletes of all levels, from beginners to advanced.

It enables:

Closed kinetic chain leg press
Bilateral or comparative lower body strengthening
Bodyweight functional strength training

Keep your back firmly against the backrest and control the return phase. A controlled range of motion protects the knees and maximizes effectiveness.

Downloads →

Pédalier d'un appareil de fitness extérieur Herkules, gros plan sur le mécanisme

What it trains

Function

Leg Strengtheningquadriceps, glutes, and hamstrings
Joint Stabilityguided and secure movement
Functional Powerenhances pushing capabilities
Simultaneous Usetwo-user workout

A fundamental exercise for developing lower body strength and tone

Use →

Thighs · Glutes

What the standard requires

Safety & use

Free fall height: 750 mm
Minimum user height: 140 cm
Maximum user weight: 150 kg
Number of users: 2

Permitted surfacing

750 mm

Concrete, stone

Bituminous surfacing

Natural topsoil

Turf

Bark chippings

Wood chips

Sand

Gravel

EPDM

01 0002 0003 000

Leg Press Double - Outdoor Fitness Equipment — Safety area — Safety area

Putting it in place

Installation

Safety areathe surface given in the table, clear all around.
Concrete basepoured to the stated volume and depth, then cured.
Fixingthe unit is bolted onto the cured base.
Handoverplumb, tightness and no play before service.
Upkeepregular visual check and periodic retightening (EN 16630).

Anchor frame base cast in open ground

Bolted down on an existing concrete slab

Installation

Concrete volume: 0.15 m³
Anchoring depth: 600 mm
Fixing: Bolted
Assembly: To be assembled

Built to last outdoors

Design & materials

Galvanized steel structuredesigned for intensive outdoor use
Anti-Corrosion Treatmenthighly resistant to weather and UV
Ergonomic Seats and Backrestsfor optimal support
Robust and smooth pushing system
Durable design for public spaces

For whom, where

Recommended Public & Environment

Outdoor fitness and street workout areas
Urban parks and municipal sports facilities
Communities, schools, and training centers
Open-access physical training zones

High-performance equipment that encourages independent and shared training.

What sets it apart

Built to last outdoors

In brief

Why Choose the Double Leg Press?

The Double Leg Press is a cornerstone for outdoor lower body strengthening. Its guided design minimizes joint stress while enabling effective and progressive strength training. The dual configuration encourages group workouts and friendly competition, all while ensuring optimal safety. Robust and reliable, it embodies the lasting quality of Herkules Fitness.

Downloads

Online fitness park configurator

The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.

1 Choose your equipment
2 Visualize your layout
3 Check compliance
4 Receive your project

🛠 Launch configurator Free - No obligation - Immediate results

Dimensioned layout plan of the Argentan fitness park, from the project file

3D perspectives of the Argentan fitness park, from the project file

You may wonder

Frequently asked questions : Leg Press Double

What Muscles Does the Double Leg Press Work?

The Double Leg Press primarily targets the quadriceps, glutes, hamstrings, and, for stabilization, the core muscles.

Is the Double Leg Press Suitable for Beginners?

Yes, the Double Leg Press provides a guided and natural movement, allowing beginners to safely strengthen their legs.

Can Two People Use the Double Leg Press Simultaneously?

Yes, the dual configuration of the Double Leg Press allows simultaneous use by two users, ideal for group training.

Is This Equipment Safe for Knees?

Yes, the Double Leg Press respects physiological ranges of motion and reduces impact, provided correct posture and controlled movement are maintained.

Does the Double Leg Press Develop Leg Power?

Absolutely, the Double Leg Press is particularly effective for improving lower body strength and power using body weight.

Does this equipment comply with European safety standards?

Yes, the Double Leg Press complies with the EN 16630 standard for outdoor fitness equipment intended for public spaces.

What type of ground is recommended for installation?

The Double Leg Press must be installed on stable ground and in accordance with recommendations, such as a concrete slab or a suitable shock-absorbing surface.
