Ref. THJ-B13SClassic fitness equipment

Leg Press
Simple – Outdoor Fitness Equipment

Strengthen your legs with the Leg Press Simple - Sturdy, safe outdoor fitness equipment, ideal for intensive outdoor use.

Get a quote →Try it in the configurator

Technical data · DWG · 3D

Warranty: Up to 10 years
Certification: EN16630:2015
Number of users: 1

Leg Press Simple - Outdoor Fitness Equipment

Overview Specifications Use Function Safety Installation Design Audience

Overview

Leg Press Simple - Outdoor Fitness Equipment

Leg Press Simple is an outdoor fitness equipment designed for targeted and safe lower body strengthening.

The biomechanical movement relies on a guided push in a closed kinetic chain, combining hip, knee, and ankle extension. This mechanism allows for effective recruitment of the quadriceps, glutes, and hamstrings while limiting joint stress. Its ergonomics promote a stable and natural posture, suitable for all fitness levels.

Ref. THJ-B13S · Classic fitness equipment

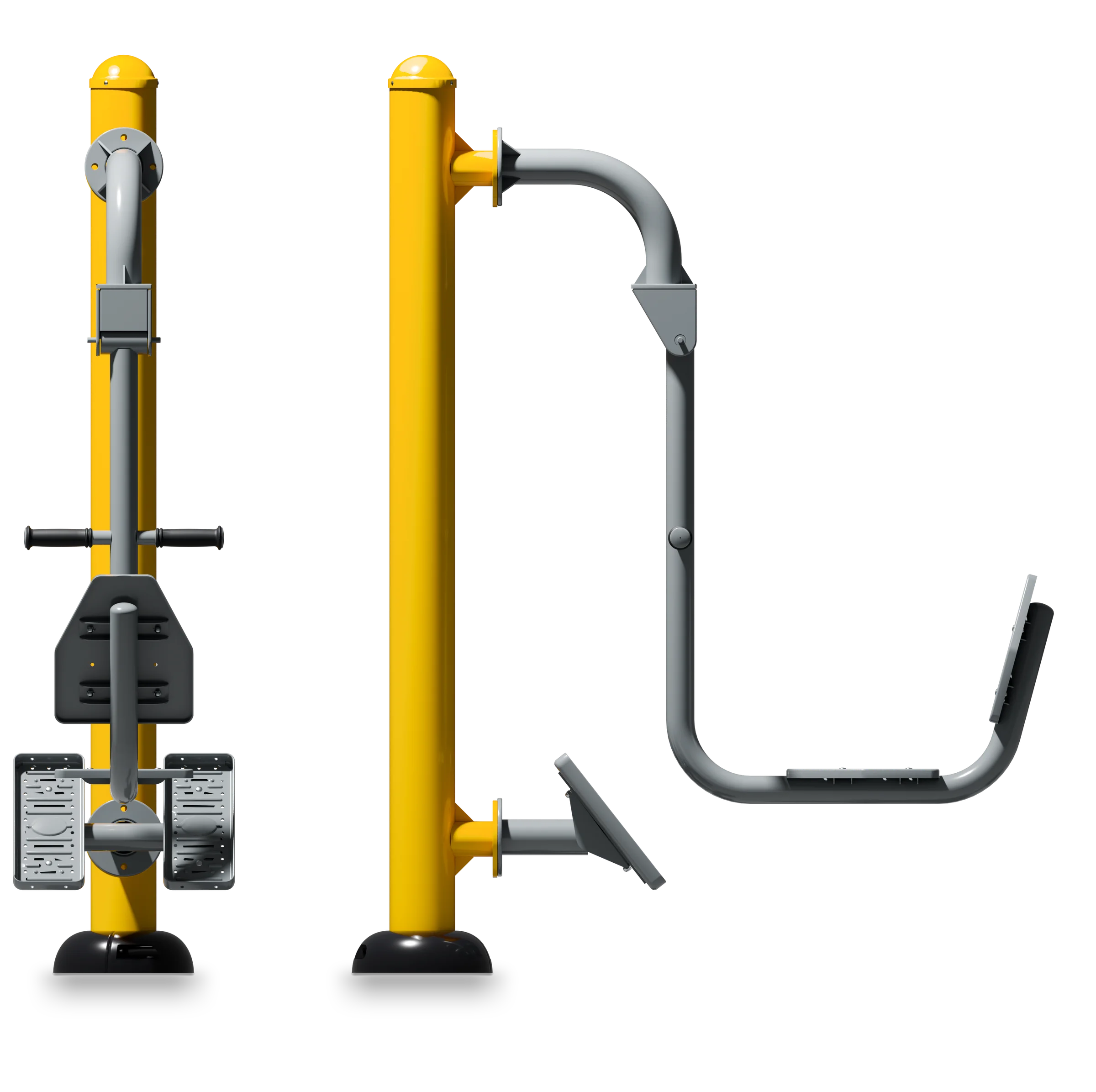

Leg Press Simple - Outdoor Fitness Equipment — Rendering — Front and side views

The figures

Technical specifications

THJ-B13S

Leg Press SimpleTechnical sheet · dimensions in mm

Length: 1,497
Width: 472
Height: 1,957
Safety area: 4,497 × 3,472 mm · 12.69 m²
Material: Galvanized powder-coated steel
Certification: EN16630:2015
Warranty: Up to 10 years

Leg Press Simple - Outdoor Fitness Equipment — Dimensioned drawing

How to use it

Use

The Leg Press Simple is designed for accessibility to a wide audience, from beginners to regular athletes.

It enables:

Leg press with guided trajectory
Progressive lower body strengthening
Functional bodyweight training

It is essential to keep your back firmly against the backrest and to control the return phase. A controlled range of motion protects the knees and improves movement efficiency.

Downloads →

Pédalier d'un appareil de fitness extérieur Herkules, gros plan sur le mécanisme

What it trains

Function

Leg Strengtheningquadriceps, glutes, and hamstrings
Joint Safetyguided and stable movement
Functional Strengthimproved pushing capabilities
Postural Stabilityergonomic seated position

A fundamental exercise for developing leg tone and power

Use →

Thighs · Glutes

What the standard requires

Safety & use

Free fall height: 750 mm
Minimum user height: 140 cm
Maximum user weight: 150 kg
Number of users: 1

Permitted surfacing

750 mm

Concrete, stone

Bituminous surfacing

Natural topsoil

Turf

Bark chippings

Wood chips

Sand

Gravel

EPDM

01 0002 0003 000

Leg Press Simple - Outdoor Fitness Equipment — Safety area — Safety area

Putting it in place

Installation

Safety areathe surface given in the table, clear all around.
Concrete basepoured to the stated volume and depth, then cured.
Fixingthe unit is bolted onto the cured base.
Handoverplumb, tightness and no play before service.
Upkeepregular visual check and periodic retightening (EN 16630).

Anchor frame base cast in open ground

Bolted down on an existing concrete slab

Installation

Concrete volume: 0.15 m³
Anchoring depth: 600 mm
Fixing: Bolted
Assembly: To be assembled

Built to last outdoors

Design & materials

Galvanized steel structuredesigned for intensive outdoor use
Anti-Corrosion TreatmentWeather and UV resistant
Ergonomic Seat and Backrestfor optimal support
Robust and smooth pushing system
A durable design suited for public spaces.

For whom, where

Recommended Public & Environment

Outdoor fitness and street workout areas
Urban parks and municipal sports facilities
Communities, schools, and universities
Open-access physical training zones

Reliable equipment that encourages independent and regular practice.

What sets it apart

Built to last outdoors

In brief

Why Choose the Leg Press Simple?

The Leg Press Simple is essential for safe lower body strengthening outdoors. Its guided mechanics allow for effective strength training without excessive joint strain. Easy to access and intuitive, it integrates perfectly into public facilities and fitness trails. Its robustness and longevity illustrate the renowned expertise of Herkules Fitness.

Downloads

Online fitness park configurator

The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.

1 Choose your equipment
2 Visualize your layout
3 Check compliance
4 Receive your project

🛠 Launch configurator Free - No obligation - Immediate results

Dimensioned layout plan of the Argentan fitness park, from the project file

3D perspectives of the Argentan fitness park, from the project file

You may wonder

Frequently asked questions : Leg Press Simple

Which Muscles Does the Leg Press Simple Target?

The Leg Press Simple primarily targets the quadriceps, glutes, and hamstrings, with complementary activation of core stabilizing muscles.

Is the Leg Press Simple Suitable for Beginners?

Yes, thanks to its guided movement and stable position, the Leg Press Simple is perfectly suited for beginners looking to safely strengthen their legs.

Is This Equipment Safe for Knees?

Yes, the Leg Press Simple respects natural physiological ranges of motion. Controlled execution and correct posture ensure knee protection.

Does the Leg Press Simple Develop Leg Strength?

Absolutely, the Leg Press Simple is effective for improving lower body strength and tone using bodyweight.

Can This Equipment Be Used in a Rehabilitation Program?

Yes, the Leg Press Simple is often used in reconditioning or rehabilitation programs, under supervision if necessary.

Does this equipment comply with European safety standards?

Yes, the Leg Press Simple complies with EN 16630 standard, ensuring safe use in public spaces.

What type of ground is recommended for installation?

The Leg Press Simple must be installed on a stable surface and in accordance with recommendations, such as a concrete slab or suitable shock-absorbing surfacing.
