Ref. HER-08Street Workout Equipement
Station
Suspendue – Street Workout stations
Suspension station, outdoor structure dedicated to suspension work and technical reinforcement with Herkules Fitness professional sturdiness.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 9

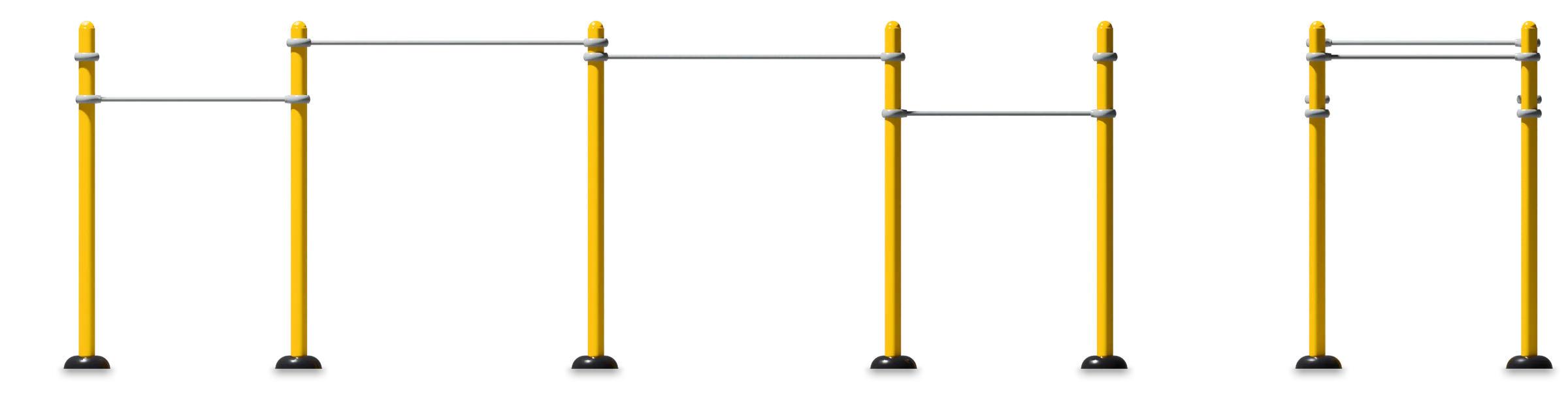

Product view
- L 7.5 m
- P 1.8 m
- H 2.4 m
Overview
Station Suspendue - Street Workout stations
Station Suspendue is an outdoor street workout structure dedicated to suspension work and advanced bodyweight strengthening.
It allows you to perform pull-ups, brachial cross-ups, suspended leg raises and dynamic sheathing exercises. Biomechanics are based on permanent stabilization of the trunk and engagement of the posterior and anterior muscle chains. This type of module develops relative strength, coordination and muscular resistance in unstable situations.
Ref. HER-08 · Street Workout Equipement
The figures
Technical specifications
Station SuspendueTechnical sheet · dimensions in mm
- Length
- 7,451
- Width
- 1,802
- Height
- 2,434

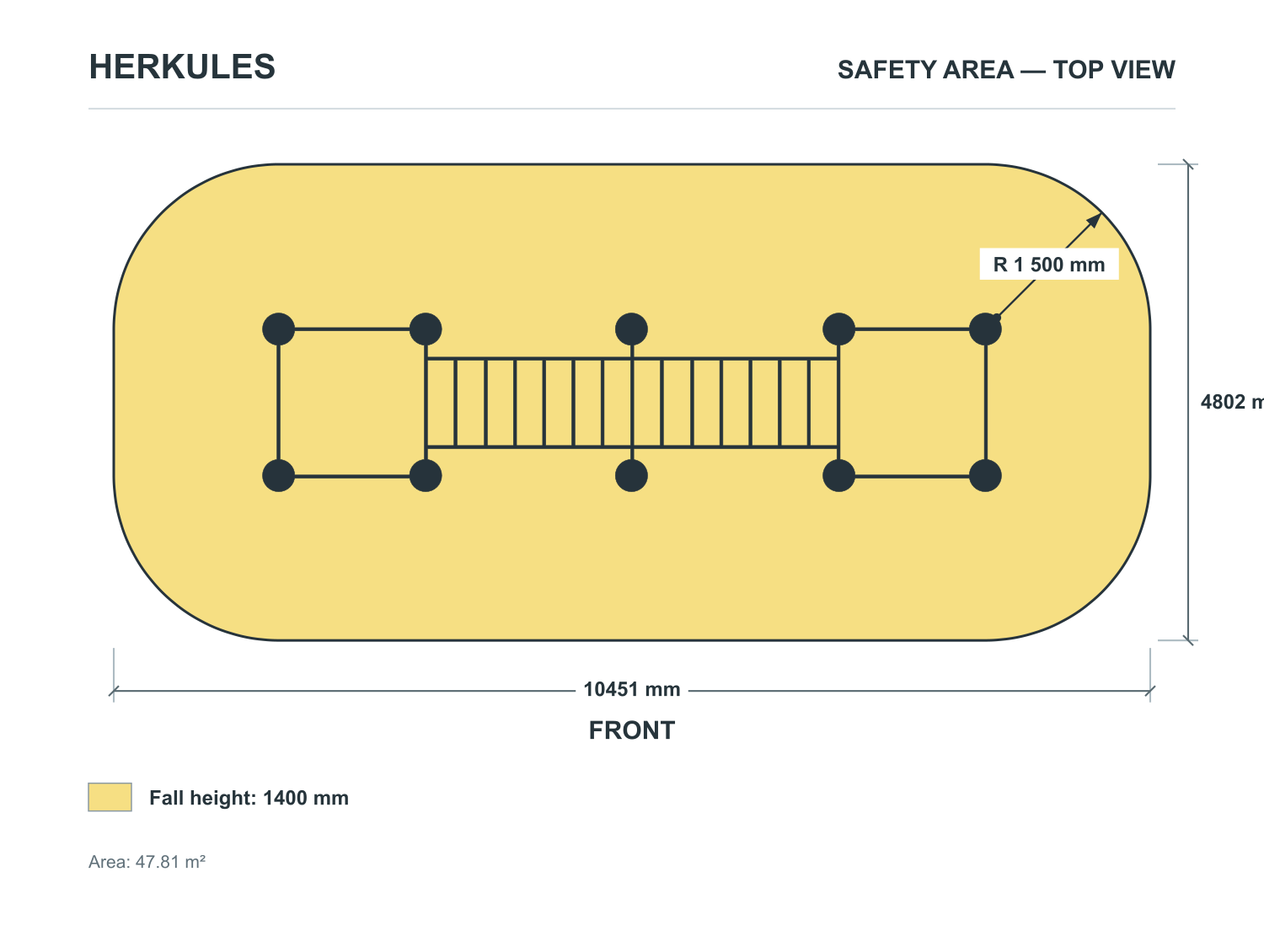

- Safety area
- 4,802 × 10,451 mm · 47.81 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
La Station Suspendue is designed for teenagers and adults, from intermediate to advanced levels.
It notably enables:
- Perform strict or dynamic pull-ups
- Suspended traverses
- Work on sheathing and leg raises
We recommend mastering the basics of bodyweight work before tackling dynamic sequences. Precision and control remain the priority.
What it trains
Function
- Intensiveupper body strengthening
- Advanced sheathing work
- Improved coordinationand stability
- Development of muscular resistance
A high-performance solution for technical training
What the standard requires
Safety & use
Safety & use
- Free fall height
- 1,400 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 9
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 1.5 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structurefor intensive outdoor use
- Reinforced anti-corrosion treatmentagainst weathering and UV rays
- Secure anchoringfor maximum stability
- Robust bars with grip-friendly finish
- Designed to withstand demanding urban environments
For whom, where
Recommended Public & Environment
- Urban parks and street workout areas
- Local authorities
- School and university campuses
- Free access to sports facilities
A structuring module to enrich an urban training area.
What sets it apart
Built to last outdoors
In brief
Why choose Station Suspendue?
The Street Workout Suspension Station introduces a technical and dynamic dimension to an outdoor sports area. It encourages suspension work, which is particularly demanding on stabilizing muscles and coordination. Designed by Herkules Fitness, this structure guarantees robustness, safety and durability for local authorities.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Station Suspendue
Is Station Suspendue suitable for advanced riders?
Yes, the Station Suspendue - Stations Street Workout is particularly suited to experienced athletes wishing to develop strength and control in suspension. It enables you to perform demanding technical sequences.
Can it be used for intensive circuit training?
Absolutely. This module integrates perfectly into timed circuits or outdoor HIIT sessions, alternating with other street workout stations.
What's in it for the attractiveness of a sports park?
This module brings a strong visual and technical dimension that attracts a young, sporty audience. It enhances the community's dynamic image and encourages free and regular outdoor activities.
Can the structure withstand repeated dynamic loads?
Yes, its design in thick galvanized steel enables it to withstand the dynamic loads associated with suspended movements and controlled swaying, in compliance with usage recommendations.
Can it complement a Parcours or Cross Training Station?
Yes, it's an ideal complement to add a suspension and coordination dimension to an existing functional circuit, enriching the overall sports offering.
What kind of maintenance do you need?
Periodic inspection of fasteners, welds and gripping surfaces is recommended. Annual preventive maintenance guarantees safety, compliance and longevity of the installation in intensive use.
Does the Station Suspendue comply with European standards?
Yes, the Herkules Fitness Hanging Station - Street Workout Stations complies with European standards for outdoor sports equipment, ensuring safe and reliable use in open-access areas.
