Ref. THJ-B28Classic fitness equipment
Bike – Outdoor fitness equipment
Robust, EN16630-compliant outdoor bike, perfect for cardio, mobility and intensive community use.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.0 m
- P 0.5 m
- H 1.5 m
Overview
Bike - Outdoor fitness equipment
The Vélo is an outdoor fitness machine designed to improve cardiovascular endurance, strengthen leg muscles and promote overall fitness.
This equipment performs pedaling movements using the body's own weight, offering a workout that's both gentle on the joints and effective for the heart and muscles. The Vélo is ideal for people of all ages who want to stay active while enjoying the great outdoors.
Ref. THJ-B28 · Classic fitness equipment
The figures
Technical specifications
BikeTechnical sheet · dimensions in mm
- Length
- 997
- Width
- 503
- Height
- 1,453

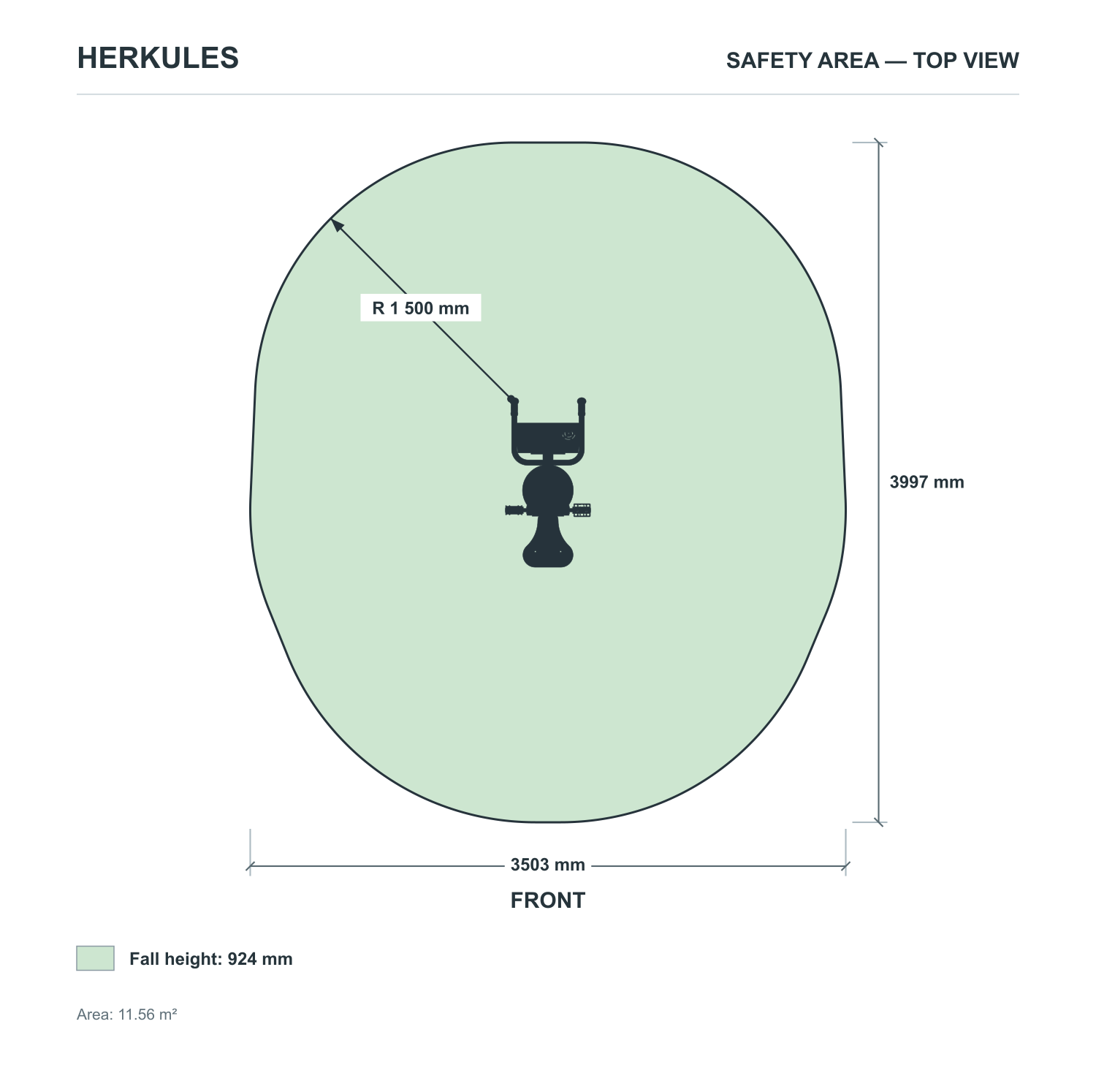

- Safety area
- 3,997 × 3,503 mm · 11.56 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 924 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.15 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- Pre-assembled
Built to last outdoors
Design & Materials
- Galvanized steel structure:The frame is built from hot-dip galvanized steel, providing exceptional resistance to rust, UV exposure, and outdoor weathering conditions.
- Ergonomic saddle and pedals:The seat is anatomically shaped for comfort during extended sessions, while the textured pedals ensure a secure grip for users of all ages.
- Anti-corrosion surface treatment:All metal components receive a powder-coated finish that protects against moisture, scratches, and daily wear.
- The smooth pedaling mechanism is engineered for low maintenance and reliable performance in public outdoor settings.
- Built to last for years in high-traffic environments, this equipment combines structural robustness with user-friendly design for parks and community spaces.
For whom, where
Recommended audiences & environments
- Public parks and green spaces:Ideal for creating accessible fitness areas where residents of all ages can engage in low-impact cardiovascular exercise.
- Senior fitness trails:The gentle, joint-friendly pedaling motion makes it especially suitable for older adults looking to maintain mobility and heart health outdoors.
- School and university campuses:Encourages students to incorporate physical activity into their daily routines in an open-air environment.
- Residential and urban outdoor gyms:A perfect addition to any community fitness zone, promoting active lifestyles close to home.
The Bike outdoor fitness equipment is a versatile and inclusive machine suited to a wide range of users and settings. Whether installed in a municipal park or a neighborhood sports area, it encourages regular physical activity for everyone. Discover our full range of outdoor fitness equipment designed for communities.
What sets it apart
Built to last outdoors
In brief
Why choose the Bike?
The Bike outdoor fitness equipment offers a smooth, low-impact cardiovascular workout that is accessible to users of all fitness levels and age groups. Its ergonomic design encourages regular use while being gentle on the joints, making it an excellent long-term investment for public spaces. It promotes endurance, leg strength, and overall well-being in an outdoor setting. Designed by Herkules Fitness, it guarantees robust construction, weather resistance, and lasting performance in community environments.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Bike
Which muscle groups does the outdoor Bike primarily work?
The outdoor Bike mainly targets the quadriceps, hamstrings, calves, and glutes through the continuous pedaling motion. It also engages the core muscles when users maintain an upright posture throughout the exercise. This makes it an effective full lower-body workout for all fitness levels.
Is the outdoor Bike suitable for elderly users or people with joint issues?
Yes, the Bike is specifically designed to provide a low-impact workout that is gentle on the knees, hips, and ankles, making it well-suited for seniors and individuals with joint sensitivities. The smooth pedaling motion reduces stress on the joints while still delivering meaningful cardiovascular and muscular benefits.
What type of surface is required for installation?
The Bike can be installed on concrete, asphalt, or compacted ground surfaces, following standard anchor bolt fixings supplied with the equipment. A flat and stable surface is recommended to ensure safety and optimal performance. Installation should be carried out by a qualified professional in accordance with local regulations.
Does this equipment meet any safety or quality certifications?
Herkules Fitness outdoor equipment is designed and manufactured in compliance with European standard EN 16630, which governs permanently installed outdoor fitness equipment for public use. This certification ensures the product meets strict requirements for safety, durability, and structural integrity in community settings.
What maintenance does the outdoor Bike require?
The outdoor Bike requires minimal maintenance thanks to its durable galvanized steel frame and powder-coated finish. Regular inspections are recommended to check for loose bolts, signs of wear on moving parts, and general structural integrity. Wiping down the pedals and seat periodically will help maintain hygiene and extend the equipment's lifespan.
What is the maximum user weight capacity and overall dimensions of the Bike?
The outdoor Bike is engineered to support users up to 150 kg, accommodating a broad range of body types and ensuring safe use in high-traffic public environments. For precise dimensional specifications including height, width, and ground anchor requirements, please refer to the technical datasheet available on the product page or contact our team directly.
