Ref. THJ-B27Classic fitness equipment
Single
Ladder – Outdoor Fitness Equipment
Single outdoor ladder, EN16630 standard, ideal for pull-ups and suspension exercises in fitness parks.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 0.7 m
- P 0.4 m
- H 2.0 m
Overview
Single Ladder - Outdoor Fitness Equipment
The Simple Ladder is an outdoor fitness apparatus designed to improve upper-body strength, coordination and flexibility.
This versatile piece of equipment allows you to perform a variety of exercises such as pull-ups, climbs and stretches, using only your body weight. The Simple Ladder is ideal for strengthening arm, shoulder and back muscles, and for developing core stability while enjoying an outdoor workout.
Ref. THJ-B27 · Classic fitness equipment
The figures
Technical specifications
Single LadderTechnical sheet · dimensions in mm
- Length
- 685
- Width
- 420
- Height
- 1,963

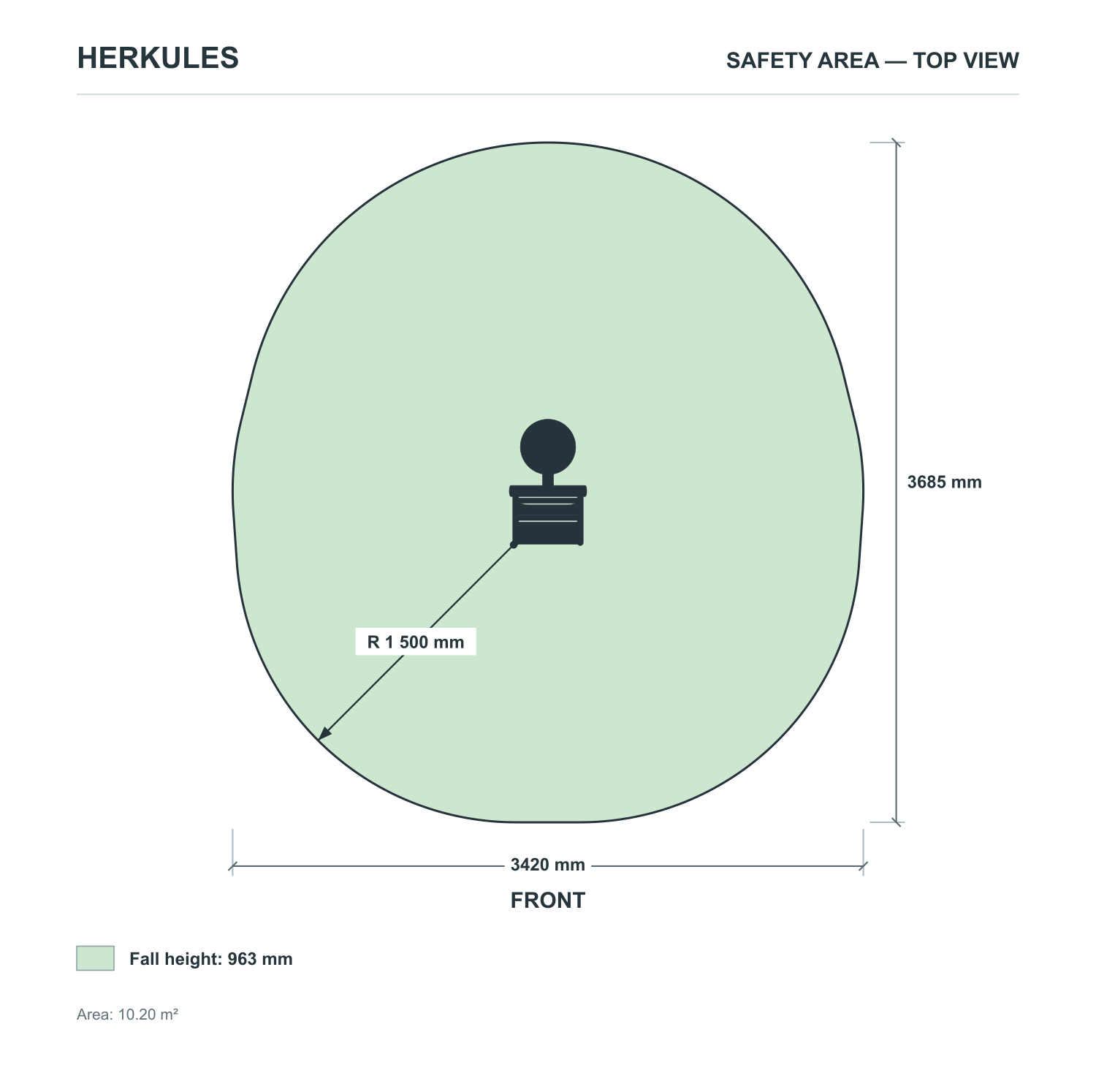

- Safety area
- 3,685 × 3,420 mm · 10.2 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 963 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.15 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- Pre-assembled
Built to last outdoors
Design & Materials
- Hot-dip galvanized steel structuredesigned for intensive outdoor use
- Anti-corrosion treatmentfor lasting resistance to weather and UV exposure
- Ergonomic designensuring comfort and safety during exercise
- Non-slip platforms and grips for optimal stability
- Built to withstand heavy public use across all seasons
For whom, where
Recommended audiences & environments
- Public parks and outdoor fitness areas
- Municipalities and local authorities
- Corporate wellness spaces and sports facilities
- Freely accessible community exercise zones
Suitable for beginners and experienced users alike, encouraging regular outdoor exercise.
What sets it apart
Built to last outdoors
In brief
Why choose Single Ladder?
The Single Ladder delivers effective, accessible training for a wide range of users in outdoor settings. Its intuitive design encourages regular physical activity without requiring prior experience. Manufactured by Herkules Fitness, it guarantees robustness, safety, and long-term durability for public installations.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Single Ladder
What muscles does the Single Ladder target?
The Single Ladder primarily targets the muscles indicated in its name, along with stabilising muscles that maintain posture during the exercise. Regular use helps build functional strength and improve overall fitness.
Is the Single Ladder suitable for beginners?
Yes, the Single Ladder is designed to be accessible to all fitness levels. The guided movement pattern reduces the risk of incorrect form, making it safe and effective for first-time users.
What certifications does this equipment have?
The Single Ladder is certified to EN 16630:2015, the European standard for permanently installed outdoor fitness equipment. This ensures the highest levels of safety and structural integrity for public use.
What ground surfaces are compatible with installation?
The Single Ladder can be installed on concrete, natural grass, synthetic turf, gravel, sand, EPDM, or shock-absorbing tiles. The surface must comply with the free fall height requirements specified in EN 16630:2015.
What maintenance is required?
Regular inspection of fixings and moving parts is recommended. The anti-corrosion treatment ensures long-term durability, so only periodic cleaning and an annual preventive check are needed.
What is the maximum user weight capacity?
The Single Ladder supports a maximum user weight of 150 kg, ensuring safe use for the vast majority of the public. The structure is designed for intensive outdoor use without compromising on strength.
