Ref. USB-13USB Rechargeable Fitness Equipment
Dead
Lift – Fitness equipment with USB charging
Dead Lift - USB-charged fitness equipment for overall strengthening, postural stability and sustainable energy production outdoors with Herkules.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.1 m
- P 0.4 m
- H 1.3 m
Overview
Dead Lift - Fitness equipment with USB charging
Dead Lift is a USB-charged outdoor fitness machine designed to reproduce the fundamental movement of lifting from the ground.
Its guided biomechanics are based on a coordinated extension of the hips and knees, with significant engagement of the posterior chain. This functional movement simultaneously engages the legs, glutes, back and core. The mechanical energy generated during each extension is converted into electricity via an integrated USB plug, transforming effort into a useful, sustainable resource.
Ref. USB-13 · USB Rechargeable Fitness Equipment
The figures
Technical specifications
Dead LiftTechnical sheet · dimensions in mm
- Length
- 1,102
- Width
- 440
- Height
- 1,275

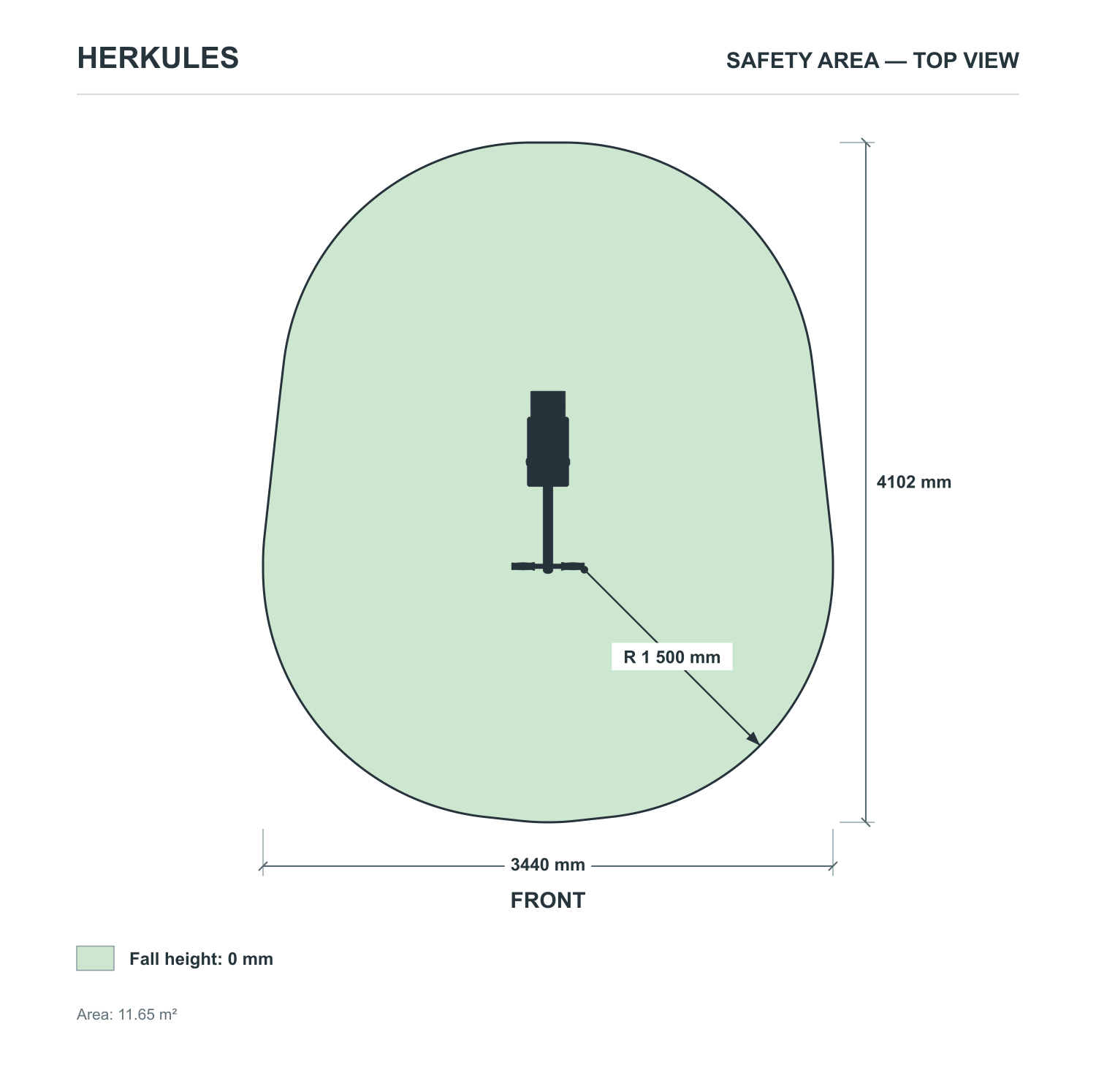

- Safety area
- 3,440 × 4,102 mm · 11.65 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
The Dead Lift is designed to be accessible to a wide range of users, from occasional users to experienced athletes.
It enables:
- Perform a safe, guided lifting movement
- Generating energy to recharge a device via USB
- Strengthening the posterior chain and sheathing
It's essential to keep the back straight, engage the abdominals and initiate movement through the hips to preserve the spine. Quality of execution always takes precedence over quantity.
What it trains
Function
The Dead Lift is designed to be accessible to a wide range of users, from occasional users to experienced athletes.
It enables:
- Perform a safe, guided lifting movement
- Generating energy to recharge a device via USB
- Strengthening the posterior chain and sheathing
It's essential to keep the back straight, engage the abdominals and initiate movement through the hips to preserve the spine. Quality of execution always takes precedence over quantity.
What the standard requires
Safety & use
Safety & use
- Free fall height
- 0 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.216 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- Pre-assembled
Built to last outdoors
Design & materials
- Overall strengthening ofthe posterior chain
- Autonomous energy generationthrough functional movement
- Sheathing activationfor lumbar stability
- Improved postureand functional power
Fundamental exercise transformed into useful energy
For whom, where
Recommended Public & Environment
- Connected outdoor fitness areas
- Urban parks and innovative sports areas
- Communities, campuses and eco-neighborhoods
- Zones for physical preparation and sustainable sports
A modern facility that values functional reinforcement and responsible effort.
What sets it apart
Built to last outdoors
In brief
Why choose Dead Lift?
The Dead Lift with USB recharge is one of the most complete exercises for developing strength, stability and coordination. It strengthens the muscles essential for everyday movements such as standing up, carrying or moving a load. By transforming effort into useful energy, it gives meaning to training. Designed in stainless steel by Herkules Fitness, it guarantees robustness, safety and longevity for innovative outdoor installations.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Dead Lift
Which muscles does the USB-charged Dead Lift work on?
The Dead Lift mainly involves the glutes, hamstrings and quadriceps during extension. The back muscles, notably the lumbar and dorsal muscles, support the trunk, while the abdominal muscles play an active role in sheathing. This Herkules Fitness machine provides overall functional strengthening of the body.
Is the Dead Lift with USB recharge effective for strengthening muscles?
Yes, the Dead Lift with USB recharge is extremely effective for overall muscle strengthening. The movement stimulates several major joints and muscle groups simultaneously. As the movement is mastered and repeated, muscle activation and energy production increase, making the exercise both powerful and motivating.
How does USB charging work on the Dead Lift?
USB recharging works via a generator integrated into the lifting mechanism. The mechanical energy produced during extension is converted into electricity and delivered via a protected USB plug. The system is self-contained, with no mains connection, and perfectly suited to outdoor public use.
Is this machine suitable for people with sensitive lumbar vertebrae?
The USB-charged Dead Lift is suitable for people with sensitive lower backs, provided they adopt a moderate amplitude and strictly controlled movement. Mechanical guidance helps maintain proper back alignment. Start gradually, and seek medical advice if you have any known pathologies.
What maintenance is required for the Herkules Fitness Dead Lift?
The Dead Lift requires very little maintenance. All that's required is regular cleaning of the handles and platform, and periodic checking of the fasteners and USB module. Stainless materials and protected components ensure excellent resistance to outdoor weather conditions.
Is the USB plug safe for public use?
Yes, the Dead Lift USB plug is designed for safe public use. It delivers a voltage suitable for small electronic devices, and is protected against moisture, power surges and inappropriate handling. The system is self-contained and complies with external safety requirements.
Does the Dead Lift comply with community safety standards?
Yes, the Herkules Fitness Dead Lift with USB charging complies with European standards for outdoor fitness equipment. Its sturdy structure, ergonomic design and secure electrical components guarantee safe, reliable use in open-access environments.
