Ref. HEH-11Piston Exercise Machines
Shoulders – Piston Machines
Shoulders with piston, outdoor fitness equipment in galvanized steel. EN16630-compliant, it develops shoulder strength for outdoor athletes.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.0 m
- P 1.0 m
- H 1.5 m
Overview
Shoulders - Piston Machines
The Shoulder Apparatus from the Piston Bodybuilder range is specifically designed to develop shoulder strength and strengthen the triceps through a controlled pushing movement.
This outdoor fitness equipment is equipped with an adjustable hydraulic piston offering 8 resistance levels, enabling training to be adapted to the needs of each user, whether beginner or advanced. Thanks to its ergonomic design, this apparatus guarantees targeted muscle work while preserving posture.
Ref. HEH-11 · Piston Exercise Machines
The figures
Technical specifications
ShouldersTechnical sheet · dimensions in mm
- Length
- 1,045
- Width
- 1,007
- Height
- 1,533

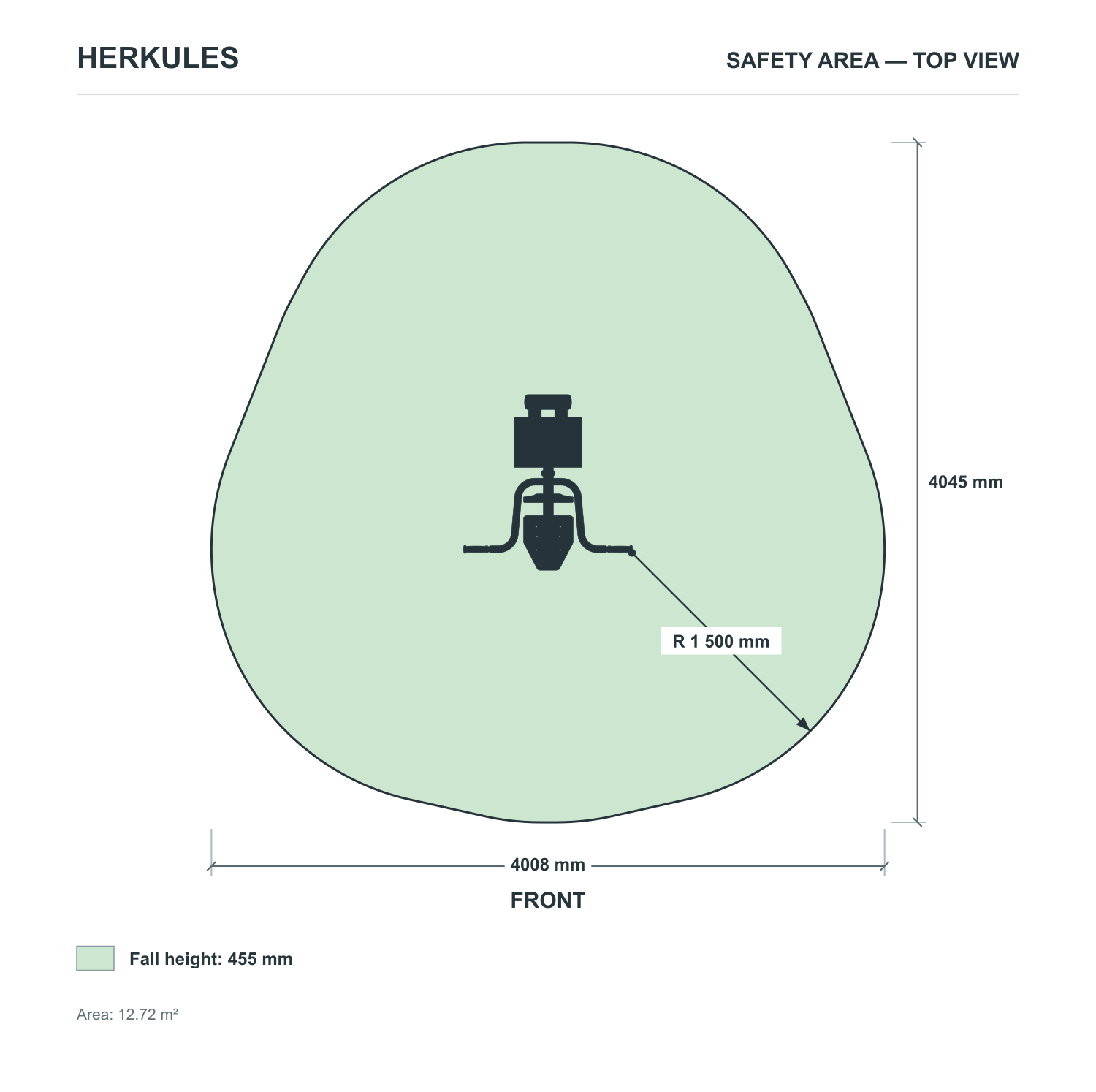

- Safety area
- 4,045 × 4,008 mm · 12.72 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 455 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.216 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & Materials
- Galvanised steel structure:The frame is manufactured from hot-dip galvanised steel, providing exceptional resistance to corrosion, UV exposure and harsh weather conditions for year-round outdoor use.
- Adjustable hydraulic piston:The integrated hydraulic resistance system offers 8 clearly defined levels, allowing smooth and precise adjustment to suit every fitness level without the need for loose weights or complex mechanisms.
- Ergonomic seat and handle design:The handle height and seat positioning are carefully engineered to promote correct shoulder alignment and prevent strain during the pressing movement.
- All contact surfaces feature weather-resistant, non-slip coatings to ensure user comfort and safety in all climatic conditions.
- Built to withstand intensive public use, this apparatus is designed for long-term durability with minimal maintenance requirements, making it a reliable investment for any outdoor fitness installation.
For whom, where
Recommended audiences & environments
- Municipal parks and green spaces seeking inclusive fitness solutions for residents of all ages and abilities.
- Sports complexes and athletic training areas where users require progressive upper-body conditioning equipment.
- School and university campuses promoting active lifestyles through accessible outdoor exercise infrastructure.
- Holiday resorts, campsites and leisure centres looking to enrich their outdoor wellness offering with safe, low-maintenance fitness stations.
The Shoulder Piston Machine is suitable for a wide range of users, from fitness beginners to seasoned athletes, thanks to its adaptable resistance system. It integrates seamlessly into any outdoor fitness circuit, encouraging regular physical activity in shared public spaces while requiring no supervision or specialised knowledge to operate safely.
What sets it apart
Built to last outdoors
In brief
Why choose the Shoulder Piston Machine?
The Shoulder Piston Machine delivers targeted shoulder and triceps strengthening through a safe, controlled pressing motion adapted to every fitness level. Its 8-level hydraulic resistance system makes it equally relevant for rehabilitation contexts, senior fitness areas and high-performance training environments. Designed by Herkules Fitness, it guarantees robust construction, long-term weather resistance and a reliable training experience in any outdoor setting.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Shoulders
Which muscles does the Shoulder Piston Machine primarily target?
This apparatus focuses primarily on the deltoid muscles of the shoulder and the triceps brachii. The controlled overhead pushing movement also engages the upper trapezius and stabilising muscles of the core, making it an effective exercise for overall upper-body functional strength.
Is the Shoulder Piston Machine suitable for older adults or users with limited strength?
Yes, the 8 adjustable resistance levels make this machine accessible to seniors and beginners who require a lighter workload, as well as more experienced users seeking greater challenge. The ergonomic seat and guided movement path also reduce the risk of incorrect posture, making it a safe choice for mixed-ability public environments.
What type of ground surface is required for installation?
The apparatus can be installed on concrete, tarmac or compacted ground using anchor bolts secured into a concrete foundation. Herkules Fitness provides detailed installation guidelines to ensure structural stability and user safety. It is recommended that installation is carried out by qualified professionals.
Does the Shoulders - Piston Machine meet any safety or quality certifications?
Herkules Fitness outdoor fitness equipment is designed and manufactured in compliance with EN 16630, the European standard governing permanently installed outdoor fitness equipment for public use. This standard covers structural integrity, safety requirements and resistance to environmental conditions, ensuring long-term reliability.
How should the hydraulic piston be maintained over time?
The hydraulic piston system is designed for low-maintenance public use and does not require regular lubrication under normal conditions. A periodic inspection of the piston mechanism, moving parts and anchor points is recommended, ideally every six months, to detect any signs of wear and ensure continued safe operation.
What are the approximate dimensions and weight capacity of this apparatus?
While exact dimensions may vary depending on the specific configuration, the Shoulder Piston Machine is engineered to accommodate a broad range of body types and is rated for standard public fitness use. For precise technical specifications, weight limits and footprint dimensions, please consult the product data sheet or contact the Herkules Fitness technical team directly.
