Ref. HEH-14Piston Exercise Machines
Rameur – Piston Exercisers
Piston rower, durable outdoor fitness machine. Perfect for communities, it combines strength and cardio in the great outdoors.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.3 m
- P 0.7 m
- H 1.2 m
Overview

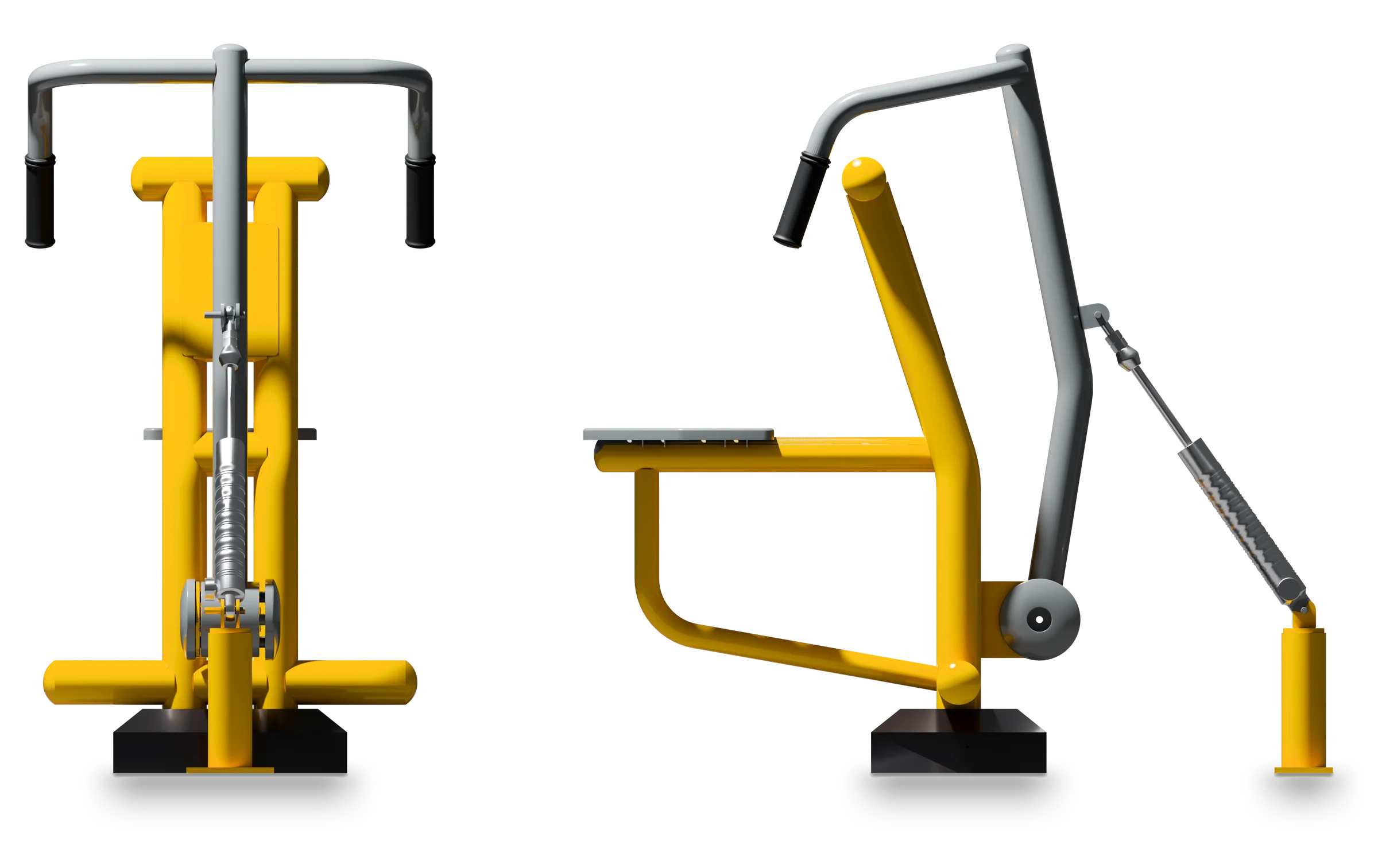

Rameur - Piston Exercisers
The Piston Rowing Machine is designed to provide a complete upper-body workout, working the back, shoulders, arms and abdominal muscles.
This outdoor fitness equipment features an adjustable hydraulic piston with 8 resistance levels, allowing users to tailor their workout to their abilities and goals. The ergonomic design ensures good posture and optimizes the effectiveness of each pulling movement.
Ref. HEH-14 · Piston Exercise Machines
The figures
Technical specifications
RameurTechnical sheet · dimensions in mm
- Length
- 1,282
- Width
- 703
- Height
- 1,248

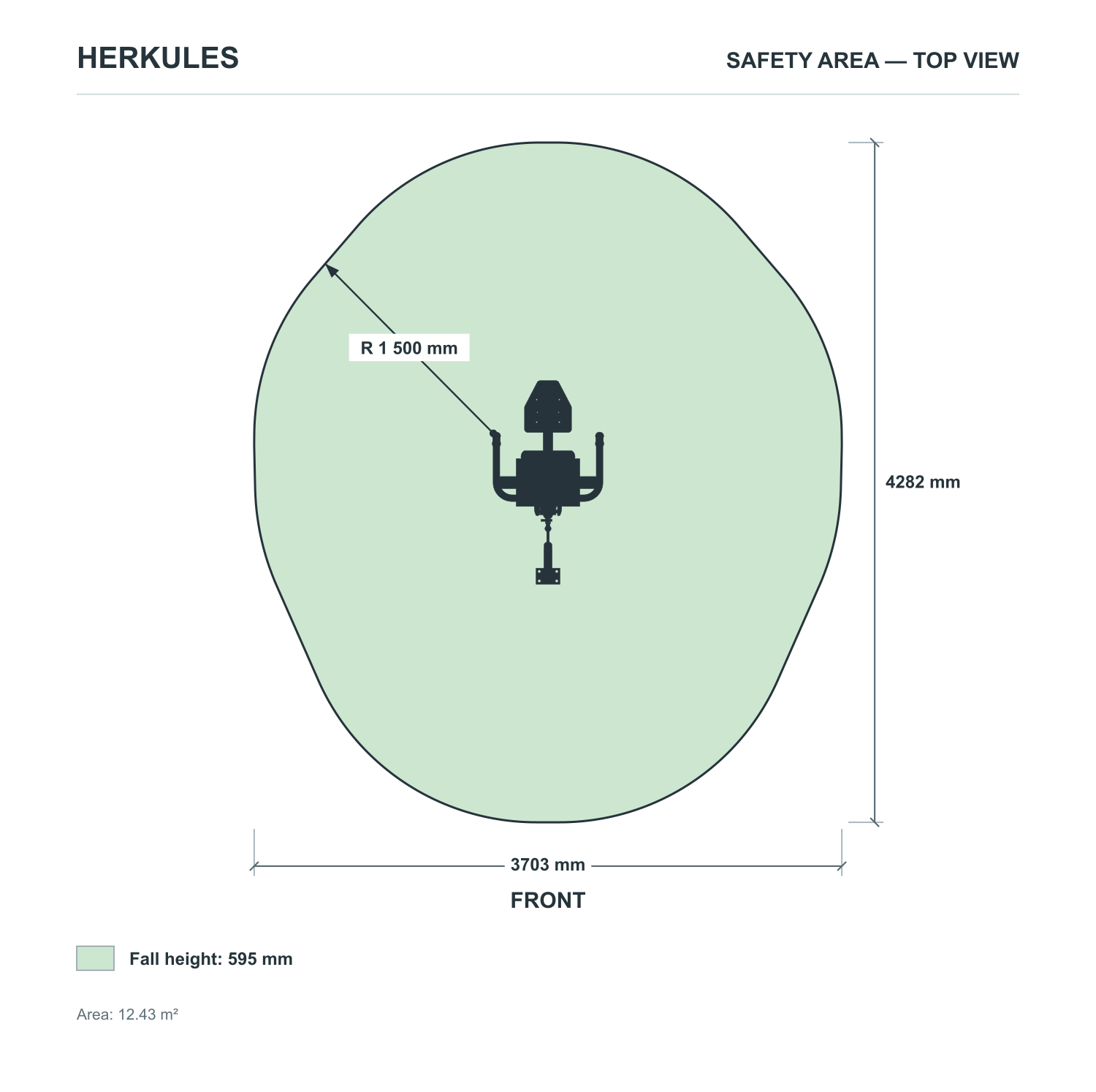

- Safety area
- 4,282 × 3,703 mm · 12.43 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 595 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.214 m³
- Anchoring depth
- 500 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structurethe frame of the Rameur is made of hot-dip galvanized steel, offering optimum resistance to the most demanding weather conditions.
- Adjustable hydraulic pistonequipped with a high-quality hydraulic piston offering 8 levels of resistance, enabling customized progression and minimal maintenance over the long term.
- Careful ergonomicsthe seat, backrest and handles are designed to ensure correct posture during effort, reducing the risk of injury and maximizing the efficiency of every movement.
- Epoxy powder anti-corrosion treatment on all painted surfaces to ensure colorfastness and long-lasting protection outdoors.
- All components have been selected to meet the requirements of intensive collective equipment, guaranteeing exceptional durability even with daily use by numerous users.
For whom, where
Recommended audience & environment
- Urban parks and municipal green spaces wishing to offer fitness equipment accessible to all levels.
- Senior residences and rehabilitation centers looking for a low-impact device to strengthen the upper body.
- Schools, high schools and university campuses wishing to enrich their outdoor sports offer.
- Sports complexes, leisure centers and seaside resorts that integrate outdoor fitness trails for their users.
The Rameur - Appareils de Musculation Piston is designed for a wide range of users, from beginners to experienced athletes, thanks to its 8 adjustable resistance levels. Its sturdy design and accessibility make it an ideal choice for any community wishing to offer a complete and durable outdoor fitness area.
What sets it apart
Built to last outdoors
In brief
Why choose a rowing machine?
The Rameur is the benchmark machine for working the upper body outdoors, effectively targeting the back, shoulders, arms and abdominal muscles in a single functional movement. With its 8 resistance levels, it's suitable for beginners and experienced exercisers alike, and fits perfectly into any urban or group fitness space. Designed by Herkules Fitness, it guarantees rugged sturdiness, intuitive operation and longevity for high-traffic facilities.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Rameur
What muscles does the outdoor rowing machine work?
The Rameur mainly targets the back muscles (lats, trapezius and rhomboids), shoulders, biceps and forearms. The abdominal girdle is also used as a stabilizing muscle throughout the movement, making it a complete upper-body exercise.
Is the rowing machine suitable for the elderly or beginners?
Yes, thanks to its 8 adjustable resistance levels, the Rameur can be used by people of all abilities, including seniors and beginners. Movement is fluid and controlled, limiting joint stress and making the machine particularly well-suited to progressive fitness.
What are the floor and installation requirements for this outdoor rower?
To ensure user safety, the rowing machine must be anchored to a concrete slab or stabilized surface. Fixing plates are provided at the base of the unit. We recommend using a professional installer and providing a clear safety zone around the equipment, in accordance with current standards.
Is the Rameur certified for use in public spaces?
Yes, the Rameur is designed and manufactured to meet the requirements of outdoor sports equipment for community use. It complies with European standards applicable to outdoor fitness equipment, guaranteeing user safety in a context of intensive, shared use.
What maintenance is required to keep the rowing machine in good condition?
The rowing machine requires simple, regular maintenance: periodically check that the hydraulic piston is working properly, check that the bolts are tight, and visually inspect the condition of the paintwork and welds. Cleaning with water and a non-abrasive product is all that's needed to preserve the appearance and longevity of the machine.
What is the maximum load capacity of the rowing machine and what are its dimensions?
The Rowing Machine is designed to withstand intensive collective use, with a load capacity adapted to a standard adult user. For precise dimensions and maximum approved load, please consult the product data sheet or contact our Herkules Fitness sales team directly for personalized assistance.
