Ref. HEH-17Piston Exercise Machines
Leg
Lift – Piston Strength Training Equipment
Leg Lift with piston, outdoor fitness equipment in galvanized steel. EN16630-compliant, it strengthens legs and core in community parks.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 1.2 m
- P 0.7 m
- H 1.5 m
Overview

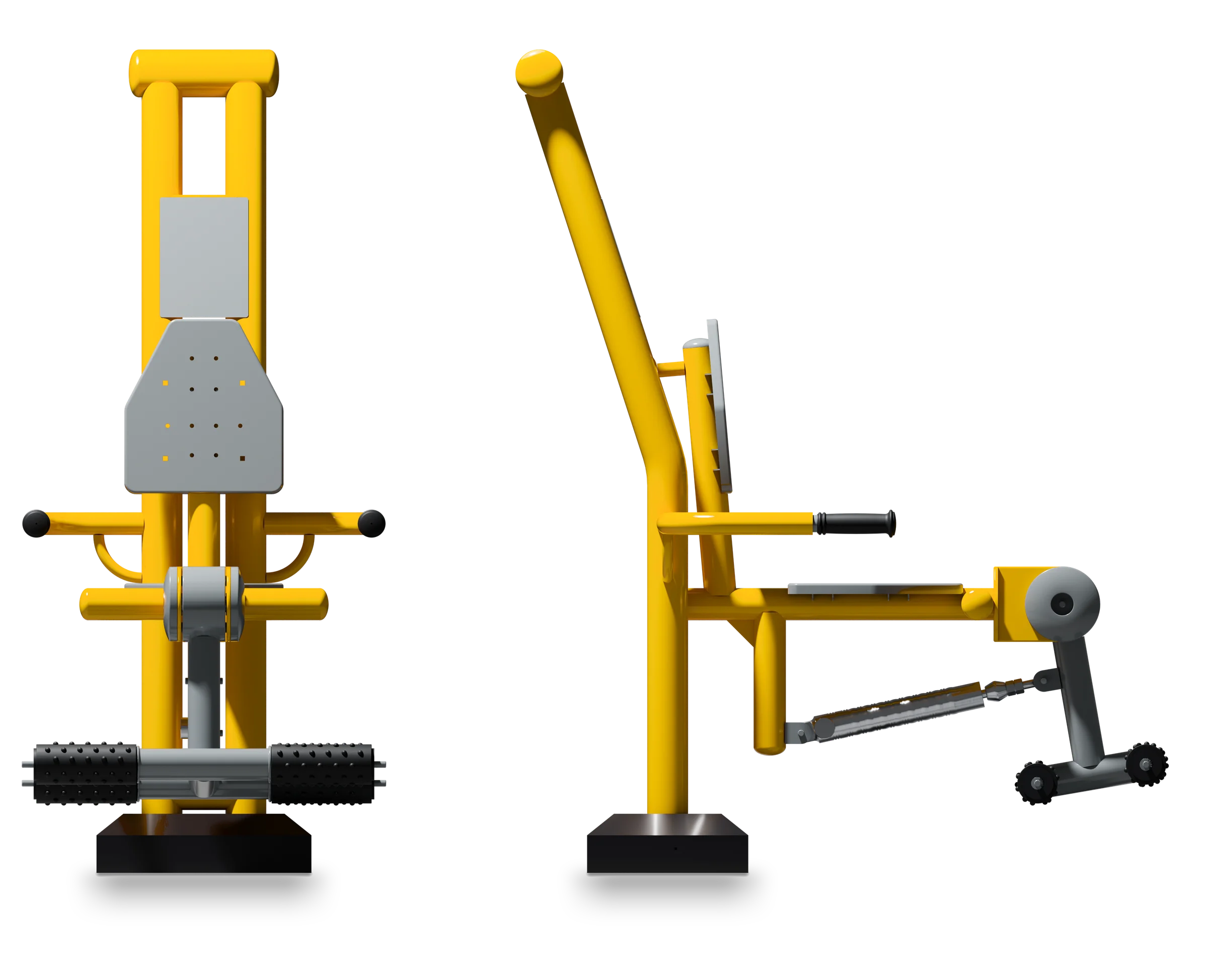

Leg Lift - Piston Strength Training Equipment
The Leg Lift from the Piston Bodybuilding Equipment range is designed to strengthen leg muscles, particularly the quadriceps, through a controlled lifting movement.
This outdoor fitness equipment features an adjustable hydraulic piston offering 8 resistance levels, enabling users to customize the intensity of their workout to suit their level and goals. The ergonomic design ensures targeted work while guaranteeing comfort and safety.
Ref. HEH-17 · Piston Exercise Machines
The figures
Technical specifications
Leg LiftTechnical sheet · dimensions in mm
- Length
- 1,216
- Width
- 678
- Height
- 1,533
- Safety area
- 4,216 × 3,678 mm · 12.95 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 540 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.216 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- To be assembled
Built to last outdoors
Design & materials
- Galvanized steel structureThe main frame is made of hot-dip galvanized steel, offering optimum resistance to climatic aggression and temperature variations.
- Anti-corrosion treatmentEach component is epoxy powder-coated after surface treatment, guaranteeing long-lasting protection against rust and UV rays.
- Adjustable hydraulic pistonThe 8-stage resistance mechanism is designed for intensive outdoor use, with high-performance seals resistant to weathering and repeated wear.
- The rollers and side handles are coated with a non-slip material to ensure a secure grip and comfortable use, even in wet weather.
- The overall design guarantees exceptional durability in outdoor environments, with low maintenance and longevity suited to intensive public installations.
For whom, where
Recommended audience & environment
- Urban parks and green spacesIdeal for open-air fitness zones accessible to all users in a neighborhood or city.
- Schools and universitiesPerfect for landscaped playgrounds or outdoor sports areas on campus.
- Residences and condominiumsSuitable for common areas in residences seeking to offer fitness equipment to their residents.
- Rehabilitation centers and medico-social facilitiesThanks to its 8 adjustable resistance levels, it can be adapted to lower limb rehabilitation programs supervised by healthcare professionals.
The Leg Lift integrates naturally into any outdoor fitness trail, whether in a dynamic urban environment or in a green setting conducive to well-being. Its versatility makes it the equipment of choice for communities wishing to offer inclusive and accessible sports activities.
What sets it apart
Built to last outdoors
In brief
Why choose Leg Lift?
The Leg Lift is the ideal solution for effectively strengthening the quadriceps and improving knee mobility outdoors, thanks to its hydraulic piston with 8 resistance levels to suit all profiles. It's just as suitable for beginners wishing to progress gently as for experienced athletes looking to intensify their lower-body training. Designed by Herkules Fitness, it guarantees unfailing sturdiness, optimum safety in collective use and lasting integration into any outdoor sports area.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Leg Lift
Which muscles are mainly involved in Leg Lift?
Leg Lift primarily targets the quadriceps, located at the front of the thighs. The knee-extension movement also calls on the pelvic stabilizer muscles and lightly engages the abdominals to maintain correct sitting posture during the exercise.
Is the Leg Lift suitable for people in rehabilitation or senior citizens?
Yes, thanks to its 8 adjustable resistance levels, the Leg Lift can be used at low intensity as part of lower limb rehabilitation or training adapted to senior citizens. However, it is advisable to consult a healthcare professional before using it in a medical context.
What are the floor installation requirements for this device?
The Leg Lift must be anchored to stable ground, preferably concrete or a compacted mineral surface. An unobstructed safety zone around the unit is recommended in accordance with EN 16630. Installation must be carried out by a qualified professional in accordance with the instructions supplied.
Is the device certified for use in public areas?
Yes, the Leg Lift is designed to meet the requirements of outdoor fitness equipment for collective use, in accordance with European standard EN 16630 for fixed outdoor fitness equipment. Specific certifications are available on request from our sales team.
What maintenance is required to keep the unit in good working order?
Regular maintenance consists of visually inspecting the entire structure, checking that the hydraulic piston is working properly and checking the condition of the floor fixings. Periodic cleaning with water and neutral soap is all that's needed to preserve the coatings. An annual check by a technician is recommended.
What is the maximum load capacity of the Leg Lift and what are its dimensions?
The Leg Lift is designed to support a user weighing up to 150 kg, corresponding to the standard for collective outdoor fitness equipment. For the exact dimensions of the equipment and the layout plans required for your project, we invite you to contact our team directly to obtain the complete technical data sheet.
