Ref. THJ-D14E/BClassic fitness equipment
Double Traction
Ladder – Outdoor Fitness Equipment
Outdoor double-pull ladder, designed for simultaneous pulls, complies with European standards.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 2

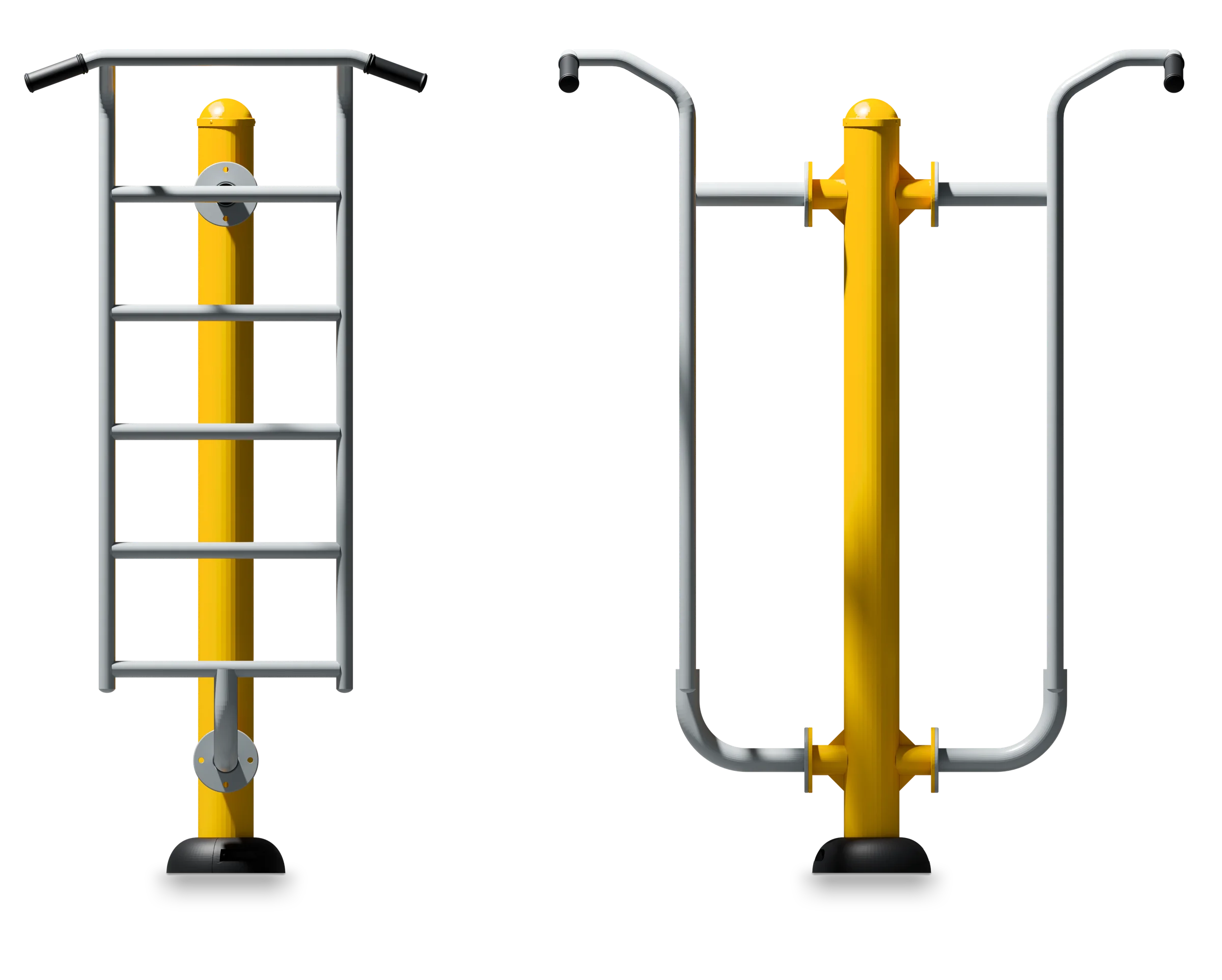

Product view
- L 1.6 m
- P 1.0 m
- H 2.1 m
Overview
Double Traction Ladder - Outdoor Fitness Equipment
The Pull-Up Ladder is an outdoor fitness apparatus designed to strengthen the upper body, particularly the muscles of the arms, back and shoulders.
This equipment enables you to perform pull-ups at different heights, using your body weight as resistance, offering a progressive workout suitable for all levels. The Pull-Up Ladder is ideal for improving muscular strength, coordination and core stability while enjoying an outdoor environment.
Ref. THJ-D14E/B · Classic fitness equipment
The figures
Technical specifications
Double Traction LadderTechnical sheet · dimensions in mm
- Length
- 1,582
- Width
- 1,019
- Height
- 2,081

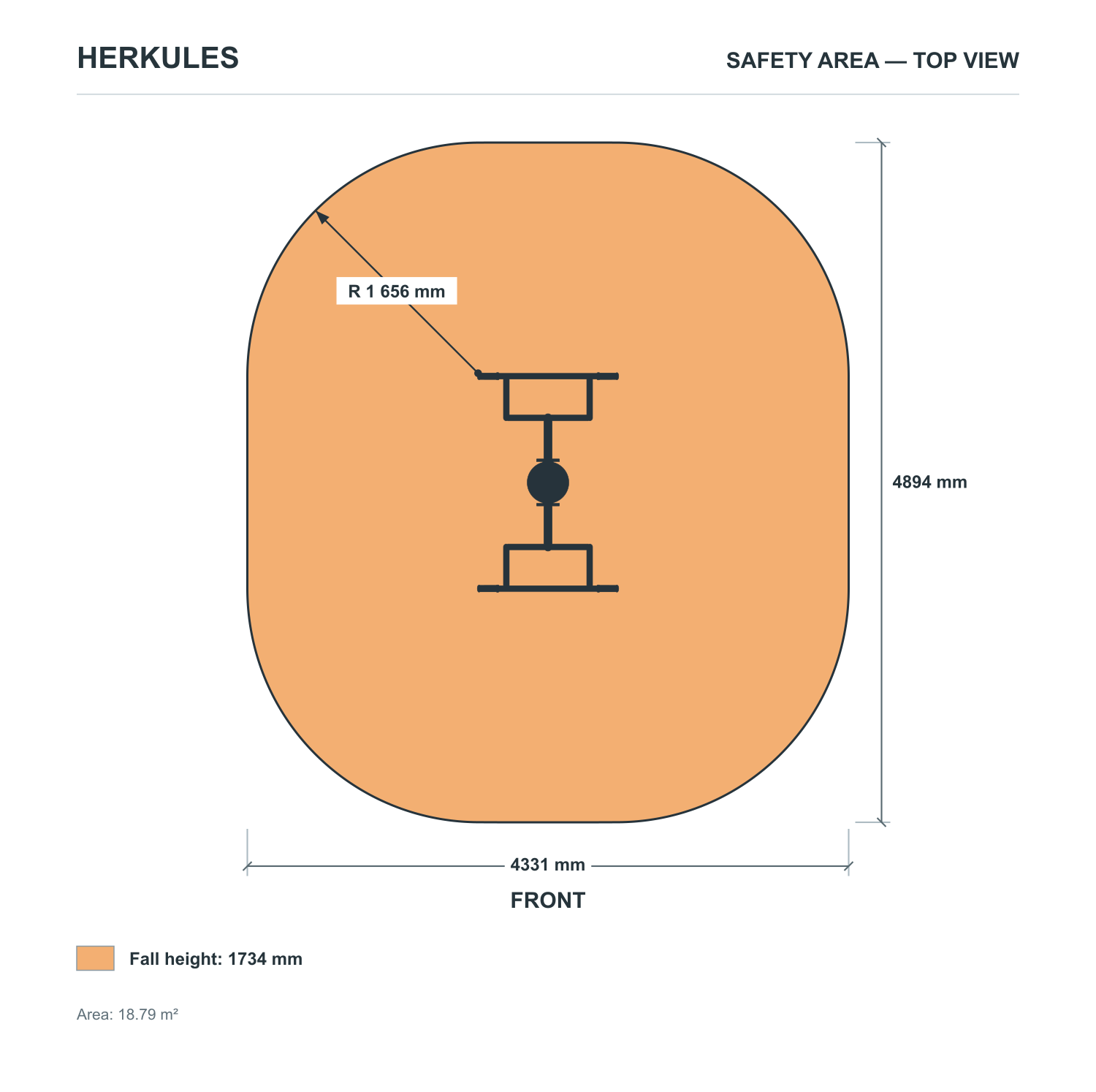

- Safety area
- 4,331 × 4,894 mm · 18.79 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
What it trains
Function
What the standard requires
Safety & use
Safety & use
- Free fall height
- 1,734 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 2
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.15 m³
- Anchoring depth
- 600 mm
- Assembly
- To be assembled
Built to last outdoors
Design & Materials
- Hot-dip galvanized steel structuredesigned for intensive outdoor use
- Anti-corrosion treatmentfor lasting resistance to weather and UV exposure
- Ergonomic designensuring comfort and safety during exercise
- Non-slip platforms and grips for optimal stability
- Built to withstand heavy public use across all seasons
For whom, where
Recommended audiences & environments
- Public parks and outdoor fitness areas
- Municipalities and local authorities
- Corporate wellness spaces and sports facilities
- Freely accessible community exercise zones
Suitable for beginners and experienced users alike, encouraging regular outdoor exercise.
What sets it apart
Built to last outdoors
In brief
Why choose Double Traction Ladder?
The Double Traction Ladder delivers effective, accessible training for a wide range of users in outdoor settings. Its intuitive design encourages regular physical activity without requiring prior experience. Manufactured by Herkules Fitness, it guarantees robustness, safety, and long-term durability for public installations.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Double Traction Ladder
What muscles does the Double Traction Ladder target?
The Double Traction Ladder primarily targets the muscles indicated in its name, along with stabilising muscles that maintain posture during the exercise. Regular use helps build functional strength and improve overall fitness.
Is the Double Traction Ladder suitable for beginners?
Yes, the Double Traction Ladder is designed to be accessible to all fitness levels. The guided movement pattern reduces the risk of incorrect form, making it safe and effective for first-time users.
What certifications does this equipment have?
The Double Traction Ladder is certified to EN 16630:2015, the European standard for permanently installed outdoor fitness equipment. This ensures the highest levels of safety and structural integrity for public use.
What ground surfaces are compatible with installation?
The Double Traction Ladder can be installed on concrete, natural grass, synthetic turf, gravel, sand, EPDM, or shock-absorbing tiles. The surface must comply with the free fall height requirements specified in EN 16630:2015.
What maintenance is required?
Regular inspection of fixings and moving parts is recommended. The anti-corrosion treatment ensures long-term durability, so only periodic cleaning and an annual preventive check are needed.
What is the maximum user weight capacity?
The Double Traction Ladder supports a maximum user weight of 150 kg, ensuring safe use for the vast majority of the public. The structure is designed for intensive outdoor use without compromising on strength.
