Ref. HER-15Street Workout Equipement
Step Plio
4x – Street Workout stations
Step Plio 4x, plyometric outdoor module for power and explosiveness with Herkules Fitness professional robustness.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 4

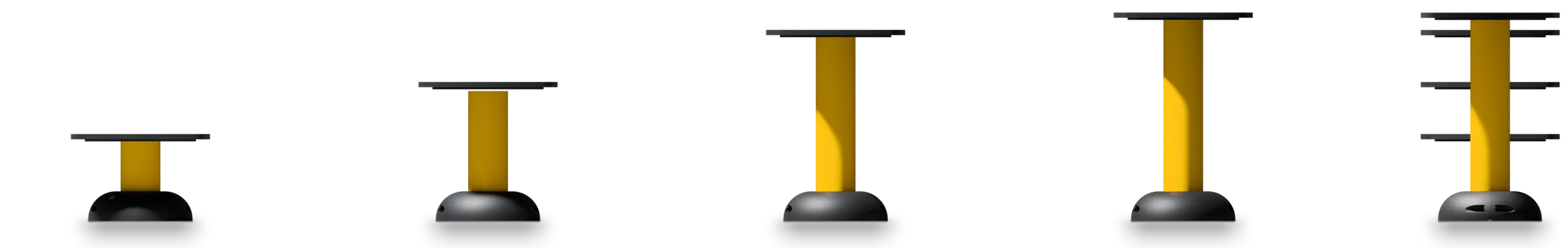

Product view
- L 3.4 m
- P 0.4 m
- H 0.6 m
Overview
Step Plio 4x - Street Workout stations
Step Plio 4x is an outdoor street workout station dedicated to plyometric work and the development of lower-limb power.
Comprising four progressive heights, it features vertical jumps, explosive climbs and coordination exercises. Biomechanics are based on the stretch-shorten cycle, involving quadriceps, hamstrings, calves and stabilizing muscles. This module promotes the development of explosive strength, reactivity and motor coordination.
Ref. HER-15 · Street Workout Equipement
The figures
Technical specifications
Step Plio 4xTechnical sheet · dimensions in mm
- Length
- 3,400
- Width
- 400
- Height
- 600

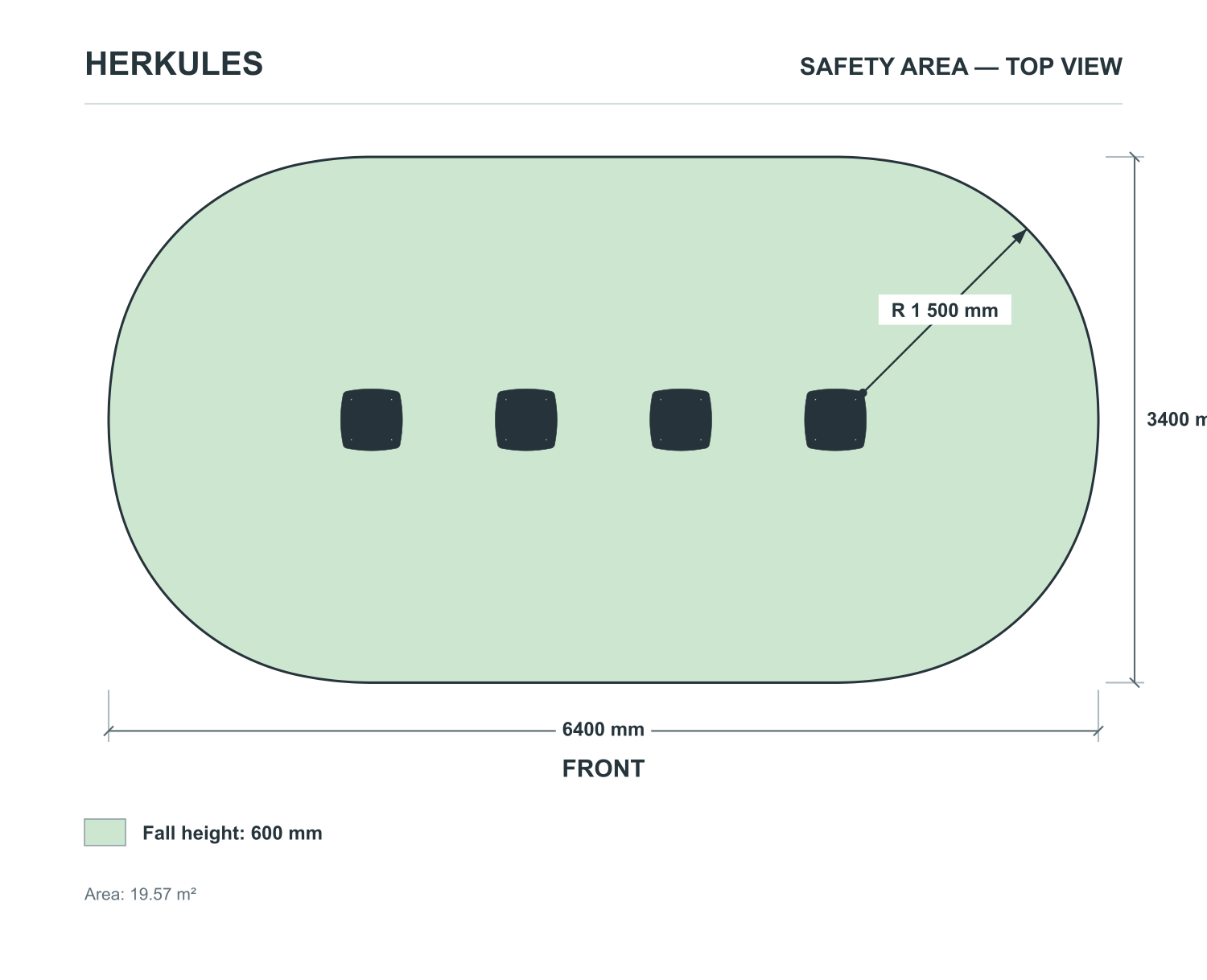

- Safety area
- 6,400 × 3,400 mm · 19.57 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
The Step Plio 4x is designed for teenagers and adults, from intermediate to advanced levels.
It enables:
- Progressive box jumps
- Working on vertical relaxation
- Improve coordination and explosiveness
It is recommended to master the landing technique (bent knees, full foot support) to limit joint stress. The quality of the landing takes precedence over the height reached.
What it trains
Function
- Developingleg power
- Improvedmotor coordination
- Dynamic cardiovascular work
- Strengthening stabilizing muscles
- A key module for explosive outdoor training
What the standard requires
Safety & use
Safety & use
- Free fall height
- 600 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 130 kg
- Number of users
- 4
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.6 m³
- Anchoring depth
- 600 mm
- Assembly
- Pre-assembled
Built to last outdoors
Design & materials
- Galvanized steel structurefor intensive outdoor use
- Reinforced anti-corrosion treatmentagainst weathering and UV rays
- Robust platformsdesigned for repeated impacts
- Stable, safe design
- Durable equipment for demanding collective environments
For whom, where
Recommended Public & Environment
- Urban parks and street workout areas
- Local authorities
- Sports clubs and schools
- Open-access physical training zones
A high-performance solution to enhance a dynamic training area.
What sets it apart
Built to last outdoors
In brief
Why choose Step Plio 4x?
The Step Plio 4x - Stations Street Workout brings an explosive, athletic dimension to an outdoor sports area. It offers a progressive workout thanks to its different heights, and attracts a young, sporty audience. Designed by Herkules Fitness, this module guarantees robustness, safety and durability for local authorities.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Step Plio 4x
Is the Step Plio 4x - Stations Street Workout suitable for advanced sports training?
Yes, the Step Plio 4x - Stations Street Workout is particularly well-suited to those wishing to develop power and explosiveness. The different heights available enable you to progressively increase the level of difficulty.
Can it be used in a physical preparation program?
Yes, the Step Plio 4x - Stations Street Workout is particularly well-suited to those wishing to develop power and explosiveness. The different heights available enable you to progressively increase the level of difficulty.
What's the point of different heights?
Progressive heights enable intensity to be adapted to each user. They encourage safe, structured progression in plyometric work.
Does this module appeal to a young audience?
Yes, explosive, dynamic exercises attract the interest of teenagers and young adults, boosting the appeal of an urban sports park.
Can the structure withstand repeated impacts?
Yes, its sturdy galvanized steel design and reinforced platforms are dimensioned to withstand the impact of repeated jumps in collective use.
What kind of maintenance is recommended for the public sector?
Regular inspection of fixings and bearing surfaces is recommended. Annual preventive maintenance guarantees safety, compliance and longevity.
Does the Step Plio 4x comply with European standards?
Yes, the Step Plio 4x - Stations Street Workout Herkules Fitness complies with European standards for outdoor sports equipment, ensuring safe and reliable use.
